Product Overview

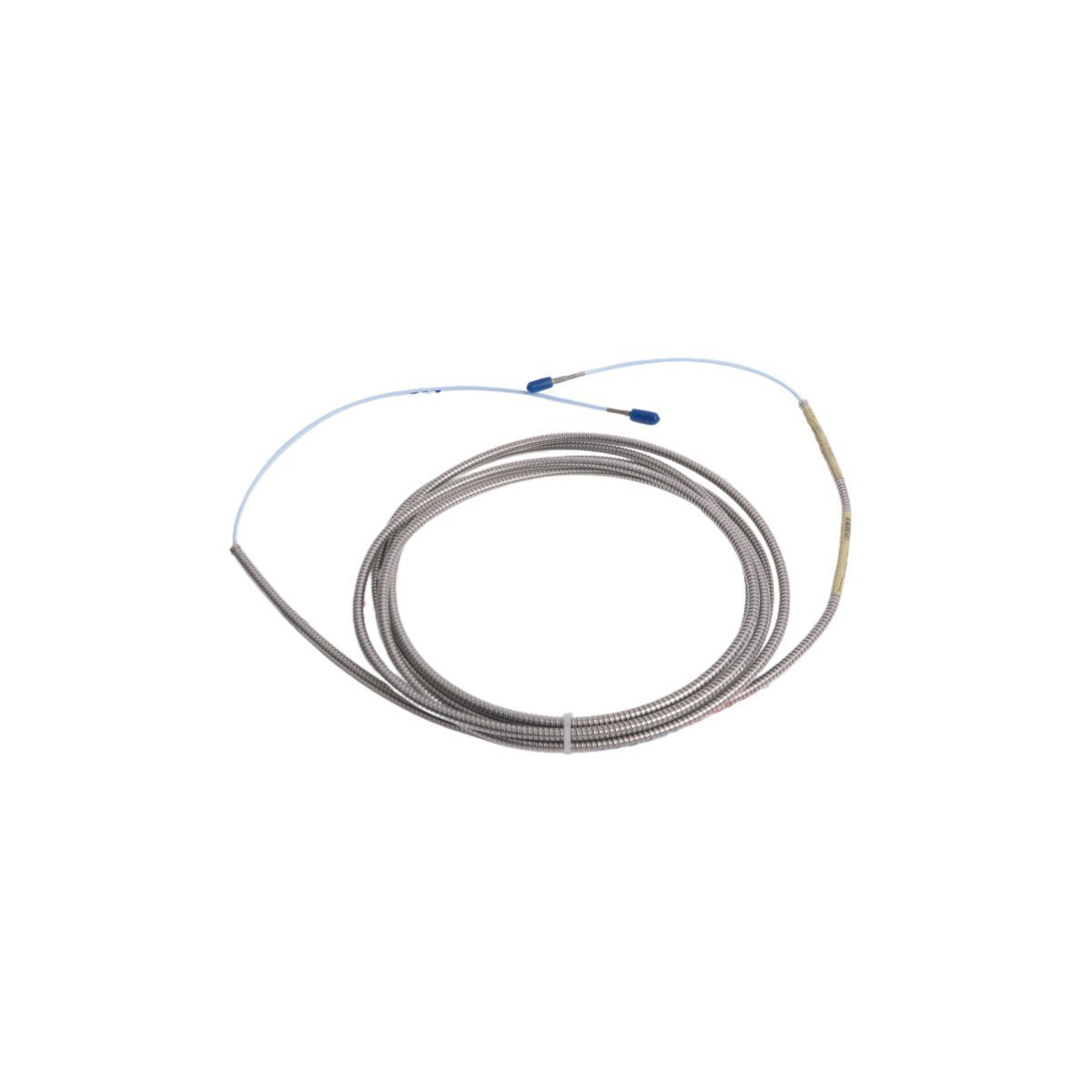

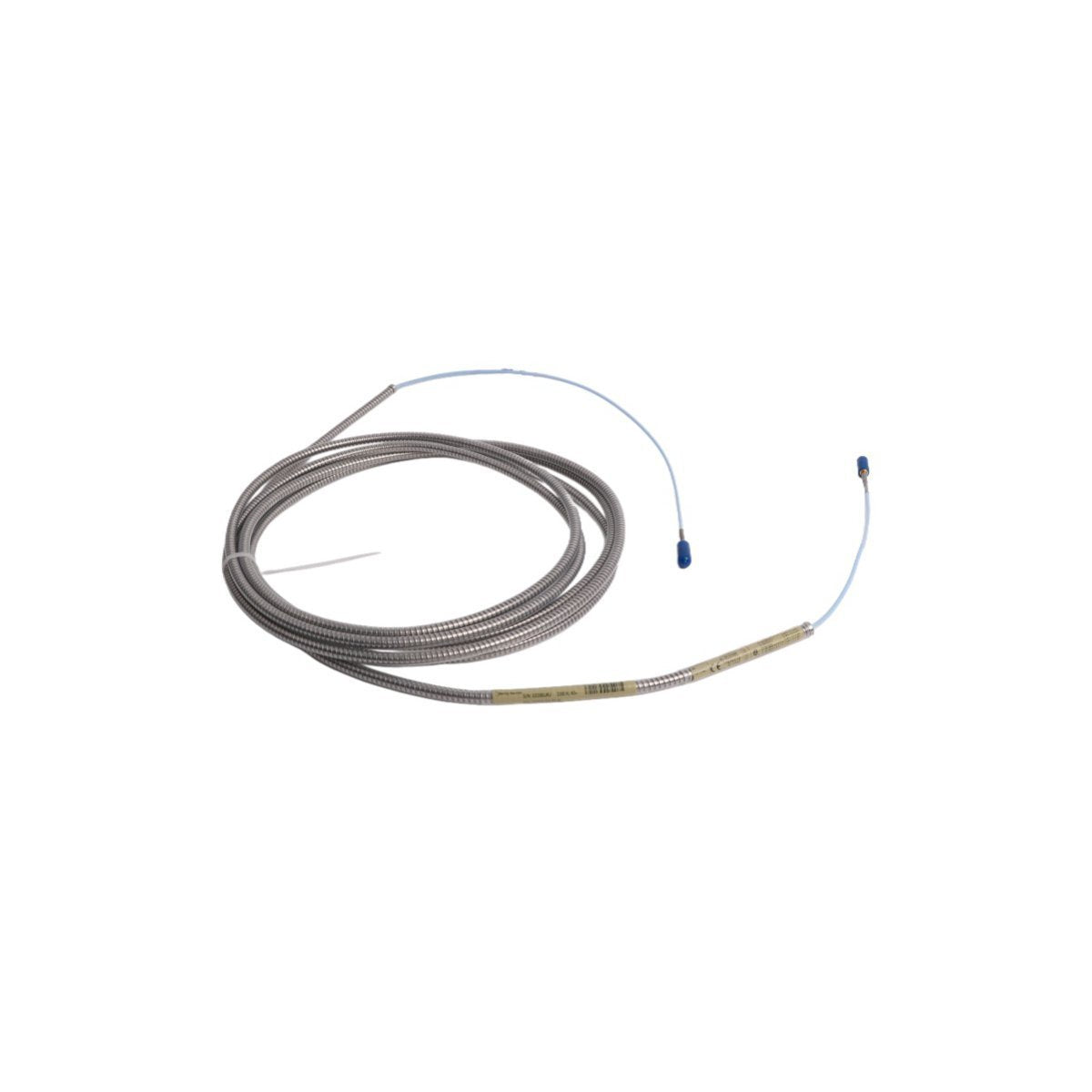

The Bently Nevada 330930-045-05-05 is a high-fidelity extension cable designed specifically for the 3300 NSv (Near Surface) proximity transducer system. In industrial environments where small-diameter shafts and limited mounting clearances demand the use of NSv probes, this cable serves as the critical signal bridge to the Proximitor sensor. It preserves the integrity of high-frequency eddy current signals, ensuring precise radial vibration and axial position data reach the Bently Nevada 3500 monitoring rack. This cable is indispensable for machinery protection in high-speed centrifugal compressors and aero-derivative turbines, where even infinitesimal signal attenuation could lead to inaccurate diagnostics or failed emergency shutdown (ESD) protocols.

Extension Cable Configuration Logic

330930 - 3300 NSv Extension Cable

This base model identifies the cable as part of the specialized NSv (Near Surface) series, which features different electrical properties than the standard 3300 XL series to accommodate smaller probe coils.

-045 - Length Specification

The "-045" suffix designates a cable length of 4.5 meters (approximately 14.8 feet). When paired with a 0.5-meter or 1.0-meter integral probe cable, it completes the tuned electrical length required by the NSv Proximitor sensor.

-05-05 - Connector & Approval Options

The first "-05" indicates the inclusion of a stainless steel armor, providing superior mechanical protection against crushing or abrasion in harsh plant environments. The second "-05" confirms multiple global agency approvals, including ATEX, IECEx, and CSA, certifying the cable for use in Zone 0, 1, and 2 hazardous locations.

Essential Technical Matrix

Site Engineering Guidelines

During commissioning, technicians must verify that the total system length (probe cable plus extension cable) matches the Proximitor sensor's calibration—typically 5.0 or 7.0 meters for the NSv system. Always utilize the connector protector sleeves at the probe-to-extension junction to prevent fluid ingress. Maintain a minimum bend radius of 25.4 mm (1.0 inch) for the armored section to avoid internal coaxial fatigue. For hazardous area installations, ensure the armor is properly grounded through the junction box to mitigate potential electrostatic discharge or interference with the Turbine Supervisory Instrumentation (TSI) signals.

Industrial Performance Advantages

The 330930-045-05-05 is engineered to withstand the extreme thermal cycling and chemical exposure of petrochemical and power generation facilities. Its low-capacitance design minimizes "thermal drift," ensuring that vibration readings remain stable from machine startup to full-load operation. The stainless steel armor provides an impenetrable barrier against physical damage and EMI/RFI noise, allowing for seamless integration with Honeywell Experion PKS or other high-level DCS platforms. This stability is vital for advanced vibration analysis, including shaft centerline plots and orbit diagnostics on critical assets.

Ordering info

• One (1) Bently Nevada 330930-045-05-05 4.5m Extension Cable.

• Factory-sealed anti-static moisture-barrier packaging.

• Integral stainless steel flexible armor coating.

• Coaxial connectors with gold-plated contacts for signal stability.

• Manufacturer’s certificate of compliance and traceability report.

Logistics & Global Shipping

Delivery time: 3-5 days when payment finish via DHL/FEDEX/UPS. Our logistics team employs high-durability, anti-static industrial packaging to ensure the armored cable arrives without physical distortion or moisture contamination. Every unit is dispatched from our inventory with full insurance and real-time tracking for secure worldwide delivery.

Expert Technical FAQs

Q1: Can I use this NSv cable with a standard 3300 XL 8mm probe?

A1: No. The 330930 is electrically tuned for the NSv system. Using it with a standard 3300 XL probe will result in massive scale factor errors and will invalidate your machinery protection data.

Q2: What is the benefit of the stainless steel armor (-05 option)?

A2: The armor prevents the coaxial cable from being crushed or cut by sharp metal debris or during routine maintenance activities around the machine train, significantly extending the sensor's service life.

Q3: Does the cable length affect the vibration reading?

A3: Yes. Proximity systems are tuned to a specific total electrical length. You must use the 4.5m extension cable only with the corresponding probe and Proximitor calibrated for a 5.0m or 7.0m total system.

Q4: How do I identify if the connector is damaged?

A4: Perform a continuity and resistance check. Any significant deviation from factory specs or visual signs of corrosion on the gold contacts indicates the cable should be replaced to prevent "Not OK" monitor status.
