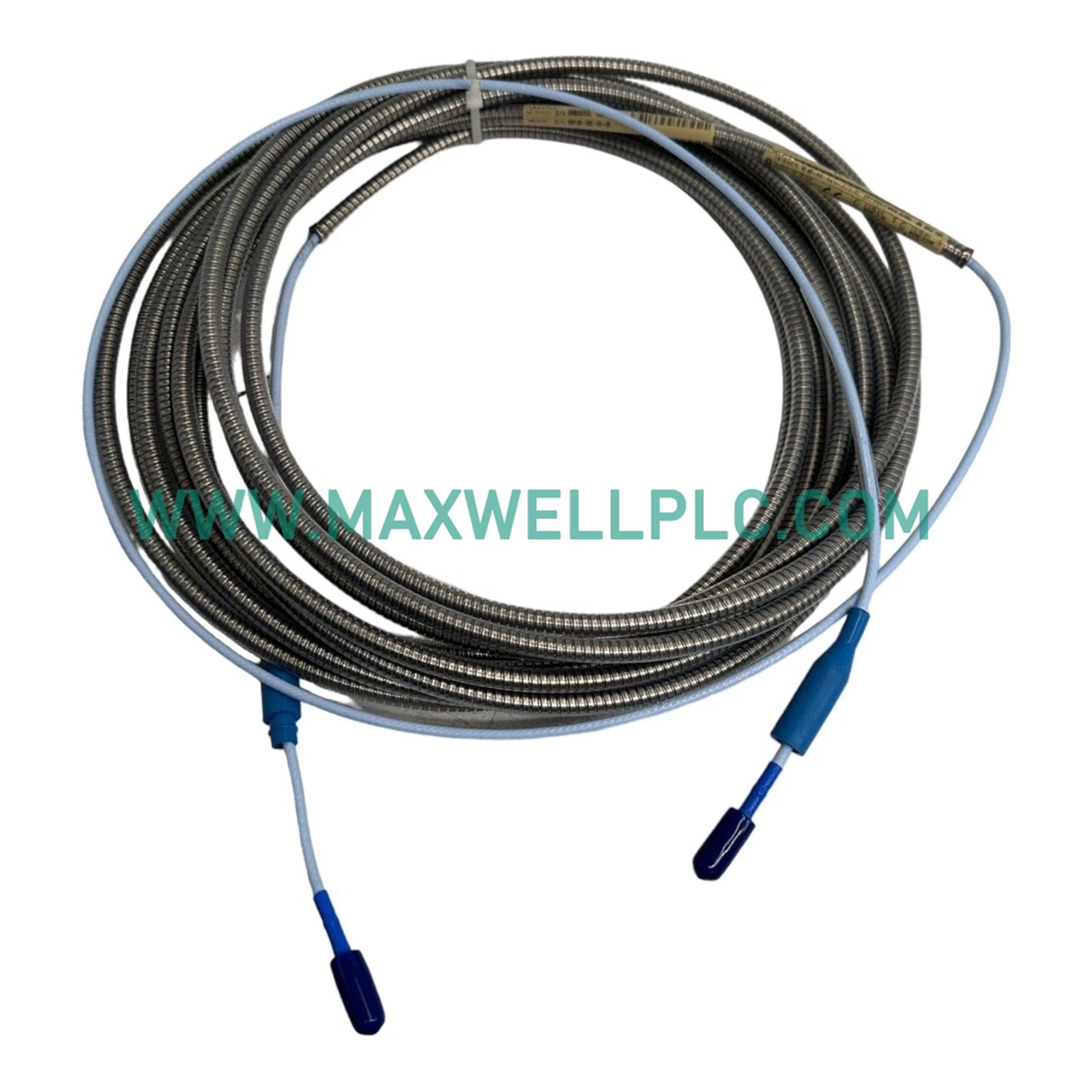

Configured for non-contacting static and dynamic shaft displacement measurements in 3300 System NSv Turbomachinery Instrumentation platforms, the Bently Nevada 330906-02-12-05-02-00 (330906 Reverse Mount Probe) provides direct physical/electrical execution. The hardware translates high-frequency eddy-current field modulations induced by the reverse-mount tip geometry into continuous analog signals to monitor precise radial vibration and axial position parameters relative to a rotating target.

Suffix Matrix Breakdown

• 02-12: 3/8-24 UNF threads mechanical configuration

• 05: 0.5 meter (20 inches) total cable length

• 02: Miniature coaxial ClickLoc connector, standard cable type

• 00: Agency approval option not required

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The 3300 NSv reverse mount hardware relies on explicit eddy-current probe scaling coefficients calibrated for confined installation spaces. Mechanical positioning of the reverse mount shell establishes the physical air gap relative to the target surface, targeted to satisfy the exact gap voltage validation criteria of -10 VDC at the center point of the linear range. This alignment facilitates high-fidelity mapping of rotor dynamics, filtering out minor physical target imperfections while executing dedicated cross-talk suppression metrics when multiple probes are located within close physical proximity along the machine bearing block.

Kit Content Checklist

• One (1) integrated Bently Nevada 330906 reverse mount probe assembly with 0.5-meter standard cable.

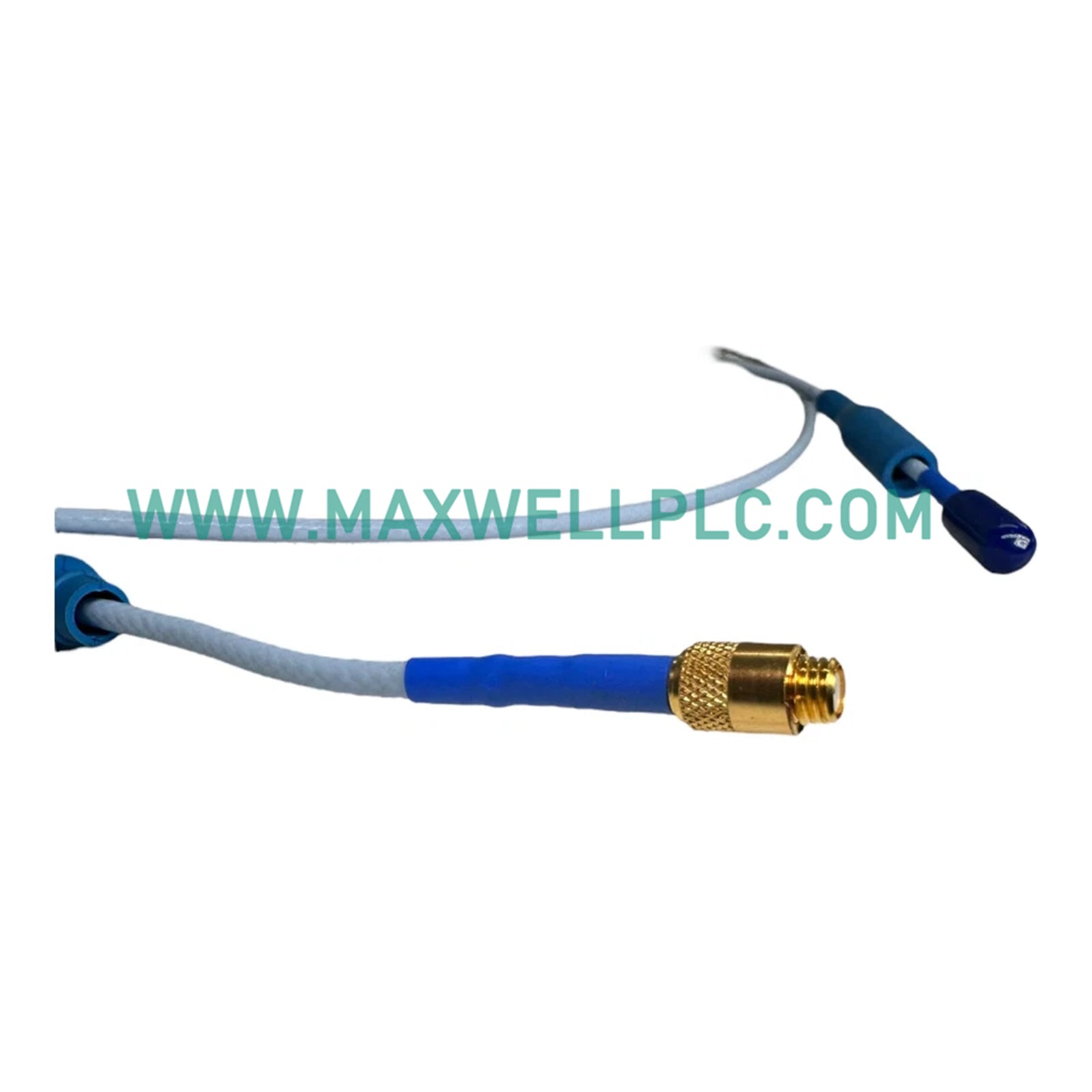

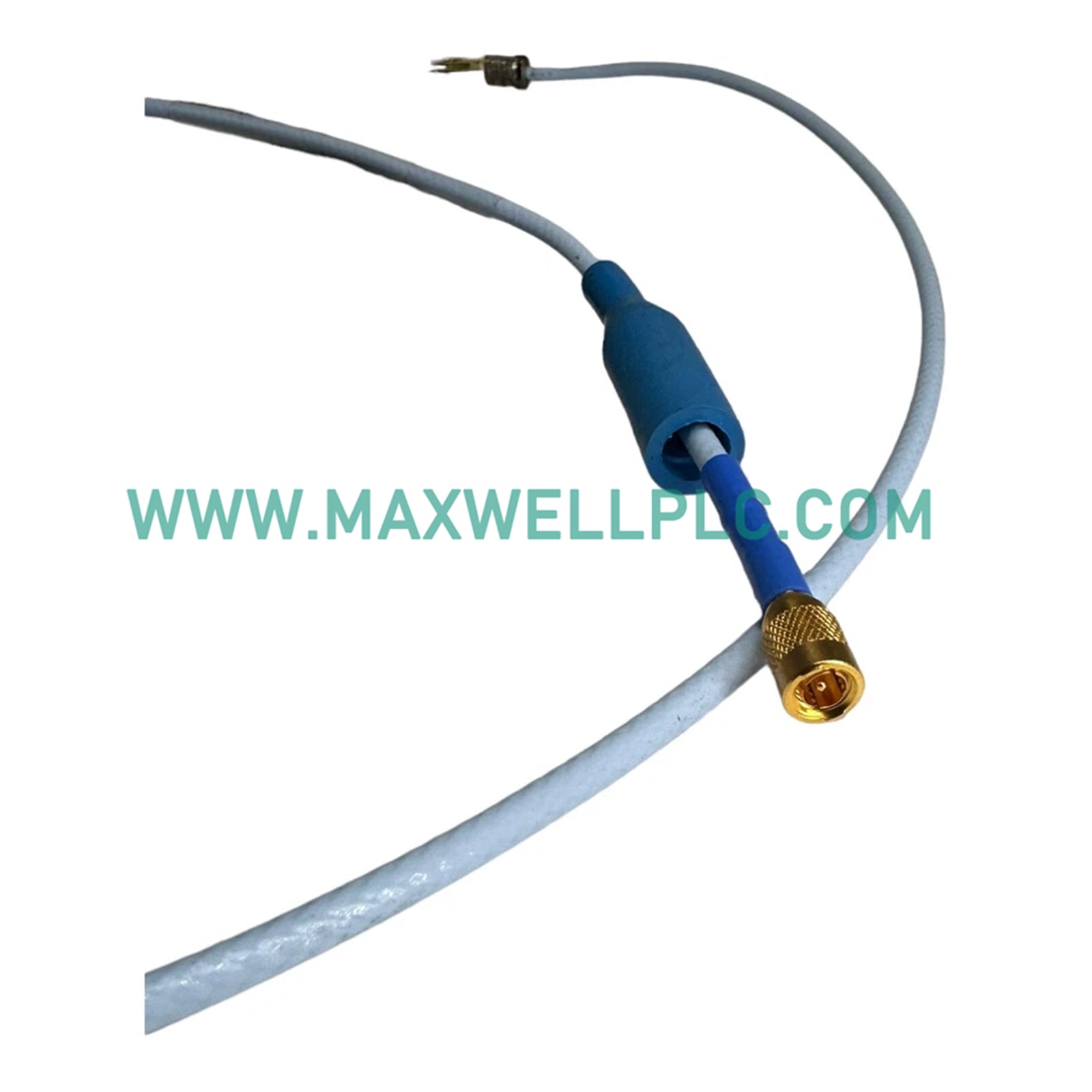

• One (1) pre-installed miniature coaxial ClickLoc connector.

• Excludes external extension cables, separate housing brackets, and standalone 3300 NSv Proximitor sensors.

Logistics and Dispatch Standards

• Processing Window: Material dispatch is executed within 2-7 days when payment finish verification is finalized.

• Consignment Dispatch: Logistics management routes all outbound shipments via DHL, FEDEX, or UPS from the global hub network.

• Defect Prevention Packaging: Parts travel enclosed in high-density anti-static industrial packaging to negate latent electrostatic breakdown risk.

Field Installation Guidelines

• Reverse Mount Torquing Constraints: Secure the reverse mount sleeve assembly into the threaded monitoring port. Torque all mounting fasteners to a maximum threshold of 11.2 N-m (100 in-lb) to prevent distortion of the 3/8-24 UNF threads.

• Transducer Gap Optimization: Interconnect a digital voltmeter to the corresponding Proximitor output terminal block. Rotate the probe body inside the housing until the real-time gap voltage validation records -10 VDC nominal before locking down the outer assembly.

• Coaxial Joint Shield Isolation: Prior to final insertion into protective conduit sleeves, wrap all miniature ClickLoc connection nodes with fluorocarbon heat-shrink insulation. This isolates the coaxial signal path from local ground potentials and sustains cross-talk suppression integrity.

Frequently Asked Questions

Q: How does a field deviation from the nominal -10 VDC gap voltage validation affect target measurement accuracy?

A: Installing the probe face outside the linear window modifies the configured eddy-current probe scaling profile. This leads to early signal saturation or clipping during transient peaks, preventing accurate evaluation of complex rotor dynamics.

Q: Can the 0.5-meter standard cable be modified, cut, or spliced in the field to match short conduit runs?

A: No. Modifying the integrated cable changes the calibrated electrical length and loop capacitance properties. Splicing disrupts the calibrated eddy-current probe scaling, rendering the transducer loop output invalid.

Q: What separation distance must be maintained to achieve effective cross-talk suppression with the 3300 NSv sensor?

A: Maintain the minimum manufacturer-specified physical separation parameters between adjacent sensor bodies. Mounting the devices too close allows overlapping eddy-current fields, creating parasitic signal noise that overrides internal cross-talk suppression.
