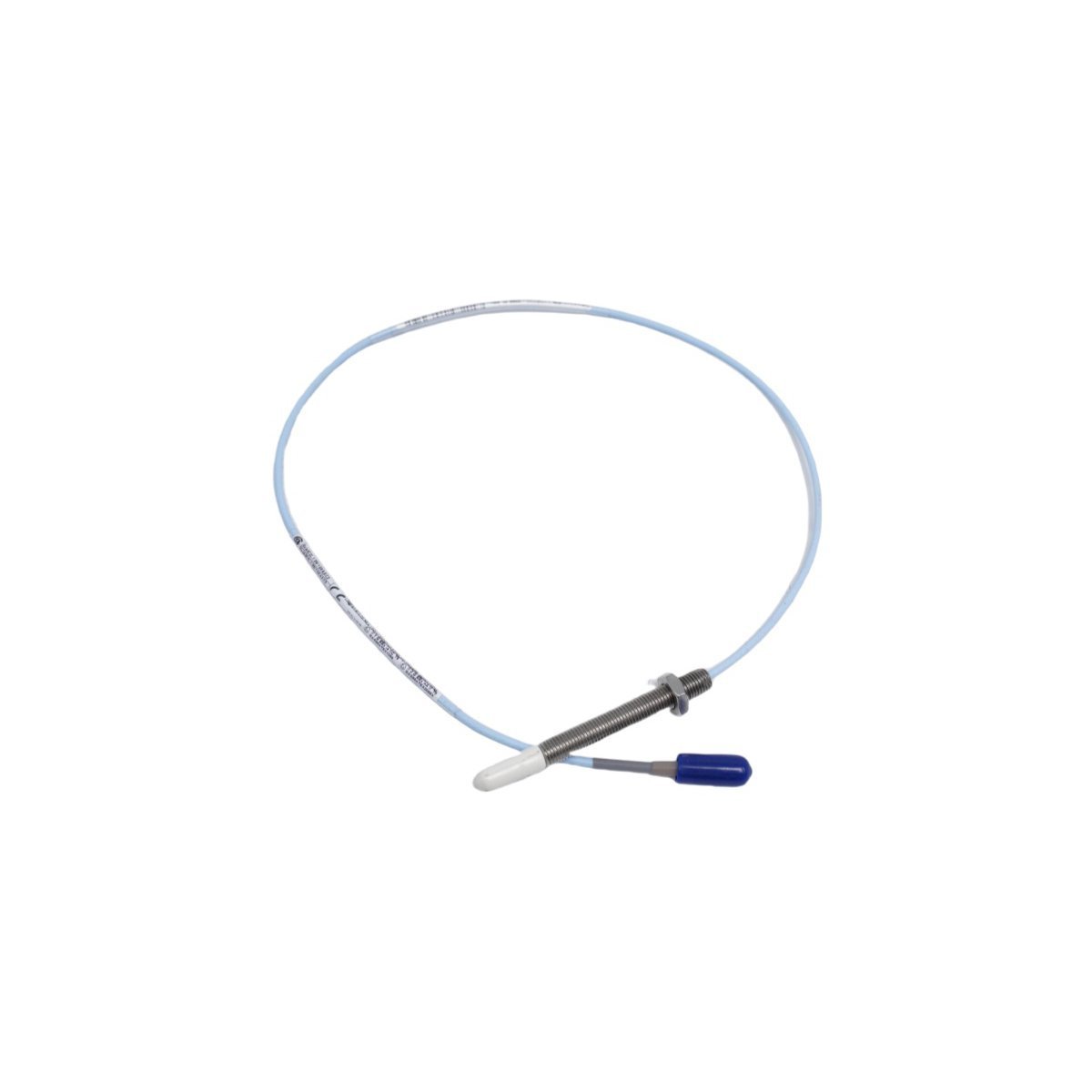

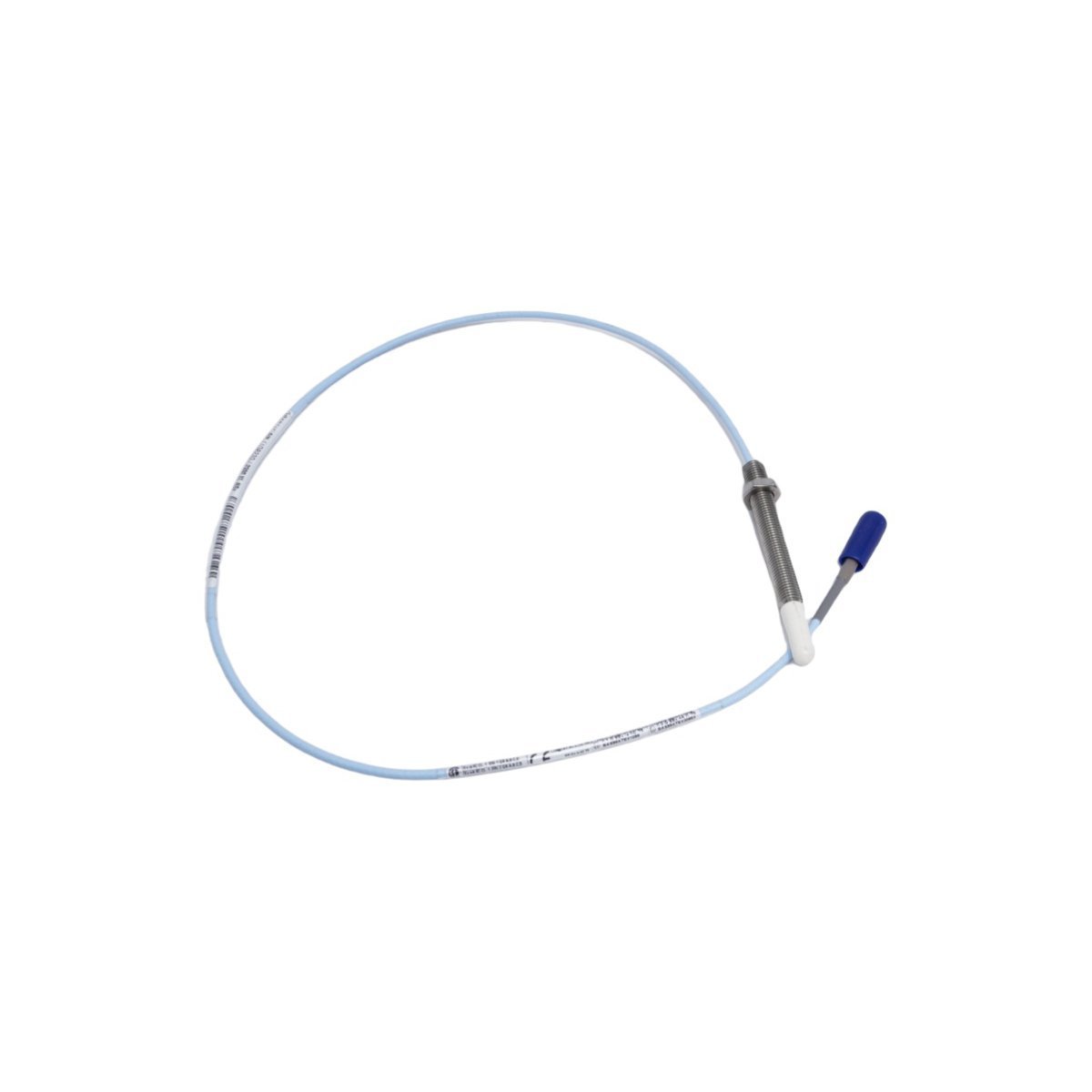

The Bently Nevada 330903-00-09-05-02-05 serves as the primary 330903 Proximity Probes utilized to execute non-contacting displacement and vibration measurements across 3300 NSv Series platforms. Configured specifically for environments with tight installation clearances or small target diameters, this transducer transforms a high-frequency electromagnetic field variation into an electrical signal proportional to the physical gap between the probe tip and the observed conductive target surface.

Part Number Configuration Breakdown

• 330903: Base Model for 3300 NSv 3/8-24 UNF thread proximity probe.

• -00: Unthreaded Length Option (0.0 inches).

• -09: Overall Case Length Option (0.9 inches).

• -05: Total Length Option (0.5 metres).

• -02: Connector Option (Miniature coaxial ClickLoc connector with connector protector).

• -05: Agency Approval Option (Multiple hazardous area approvals for intrinsic safety and non-incendive environments).

Technical Performance Metrics

Eddy-Current Probe Scaling & Cross-Talk Suppression

The Bently Nevada 330903-00-09-05-02-05 operates via eddy-current probe scaling engineered for non-ferrous and ferrous target geometries where standard 8 mm probes cannot maintain target-to-gap resolution. Because of the compact 5 mm tip configuration, precise gap voltage validation (-10 VDC targets) must be maintained at the geometric center of the linear calibration range.

When deploying these probes in close proximity for radial vibration measurements on narrow targets, cross-talk suppression is achieved by utilizing the specific 3300 NSv driver frequency modulation, preventing mutual inductive interference between adjacent sensor tips on small-diameter shafts. This optimization preserves the fidelity of multi-axis rotor dynamics diagnostics.

Technical Queries & Answers

Q: Does this passive probe structure support hot-swap replacement while the 3500 monitoring system backplane is energized?

A: Yes. The passive probe element can be disconnected and reconnected to the extension cable or Proximitor Sensor under power without interrupting backplane driver stability or causing electrical damage to the monitoring rack.

Q: What is the mechanical consequence if the gap voltage validation falls outside the -10 VDC target zone?

A: If the baseline voltage drifts below -3 VDC or exceeds -17 VDC, the probe operates outside its calibrated linear range, leading to signal saturation or clipping that corrupts the accuracy of the peak-to-peak rotor dynamics measurements.

Q: How does the configuration handle mismatched electrical lengths?

A: The system requires a matched total electrical length of 0.5 metres for the probe element. Connecting this 0.5-metre probe to an incorrect extension cable or Proximitor tuned for a 1.0-metre system alters the system inductance, destabilizing the factory eddy-current probe scaling.

Field Installation Protocols

• Minimum Target Diameter Constraints: Due to the 5 mm tip profile, the target observed shaft diameter must be a minimum of three times the probe tip diameter to prevent geometric field distortions.

• Cable Bend Radius Limits: Coaxial extension leads must maintain a minimum physical bend radius of 25.4 mm (1.0 inch). Avoid sharp bends or crimping that alters the characteristic impedance of the RF line.

• Shield Isolation: Isolate the terminal ClickLoc connector from any metallic machine casings or structural conduits by utilizing the supplied connector protector sleeves to block extraneous electrical noise loops.

Logistics Kit Checklist

The package contains the following inventory components:

• 1 x Bently Nevada 330903-00-09-05-02-05 Proximity Probe with integrated 0.5-metre cable.

• 1 x Coaxial Connector Protector Sleeve.

• 2 x Brass Locknuts (3/8-24 UNF thread).

Transport and Dispatch Data

• Estimated Lead Time: 2-7 days when payment finish through regional fulfillment hubs.

• Transit Carrier: Dispatched via premium express logistics networks including DHL, FEDEX, or UPS.

• Fulfillment Standards: Packed inside high-grade anti-static industrial packaging enclosures with verified impact-mitigation foam matrices to preserve electrical and mechanical alignment during global transport.
