Product Overview

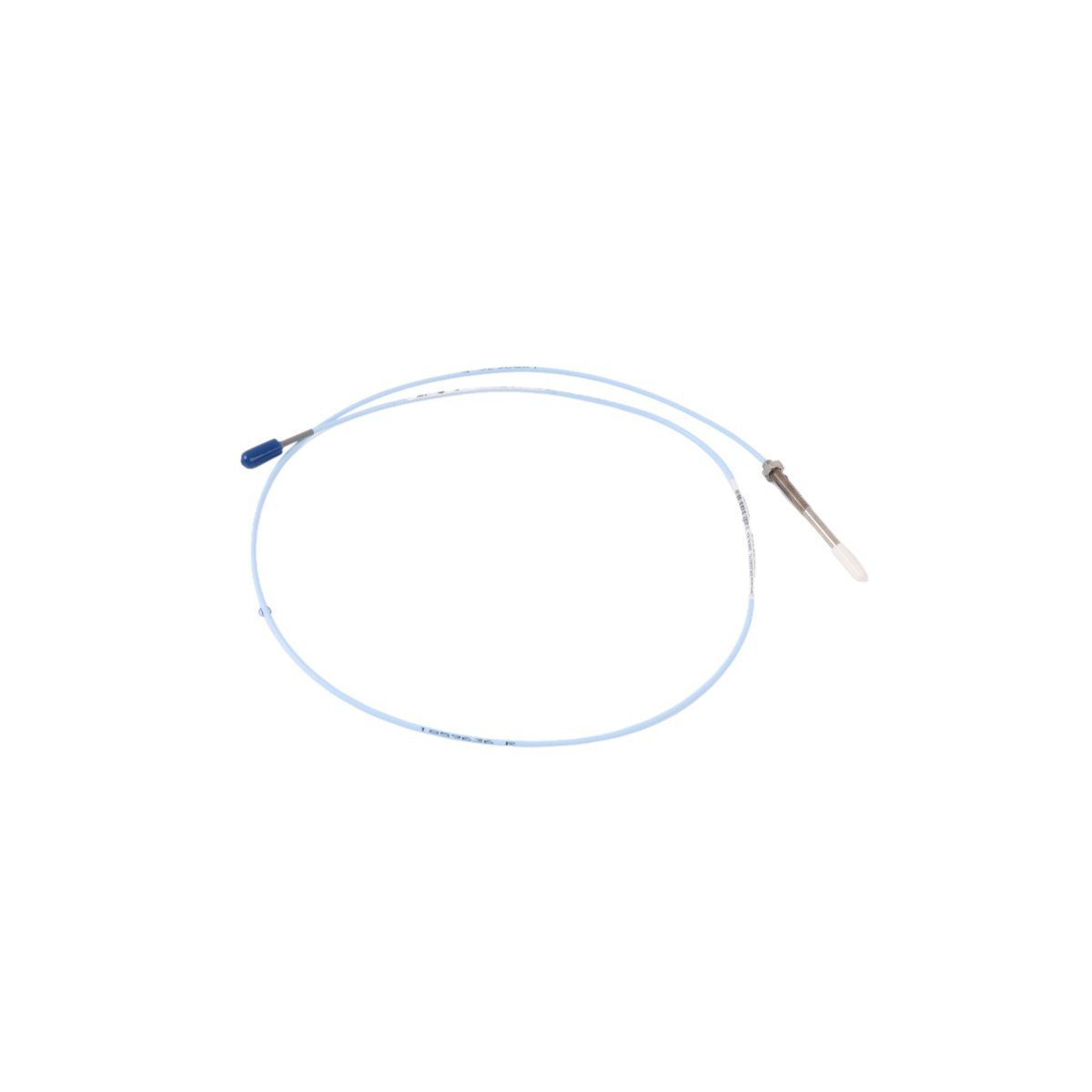

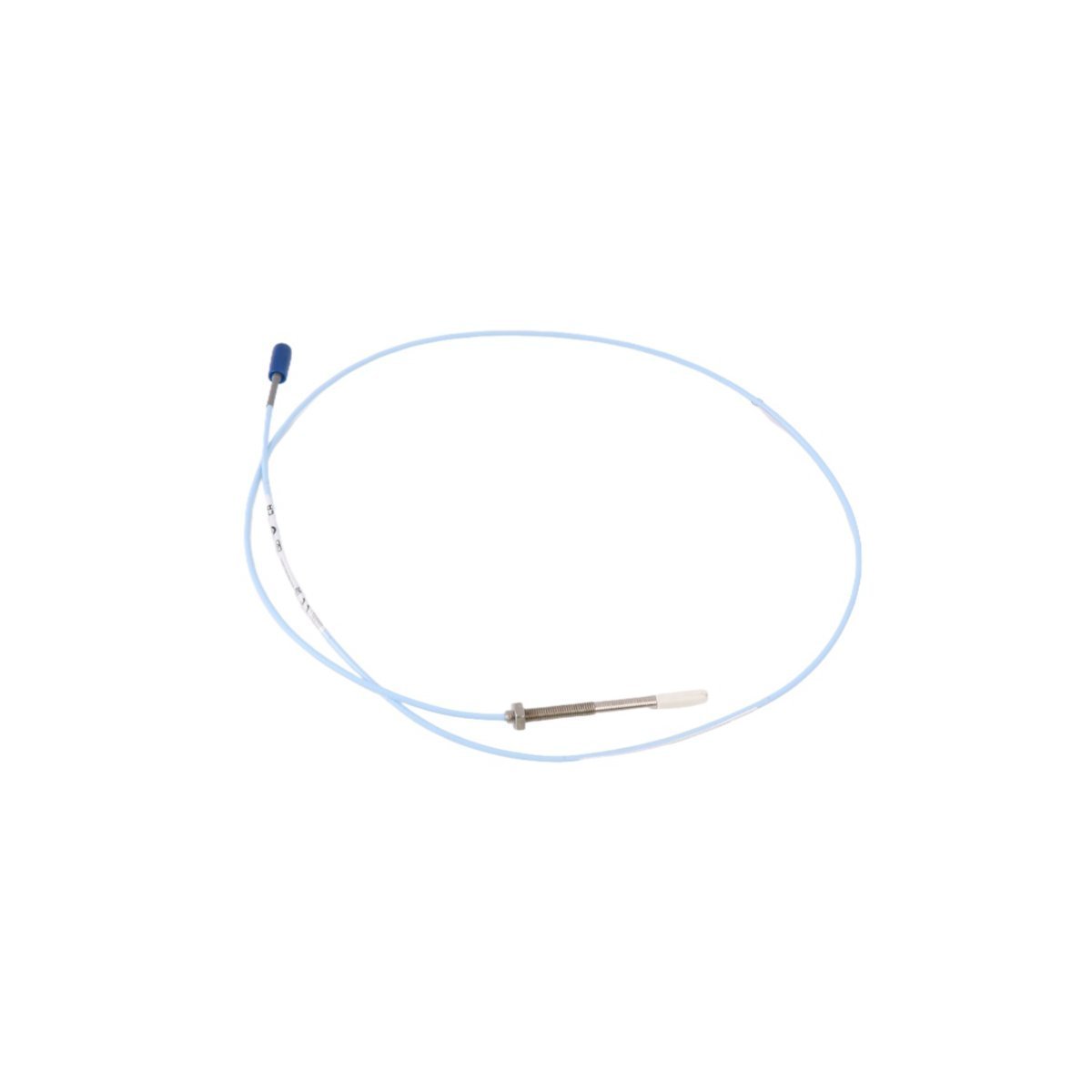

The Bently Nevada 330901-10-20-10-02-05 is a high-precision 3300 NSv (Near Surface) Proximity Probe specifically engineered for industrial applications where standard 8mm probes face physical constraints. This transducer excels in monitoring small-diameter shafts or targets with restricted clearances, such as centrifugal compressors, high-speed pumps, and small steam turbines. By utilizing advanced eddy current technology, the NSv system delivers an accurate, non-contacting measurement of shaft vibration and axial position. Its specialized design minimizes the "side-view" effect, allowing it to provide stable data even when mounted in tight mechanical housings. As a critical component of Turbine Supervisory Instrumentation (TSI), this probe ensures the integrity of machine protection loops, enabling real-time fault detection and preventing catastrophic equipment failure in high-velocity rotating machinery.

Probe Parameter Decoding

The 330901 series nomenclature defines the specific mechanical and electrical characteristics required for a perfect fit within your asset protection system.

Unthreaded Length (-10)

Indicates a 1.0-inch unthreaded section of the probe barrel. This configuration assists in depth adjustment within the mounting bracket while maintaining mechanical rigidity.

Overall Case Length (-20)

Specifies a 2.0-inch total case length. This compact form factor is optimized for internal mounting or bearing pedestals with limited axial depth.

Total Length (-10)

Represents a 1.0-meter (3.3 feet) total cable length. This calibrated lead must be factored into the total system electrical length (typically 5m or 7m) to maintain the correct scale factor.

Connector and Cable Option (-02)

Features a miniature coaxial ClickLoc connector with a standard cable. This gold-plated interface ensures a low-impedance connection and provides superior resistance to moisture and industrial lubricants.

Agency Approval (-05)

Designates "Multiple Approvals" (CSA, ATEX, IECEx). This certification allows for safe deployment in Zone 0, Zone 1, and Division 1 hazardous environments across the globe.

Core Technical Matrix

Field Commissioning Protocol

Engineers must verify the "Gap Voltage" during the commissioning phase to ensure the probe operates within its linear region. For the 3300 NSv system, a DC bias voltage of approximately -10.0 Vdc typically represents the midpoint of the linear range. Maintain a minimum cable bend radius of 25.4 mm (1.0 inch) to prevent internal conductor fatigue. It is critical to use the supplied silicone tape to seal the ClickLoc connection between the probe and extension cable, preventing oil wicking or moisture ingress that could trigger a "Not OK" status in the 3500 monitoring rack. Ensure the target material is AISI 4140 steel; other materials will require specific recalibration of the Proximitor sensor.

Mechanical Reliability Advantages

The 330901 series utilizes a Polyphenylene Sulfide (PPS) probe tip, which acts as an impenetrable barrier against aggressive synthetic lubricants and corrosive process gases. Unlike larger probes, the NSv architecture is specifically tuned to reduce "side-view" interference from the mounting hole walls, ensuring that the signal represents shaft motion rather than housing proximity. This hardware integrates seamlessly with Bently Nevada 3500/42M modules and feeds high-resolution data into DCS environments like Honeywell Experion PKS, supporting advanced vibration diagnostics and proactive asset management strategies.

Global Logistics & Handling

Delivery time: 3-5 days when payment finish, BY DHL/FEDEX/UPS.

We ship all Bently Nevada probes in anti-static industrial packaging to maintain the integrity of the sensitive eddy-current coil. Every unit is factory-sealed and includes a unique serial number for full E-E-A-T traceability.

Technical Maintenance FAQs

Q1: Can I use this NSv probe with a standard 3300 XL 8mm Proximitor?

A1: No. The 330901 probe is part of the NSv system and must be paired with a 3300 NSv Proximitor. The electrical tuning and coil characteristics differ significantly from the 8mm XL series.

Q2: What happens if the total electrical length is incorrect?

A2: If a 1.0m probe is paired with an extension cable that doesn't reach the required system length (e.g., 5m or 7m), the scale factor will deviate from the standard 200 mV/mil, resulting in inaccurate vibration readings.

Q3: How does the -05 approval impact my site safety audit?

A3: The -05 suffix provides global compliance for hazardous areas, encompassing CSA and ATEX standards. This simplifies procurement for international projects and ensures the hardware meets local safety regulations for explosive atmospheres.
