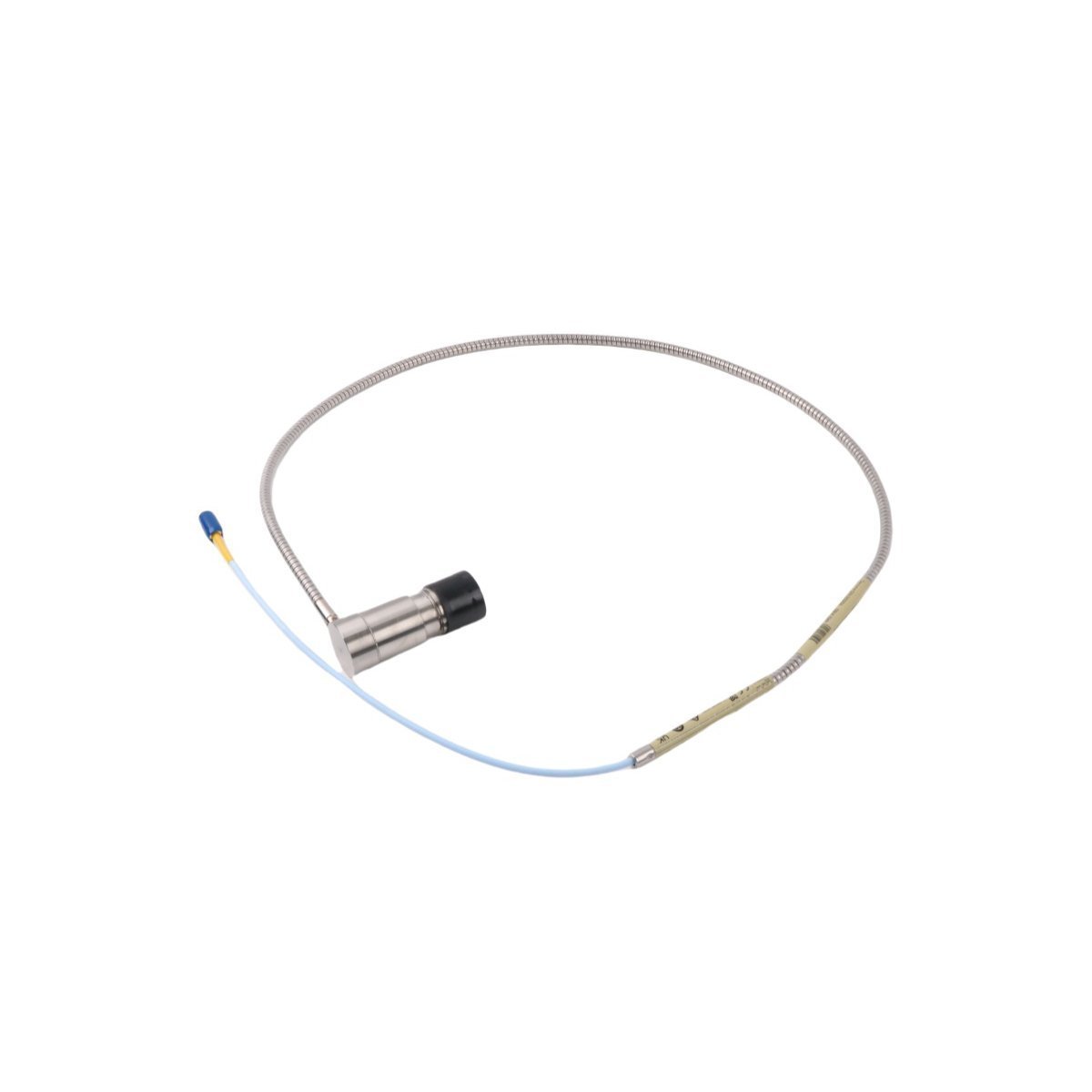

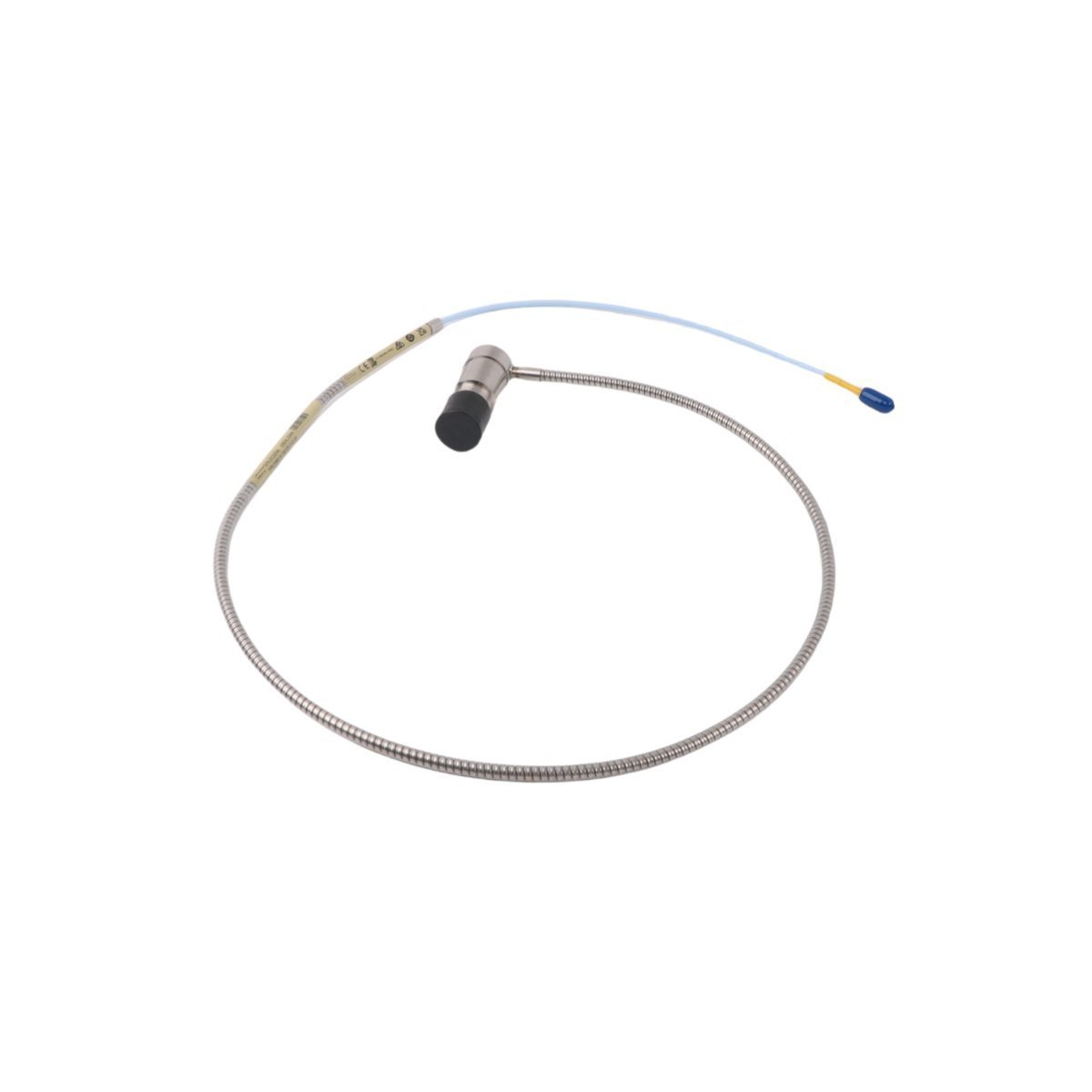

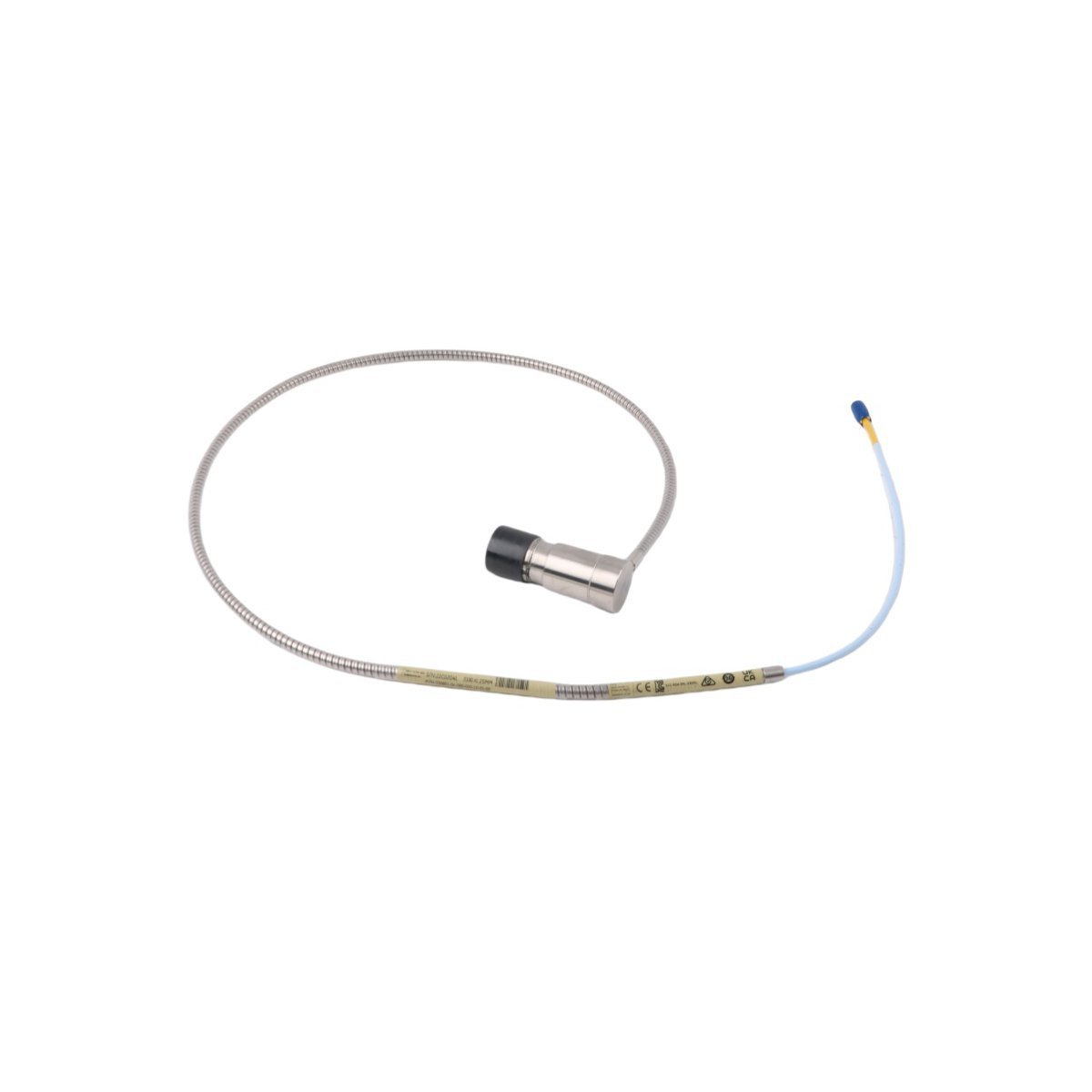

The Bently Nevada 330851-04-000-030-10-01-00, also cataloged as the 330851 25 mm Proximity Probe, operates as a dedicated hardware component for eddy-current displacement sensing within turbine monitoring (TSI) platforms.

Model Nomenclature Matrix

• 330851: 25 mm Proximity Probe.

• 04: Total probe length variant.

• 000: Unthreaded case length (0 mm).

• 030: Overall case length (30 mm).

• 10: Total system length (1.0 meter).

• 01: Connector option (Connector with housing).

• 00: Agency approval (Standard).

Technical Specifications

Mechanical Monitoring Characteristics

The 25 mm system utilizes eddy-current induction to translate displacement into a linear voltage signal. Unlike 8 mm systems, the 25 mm probe offers a linear range of 12.7 mm, suited for monitoring differential expansion and valve position. System commissioning mandates gap voltage validation; the sensor must be positioned to center the output voltage within the specific linear range defined for the 25 mm Proximitor. The internal geometry includes cross-talk suppression to maintain signal fidelity when multiple probes are installed in dense turbine casings.

Procurement & Scope of Delivery

• One (1) 330851-04-000-030-10-01-00 25 mm Proximity Probe.

• Standard mounting nut and lock washer set.

• Technical conformance documentation.

• Note: System operation requires a matched 3300 XL 25 mm Proximitor and extension cable to meet calibrated specifications.

Installation & Integration Protocols

• Mechanical Mounting: Thread the probe housing into the machine port; ensure perpendicular alignment to the target surface to prevent non-linear signal artifacts.

• Gap Adjustment: Use a calibrated depth micrometer to set the initial mechanical gap; monitor the DC output voltage at the Proximitor test pin during adjustment.

• Signal Path: Utilize high-frequency coaxial cable; maintain isolation from AC power conduit to minimize EMI/RFI noise.

• Connector Security: Ensure click-loc connectors are fully engaged until a tactile click is confirmed to maintain shielding continuity.

• Grounding: Establish a low-impedance connection between the housing and the machine chassis to optimize the effectiveness of internal shielding.

Frequently Asked Questions

• Why is the 25 mm system range different from 8 mm systems?

  The 25 mm probe utilizes a larger coil diameter and magnetic field profile, providing a 12.7 mm linear range required for large-scale displacement measurements.

• Is this probe compatible with standard 3300 XL 8 mm Proximitors?

  No. The 25 mm probe has unique electrical scaling and must be matched to a dedicated 25 mm Proximitor to ensure valid output.

• How is the target gap voltage determined?

  Gap voltage is set based on the specific linear range document provided with the 25 mm Proximitor, ensuring the transducer operates within its calibrated electrical window.

• Can this probe monitor radial shaft vibration?

  While technically capable, the 25 mm system is engineered for low-frequency position and expansion data, not for high-frequency rotor vibration analysis.

• Is the probe tip replaceable if damaged?

  No. The probe tip is permanently bonded to the stainless steel housing; any impact damage necessitates replacement of the complete unit.

• Does target material composition impact output?

  Yes. Factory calibration is standardized for 4140 steel. Alternative shaft materials require an electrical scale factor adjustment to maintain measurement accuracy.

• What signifies a failure in the transducer circuit?

  Failure is typically identified by the monitor rack reading a "Gap Error" or voltage saturation at the rail (either 0 VDC or -24 VDC).

• Can the 1.0 meter system length be extended in the field?

  No. The system is calibrated at the factory for the specific 1.0 meter length; field modifications to cabling will invalidate system impedance and accuracy.
