Product Overview

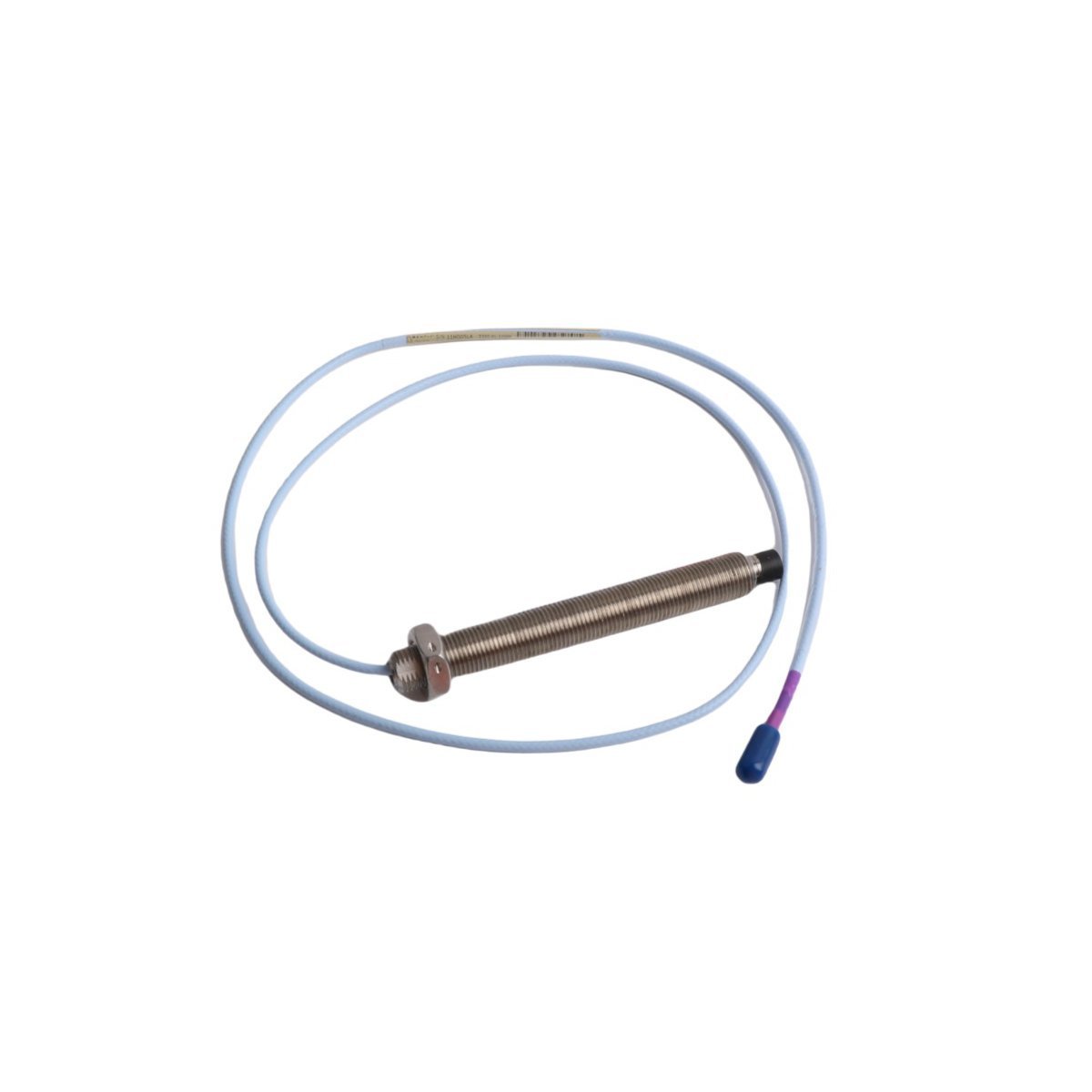

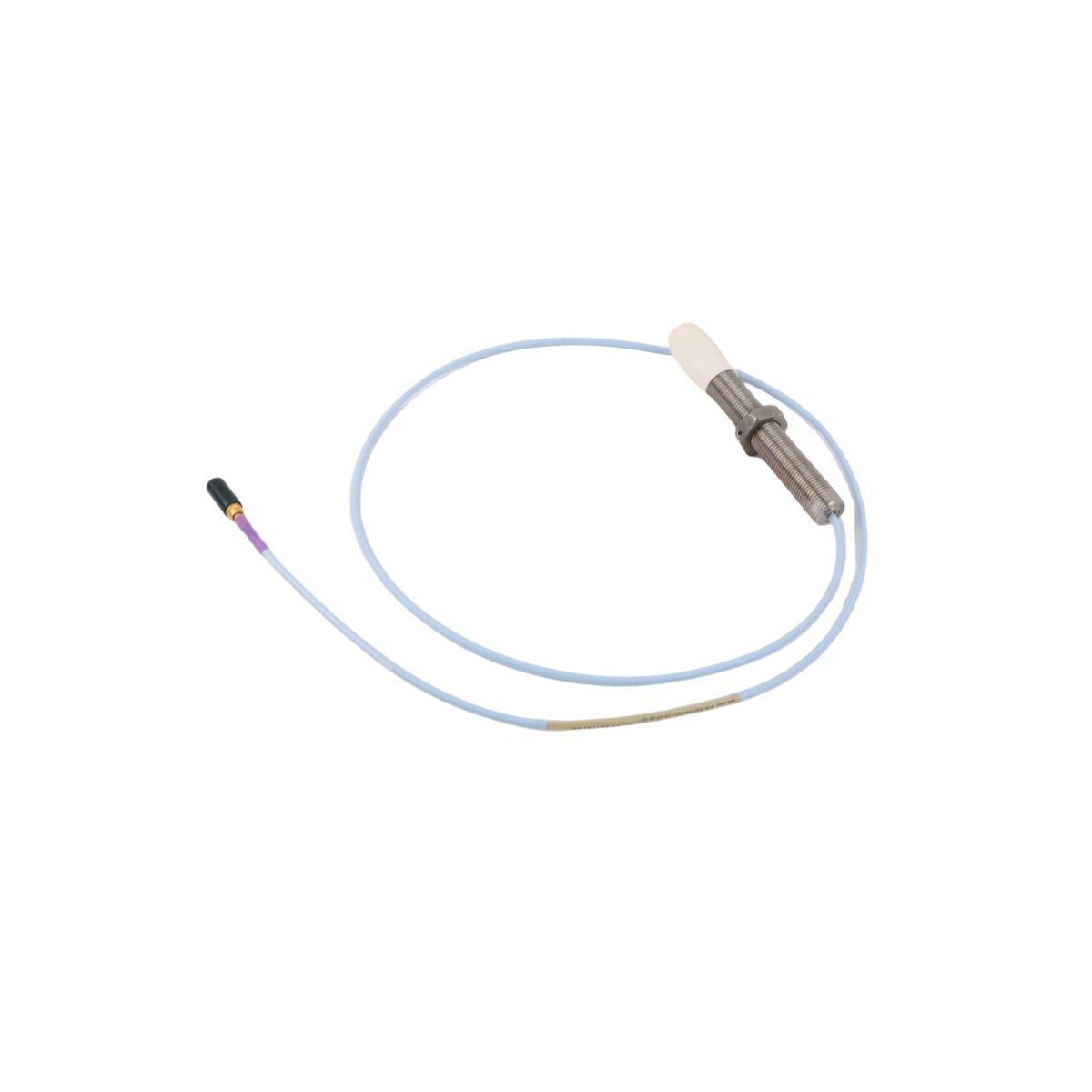

The Bently Nevada 330709-00-05-10-12-05 represents an expanded-range hardware asset engineered for comprehensive machinery lifecycle protection, deploying non-contacting eddy current technology to track severe shaft displacement. Featuring an upgraded 11 mm sensor head tip, this 3300 XL series probe provides a wider linear measurement field than standard 8 mm variants, making it ideal for tracking large thermal growth variations and axial thrust drift in utility-scale steam turbines, industrial gas expanders, and heavy-duty gearboxes. The internal coil structure feeds dynamic voltage shifts directly into Bently Nevada 3500 rack architectures or multi-tier Distributed Control Systems (DCS). Operating as a rugged input transmitter inside safety-critical Emergency Shutdown (ESD) control loops, this probe tracks large-scale displacement trends and instantaneous vibration over-travel, enabling engineering teams to prevent catastrophic rotor-to-stator contact.

Mechanical Option Architecture

Bently Nevada uses an exact alphanumeric suffix configuration to define the mechanical casing profile, integrated line measurements, and explosion-proof ratings for this 11 mm sensor system.

330709 Base Transducer Model

This prefix establishes the device as a standard-mount 3300 XL 11 mm proximity probe configured with a 1/2-20 UNF standard English thread profile.

Unthreaded Body Length (-00)

The 00 suffix designates a 0.0-inch unthreaded tip length, extending the mounting threads across the entire length of the outer sleeve to offer maximum depth positioning adaptability inside the installation bracket.

Overall Case Depth Option (-05)

The 05 option specifies a 0.5-inch overall case length, establishing an ultra-low physical envelope optimized for shallow bearing caps and specialized low-clearance outer machinery shells.

Integrated Cable Length Configuration (-10)

The 10 suffix defines a 1.0-meter (3.3 feet) integrated probe coaxial cable length, terminating in a low-loss miniature gold-plated connector interface.

Cable Protection Armor (-12)

The 12 designator adds a flexible, fluid-resistant stainless steel armor conduit along with an integrated coaxial connector protector, shielding the underlying signal core from flying metal chips and pressurized oil mist.

Agency Safety Validation (-05)

The 05 option provides full international explosion-proof qualifications, unlocking ATEX, IECEx, and CSA intrinsic safety and non-incendive ratings for zone-classified hazardous environments.

Physical and Mechanical Operational Parameters

Field Positioning and Gapping Instructions

Achieving accurate calibration curves relies on precise physical depth setting during field commissioning. Field engineers must monitor the raw DC gap voltage across the Proximitor Sensor output terminals using a high-impedance digital multimeter while positioning the sensor. Thread the 1/2-20 UNF probe body into the mounting bracket until the multimeter registers exactly -10.0 VDC, which confirms that the target shaft face sits precisely in the middle of the 11 mm probe's extended 4.0 mm linear calibration zone.

Observe rigid routing constraints to ensure continuous signal integrity across the loop. The flexible stainless steel armor conduit demands a minimum mechanical bend radius of 25.4 mm (1.0 inch) to prevent internal coaxial kinking and avoid signal impedance drops. Field teams must contain all miniature coaxial connector joints inside a dedicated, weatherproof local junction box to eliminate lubrication oil or moisture entry. Electrically isolate the probe body from local structural machine ground, terminating the shield drain wire solely at the 3500 monitoring rack chassis ground terminal strip.

Critical Infrastructure Integration

This extended-range proximity sensor withstands the punishing conditions of heavy industrial processing, including extreme thermal cycling, heavy casing vibration, and continuous oil submersion inside turbine housings. It integrates natively into comprehensive Turbine Supervisory Instrumentation (TSI) upgrades. The low-attenuation core delivers flawless analog signal waveforms over its entire run, interfacing smoothly with modern process control engines like Honeywell Experion PKS or Siemens S7 PLC architectures to ensure predictive diagnostic tools receive error-free dynamic waveform data.

Ordering and Content Information

Every ordered procurement kit includes the essential hardware components required for rapid field deployment. The original factory carton contains:

(1) New Bently Nevada 330709-00-05-10-12-05 11 mm proximity probe with an integrated 1.0-meter armored cable.

(2) Factory-milled standard English locknuts to secure the final mechanical depth position against intense machinery vibration.

(3) Transparent connector insulation sleeves to isolate the miniature coaxial mating point from moisture.

(4) Complete material traceability records along with the original manufacturer linear calibration datasheet.

Premium Packaging and Logistics Standard

Our international distribution network ensures rapid fulfillment and absolute component safety.

Transit Timeline

Your order ships out within 2-7 days when payment finish, routed via world-class express carriers like DHL, FEDEX, or UPS to guarantee accelerated customs clearance and tracked global doorstep delivery.

Storage Packaging Quality

Our facility seals every proximity probe inside specialized anti-static industrial packaging and form-fitting, impact-resistant foam padding, completely neutralizing electrostatic hazards and mechanical shocks encountered during transit.

Field Engineering Diagnostics FAQ

Q1: What is the primary functional advantage of this 11 mm probe over a standard 8 mm probe?

A1: The 11 mm probe provides a 4.0 mm (160 mils) linear measurement span, which doubles the range of a standard 8 mm probe. This extended range allows the sensor to monitor large axial displacements and thermal expansion trends without going out of limits.

Q2: What does the -12 configuration suffix define on this model string?

A2: The -12 suffix indicates that the integrated coaxial cable includes a flexible stainless steel armor jacket combined with a built-in connector protector. This design shields the cable from mechanical damage and locks the terminal link against fluid contamination.

Q3: What is the calibrated voltage scale factor for this 11 mm transducer loop?

A3: This 3300 XL 11 mm system generates a nominal scale factor of 3.94 V/mm (100 mV/mil). This differs from the standard 8 mm probe scale factor of 7.87 V/mm (200 mV/mil) because it stretches the measurement profile across a wider physical gap span.

Q4: Can I pair this 1.0-meter probe cable with a standard 3300 XL 8 mm Proximitor Sensor?

A4: No, you cannot mix these loops. This 11 mm probe requires a dedicated 3300 XL 11 mm Proximitor Sensor calibrated for 100 mV/mil operation. Connecting it to an 8 mm Proximitor Sensor will destroy loop calibration and cause incorrect measurement outputs.
