Product Overview

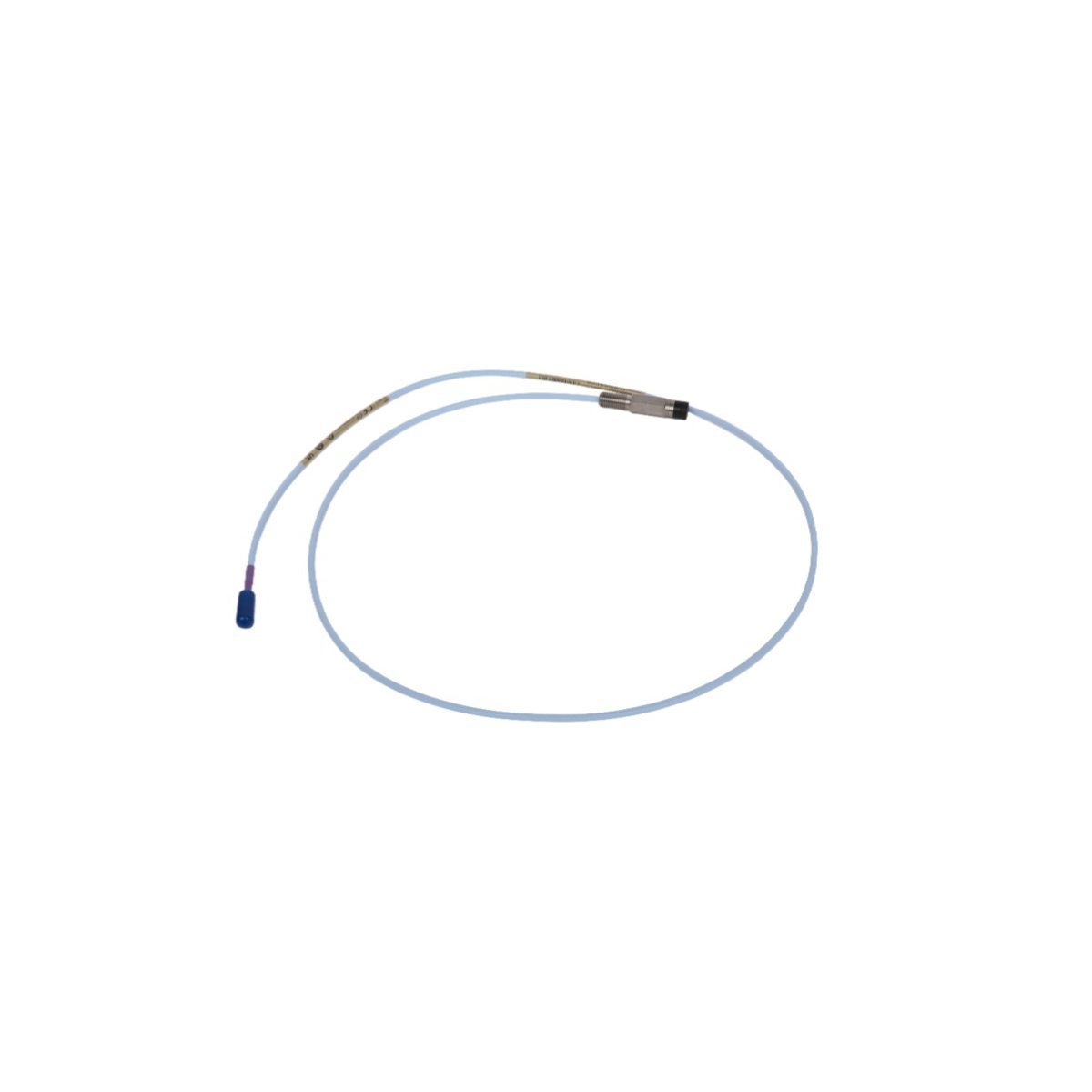

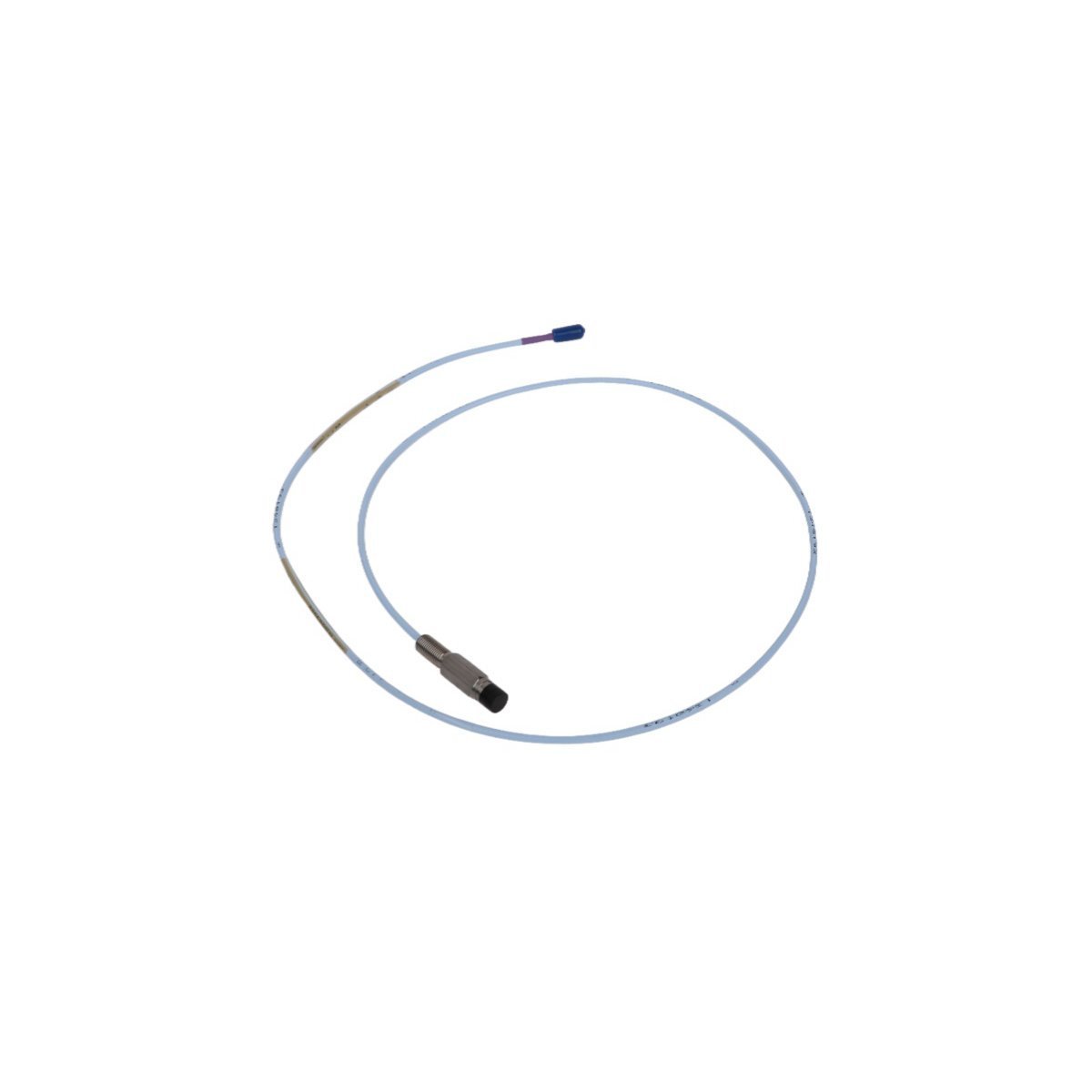

The Bently Nevada 330706-005-046-10-02-05 is a high-performance 11mm proximity probe engineered for reverse-mount installations where standard forward-facing sensors are physically impossible to deploy. As a core component of the 3300 XL Transducer System, this probe is specialized for large-scale machinery monitoring, offering an extended linear range and a standard output of 3.94 V/mm (100 mV/mil). It is designed to provide non-contacting displacement measurements for critical parameters such as differential expansion and axial position. By utilizing a reverse-mount mechanical interface, it allows technicians to install or replace the sensor from the outside of the machine housing, significantly reducing maintenance downtime for large rotating assets.

Hardware Architecture and Mechanical Data

• Probe Tip Diameter: 11mm High-Performance Core

• Mechanical Interface: M10 x 1 Metric Threads (Standard Reverse Mount)

• Integrated Lead Length: 1.0 Meter (approx. 3.3 feet)

• Connector System: Gold-plated brass Miniature ClickLoc coaxial connector

• Measurement Range: Extended linear range for large displacement tracking

• Sensitivity: 3.94 V/mm (100 mV/mil) when paired with 3300 XL 11mm Proximitor

• Net Weight: 0.06 kg (0.13 lbs)

• Physical Dimensions: 1.8 cm x 1.6 cm x 123 cm total length

• Manufacturing Standards: Robust construction for high-vibration environments

• Environmental Resilience: Engineered for oil-rich and high-temperature turbine environments

Primary Industrial Deployment Scenarios

Steam Turbine Differential Expansion

The 11mm tip provides the wide linear range necessary to monitor the thermal growth difference between a steam turbine rotor and its casing, preventing catastrophic internal contact during startup and shutdown cycles.

Large Compressor Axial Position

Used to detect thrust bearing wear in high-pressure compressors. The reverse-mount design is essential here, as it allows the probe to be adjusted through the bearing housing without disassembling the machine's internal casing.

Hydroelectric Generator Monitoring

Ideal for monitoring the structural movement and rotor position in large-scale hydro generators, where the 11mm probe’s increased sensing distance accounts for larger mechanical tolerances.

Predictive Maintenance for Industrial Fans

The 330706-005-046-10-02-05 provides stable, non-contacting vibration data for massive cooling and exhaust fans, allowing maintenance teams to identify rotor imbalances or bearing degradation before they lead to system failure.

FAQ

Q: What is the primary advantage of a reverse-mount probe over a forward-mount model?

A: Reverse-mount probes like the 330706-005-046-10-02-05 are threaded from the "back," allowing them to be installed through a machine's outer housing. This is critical for locations where you cannot reach the internal side of the mounting bracket to tighten a nut.

Q: Is the 11mm probe compatible with a standard 8mm 3300 XL Proximitor?

A: No, the 11mm probe has a different electrical impedance and sensing range. It must be used with a 3300 XL 11mm Proximitor sensor to ensure the correct voltage output and linear accuracy.

Q: How does the ClickLoc connector handle high-vibration conditions?

A: The Miniature ClickLoc system features a positive-locking mechanism that prevents the coaxial connection from vibrating loose. The gold plating also ensures that the electrical contact remains corrosion-free, which is vital for long-term signal stability.

Q: Can this probe be used in hazardous area zones?

A: As part of the 3300 XL system, this probe is typically certified for hazardous locations under ATEX, IECEx, and CSA standards when installed with the appropriate intrinsic safety barriers.

Q: What happens if I need a cable longer than 1.0 meter?

A: The 1.0-meter integrated lead is designed to connect to a 3300 XL extension cable (typically 4.0 or 8.0 meters) to achieve the total system length of 5.0 or 9.0 meters required by the Proximitor sensor.
