Product Overview

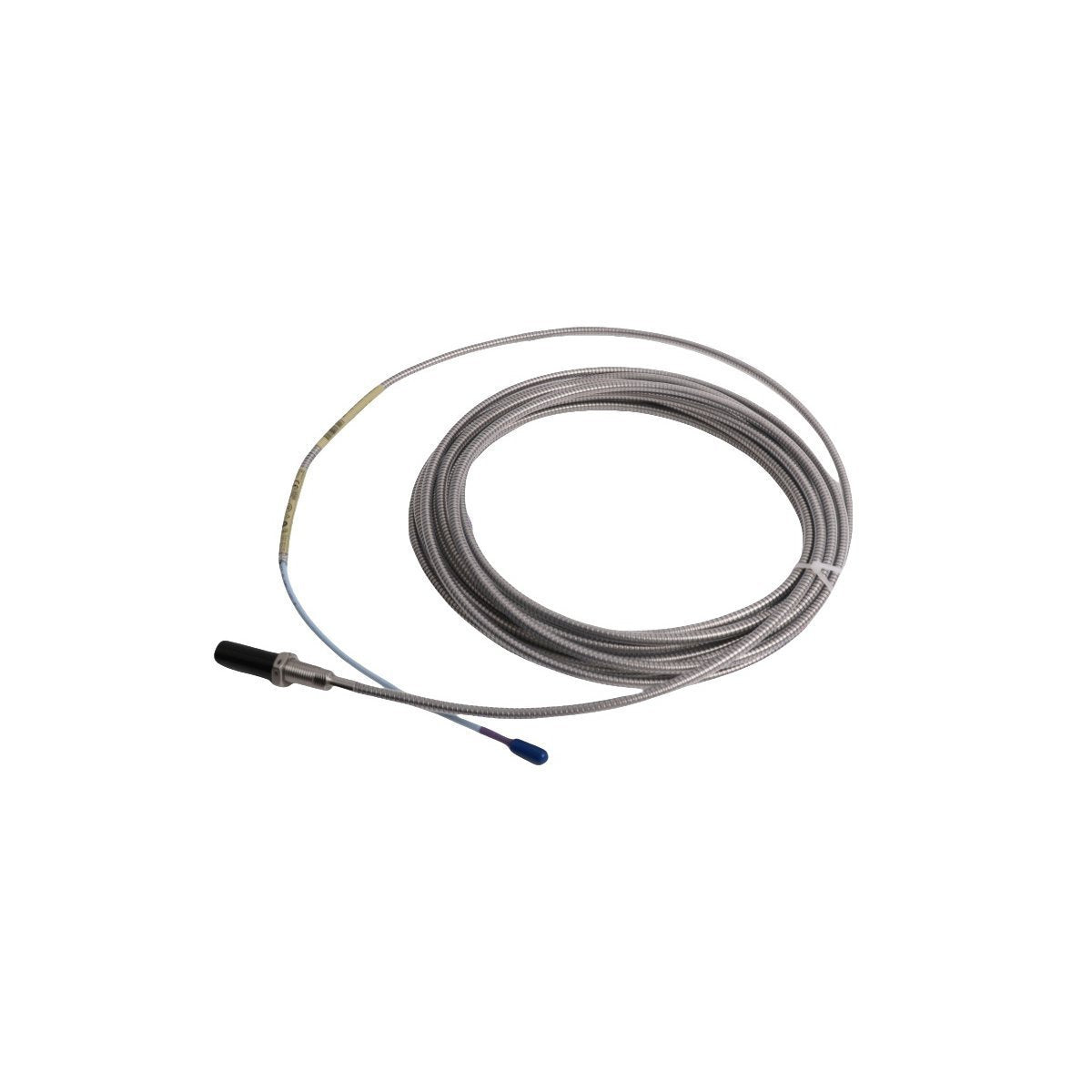

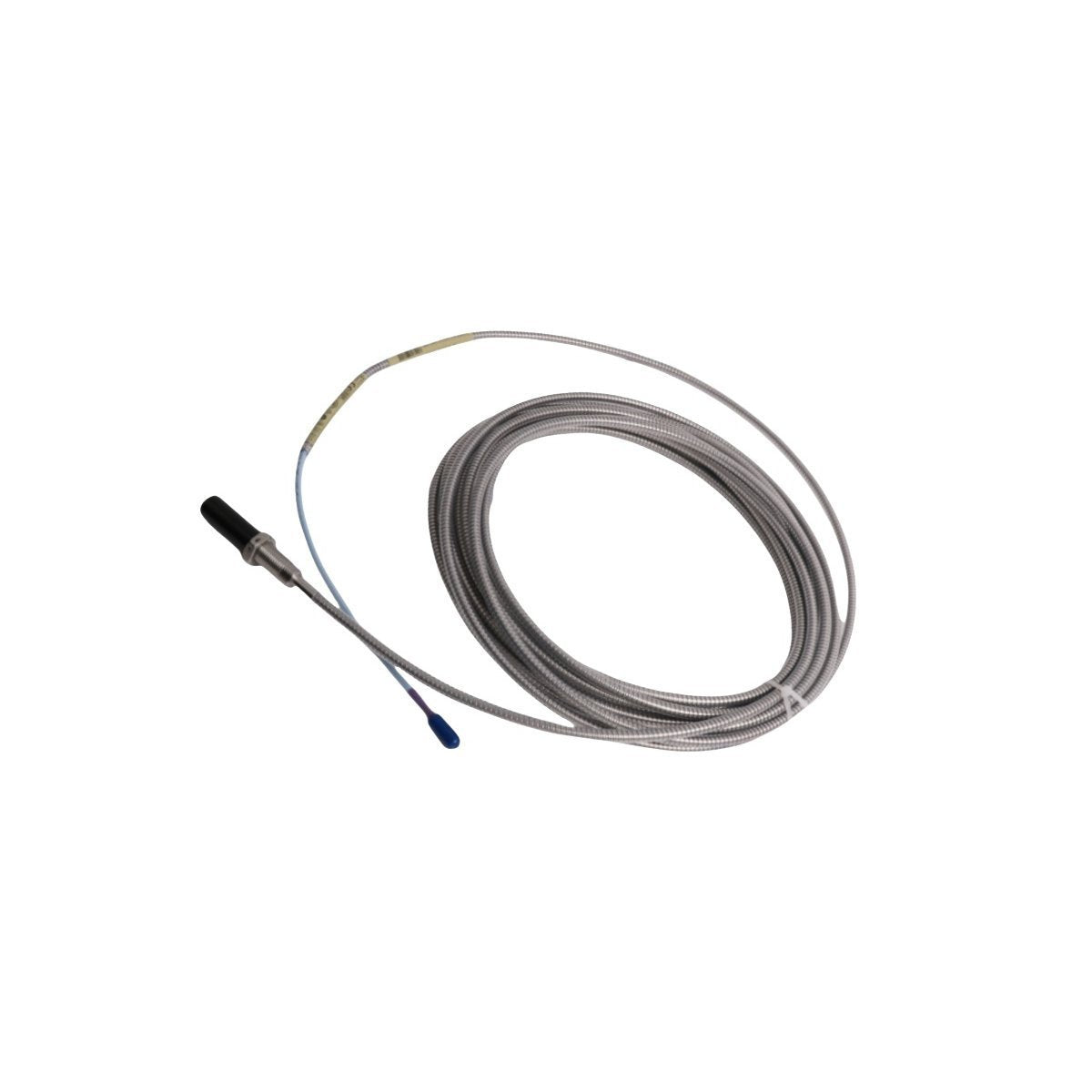

The 330704-00-60-10-02-CN proximity probe from Bently Nevada delivers high-resolution shaft displacement and vibration monitoring for large rotating machinery operating in demanding industrial environments. Designed within the advanced 3300 XL 11 mm transducer platform, this probe continuously measures dynamic shaft movement with exceptional accuracy, supporting real-time machinery protection and predictive maintenance strategies.

Power generation facilities, petrochemical plants, LNG terminals, and offshore compressor stations rely on this probe to monitor turbines, generators, axial compressors, and critical process equipment exposed to continuous vibration and thermal stress. Its larger 11 mm sensing architecture improves signal stability over extended measurement ranges while maintaining excellent linear response characteristics.

The probe integrates efficiently with Bently Nevada monitoring systems, TSI platforms, and distributed machinery protection infrastructures where rapid fault detection and operational reliability remain essential to plant safety and production continuity.

Probe Model Configuration

The 330704-00-60-10-02-CN suffix structure identifies the exact mechanical configuration, cable arrangement, and certification specification of this industrial transducer assembly.

This configuration supports precision vibration monitoring applications requiring stable long-distance signal transmission and certified industrial deployment.

Electrical & Mechanical Characteristics

Field Deployment Recommendations

Adjust probe gap voltage accurately during commissioning to maintain optimal shaft vibration waveform quality and calibrated measurement linearity. Most large rotating machinery applications operate efficiently with gap voltages between -10 Vdc and -14 Vdc depending on shaft material and machine geometry.

Install probe cables separately from high-current motor conductors and inverter power wiring to reduce electromagnetic interference inside machinery cabinets and turbine enclosures. Preserve proper cable bending radius throughout installation to protect shielding continuity and signal integrity.

For hazardous-area installations, engineers should verify certified grounding continuity and use explosion-proof conduit systems according to site safety requirements. Always pair the probe with compatible 3300 XL extension cables and Proximitor sensors to preserve calibrated transducer system performance.

Industrial Application Strengths

The 3300 XL 11 mm probe platform performs reliably under severe turbine heat, compressor vibration shock, lubricant contamination, and corrosive industrial atmospheres. Its reinforced sensing architecture maintains stable output signals even in high-energy process environments where conventional vibration sensors experience signal instability.

Operators integrate this probe into turbine supervisory instrumentation systems, machinery protection racks, and enterprise condition monitoring platforms used throughout oil & gas, refining, and thermal power generation industries. The probe supports early fault identification for imbalance, shaft misalignment, rotor instability, and bearing wear before mechanical failure impacts plant operation.

Its rugged industrial construction and high-frequency response characteristics improve long-term asset reliability and reduce maintenance-related downtime across critical rotating equipment fleets.

Ordering Info

(1) Shipment includes one new 330704-00-60-10-02-CN proximity probe

(2) Factory-sealed anti-static industrial packaging included

(3) Compatible extension cables and Proximitor sensors available separately

(4) Additional mounting accessories and calibration support available upon request

International Logistics Support

Delivery time is typically 2-7 days when payment finish. Shipments are arranged through DHL, FedEx, or UPS global priority logistics services using reinforced anti-static industrial packaging designed for vibration-sensitive instrumentation equipment.

Each unit undergoes connector inspection, moisture-resistant sealing treatment, and industrial cushioning protection before international dispatch to ensure stable transportation reliability.

Technical Application FAQ

Q1: What advantage does the 11 mm probe design provide?
A1: The 11 mm sensing architecture supports extended linear measurement range and improved signal stability for large rotating machinery applications.

Q2: What does the “CN” suffix represent?
A2: The “CN” suffix identifies the China-specific certification and regional documentation configuration.

Q3: Can this probe integrate with Bently Nevada 3500 monitoring systems?
A3: Yes. The probe integrates with compatible 3300 XL extension cables and Proximitor modules connected to Bently Nevada monitoring racks.

Q4: Why is shielding important in proximity probe installations?
A4: Proper shielding minimizes electromagnetic interference generated by motors, drives, and high-voltage equipment, preserving vibration signal accuracy.

Q5: Is the probe suitable for continuous turbine protection applications?
A5: Yes. The probe is specifically engineered for continuous shaft vibration and position monitoring within turbine supervisory instrumentation and machinery protection systems.
