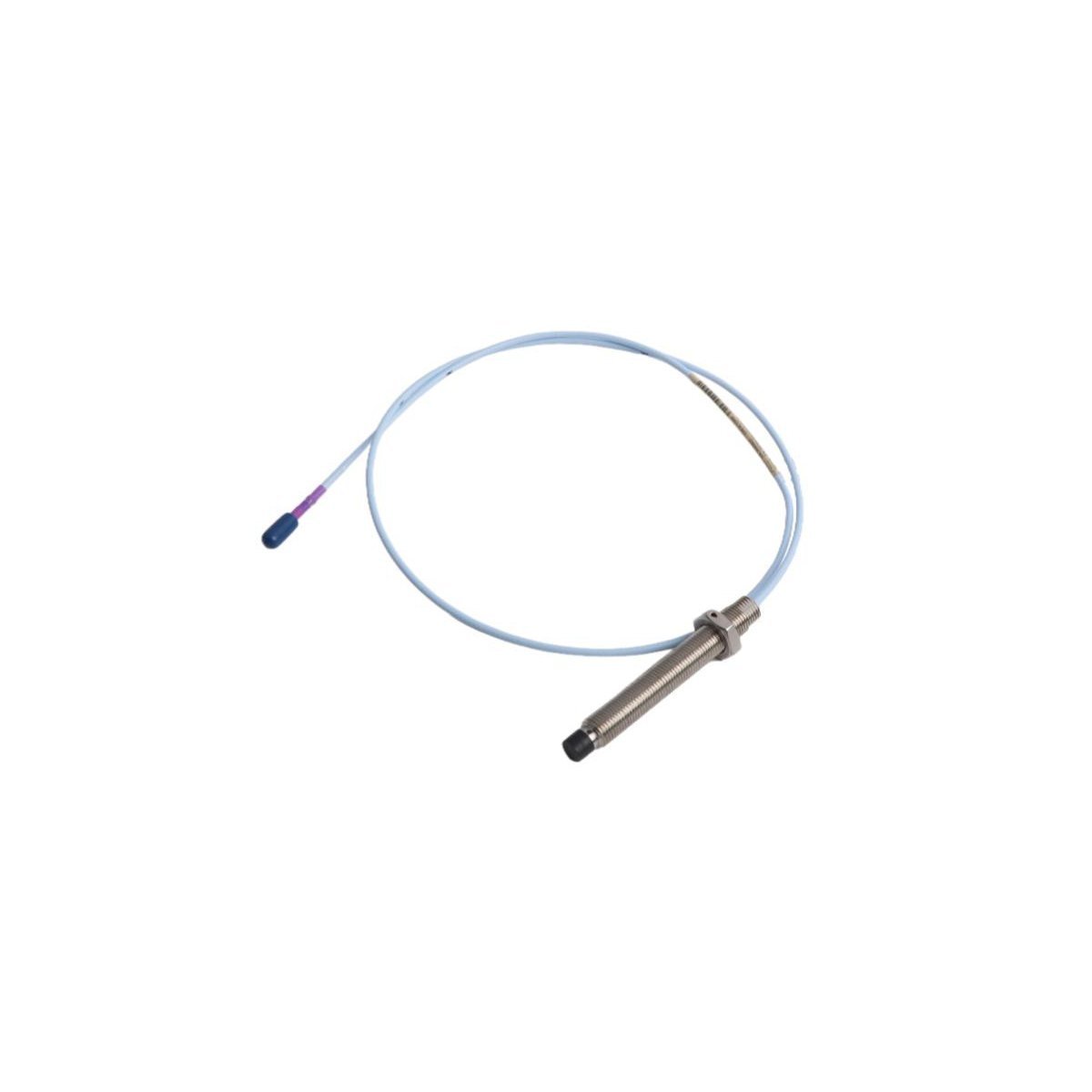

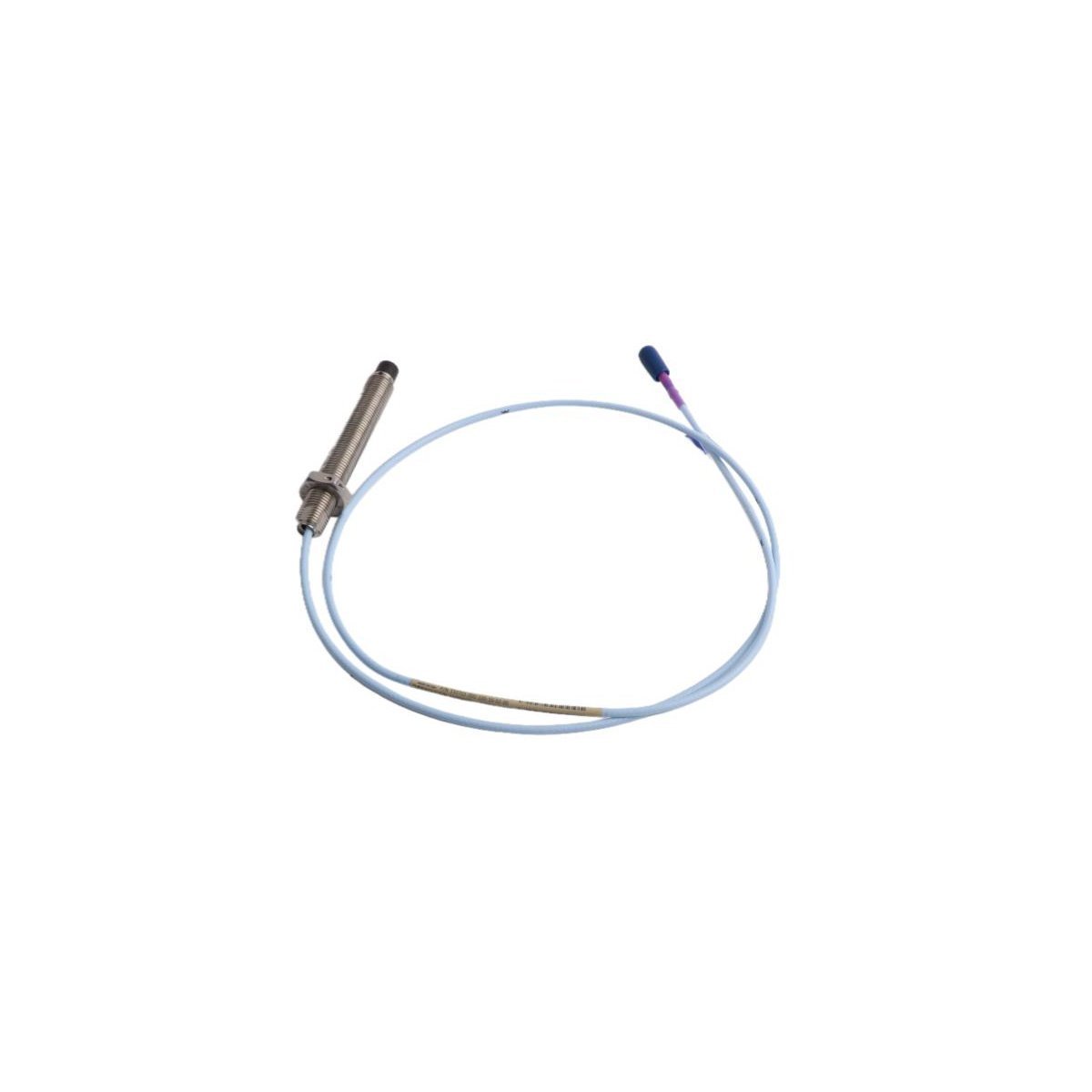

The Bently Nevada 330703-000-100-10-11-05 serves as the definitive sensing solution for non-contacting displacement measurements in high-speed rotating machinery. Part of the legendary 3300 XL 8mm series, this proximity probe provides the raw data necessary for vibration analysis, thrust position monitoring, and eccentricity measurements. This specific unit features a 10.0-inch (254 mm) overall case length and a 3/8-24 UNF threaded body, providing the necessary reach for deep-seated bearing housings. Designed for the rigorous demands of Turbine Supervisory Instrumentation (TSI), it maintains exceptional signal stability and linearity even in the presence of thermal extremes and high-pressure steam environments. By capturing microscopic shaft movements with 200 mV/mil precision, this probe empowers DCS systems and emergency shutdown racks to make split-second decisions that prevent catastrophic mechanical failure and ensure maximum plant uptime.

Model Configuration Decoding

The alphanumeric suffixes for the 330703 series define the precise mechanical footprint and electrical certifications required for field compatibility.

Unthreaded Length (-000)

0.0 inches. This indicates the probe is fully threaded, allowing for maximum flexibility when adjusting the mounting depth within the bracket or housing.

Overall Case Length (-100)

10.0 inches. This extended case length accommodates deep-seated bearing housings or specific turbine internal geometries that require a longer reach to the target surface.

Total Length (-10)

1.0 meter (3.3 feet). This defines the integrated probe cable length, designed to terminate at a local junction box for connection to an extension cable.

Connector and Agency Approval (-11-05)

This unit features a miniature coaxial ClickLoc connector with multiple international hazardous area certifications, ensuring safe operation in explosive atmospheres typically found in oil and gas processing.

Core Technical Specifications

Field Installation Protocol

Engineers must prioritize precise gapping to ensure the sensor operates within its linear range. Use a digital multimeter at the Proximitor output to set the gap voltage—typically -10.0 VDC for the center of the 80-mil range when monitoring AISI 4140 steel. Maintain a minimum cable bend radius of 25.4 mm (1.0 inch) to prevent internal coaxial fatigue. Always utilize a connector protector kit if the junction is exposed to oil or high humidity, and ensure the probe is locked in place with the correct torque to prevent migration during operation.

Tactical Engineering Advantages

The 3300 XL 8mm system eliminates the thermal drift issues common in generic eddy-current sensors through advanced material science in the Ryton probe tip. Its gold-plated brass connectors ensure signal integrity over decades of service, even in corrosive industrial atmospheres. This probe integrates seamlessly with the Bently Nevada 3500/22M Transient Data Interface and Honeywell Experion PKS, enabling advanced diagnostics such as orbit plots and waterfall diagrams. This high-level compatibility allows for the early detection of bearing wear, shaft rubs, and misalignment before they impact production.

Global Shipping and Logistics

Delivery time: 3-5 days when payment finish, BY DHL/FEDEX/UPS. Every unit is dispatched in genuine anti-static industrial packaging to preserve electronic components and ensure factory-sealed integrity upon arrival.

Component Performance Exchange

Q1: Does the 10.0-inch case length affect the electrical signal?A1: No. The internal electrical characteristics remain identical to shorter models. The 10.0-inch suffix only defines the physical reach of the stainless steel housing.

Q2: Can I use this probe without an extension cable?A2: No. The Proximitor sensor requires a total system length of exactly 5.0 or 9.0 meters. Since this probe is 1.0 meter, it must be paired with the corresponding 4.0 or 8.0 meter extension cable to maintain calibration.

Q3: What is the significance of the -05 approval suffix?A3: This indicates the probe is certified for multiple international hazardous area standards, including ATEX, IECEx, and North American approvals for Division 1 and Zone 0 environments.

Q4: How do I verify if the probe tip is damaged?A4: Check for visible cracks in the Ryton tip or perform a resistance check. A healthy probe typically shows a resistance between 4.0 and 11.0 ohms between the center conductor and the outer shield of the connector.
