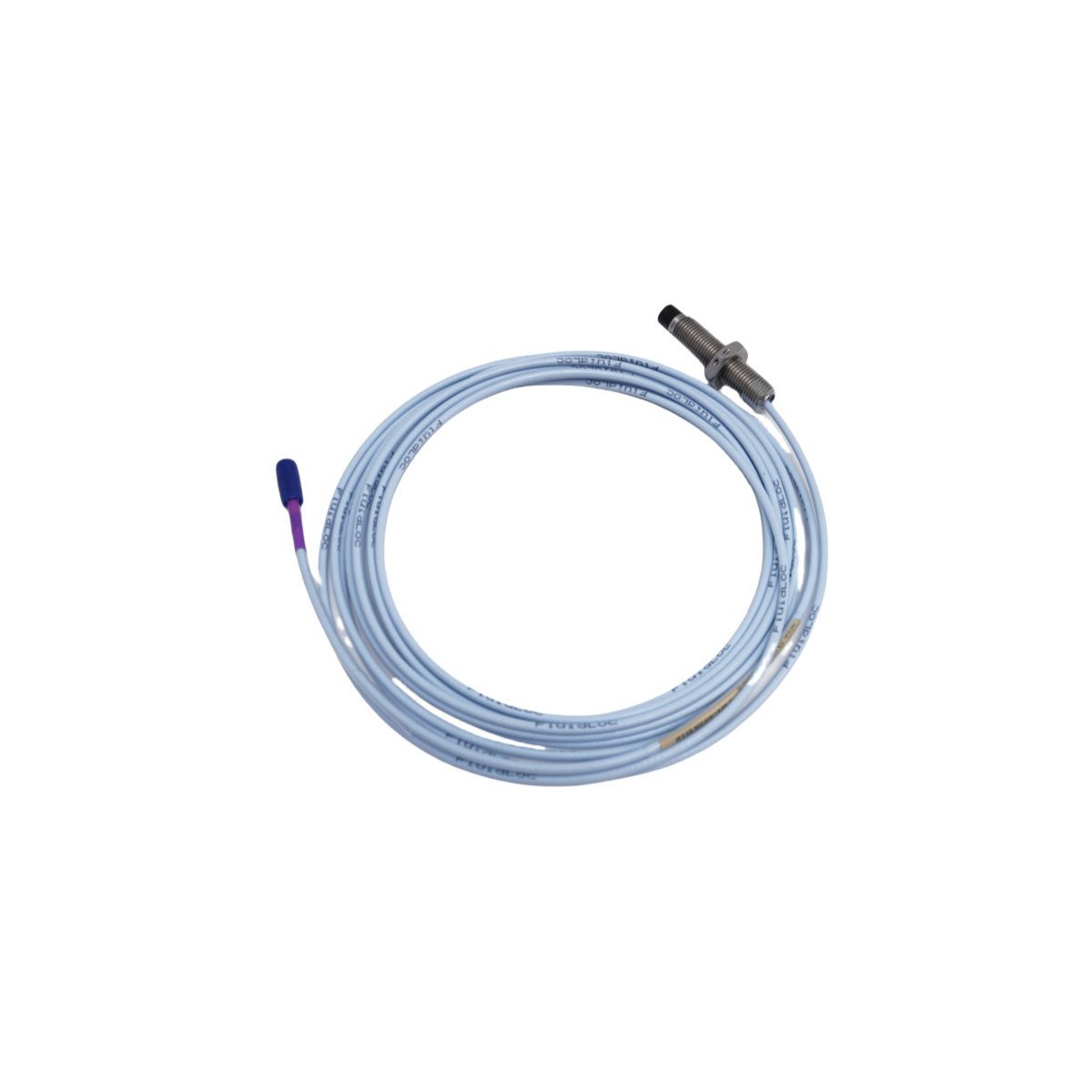

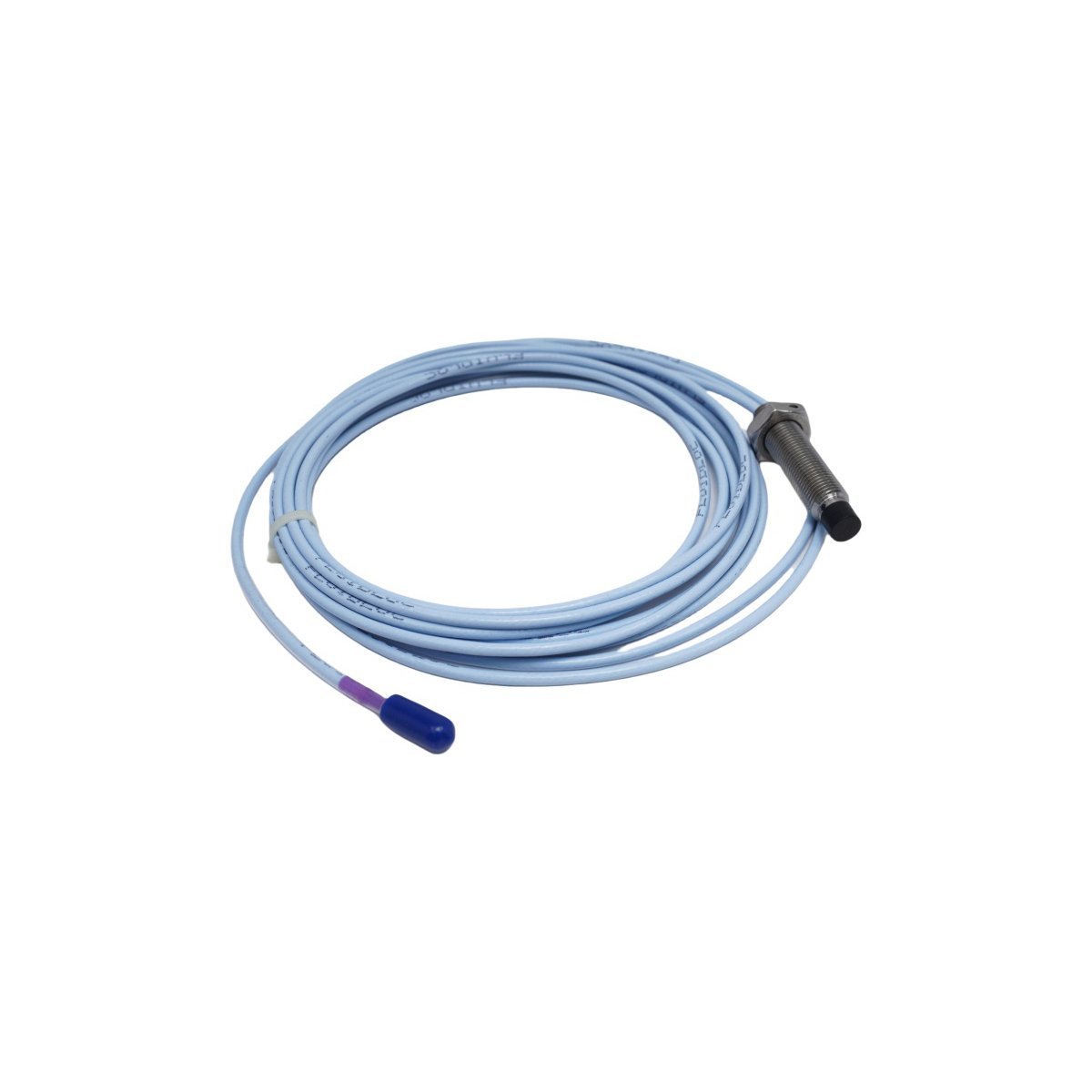

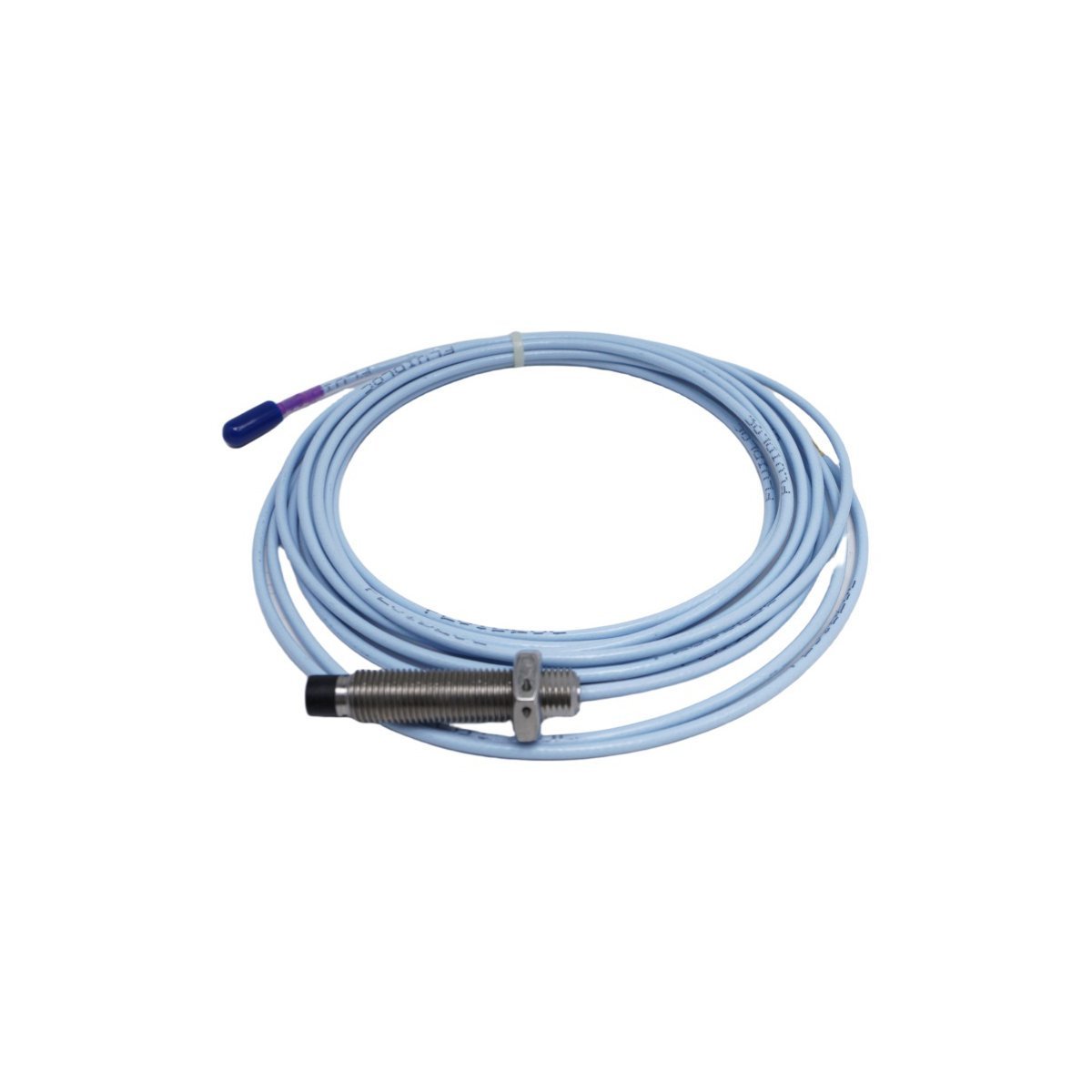

The Bently Nevada 330703-000-040-10-02-00 serves as the primary 330703 Proximity Probe utilized to execute non-contact shaft displacement tracking across 3300 or 3500 Turbine Supervisory Instrumentation (TSI) platforms. Configured with an 11 mm tip diameter, the transducer tracks dynamic oil-film clearances or axial thrust behaviors by relaying raw radio-frequency inductive variables back to an external impedance-matched processing driver circuit.

Options Index Matrix

• Base Model (330703): 3300 XL 11 mm Probe, M14 x 1.5 metric thread, unarmored standard cable base.

• Unthreaded Length Option (000): 0 mm minimum unthreaded parameter.

• Overall Case Length Option (040): 40 mm metric threaded case length.

• Total Length Option (10): 1.0 meter (3.3 feet) integrated cable path.

• Connector Variant Option (02): Miniature coaxial ClickLoc connector interface.

• Agency Approval Option (00): Not required.

Hardware Parameters

Eddy-Current Probe Scaling and Rotor Dynamics

This 11 mm transducer utilizes specialized eddy-current probe scaling to handle wider linear spans than smaller 8 mm components, optimizing it for larger nominal measuring fields. Physical installation relies on systematic gap voltage validation to lock the output near standard -10 VDC targets, aligning the sensor center point with the mid-scale linearity boundary. The precise coil winding density guarantees robust cross-talk suppression, ensuring that multi-probe arrays tracking adjacent radial metrics on high-vibration rotor dynamics components do not sustain mutual signal modulation.

Technical Interfacing FAQ

Q: How does the 0 mm unthreaded length option change the physical mounting footprint?

A: The 0 mm unthreaded option means the M14 x 1.5 threads run continuously along the entire 40 mm case body up to the base of the 11 mm head. This allows full physical engagement through thick mounting panels or counter-bored machinery frames without exposing bare body metal.

Q: Can this 1.0 meter probe connect directly into an absolute monitoring card backplane?

A: No. The internal driver tank network requires a fixed total physical system path length of either 5.0 meters or 9.0 meters. Because this probe features a 1.0 meter integral cable, it must interface with a matched 4.0 meter or 8.0 meter extension cable to preserve the factory eddy-current probe scaling accuracy.

Q: Does hot-swapping or disconnecting the ClickLoc connector during active loop monitoring break the circuit?

A: Disconnecting the coaxial terminal under a live driver loop will not cause electronic failure or hardware degradation. However, it completely breaks the measurement loop, instantly forcing the rack monitor channel into a NOT OK fault state and blocking rotor dynamics telemetry.

Field Component Guidance

• Mechanical Thread Engagement: Check that the M14 x 1.5 case establishes at least 5 full threads of physical engagement within the mounting bracket to lock against continuous operational machine frequencies.

• Side Space Protection: Provide adequate radial clearance between the 11 mm tip face and the surrounding structural metal walls to prevent uncalibrated side-viewing errors from distorting the inductive core path.

• Coaxial Connector Insulation: Fully clean the miniature coaxial ClickLoc pins prior to mating the joint. Once locked, pull the standard clear insulation sleeve directly over the connection to block physical contact with structural frame earth grounds.

• Cable Strain Limitations: Secure the 1.0 meter unarmored lead wire onto fixed machine panels using oil-resistant ties, observing a minimum continuous bend radius of 25.4 mm (1.0 inch) to preserve internal transmission impedance.

Hardware Parts Allocation

• Included Line Items: One 330703-000-040-10-02-00 unarmored 11 mm proximity probe element, companion M14 x 1.5 hex locknuts, and one clear connector protection sleeve boot.

• Separated Accessory Items: Balanced external extension coaxial lines, DIN-rail Proximitor sensors, and targeted physical calibration blocks must be selected as separate line items.
