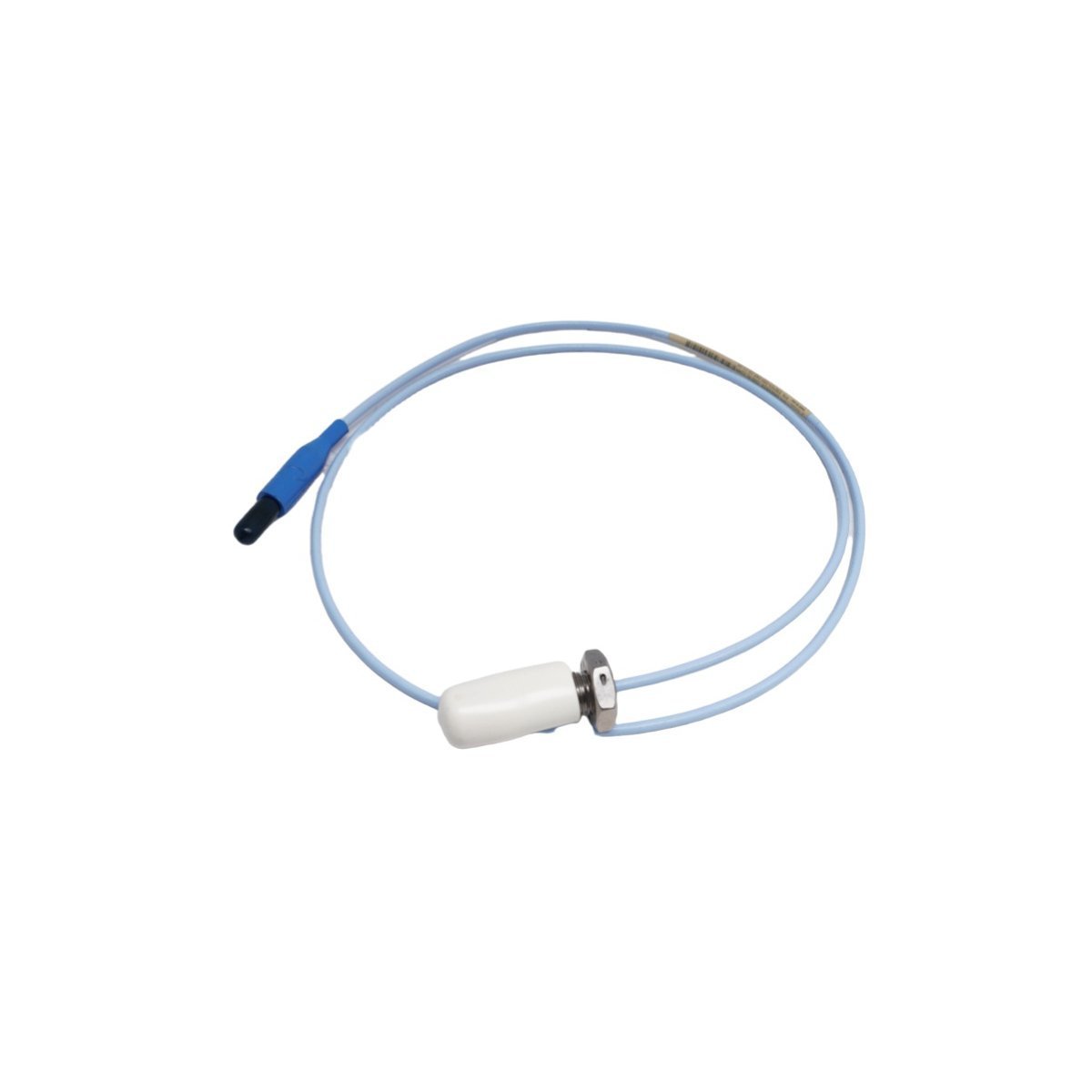

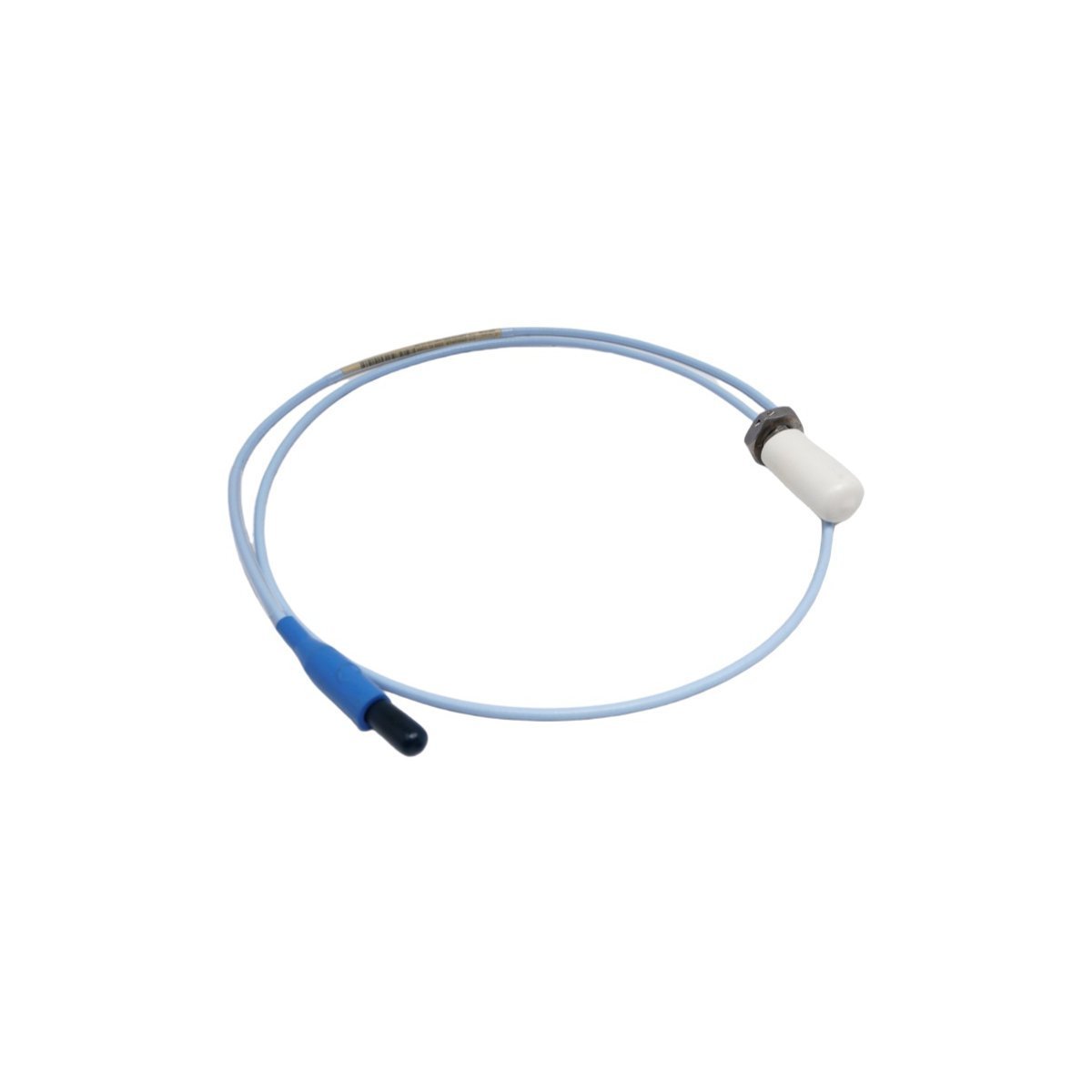

The Bently Nevada 330703-000-040-10-01-05 serves as the primary 330703 Proximity Probes utilized to execute high-frequency non-contact displacement monitoring across 3300 XL Series platforms. Operating via an 11 mm inductive tip assembly, the hardware module continuously measures mechanical gap changes between the target surface and the probe face, translating physical distances into high-frequency impedance fluctuations for remote monitoring sub-systems.

Engineering Configuration Details

The multi-segmented alphanumeric suffix options define the specific hardware dimensions and options allocated to the assembly:

• 330703: Base model index for the 3300 XL 11 mm threaded proximity probe group.

• 000: Indicates a zero length unthreaded portion on the primary case barrel.

• 040: Specifies a 4.0 inch total case threaded length option.

• 10: Sets the total integrated coaxial cable length option to 1.0 meter.

• 01: Equips the cable end with a miniature coaxial click-lock connector.

• 05: Incorporates a fluid-resistant high-durability coaxial cable protective fluid sleeve.

Mechanical and Electrical Performance Profiles

Eddy-Current Probe Scaling and Rotor Dynamics Tracking

The physical cross-section of the 11 mm tip alters the electromagnetic boundary profile, expanding the linear operational range beyond standard 8 mm sensor variants. Proper mechanical alignment is necessary to preserve exact eddy-current probe scaling baselines, facilitating steady gap voltage validation routines down to the designated -10 VDC targets during static field assembly setup. This precision tracking baseline prevents measurement deviation in high-speed rotor dynamics tracking modules while ensuring maximum cross-talk suppression when multiple transducers are clustered inside the same bearing plane housing.

Transducer Hardware Technical Log

Q: Can this proximity probe element be disconnected while the machinery protection monitor is live?

A: No, online disconnection of the coaxial link alters system impedance profiles, generating an immediate circuit fault registry and dropping downstream machine safety interlock loops.

Q: How does a deviation from the nominal -10 VDC gap voltage target alter performance?

A: Any significant gap voltage drift indicates physical migration outside the linear eddy-current probe scaling margins, corrupting the accuracy of the displacement tracking loop.

Q: What environmental seals isolate the internal wiring from aggressive process fluids?

A: The probe assembly leverages a specialized high-density fluoropolymer jacket and sealed tip matrix to provide continuous insulation against hot machine lubrication oil and moisture ingress.

Mechanical Rigging and Alignment Protocols

• Ensure the sensor tip face remains completely clear of loose magnetic debris or metallic filings before executing physical assembly steps.

• Thread the probe barrel manually into the mounting guide track until the face achieves light physical contact with the shaft target.

• Retract the housing casing by a precise mechanical distance corresponding to the calibrated system gap voltage requirement, then tighten the primary lock-nut.

• Route the flexible 1.0 meter coaxial cable run inside rigid electrical conduit runs, maintaining a minimum bend radius of 25 mm.

Procurement Package Inventory

• Bently Nevada 330703 11 mm Proximity Probe Assembly

• Factory Thread Lock-Nut and Isolation Washer Kit

Logistics and Dispatch Criteria

Delivery time: 2-7 days when payment finish, with international distribution handled directly via premium global freight systems including DHL, FEDEX, and UPS. Every transducer component is sealed within moisture-barrier anti-static industrial packaging sleeves surrounded by fitted shock-insulating structural foam layers to ensure perfect electrical and physical preservation throughout international transit paths.
