Premium Asset Protection Overview

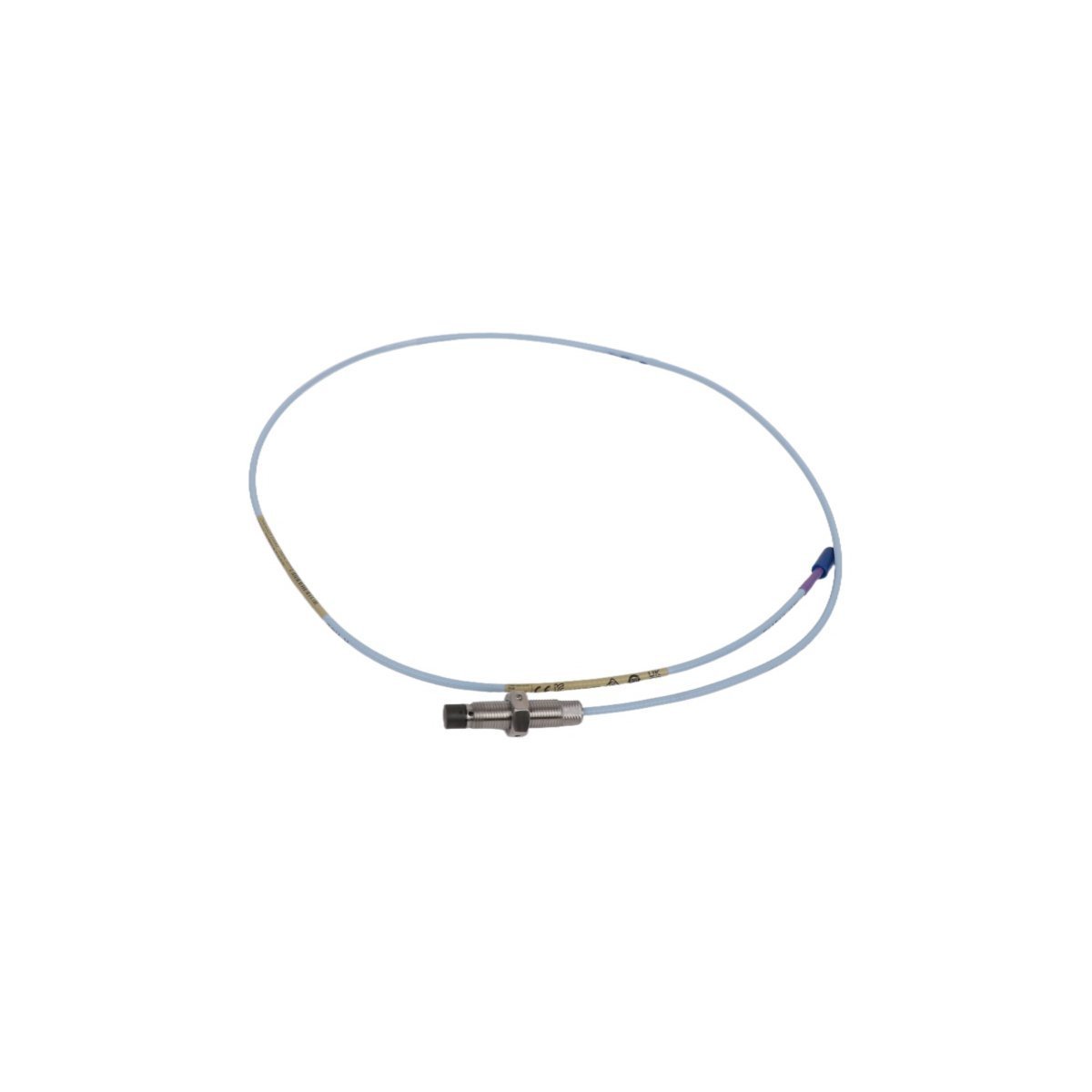

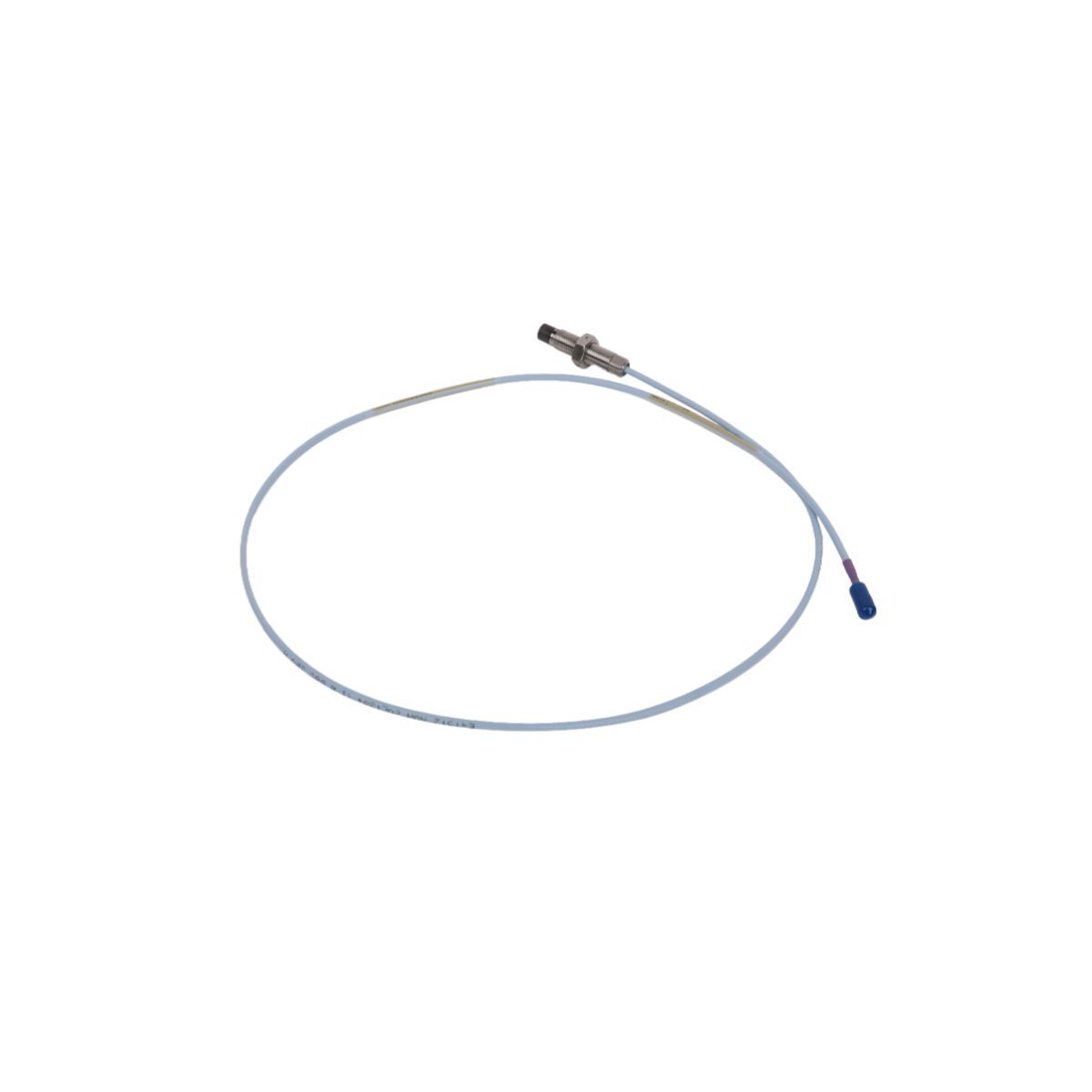

The Bently Nevada 330701-00-20-10-11-00 represents the industry benchmark for non-contacting displacement measurements in critical rotating machinery. Designed for seamless integration with the Bently Nevada 3500 Monitoring System, this 3300 XL 8mm probe delivers exceptional linearity and temperature stability. It accurately captures microscopic shaft movements, providing real-time data for vibration analysis, thrust position monitoring, and eccentricity measurements. Engineered to survive the harshest industrial environments, it ensures maximum uptime for steam turbines, centrifugal compressors, and high-speed pumps where precision is non-negotiable.

Configuration Decoding and Suffix Logic

Each digit in the 330701-00-20-10-11-00 string defines a critical mechanical specification. This specific configuration ensures optimized fitment for standard industrial housings.

Unthreaded Length (00)

0.0 inches. This indicates the probe body is fully threaded for maximum mounting flexibility within the bracket or housing.

Overall Case Length (20)

2.0 inches. Provides a compact profile suitable for tight installation spaces without compromising structural integrity.

Total Length (10)

1.0 meter (3.3 feet). This defines the integrated cable length from the probe tip to the connector, optimized for junction box proximity.

Connector and Agency Approval (11-00)

Equipped with a miniature coaxial click-loc connector and standard multi-country safety certifications for non-hazardous and general industrial use.

Critical Technical Specifications

Precision Installation Protocol

Achieving valid data starts with precise physical alignment. Ensure the probe gap is set within the linear range of the Proximitor Sensor, typically evidenced by a -10 VDC bias voltage for a mid-range gap. Maintain a minimum cable bend radius of 25.4 mm (1.0 in) to prevent signal attenuation or mechanical fatigue. Always utilize calibrated feeler gauges or digital voltmeters for gap verification during commissioning. For high-vibration applications, the use of thread-locking fluid is mandatory to prevent probe migration.

Industrial Engineering Advantages

The 3300 XL series eliminates the common drift issues found in generic eddy-current sensors. Its advanced gold-plated brass connectors offer superior corrosion resistance and signal integrity over decades of operation. When integrated with Honeywell Experion PKS or Emerson DeltaV via the 3500 rack, it facilitates predictive maintenance strategies that detect bearing wear long before catastrophic failure occurs. The probe’s thermal expansion coefficients are matched to AISI 4140 steel, ensuring accuracy across wide temperature swings in thermal power plants.

Global Logistics and Readiness

Delivery time: 3-5 days when payment finish, BY DHL/FEDEX/UPS.

Every unit undergoes rigorous QC before dispatch. Shipped in anti-static industrial packaging to maintain electronic integrity.

Technical Intelligence Exchange

Q1: Can this probe be used with older 3300 series Proximitor sensors?

A1: While the 3300 XL 8mm probe is physically compatible, full system accuracy is only guaranteed when paired with 3300 XL Proximitor sensors. Use with non-XL components may result in non-linear scale factors.

Q2: What is the significance of the 1.0 meter total length option?

A2: The 10 (1.0m) option is designed for installations where the Proximitor sensor is located in a nearby local junction box. Total system length (Probe + Extension Cable) must always equal 5.0 or 9.0 meters as per the Proximitor calibration.

Q3: How do I handle the '11' connector option during installation?

A3: The '11' suffix denotes a standard connector. Use a connector protector kit if the junction is exposed to oil or moisture to prevent signal grounding and impedance mismatch.
