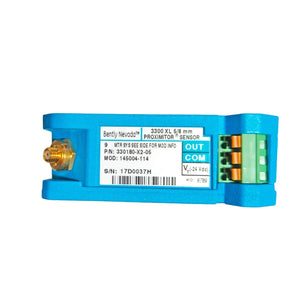

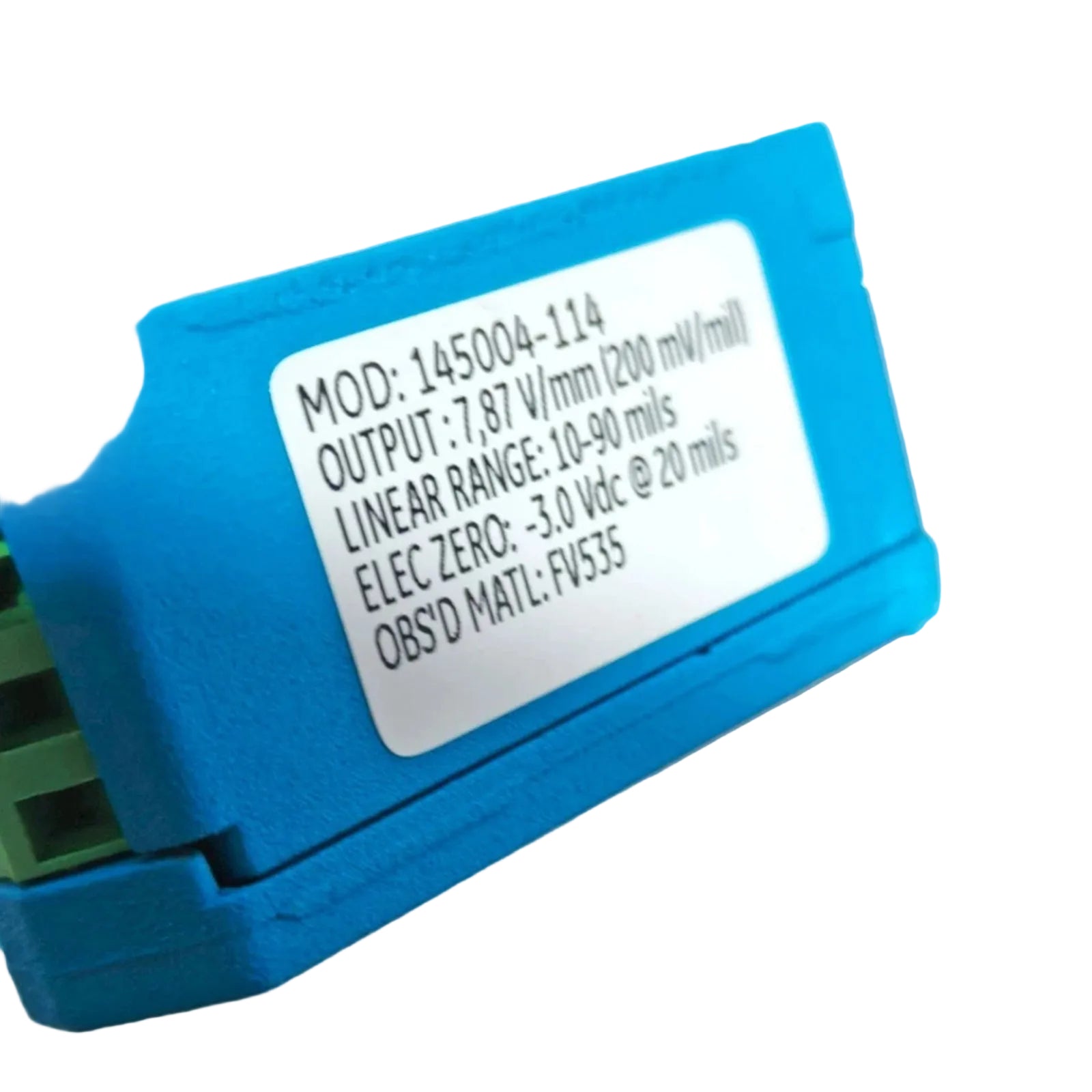

The Bently Nevada 330180-X2-05, also cataloged as the 330180 Proximitor Sensor, operates as a dedicated hardware component for contactless eddy-current displacement processing within System 3300 platforms. The device conditions RF signal excitation generated by proximity probes to output analog DC and AC voltage variations proportional to the physical gap distance over the target surface.

Technical Parameters

Eddy-Current Probe Scaling and Gap Voltage Validation

The 330180-X2-05 matches specific eddy-current probe scaling architectures where system length constraints control the linearity of the output slope. Precise gap voltage validation (-10 VDC targets) is mandatory during calibration to establish the mid-point of the physical measurement curve. Maintaining accurate matching between the probe, extension cable, and the internal oscillator-demodulator circuit ensures stable rotor dynamics recording while minimizing cross-talk suppression failures when sensors are mounted in high physical density arrays.

Technical Queries and Engineering Review

Q: How do option codes within the X2 placeholder affect the electrical calibration of the sensor?

A: The X2 option determines physical system tuning lengths (such as 1.0 meter or 9.0 meters configurations). The internal capacitance of the Proximitor sensor is factory-balanced to match these lengths; mixing unmatched lengths introduces significant scale factor errors.

Q: What are the electrical parameters for powering the 330180-X2-05 terminal block?

A: The device operates on a negative voltage bus, requiring -17.5 VDC to -26 VDC applied across the VT and COM terminals, drawing a nominal current load of under 12 mA.

Q: Is this sensor component capable of live cable disconnection under power?

A: No. Disconnecting the coaxial probe or extension cable interface while the terminal block is live can induce voltage spikes that disrupt or fault the monitoring rack channel logic.

On-Site Assembly Guidelines

• Isolate all power lines feeding the connected monitoring rack channel before executing sensor terminal alterations.

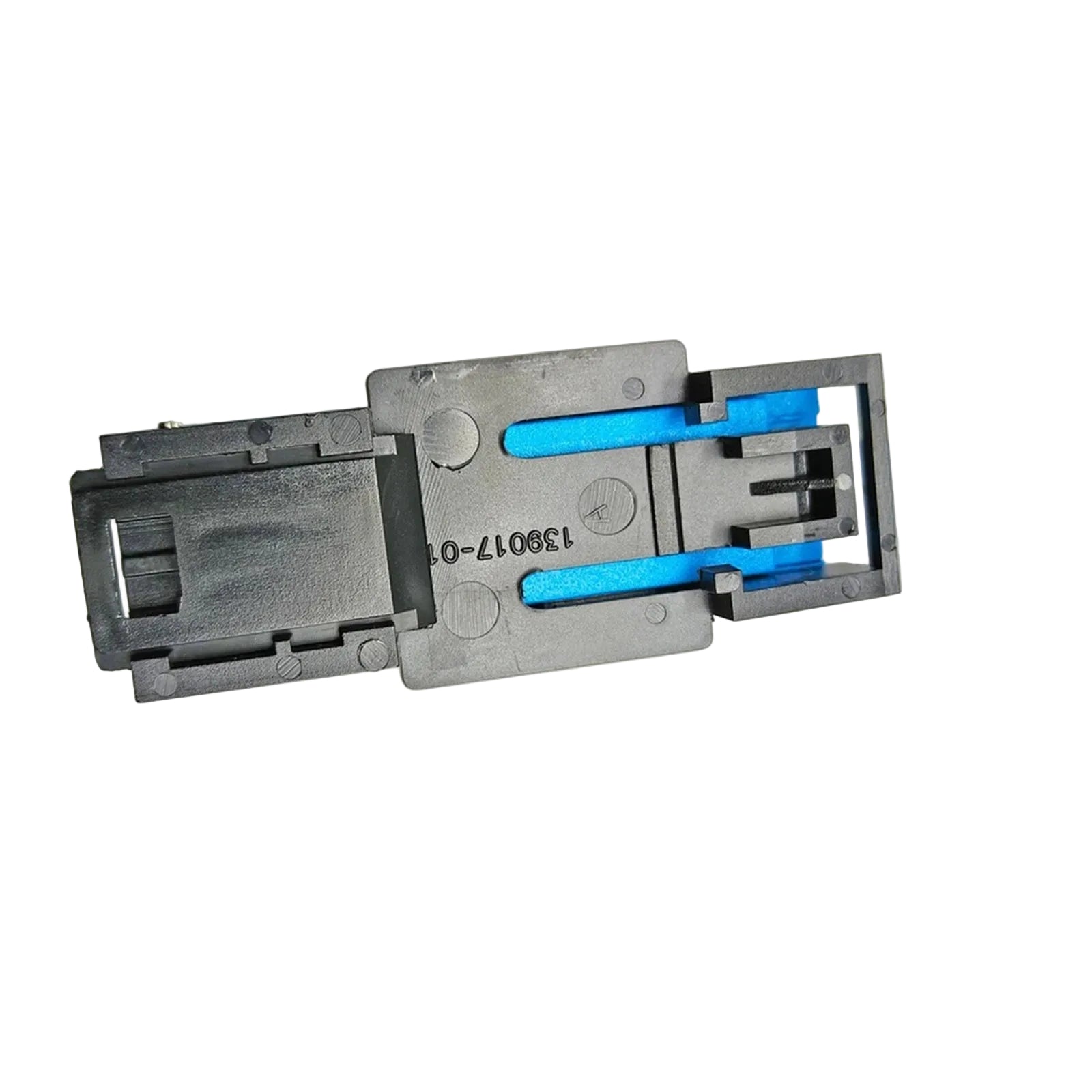

• Mount the Proximitor sensor housing securely on a non-isolated DIN rail or matching base plate to maintain structural grounding uniformity.

• Avoid exceeding the minimum bend radius requirements when routing the coaxial probe extension cables within cable trunks.

• Enclose all coaxial connector interfaces within non-conductive connector protectors to eliminate background electrical cross-talk and ground loop paths.

Supply Kit Inventory

• 1 x 330180-X2-05 Proximitor Sensor Unit

• 1 x Installation Hardware Grounding Washer

• 1 x Hazardous Area Certification Manifest

Logistics and Packaging Operations

Every sensor is packed within anti-static industrial packaging to negate ESD degradation vectors during global freight handling. Dispatches are routed internationally with standard arrival spans logging within 2-7 days when payment finish using premium DHL/FEDEX/UPS express air methods.
