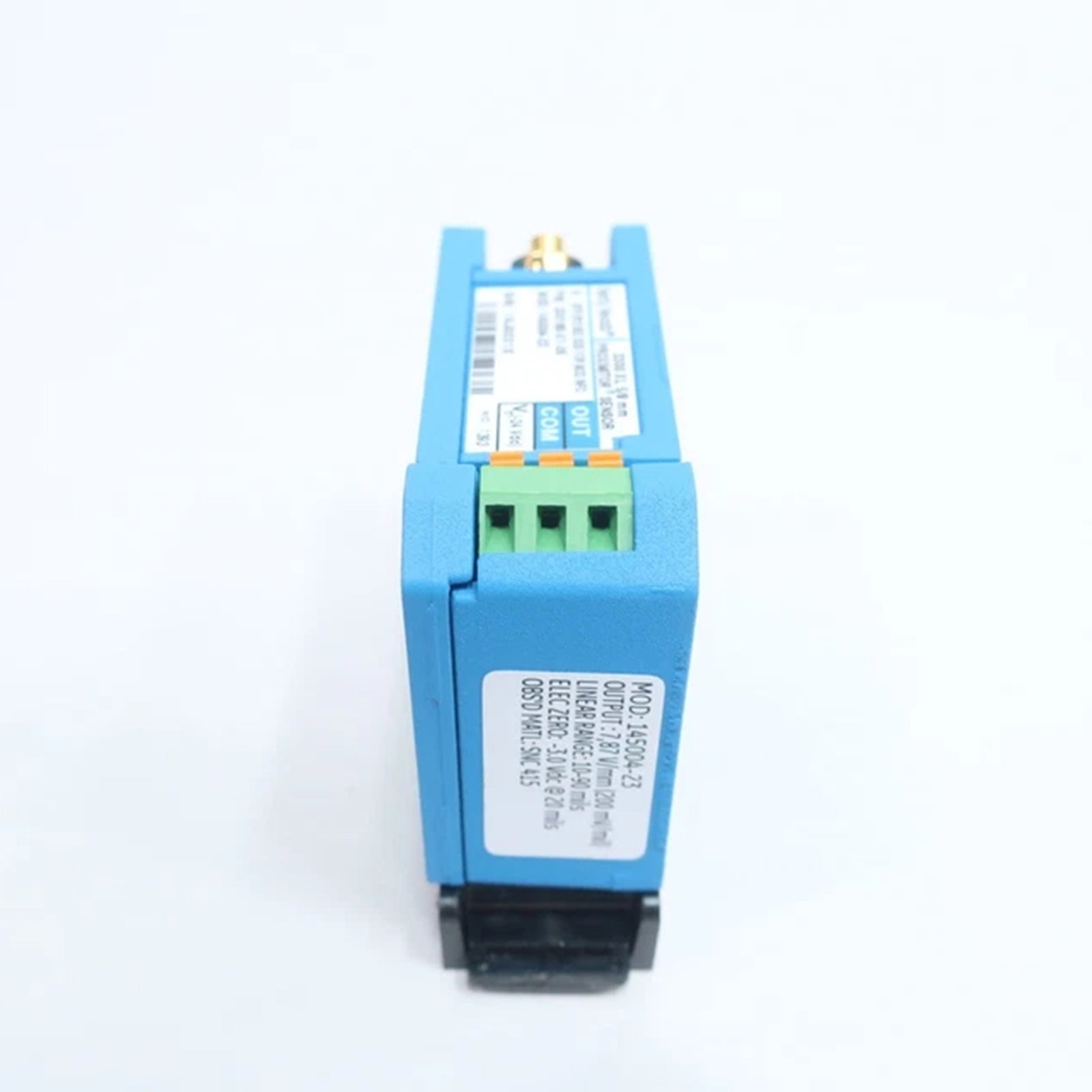

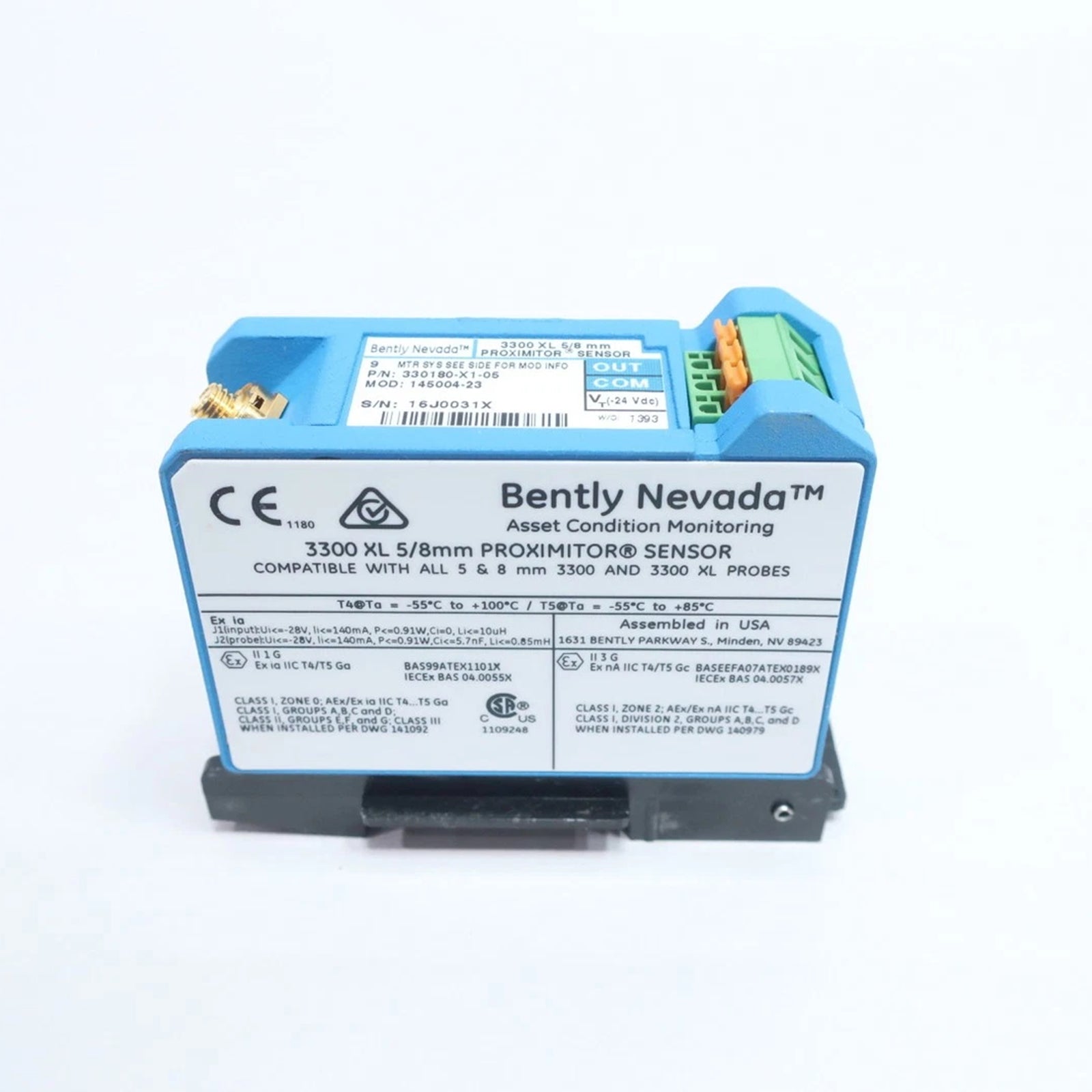

Configured for high-frequency signal conditioning in machinery protection architectures, the Bently Nevada 330180-X1-05 MOD 145004-82 (330180-X1-05 MOD 145004-82 Proximitor Sensor) provides direct physical/electrical execution.

Suffix Breakdown and Configuration Matrix

• Base Model: 330180
• Total Length and Mounting Option: X1 (Selectable system length options: 11 for 1.0 meter, 51 for 5.0 meters, 91 for 9.0 meters with DIN-mount)
• Agency Approval Option: 05 (CSA, ATEX, IECEx Approvals)
• Modification Option: MOD 145004-82 (Custom factory hardware modification build)

Hardware Specifications

Mechanical Monitoring and Rotor Dynamics Architecture

Engineered for precision turbine surveillance, this proximitor unit drives eddy-current probe scaling by supplying radio frequency energy to the transducer tip and demodulating the return signal into a linear voltage output. Proper gap voltage validation is required during commissioning to lock the baseline output at -10 VDC, ensuring full linear dynamic range. Continuous signal filtering and internal shielding suppress ambient electromagnetic noise, protecting rotor dynamics analysis from cross-talk and phase distortion.

Ordering Info

• 1 x 330180-X1-05 MOD 145004-82 Proximitor Sensor unit
• 1 x DIN-mount locking clip assembly
• 1 x Technical compliance documentation sheet

Field Installation Guidelines

• DIN-Rail Mounting: Secure the sensor housing firmly onto a standard 35 mm symmetrical DIN rail within a weather-resistant instrument enclosure.
• Signal Grounding: Terminate the coaxial shield exclusively at the monitoring system common earth to prevent damaging ground loop currents.
• Power Supply Regulation: Supply a regulated negative DC voltage ranging between -17.5 VDC and -26 VDC across the terminal blocks.
• Interchangeability Check: Verify that the total system length option matches the connected probe and extension cable lengths without requiring recalibration.

Frequently Asked Questions

• What is the primary electrical function of the 330180 proximitor sensor?

  It generates radio frequency signals to drive the probe tip and converts the gap variation into a proportional voltage output for monitoring systems.

• What power supply voltage range is required to operate this sensor?

  It requires a negative DC input voltage between -17.5 VDC and -26 VDC delivered across its power input terminals.

• Does this proximitor model require manual bench calibration when replacing cables?

  No, the 3300 XL system design guarantees complete interchangeability of components without altering system scaling or requiring recalibration.

• How is the unit physically mounted inside an instrument cabinet?

  The sensor features an integrated DIN-mount base designed for rapid installation onto standard 35 mm industrial DIN rails.

• What hazardous area certifications are included with the 05 approval option?

  The sensor carries CSA, ATEX, and IECEx certifications for safe operation in explosive industrial environments.

• What causes an unstable or fluctuating gap voltage reading at the monitor?

  Poor shield grounding, damaged coaxial cables, loose terminal connections, or a scratched target surface can destabilize the voltage.

• Why is maintaining a nominal -10 VDC gap voltage critical during setup?

  It ensures the probe operates directly in the center of its linear measurement range for accurate static and dynamic data collection.

• Can this sensor be used for both vibration and shaft position measurements?

  Yes, it processes signals simultaneously to capture slow thermal position changes and high-frequency dynamic vibration waveforms.
