Product Overview

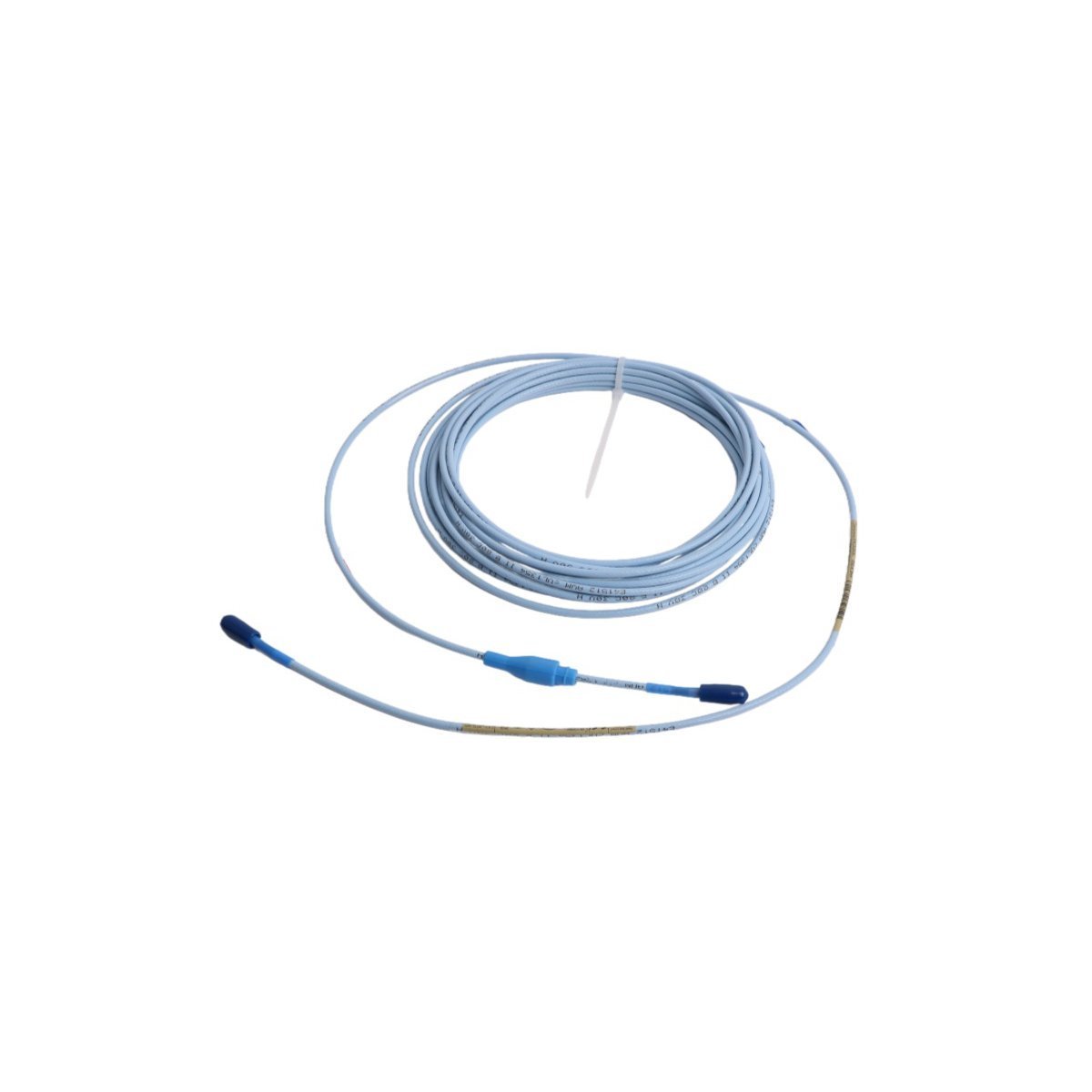

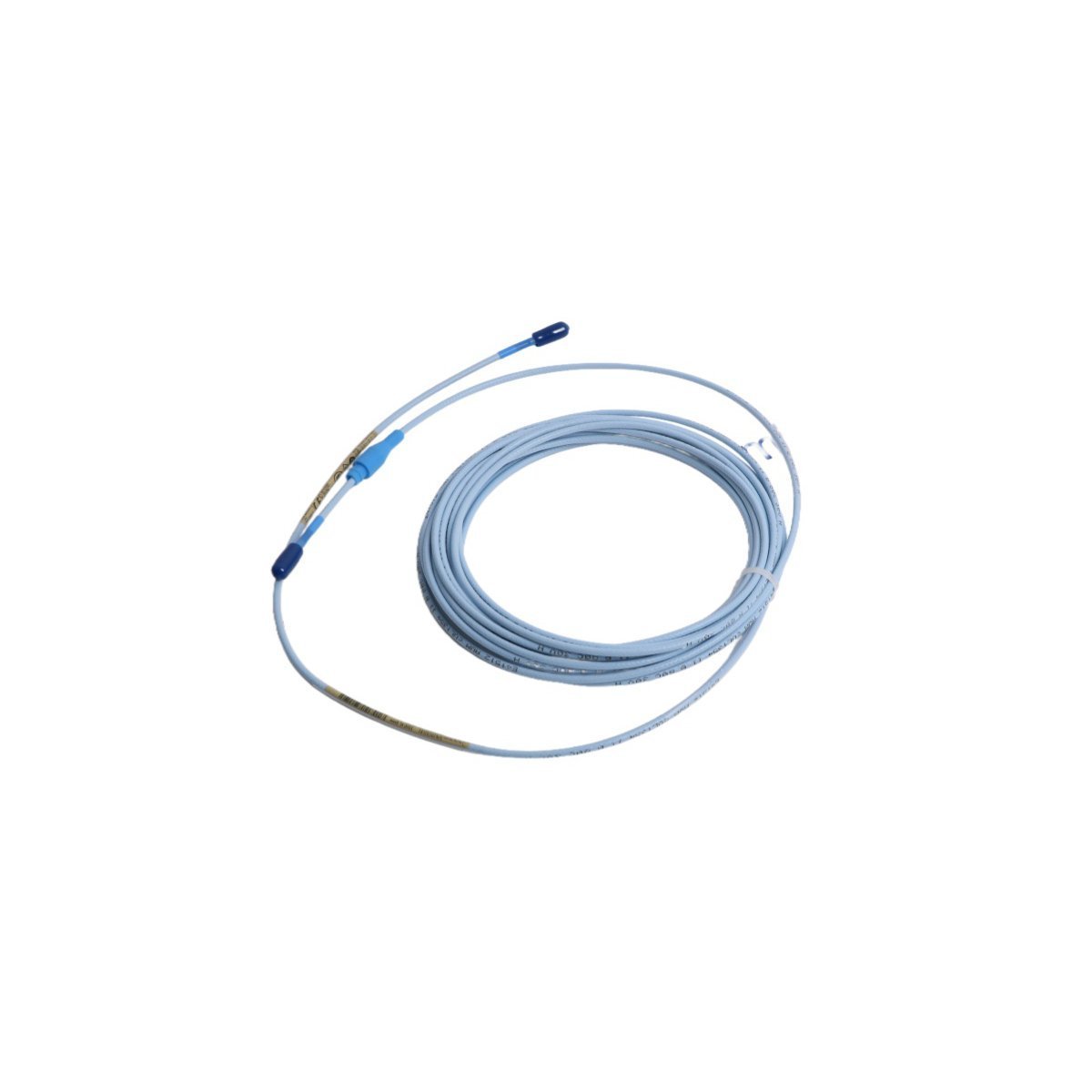

The Bently Nevada 330130-060-02-05 is a high-performance extension cable engineered specifically for the 3300 XL 8mm Proximity Transducer System. This cable serves as the vital link between the proximity probe and the Proximitor sensor, ensuring the transmission of high-fidelity eddy current signals without impedance mismatch. It plays a decisive role in Turbine Supervisory Instrumentation (TSI), facilitating the monitoring of radial vibration, axial thrust, and phase reference (Keyphasor) in critical rotating machinery. Designed for maximum signal integrity, this 6.0-meter cable withstands the rigorous electromagnetic interference and mechanical stress typical of power plants and petrochemical facilities, providing the precision necessary for advanced machinery diagnostics and automated protection logic.

Cable Configuration & Suffix Decoding

330130 Suffix Technical Logic

The alphanumeric code 330130-060-02-05 defines the physical and environmental protection parameters required for specific field installations:

Cable Length (-060)

The 060 suffix designates a 6.0-meter (approximately 19.7 feet) cable length. When combined with a 3.0-meter probe, this facilitates a 9-meter total system length, which is a standard configuration for deep-well or long-reach industrial monitoring applications.

Connector and Cable Option (-02)

The 02 designation indicates the inclusion of a factory-installed connector protector. This specialized sleeve prevents oil, moisture, and other contaminants from penetrating the coaxial interface, ensuring a long-term, low-impedance connection even in fluid-rich environments.

Agency Approval (-05)

The 05 suffix confirms Multiple Approvals, encompassing ATEX, IECEx, and CSA certifications. This allows the cable to be deployed safely in hazardous areas, meeting global intrinsic safety requirements for Class I, Division 1 and Zone 0 environments.

Hardware Specifications

Field Implementation Strategy

Successful deployment of the 330130 extension cable requires strict adherence to coaxial handling protocols. During installation, avoid exceeding the minimum bend radius of 25.4 mm (1.0 inch) to prevent internal dielectric fracturing which causes signal noise. Technicians must ensure that the "Click-loc" connectors are fully seated and that the connector protector is correctly positioned to seal the interface. For hazardous area compliance, the cable should be routed through dedicated grounded conduit or secured with stainless steel ties to prevent mechanical abrasion. Always verify that the total electrical length of the probe and extension cable matches the calibration of the Proximitor sensor (typically 9.0 meters).

Operational Durability & System Synergy

The 330130 extension cable features FEP (Fluorinated Ethylene Propylene) insulation, providing world-class resistance to synthetic lubricants, caustic chemicals, and extreme thermal cycling. This resilience makes it the preferred choice for integration with Honeywell Experion PKS or Emerson DeltaV via Bently Nevada 3500/42M monitoring racks. The cable’s low-capacitance design ensures that the high-frequency eddy current carrier signal remains stable, allowing for the precise measurement of sub-micron shaft movements. This level of reliability is essential for preventing unplanned downtime and extending the lifecycle of multi-million dollar rotating assets.

Logistics & Global Fulfillment

We maintain a robust inventory of Bently Nevada 3300 XL components to support critical plant turnarounds and emergency outages.

Dispatch Readiness: 3-5 days when payment finish, with real-time tracking provided.

Global Express Carriers: Secure door-to-door transit via DHL Express, FEDEX International, or UPS.

Industrial Protection: Every cable is shipped in its original anti-static moisture-barrier bag. We utilize reinforced export-grade packaging with custom-fit cushioning to protect the miniature coaxial connectors from physical shock during international transit, ensuring the unit arrives in factory-new condition.

Technical Inquiry & FAQ

Q1: Can I use this 6.0m cable with a 1.0m probe in a 5-meter system?

A1: No. This 6.0m cable is specifically intended for a 9-meter total system (typically paired with a 3.0m probe). Using it in a 5-meter system will cause a massive impedance mismatch and render the vibration readings invalid.

Q2: Is the connector protector (-02 option) removable?

A2: The connector protector is a factory-installed sleeve designed to slide over the mated connection. It should not be removed as it provides the primary environmental seal for the coaxial interface in oily or humid conditions.

Q3: How do I know if this cable is compatible with my 3300 XL Proximitor?

A3: Verify the "Total Length" label on your Proximitor sensor. If it states "9.0 Meter System," this 6.0m extension cable is the correct match for a 3.0m probe. If your system is 5.0 meters, you must use the 330130-040 or -045 series.
