Product Overview

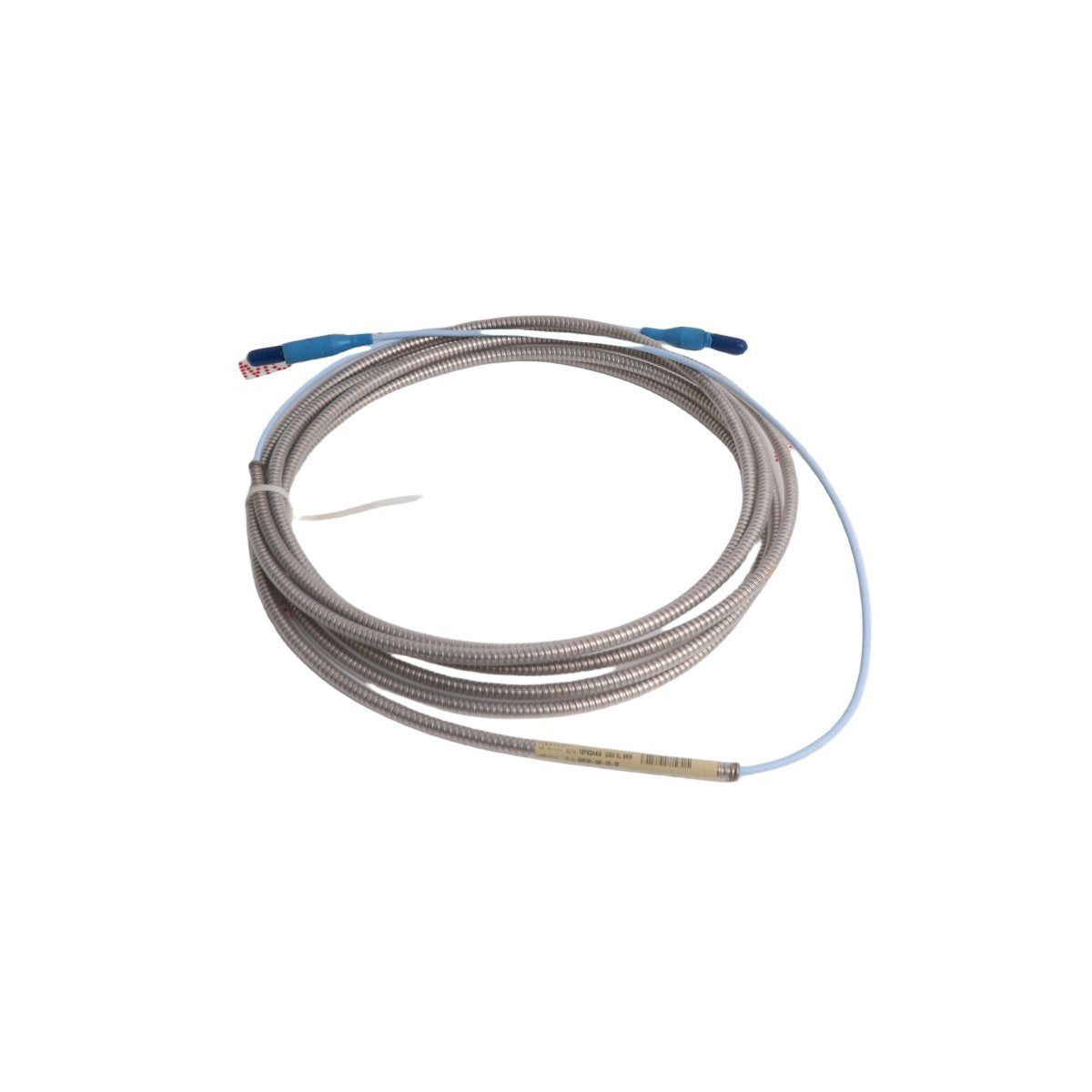

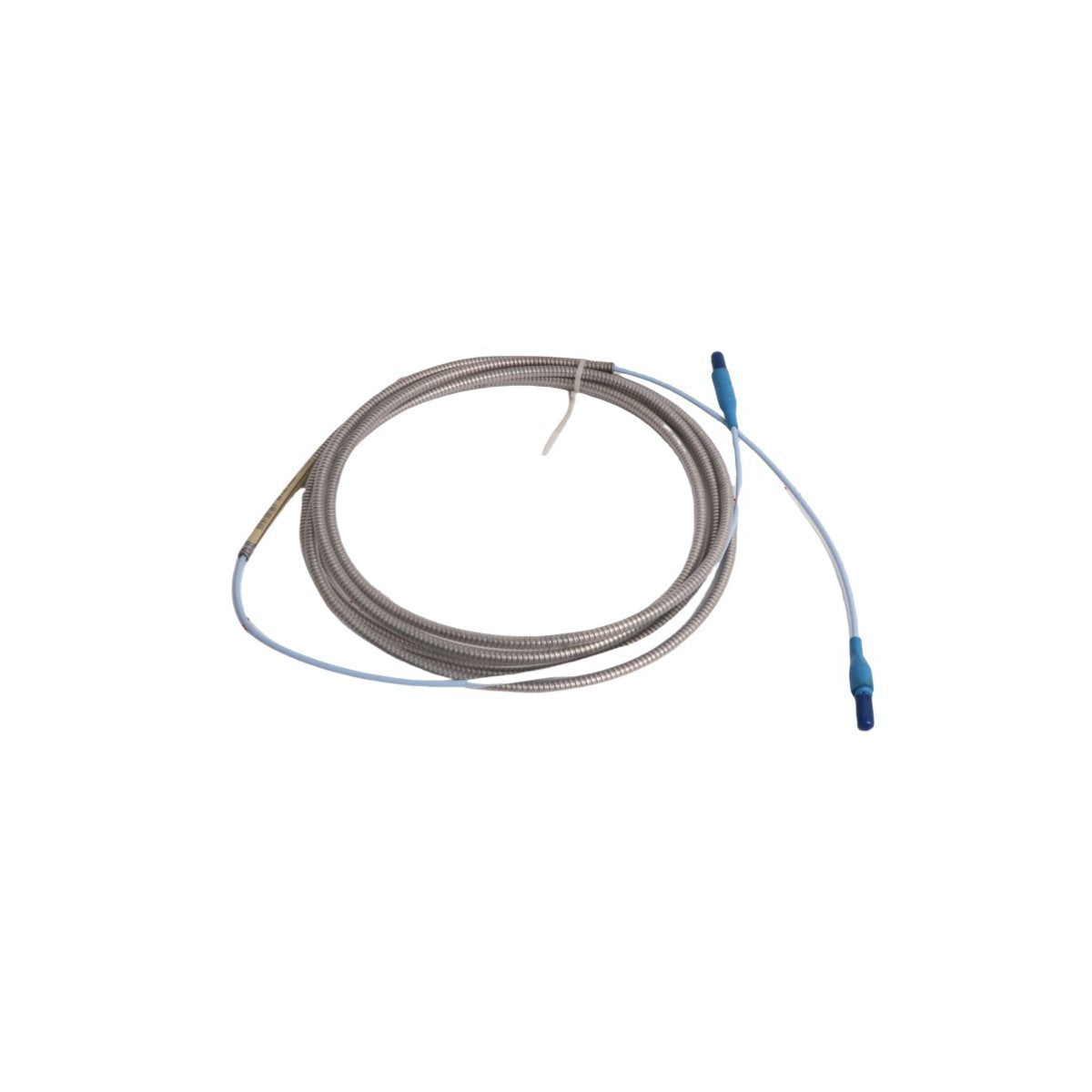

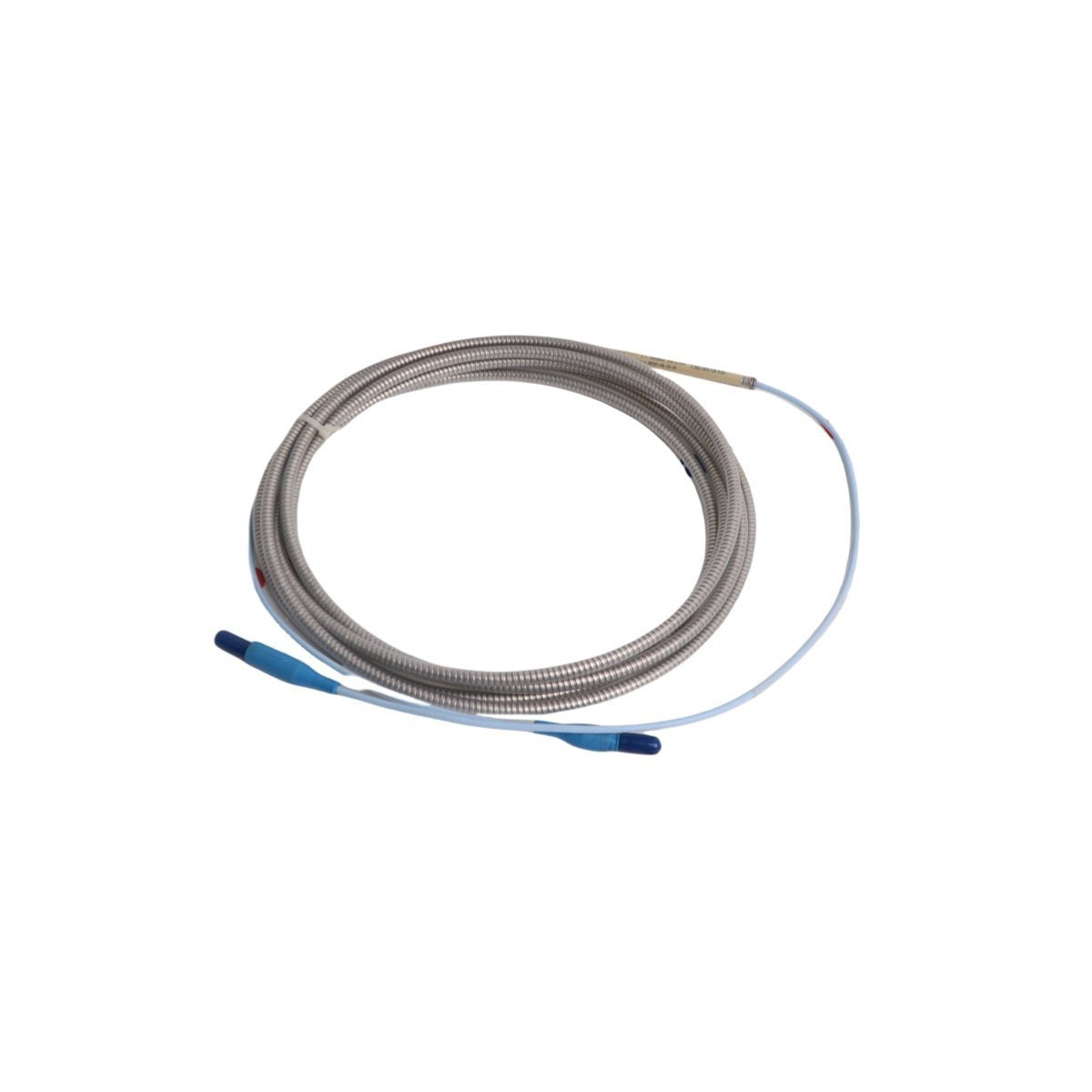

The Bently Nevada 330130-045-03-00 is a precision-engineered extension cable designed for seamless integration within the 3300 XL 8 mm proximity transducer system. As a vital link in Turbine Supervisory Instrumentation (TSI) architecture, this 4.5-meter coaxial cable facilitates the transmission of eddy-current displacement signals between the probe and the Proximitor sensor. In rotating machinery monitoring, signal integrity is the foundation of effective diagnostics; the 330130-045-03-00 is constructed to maintain the exact electrical impedance required by the 3300 XL system, ensuring that rotor vibration, shaft position, and speed data remain untainted by environmental interference.

Engineered for the demanding rigors of power generation and hydrocarbon processing environments, this cable utilizes advanced shielding technology to suppress RFI (Radio Frequency Interference) and EMI (Electromagnetic Interference). The cable incorporates Bently Nevada’s proprietary ClickLoc connector technology, which provides a mechanically secure, vibration-proof connection that resists the loosening forces common in high-speed centrifugal machinery. By maintaining a consistent electrical path, this extension cable allows monitoring systems to operate within the defined linear range of the transducer, typically targeting the critical -10 VDC gap voltage setpoint required for accurate gap-to-voltage conversion. This component is essential for maintenance teams looking to preserve the accuracy of their existing vibration monitoring loops during repairs or system expansions.

Technical Specifications

Parameter Specification
Model 330130-045-03-00
Brand Bently Nevada
Series 3300 XL
Cable Length 4.5 meters
Connector Type ClickLoc Miniature Coaxial
Operating Temperature -51 deg C to +177 deg C
Weight 0.38 kg
Shipping Dimensions 30.0 * 30.0 * 6.0 cm
Impedance 75 Ohm (Nominal)
Cable Jacket FEP (Fluorinated Ethylene Propylene)
Agency Approval Standard/Non-Hazardous

Model Configuration Explanation

The model string 330130-045-03-00 provides a clear technical roadmap for the component configuration:

  • 330130: Identifies the 3300 XL series extension cable family.

  • 045: Denotes the cable length of 4.5 meters.

  • 03: Specifies the miniature coaxial connector type, including the ClickLoc feature.

  • 00: Indicates the standard agency approval level for non-hazardous site applications.

Typical Applications

The 330130-045-03-00 is used across various critical rotating machinery assets:

  • Steam and Gas Turbines: Monitoring radial vibration and shaft centerline motion.

  • Centrifugal Compressors: Tracking axial rotor position to prevent thrust bearing contact.

  • Industrial Gearboxes: Detecting tooth-mesh vibrations and alignment shifts.

  • Large Electric Motors: Ensuring rotor stability and detecting dynamic air-gap changes.

  • High-Speed Pumps: Providing real-time displacement data for predictive maintenance diagnostics.

System Compatibility

This extension cable is a calibrated component within the Bently Nevada 3300 XL ecosystem and is compatible with:

  • All 3300 XL 8 mm proximity probes.

  • 3300 XL Proximitor sensors (factory-calibrated for 5m or 9m total system length).

  • Standard Bently Nevada mounting brackets and conduit assemblies.

  • 3300 XL series hardware including armor-protected housing variants.

Installation Guidelines

Proper field installation is critical to maintain the accuracy of the transducer loop:

  • Cable Routing: Install within dedicated electrical conduit, avoiding proximity to high-voltage AC lines to prevent noise induction.

  • Connector Engagement: Use a straight, axial motion when mating ClickLoc connectors. Ensure the connector is fully seated until a distinct audible click is heard.

  • Strain Relief: Do not allow the cable to hang from the connector. Use cable ties or clamps to provide adequate strain relief near the Proximitor housing.

  • Bend Radius: Respect the minimum bend radius of the coaxial cable to avoid damaging the internal dielectric or center conductor.

  • Maintenance: Keep connector threads and contact pins clean and dry. Use protective caps during installation if the environment contains oil mist or particulates.

Product Advantages

  • Impedance Consistency: Factory-matched impedance ensures the transducer signal follows the expected linear response curve.

  • Ruggedized Construction: The FEP cable jacket provides excellent resistance to heat, oil, and chemical degradation commonly found in machine bearing housings.

  • Vibration Resistance: The ClickLoc design ensures connectivity is maintained even under extreme harmonic vibrations typical of heavy industrial equipment.

  • Seamless Integration: Designed as a plug-and-play component for existing 3300 XL installations, minimizing downtime during replacement.

Ordering Information

The standard package for the 330130-045-03-00 includes:

  • One (1) 4.5-meter extension cable assembly.

  • Protective connector caps.

  • Installation documentation detailing routing and handling.

  • Note: Always verify if your specific monitoring loop requires a 5-meter or 9-meter total system length to ensure proper calibration match.

Frequently Asked Questions

  • Can I cut the 4.5m cable to a shorter length?

    No. Cutting the cable changes the electrical impedance and the overall system frequency response, which invalidates the factory calibration and leads to measurement errors.

  • Is the 330130-045-03-00 compatible with older 3300 systems?

    While the physical connectors may mate, the 3300 XL series is electrically optimized. Mixing with legacy components is not recommended as it compromises signal accuracy.

  • How do I know if my cable is faulty?

    Erratic output, signal noise on the monitor, or a consistent "Gap Error" reading often indicates a cable break or shielding failure. Use a multimeter to check for continuity.

  • Does the cable require any special grounding?

    The shielding is grounded through the Proximitor housing. Ensure the housing is properly bonded to a clean, low-impedance machine ground.

  • What should I do if the connector is loose?

    If a ClickLoc connector does not provide a positive click, the locking ring may be damaged. Replace the cable to prevent intermittent signal loss.

  • Is this cable oil-resistant?

    Yes, the FEP jacket is chemically resistant to most standard industrial turbine oils and synthetic lubricants.

  • Can I use this in an explosive atmosphere?

    The "00" suffix denotes standard, non-hazardous area configuration. For hazardous locations, ensure you select the appropriate "05" or equivalent agency-approved model.

  • Why is the cable length exact?

    The 3300 XL system is calibrated based on a specific total loop length (Probe + Extension + Proximitor). Changing the length necessitates a system recalibration at the monitor.
