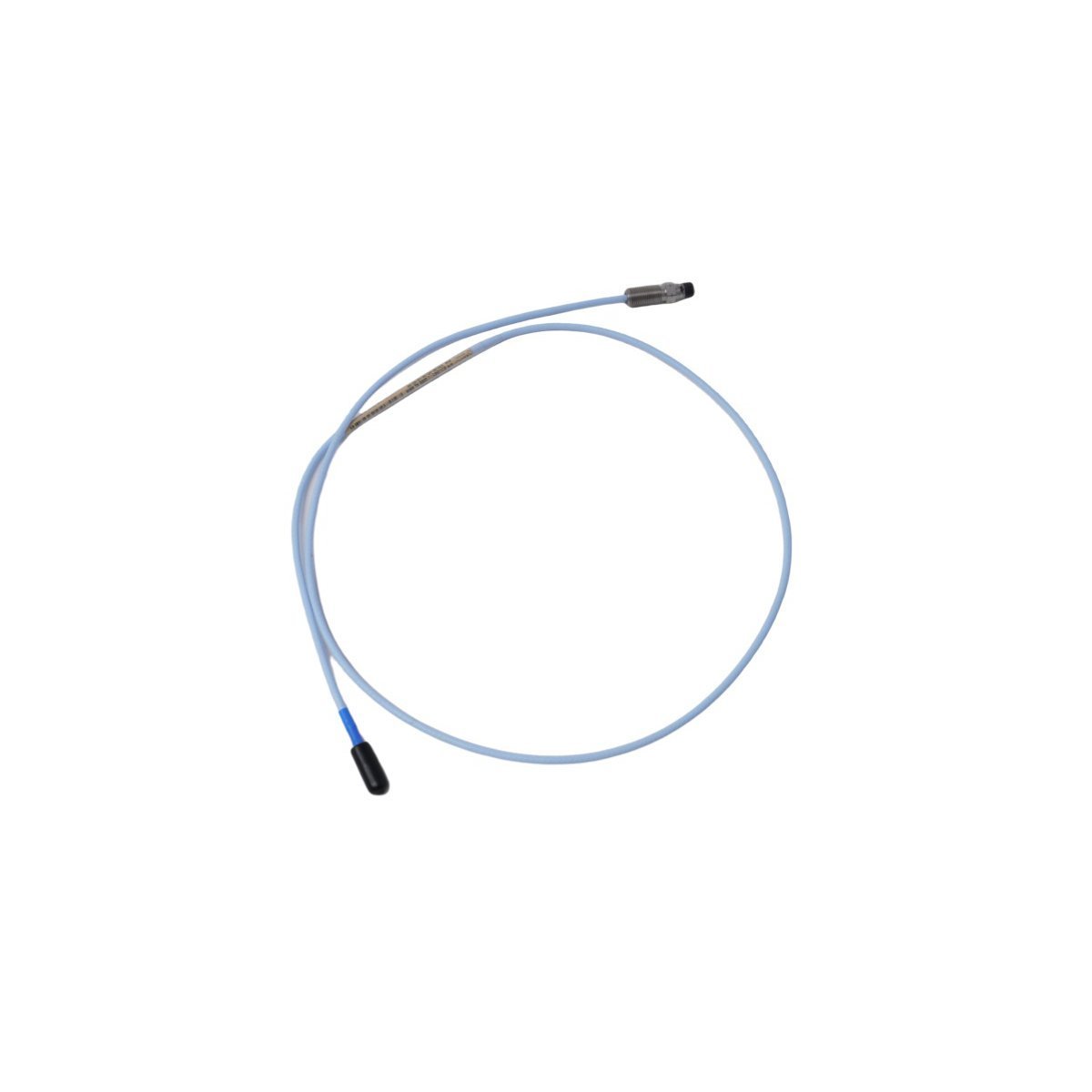

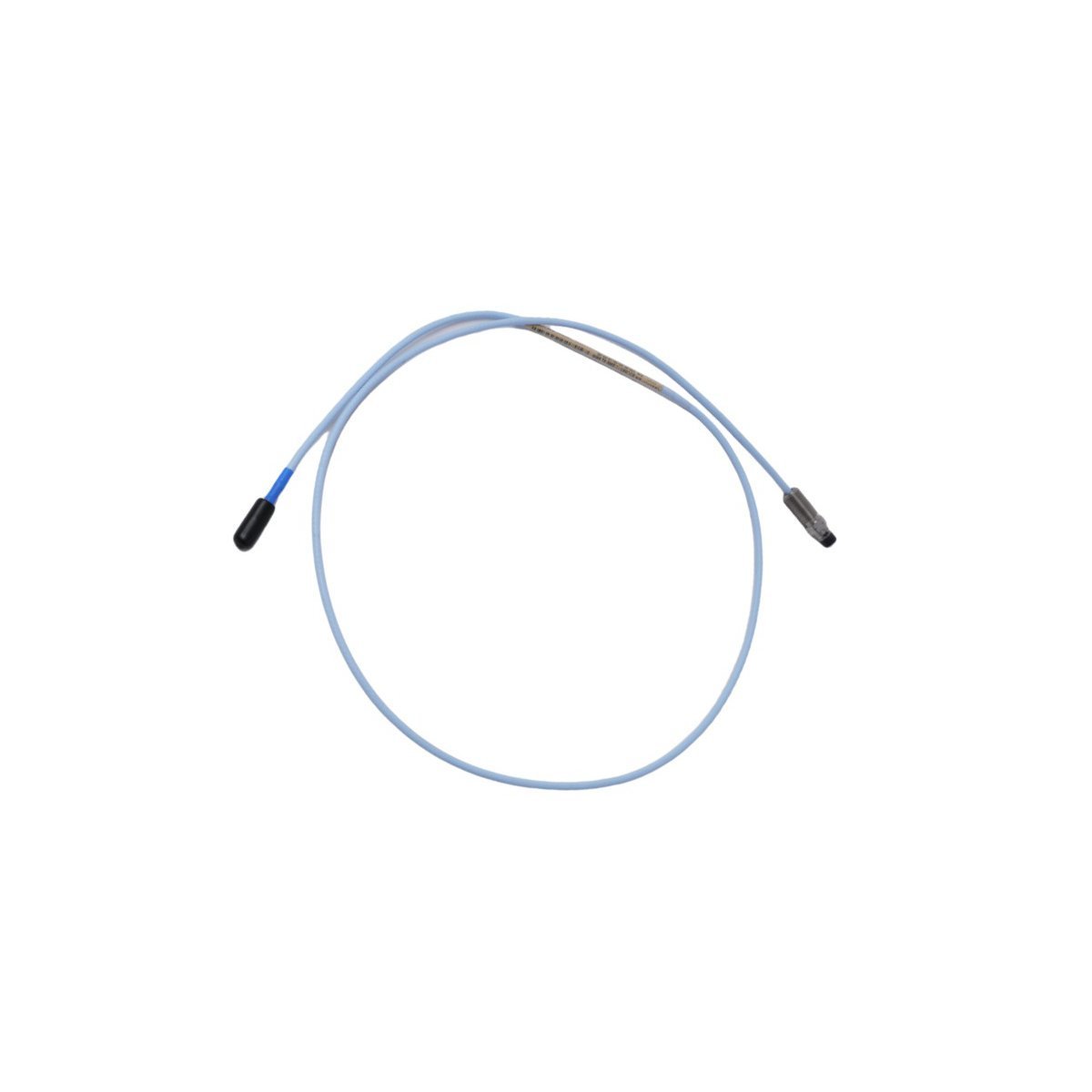

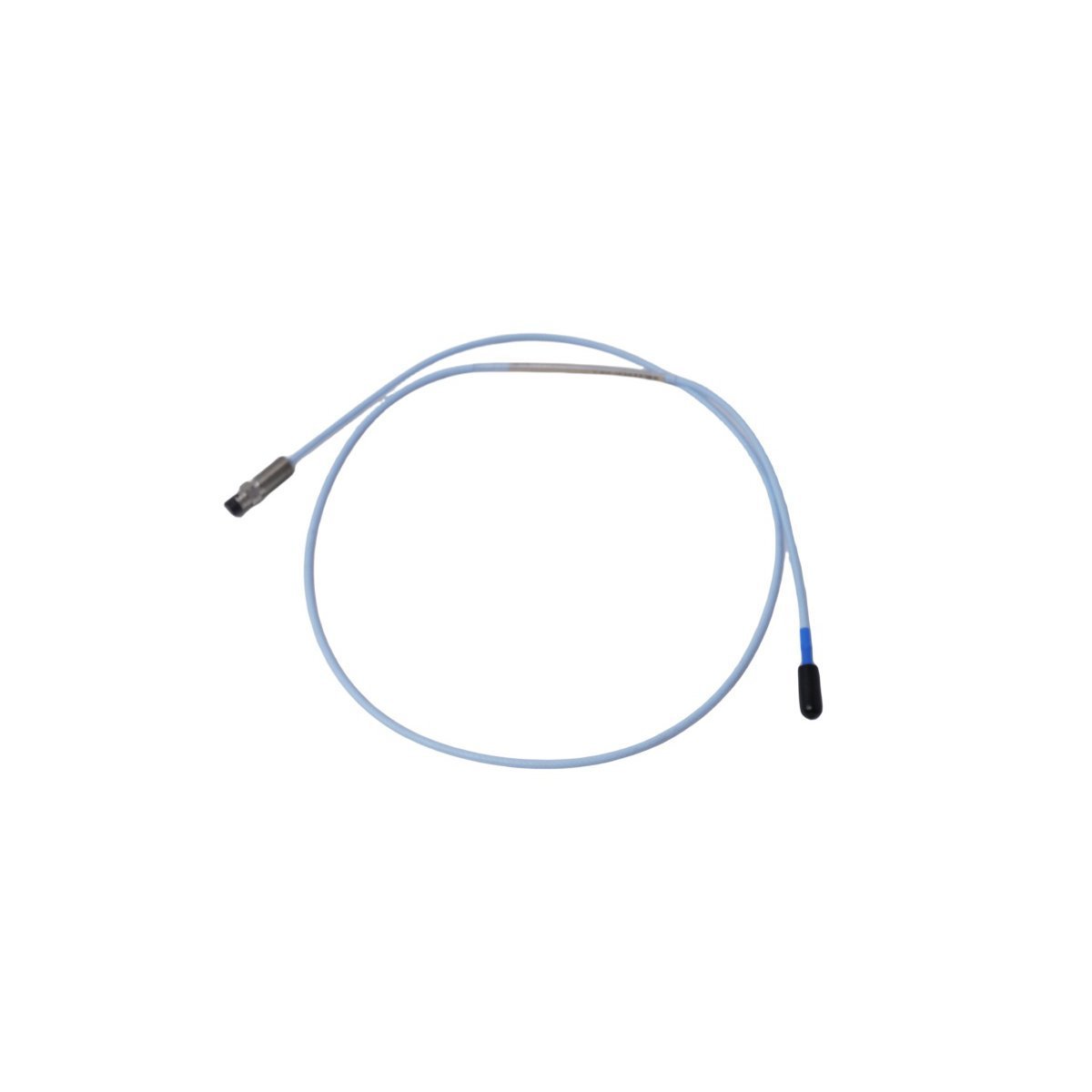

Configured for non-contacting static and dynamic shaft displacement measurements in 3300 XL Turbomachinery Instrumentation System platforms, the Bently Nevada 330106-05-30-10-02-00 (330106 Proximity Probes) provides direct physical/electrical execution. The component interacts via high-frequency eddy-current fields generated by the tip assembly facing a rotating conductive target to output raw radial vibration, axial position, or speed data.

Option Configuration Matrix

• 05 (Unthreaded Length Option): 0.5 inches

• 30 (Overall Case Length Option): 3.0 inches

• 10 (Total Length Option): 1.0 meter (3.3 feet)

• 02 (Connector/Cable Option): Miniature coaxial ClickLoc connector, standard coaxial cable

• 00 (Agency Approval Option): No approvals required

Hardware Parameters

Eddy-Current Probe Scaling and Cross-Talk Suppression

The 8 mm sensing tip relies on strict compliance with factory-calibrated eddy-current probe scaling constraints to output a linear voltage slope of 7.87 V/mm. Mechanical positioning via the 3/8-24 UNF threaded casing defines the static air gap, matching the gap voltage validation target of -10 VDC at the linear center point of the transducer system loop. This physical-to-electrical alignment enables continuous parsing of microscopic high-frequency rotor dynamics. Internal impedance optimization across the coaxial path preserves signal integrity and ensures cross-talk suppression when dual probes are configured in orthogonal X-Y arrangements on a single machinery bearing housing.

Ordering Info

• One (1) integrated Bently Nevada 330106 8 mm probe assembly with 1.0-meter standard cable.

• Fluid-resistant fluorocarbon heat-shrink sleeve kit for external connector isolation.

• Separate installation elements including standalone 3300 XL Proximitor sensors, separate extension lines, and mounting brackets are excluded from this package.

Logistics and Dispatch Standards

• Dispatch Window: Consignments are processed for transfer within 2-7 days when payment finish verification is finalized.

• Carrier Methods: Freight delivery is executed via international priority lines including DHL, FEDEX, or UPS.

• Defect Prevention Packaging: Components travel enclosed inside static-shielding anti-static industrial packaging to negate latent electromagnetic or physical breakdown risk during transit.

Field Installation Guidelines

• Mounting Torque Limits: Thread the probe barrel manually into the bracket or housing block. Torque the primary locknuts to a maximum value of 11.2 N-m (100 in-lb) to prevent structural binding or deformation of the 3/8-24 UNF threads.

• Transducer Gap Optimization: Connect a digital voltmeter to the Proximitor sensor output loop terminals. Adjust the probe insertion depth relative to the target face until the real-time gap voltage validation reads exactly -10 VDC nominal before securing the jam nut.

• Coaxial Connector Grounding: Keep the miniature ClickLoc connectors completely clean and dry during routing. Insulate the connector joint with the provided fluorocarbon heat-shrink sleeves to prevent grounding against local flexible conduit walls, maintaining cross-talk suppression.

Frequently Asked Questions

Q: How does an installation deviation from the nominal gap voltage validation affect vibration data?

A: Placing the probe tip outside the calibrated linear zone alters the baseline eddy-current probe scaling factor. This cause leads to signal clipping during high-amplitude transient events, resulting in degraded accuracy when tracking high-frequency rotor dynamics.

Q: Can the 1.0-meter integrated cable be cut or modified to simplify physical routing?

A: No. Altering the physical length of the integral cable changes the tuned loop capacitance and electrical length parameters. Splicing disrupts the calibrated eddy-current probe scaling matrix, completely invalidating the system calibration.

Q: What separation distance must be maintained to achieve effective cross-talk suppression?

A: Maintain a minimum center-to-center separation distance of 40 mm between adjacent 8 mm probe tips. Positioning tips closer than this threshold allows their electromagnetic fields to overlap, causing signal beat frequencies that override cross-talk suppression circuits.
