Product Overview

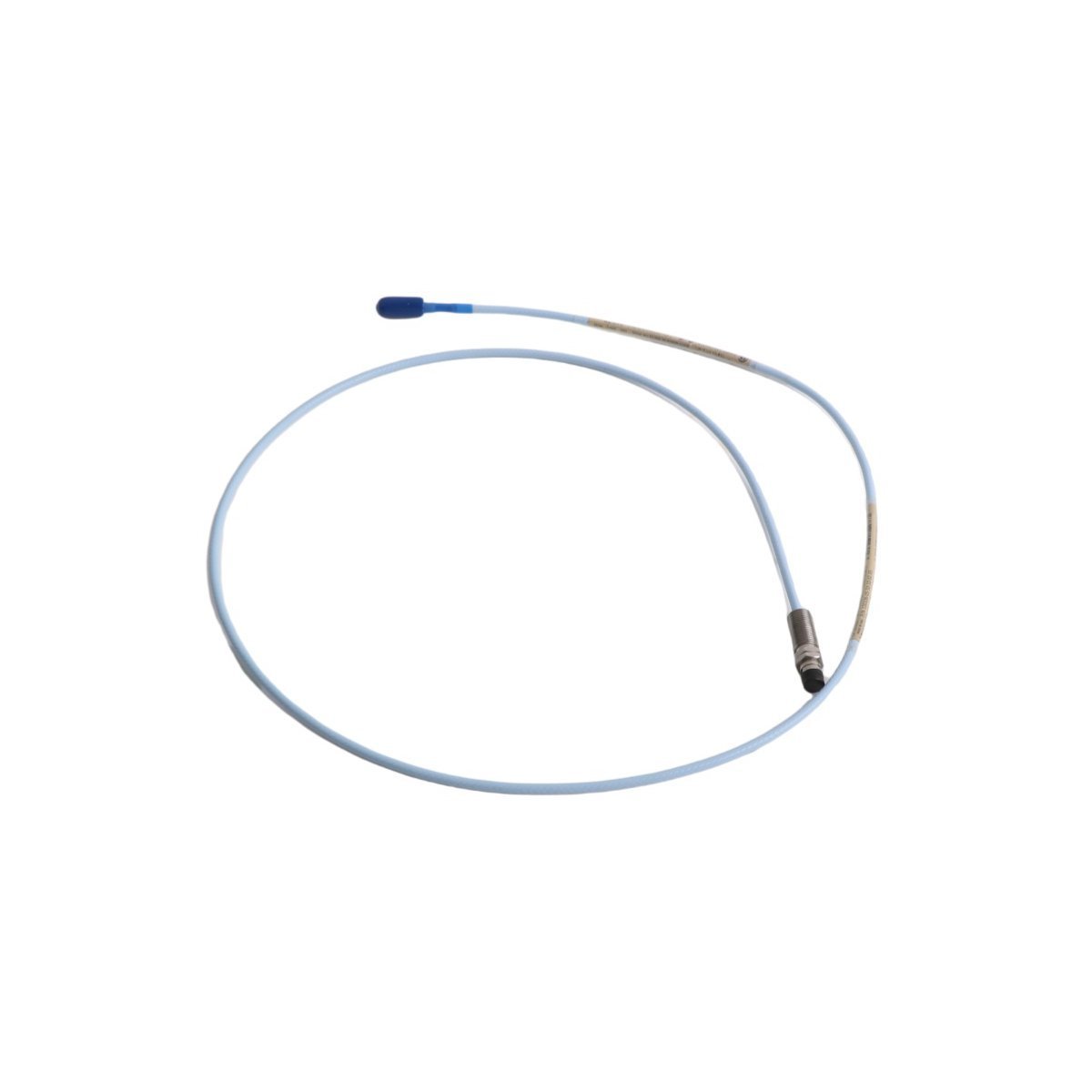

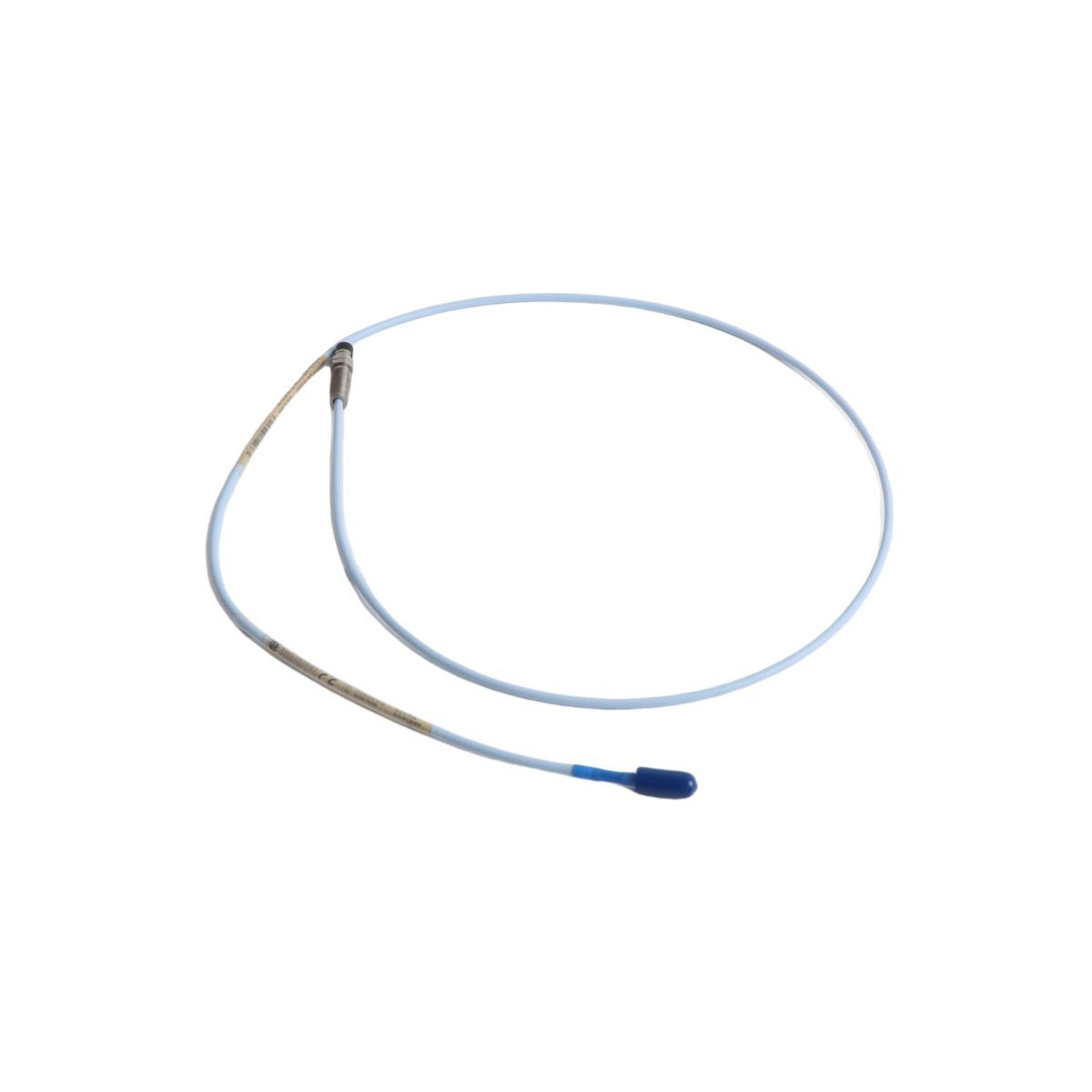

The Bently Nevada 330106-05-30-05-12-05 eddy current sensor delivers top-tier mechanical displacement tracking in spaces where standard front-mount installations fail. This 3300 XL 8mm reverse-mount hardware targets critical industrial applications like thrust position verification, radial vibration analysis, and high-speed rotor diagnostics. By screwing directly into a housing or probe sleeve from the rear, it protects internal components while streaming precise analog telemetry to the Bently Nevada 3500 protection rack and host DCS setups. The sensor serves as a primary input layer for emergency trip loops, executing machinery protection protocols the instant shaft positions drift outside safe operating tolerances. Its rugged build preserves measuring precision under immense fluid pressures and severe thermal stress, guaranteeing asset uptime across power generation and petrochemical sectors.

Suffix Architecture and Engineering Codes

This specific model string determines the housing threads, physical lengths, specialized cable cores, and agency approvals required for industrial deployment.

05 - Thread Type Option

This code designates an M10 x 1 metric thread configuration. The metric profile ensures a precision mechanical fit inside European and Asian manufactured rotating machinery casings and brackets without requiring custom thread adapters.

30 - Case Length Option

This digit indicates a 30 mm overall housing case length. This ultra-compact reverse-mount body variant optimizes the probe footprint inside congested bearing housings, keeping the sensor firmly anchored against high physical shear forces.

05 - Total Length Option

The probe features an integrated 0.5-meter (1.6 feet) hardware lead. This specialized short-lead cable configuration ensures pristine signal transition to the extension cable and mitigates radio frequency attenuation across the measurement loop.

12 - Connector and Cable Design

This choice provides a miniature coaxial ClickLoc connector mounted on a high-density FluidLoc cable. The FluidLoc internal design includes an advanced blocking compound that prevents dangerous process oils, synthetic lubes, or gases from leaking through the inner strands of the cable into electrical enclosures.

05 - Compliance Certification

This suffix represents a certified explosion-proof construction. The complete assembly carries valid CSA, ATEX, and IECEx safety approvals, validating its safe deployment in hazardous locations and volatile atmospheres worldwide.

Structural and Operational Metrics

Critical Field Installation Parameters

Proper alignment dictates probe resolution and eliminates voltage clipping. Field crews must install the reverse-mount sensor using a digital multimeter hooked into the raw output of the matching 3300 XL Proximitor. Rotate the M10x1 body into the housing sleeve until the static gap voltage registers a clean -10.0 VDC, centering the target surface directly inside the sensor's linear calibration band.

Enforce a strict minimum bend radius of 25.4 mm (1.0 inch) for the FluidLoc coaxial cable. Tight kinks or crushing pressure alter the cable's internal impedance, corrupting the eddy current loop data. When passing through terminal boxes, utilize specialized explosion-proof packing glands to maintain seal integrity, and ensure the ClickLoc connector clicks home completely to resist intense machinery vibration.

Harsh-Environment Performance and Systems Integration

This reverse-mount sensor thrives inside hostile environments saturated with chemical solvents, high-temperature steam, and synthetic lubricants. The polyphenylene sulfide tip shrugs off aggressive hydrocarbons, while the FluidLoc cable core acts as an integrated pressure barrier, preventing fluid migration through the sheath if process seals fail.

The probe acts as a foundational block for comprehensive Turbine Supervisory Instrumentation (TSI) setups. It translates real-time physical shaft behavior into dynamic voltage changes, feeding continuous data directly into Bently Nevada 3500 monitoring racks. This unbuffered sensor stream integrates effortlessly into plant architectures like Honeywell Experion PKS or Siemens S7 systems via Modbus and OPC UA, giving engineers the data precision needed to detect thermal growth, rotor unbalance, or bearing degradation before damage occurs.

Package Inventory and Delivery Kit

Each verified factory order contains the following baseline materials:

(1) One genuine Bently Nevada 330106-05-30-05-12-05 8mm reverse-mount probe.

(2) Pre-attached FluidLoc cable with an integrated miniature ClickLoc coaxial terminal.

(3) Removable protective caps covering the M10x1 metric threads and the probe tip.

(4) Hardcopy factory verification certificate validating CSA, ATEX, and IECEx safety standards.

Logistics Routing and Shipping Standards

Our global dispatch desk prepares and forwards shipments within 2-7 days when payment finish protocols conclude. We route all critical sensor shipments through leading international carriers like DHL, FEDEX, and UPS to guarantee fast, tracked arrivals. The logistics crew packages each sensor inside heavy-duty anti-static industrial packaging. This specialized ESD shielding protects the interior sensing coils and delicate coaxial components from electrostatic charges and physical shocks during long-distance transit.

Industrial Support and Equipment FAQs

Q1: Why choose a reverse-mount probe configuration over a standard threaded probe body?

A1: Reverse-mount probes provide a major advantage when external space around the bearing housing is limited. Technicians install them into a sleeve from the inside or rear of the machine casing, shielding the external body from environmental impacts and allowing easier access in tight mechanical spaces where a standard long housing cannot rotate freely.

Q2: What electrical resistance verifies a healthy 330106 probe during routine maintenance checks?

A2: Disconnect the probe from its extension cable and test the resistance between the center conductor and the outer shield of the ClickLoc connector using a standard multimeter. A functional 3300 XL probe with a 0.5-meter cable must return a stable resistance value between 4.0 and 5.5 ohms. A reading near zero points to a shorted coil, while a high or infinite reading indicates an open circuit.

Q3: Can this probe connect directly to a standard 3300 XL extension cable without tuning errors?

A3: Yes, this probe operates flawlessly with standard 3300 XL 8mm extension cables. However, the total combined electrical length of the probe and extension cable must match the specification of the Proximitor Sensor (typically 5.0 meters or 9.0 meters total) to maintain the standard 7.87 V/mm (200 mV/mil) scale factor.
