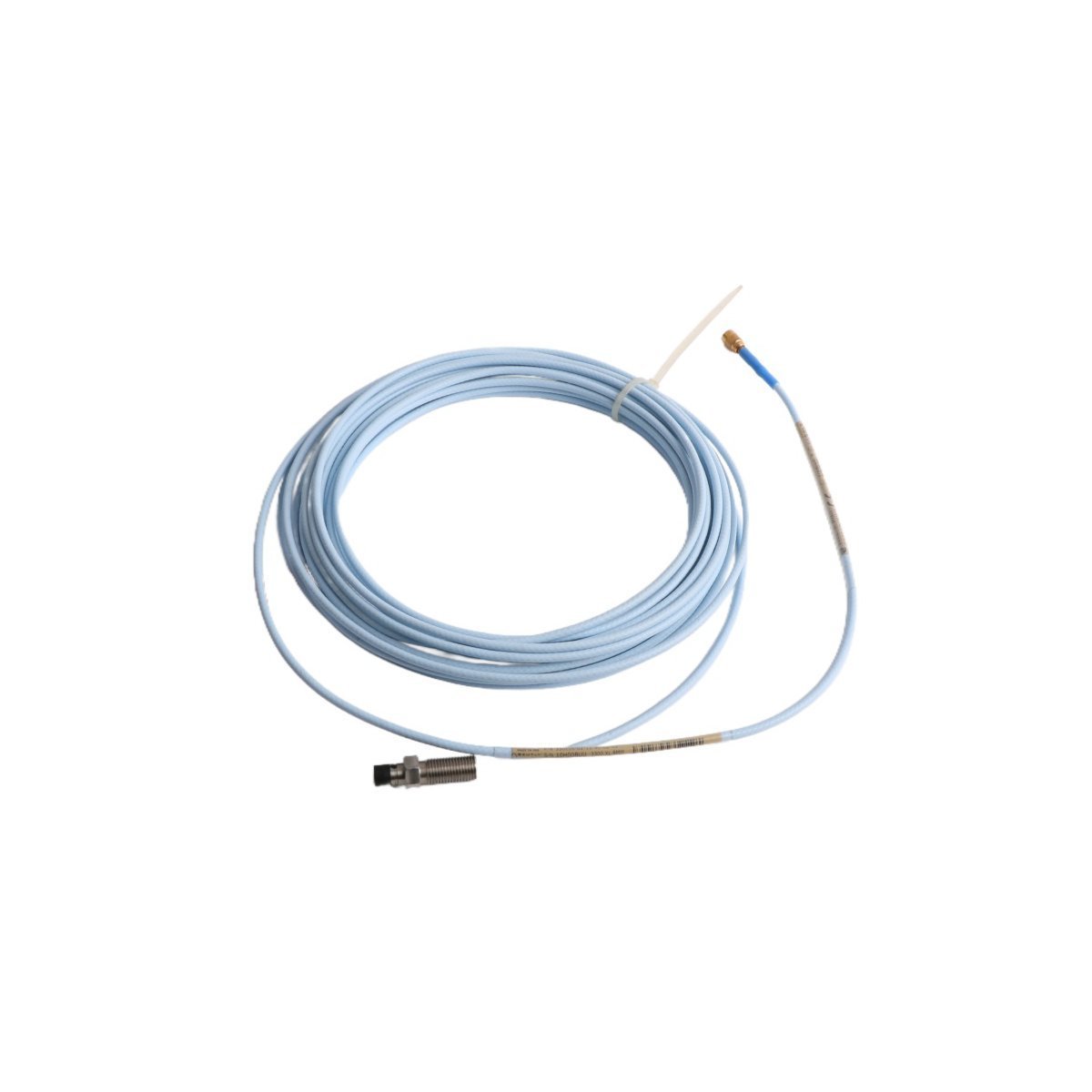

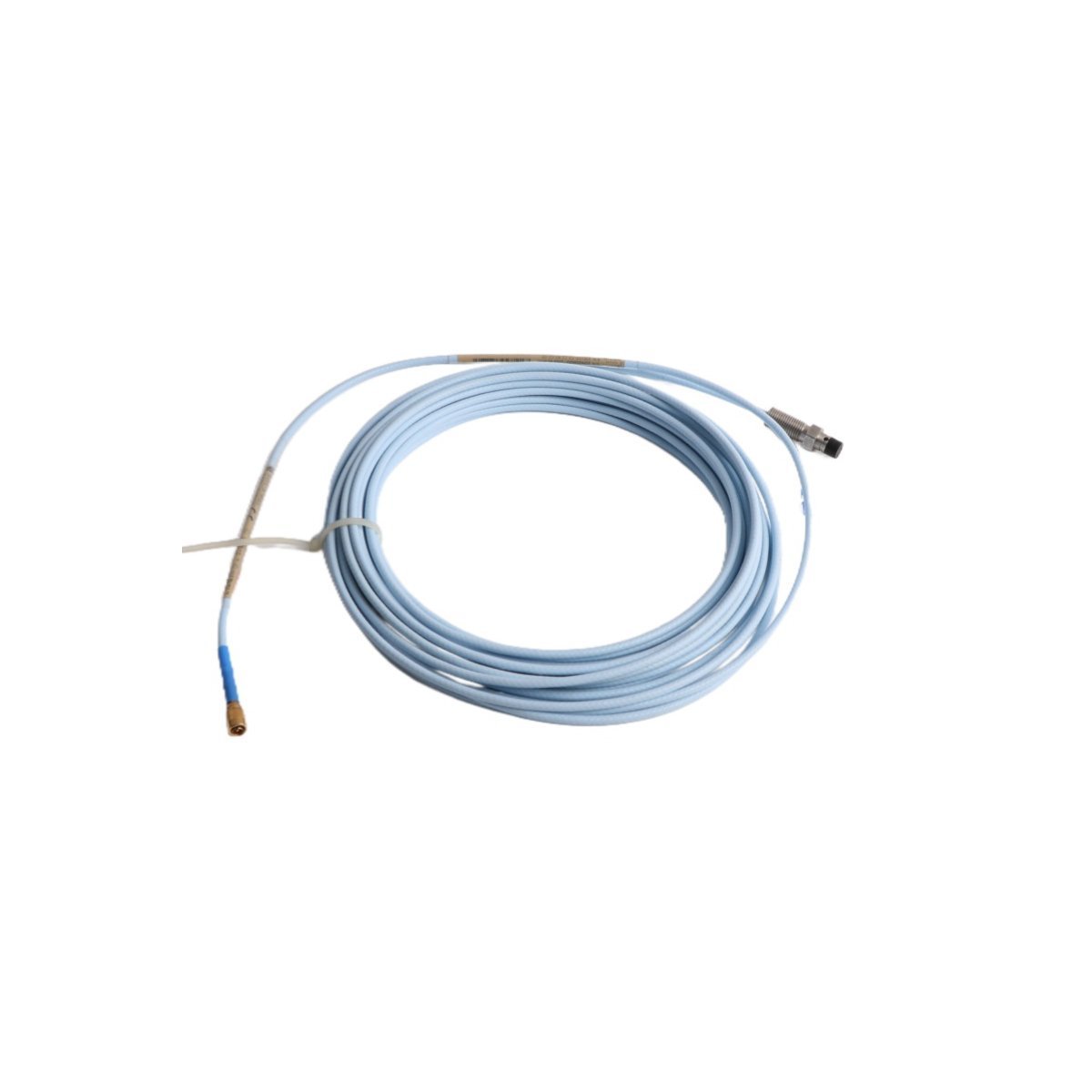

The Bently Nevada 330105-02-12-20-12-05 serves as the primary 330105 Reverse Mount Probe utilized to execute non-contact shaft displacement measurement across Bently Nevada 3300 XL monitoring platforms. The probe assembly converts eddy-current variations into proportional electrical signals for vibration, axial position, and rotor dynamic analysis through associated Proximitor interfaces.

Hardware Specifications

Rotor Dynamics and Cross-Talk Suppression

The probe assembly is designed for rotor dynamic signal acquisition where shaft displacement must remain electrically isolated from surrounding machine noise sources. Reverse mount installation permits probe positioning from inaccessible machine surfaces while maintaining calibrated target distance.

Signal cross-talk suppression depends on shield integrity, cable segregation, and controlled grounding topology. Probe cables should not share conduit paths with motor feeders, contactor wiring, or inverter output conductors. During commissioning, static gap voltage validation near the standard -10 VDC operating region is commonly used to verify measurement linearity.

Frequently Asked Questions

Q: Can the reverse mount probe be installed through non-metallic brackets?
A: Probe mounting hardware should maintain mechanical rigidity and electrical stability. Excessive bracket vibration can introduce measurement distortion.

Q: Is the probe assembly polarity-sensitive during field termination?
A: The probe interfaces through dedicated coaxial connectors and calibrated extension components. Connector orientation and mating integrity must follow manufacturer assembly procedures.

Q: What condition can affect eddy-current measurement stability during operation?
A: Contaminated probe targets, loose mounting hardware, and parallel routing near high-frequency switching conductors can introduce unstable signal behavior.

Field Installation Guidelines

Verify probe thread engagement and rear clearance before installation into the machine casing. Maintain proper alignment between the probe tip and conductive shaft surface to avoid eccentric signal response.

Do not exceed minimum cable bend radius near extension joints or connector transitions. Shield continuity should remain uninterrupted between probe, extension cable, and Proximitor assembly.

During startup commissioning, confirm stable gap voltage readings before machine acceleration. Mechanical resonance at unsupported mounting brackets may generate false vibration indications within the monitoring system.
