Product Overview

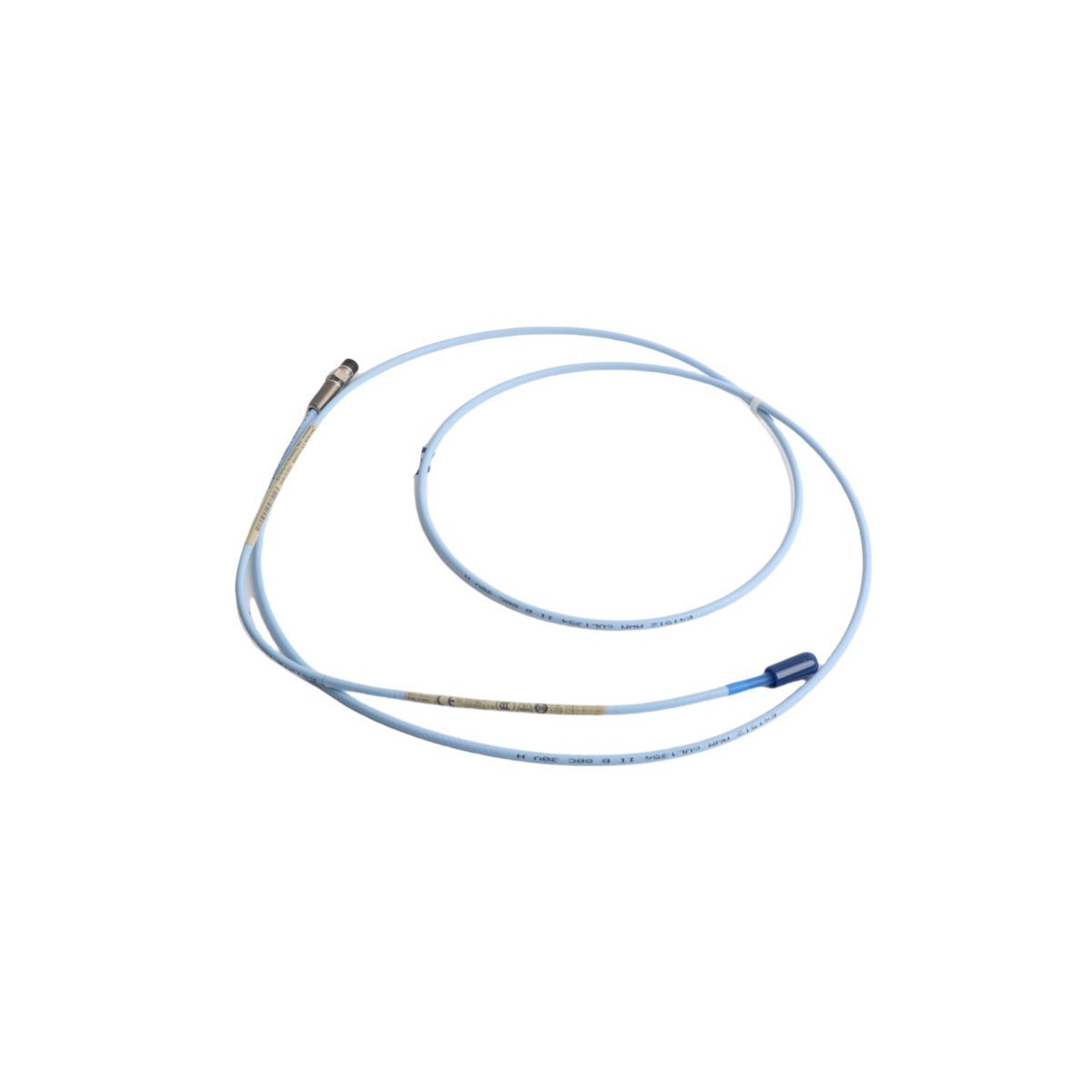

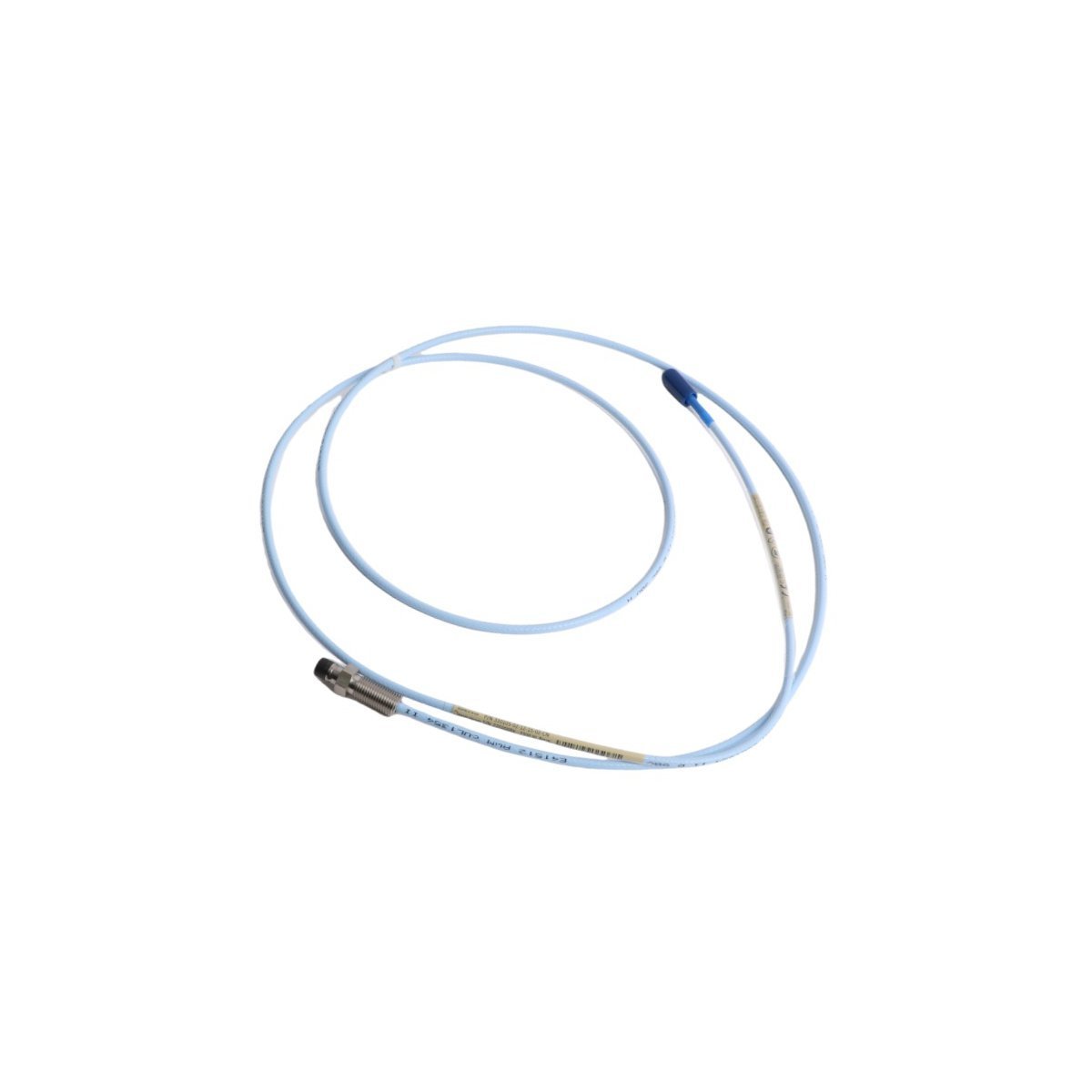

The Bently Nevada 330105-02-12-15-02-05 proximity probe provides critical radial vibration and axial thrust displacement data in highly specialized machinery configurations. This 3300 XL 8mm reverse-mount sensor features a unique mechanical layout designed for installation from the outside of the machine case through a threaded sleeve or housing bracket. It acts as a primary defensive component for emergency shutdown (ESD) loops and heavy industrial asset monitoring assemblies. By projecting a highly linear eddy current field, the probe captures precise micro-inch shaft displacement under intense dynamic forces. Control room operators rely on this raw voltage telemetry to feed Bently Nevada 3500 racks and integrated plant DCS networks, ensuring real-time machine protection and preventing catastrophic failure inside high-pressure pumps, fans, and gas turbines.

Model Configuration and Suffix Mapping

The specific alphanumeric configuration defines the thread profile, physical casing layout, cable length, and safety certifications of this reverse-mount transducer.

02 - Thread Type Option

This selection specifies a 3/8-24 UNF imperial fine thread profile across the reverse sleeve housing, ensuring standard mechanical compatibility with North American heavy equipment brackets and probe sleeves.

12 - Unthreaded Case Length

This suffix indicates an unthreaded length of 1.2 inches. The unthreaded smooth barrel section facilitates quick insertion through the mounting sleeve before the main thread interface engages, preventing thread binding during field replacement.

15 - Total Casing Length

The 1.5-inch overall case length defines a highly compact probe envelope. This short, rigid structural profile minimizes the sensor's physical footprint inside congested bearing housings, maintaining maximum resistance to mechanical resonance.

02 - Cable and Connector Profile

This option equips the probe with a 0.5-meter standard flexible coaxial cable terminated with a miniature coaxial ClickLoc connector. The unarmored design allows for tight routing bends inside narrow termination enclosures.

05 - Hazardous Area Certifications

The '05' option provides comprehensive global safety approvals. It confirms full compliance with CSA, ATEX, and IECEx standards, validating the electrical safety parameters for secure deployment inside volatile, explosive petrochemical and gas processing environments.

Mechanical and Sensing Profiles

Field Mechanical Alignment Guidelines

Installing a reverse-mount probe requires meticulous gap voltage calibration to center the target within the 2.0 mm linear measurement field. Technicians must connect a digital multimeter to the Proximitor Sensor test jacks and slowly thread the reverse-mount housing into the sleeve until the static DC bias voltage stabilizes at exactly -10.0 VDC.

Maintain a strict minimum cable bend radius of 25.4 mm (1.0 inch) to protect the internal coaxial shielding layers from micro-fracturing. Because reverse-mount configurations often leave the cable terminal inside or close to the machine boundary, technicians must verify the ClickLoc connection is completely clean, dry, and wrapped in self-fusing silicone tape to prevent oil migration from degrading the signal connection.

Turbine Supervisory Instrumentation Integration

The 330105 reverse-mount probe provides consistent physical accuracy in specialized machine setups where standard forward-facing probes cannot be physically adjusted or accessed. The polyphenylene sulfide (PPS) tip maintains complete structural immunity against aggressive chemical additives and synthetic lubricants, ensuring zero thermal calibration drift across high-temperature operational cycles.

The probe feeds high-bandwidth eddy current impedance signals directly into the processing cards of the Bently Nevada 3500 Turbine Supervisory Instrumentation (TSI) architecture. This clean data path connects physical rotor movement with control architectures such as Honeywell Experion PKS or Siemens S7 platforms. The integrated loop executes rapid sub-millisecond calculation of shaft orbits and structural vibration parameters, allowing the automation logic to trigger rapid safety interlocks the instant abnormal rotor behavior occurs.

Procurement and Package Manifest

(1) One genuine Bently Nevada 330105-02-12-15-02-05 3300 XL 8mm reverse-mount probe.

(2) Integrated 0.5-meter standard coaxial cable lead with a ClickLoc terminal.

(3) Removable plastic thread protection cap guarding the 3/8-24 UNF barrel.

(4) Original factory compliance certificate demonstrating CSA, ATEX, and IECEx parameters.

Logistics and Transit Protection

Our operations center dispatches all orders within 2-7 days from the completion of payment finish protocols. We coordinate global transport using premium express carriers including DHL, FEDEX, and UPS to guarantee fast, tracked delivery to your plant site. Before dispatch, technicians verify each probe via quality control checks and seal the hardware inside heavy-duty anti-static industrial packaging. This ESD-safe, impact-absorbent containment isolates the internal induction coils and the small-footprint housing from physical drops or electrostatic hazards during travel, ensuring the component arrives ready for immediate industrial installation.

Proximity System Engineering FAQs

Q1: What is the primary physical reason for selecting a reverse-mount probe over a standard forward-mount probe?

A1: Reverse-mount probes are designed specifically for applications where the probe must be inserted from the outside of the machine through a sleeve or housing, but where the connector must be pulled through or accessed differently due to structural restrictions. This prevents the cable from twisting when threading the probe into place.

Q2: Can I connect this 330105 reverse-mount probe to a standard 3300 XL 5-meter extension cable?

A2: Yes. The internal sensing coils and electrical specifications are identical to a standard 3300 XL 8mm forward-mount probe. You must match it with a standard 3300 XL 8mm extension cable and Proximitor Sensor, ensuring the total combined cable length equals the calibrated system length (typically 5.0 or 9.0 meters).

Q3: How do I verify if the internal sensing coil has been damaged during a machine turnaround?

A3: Disconnect the probe from the extension cable and measure the resistance across the center pin and the outer body of the ClickLoc connector using a digital multimeter. A functional 3300 XL probe with a 0.5-meter lead registers a stable resistance between 4.0 and 6.0 ohms; an infinite or zero-ohm reading indicates a failed sensor loop.

Q4: Will this reverse-mount probe fit into a metric threaded mounting sleeve?

A4: No. This specific model features a 3/8-24 UNF imperial thread profile. For metric installations, you must specify a model with metric threads (such as an M10x1 option) or utilize a high-precision imperial-to-metric threaded adapter sleeve to ensure rigid mechanical alignment.
