Product Overview

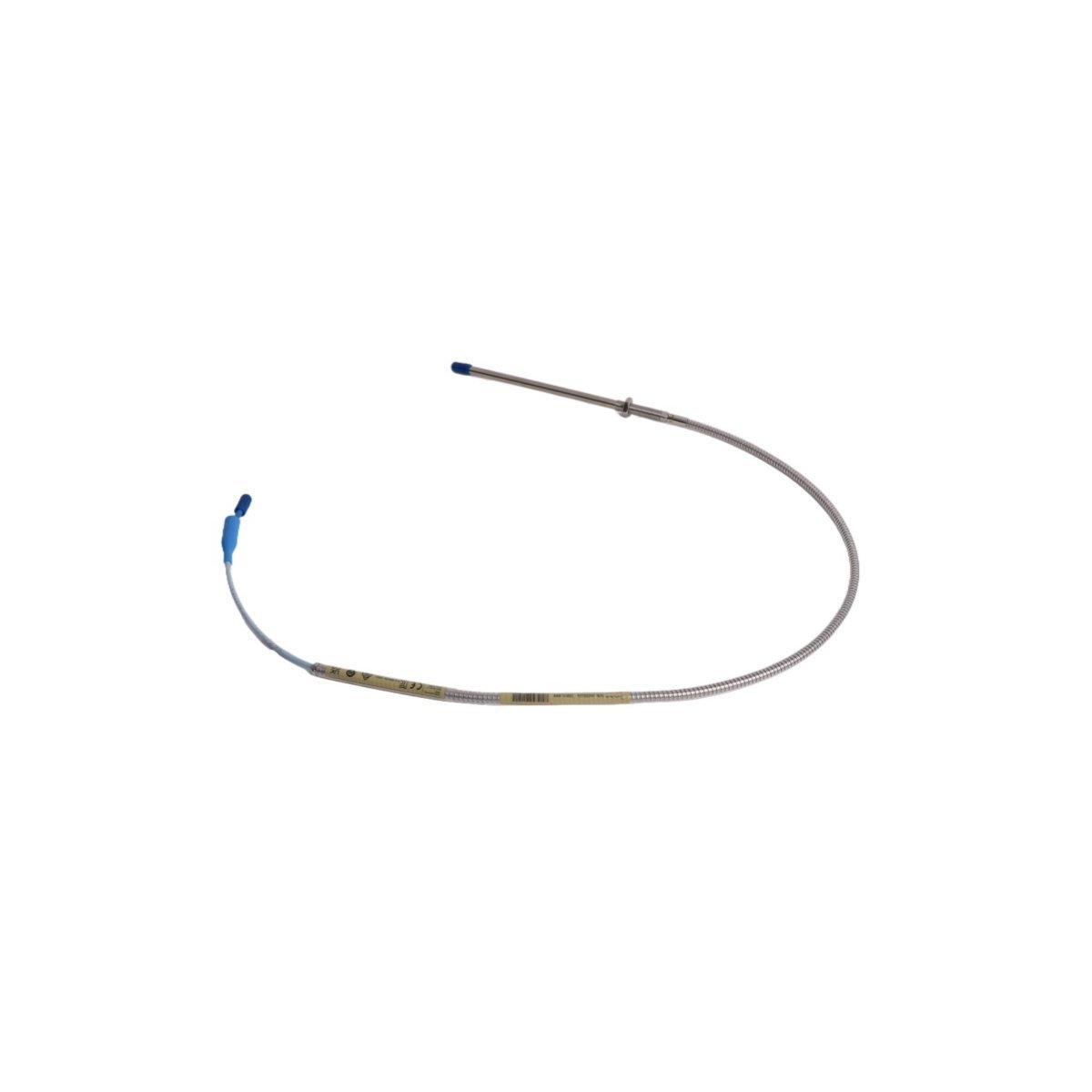

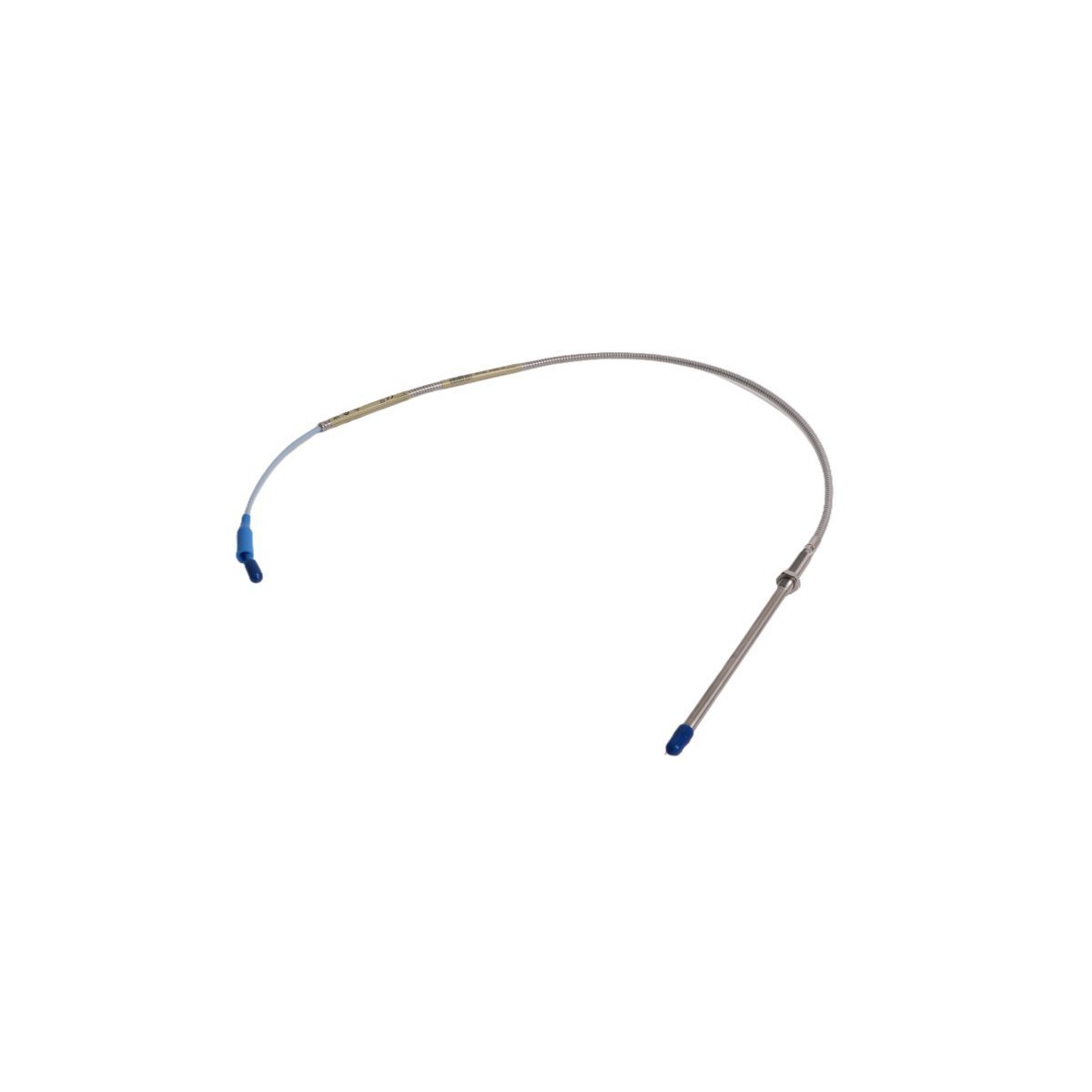

The 330104-14-19-10-11-00 is a high-precision eddy current proximity transducer belonging to the Bently Nevada 3300 XL 8 mm series. This metric-threaded armored probe is designed for non-contacting displacement measurements, converting the distance between the probe tip and a conductive target into a linear voltage signal. It is a critical component for Turbine Supervisory Instrumentation (TSI), facilitating continuous monitoring of radial vibration, axial thrust, and shaft position. This specific configuration is optimized for deep-reach installations, featuring extended unthreaded and case lengths to accommodate specialized machine housing requirements.

Technical Configuration and Hardware Specs

The alphanumeric designation 330104-14-19-10-11-00 defines the following build parameters:

• Model Series: 330104 (M10 x 1 Metric Thread with Stainless Steel Armor)

• Unthreaded Length: 140 mm (14 option)

• Overall Case Length: 190 mm (19 option)

• Total Length: 1.0 Meter / 3.3 Feet (10 option)

• Connector Type: Miniature coaxial ClickLoc connector with Connector Protector (11 option)

• Agency Approval: Standard / No specific agency approvals required (00 option)

• Cable Technology: FluidLoc lead to prevent oil/moisture wicking

• Thread Pitch: M10 x 1

Durability and Mechanical Engineering

This 3300 XL probe incorporates patented manufacturing technologies to ensure longevity in the most taxing industrial environments. The probe tip is constructed from high-performance Polyphenylene Sulfide (PPS) plastic, which is hermetically bonded to the sensor body using the TipLoc molding process. This ensures a vacuum-tight seal that resists chemical degradation and thermal cycling.

The CableLoc design provides superior pull-out strength of up to 330 N (75 lbf), while the flexible stainless steel armor shields the coaxial lead from mechanical abrasion and accidental severing during machine maintenance. Additionally, the system maintains a standard scale factor of 7.87 V/mm (200 mV/mil) for AISI 4140 steel targets.

Industrial Applications and System Integration

The 330104-14-19-10-11-00 is a foundational tool for machinery health monitoring and predictive maintenance:

• Vibration Monitoring: Ideal for measuring radial shaft vibration in fluid-film bearing machines such as compressors and turbines.

• Position Sensing: Used for axial thrust measurements to prevent rotor-to-stator contact.

• Speed Detection: Functionally compatible as a Keyphasor sensor for RPM and phase angle measurements.

• System Compatibility: Fully interchangeable with 3300 XL Proximitor sensors and extension cables. It also maintains backward compatibility with legacy 3300 series 5 mm and 8 mm components.

• EMI/RFI Immunity: Advanced circuitry ensures high signal-to-noise ratios even in high-interference environments, meeting CE requirements without specialized shielded conduit.
