Product Overview

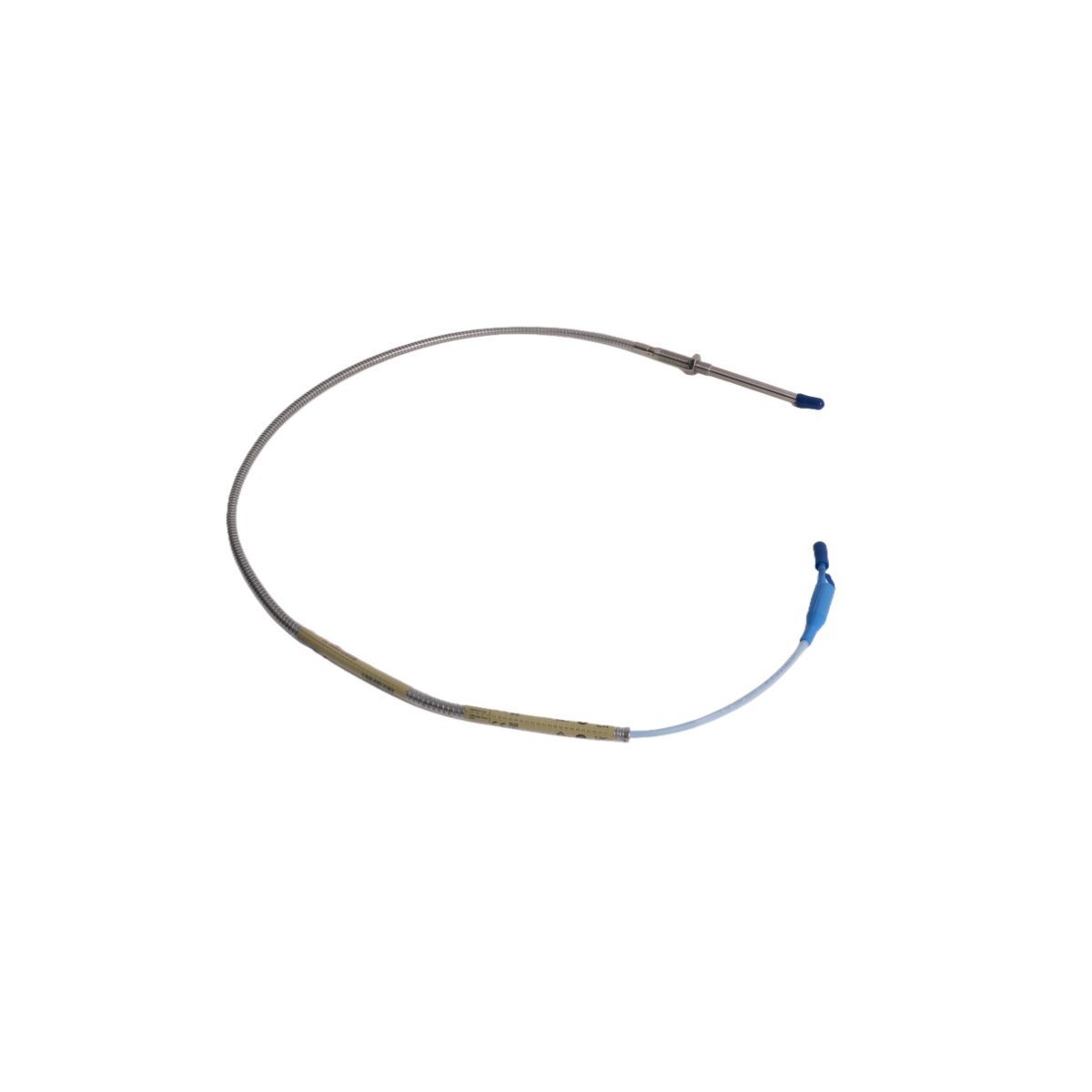

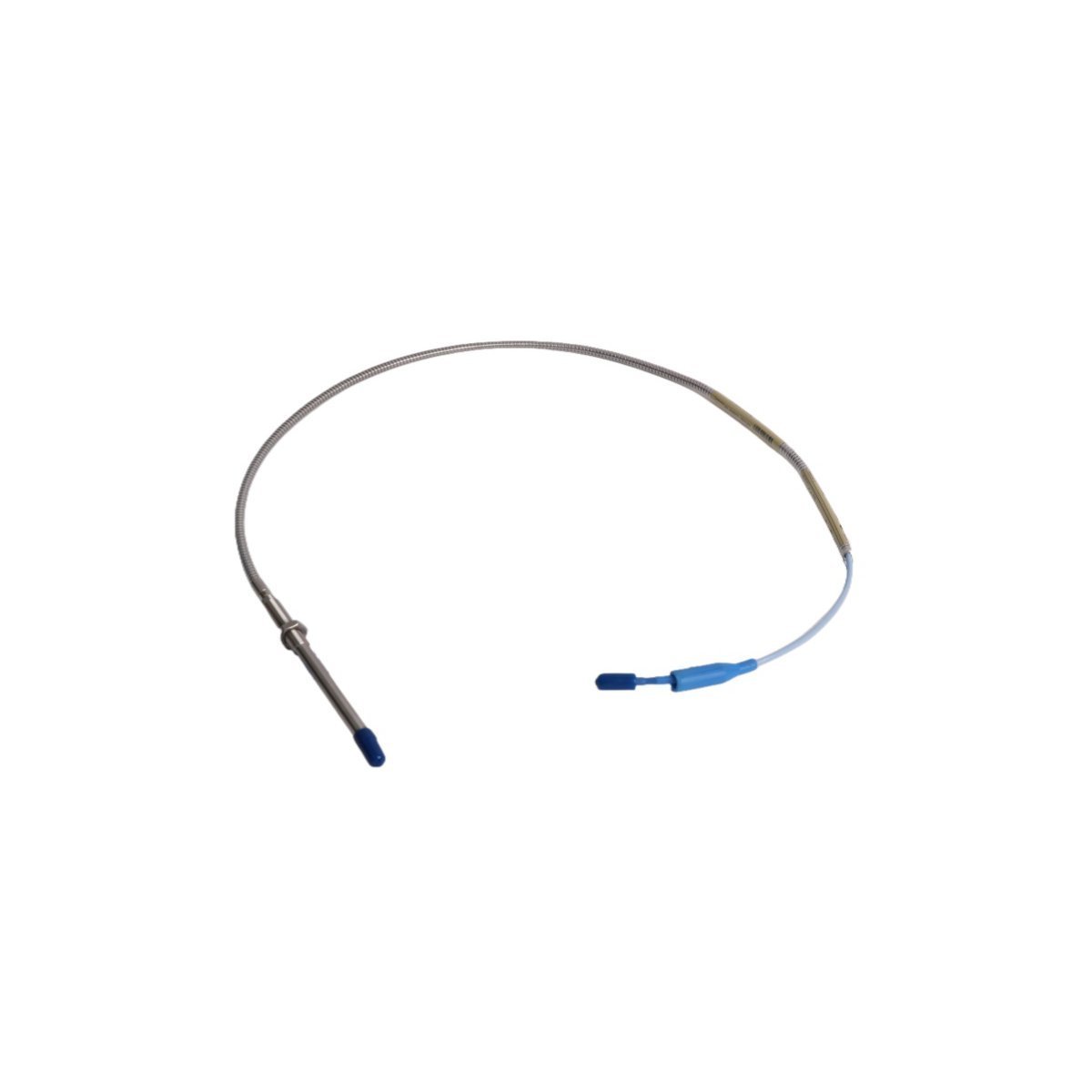

The Bently Nevada 330104-07-12-10-11-00 serves as a cornerstone in high-precision machinery protection, specifically designed for the 3300 XL 8mm proximity transducer system. This probe utilizes eddy current technology to provide non-contacting displacement measurements, tracking radial vibration, axial position, and Keyphasor signals with extreme accuracy. It thrives in the rigorous environments of steam turbines, centrifugal compressors, and large electric motors where mechanical reliability directly impacts plant uptime.

By delivering a linear voltage output proportional to the distance between the probe tip and the target shaft, this sensor enables real-time diagnostics and automated Emergency Shutdown (ESD) protocols. Its seamless compatibility with the Bently Nevada 3500 Machinery Protection System ensures that engineers receive high-fidelity data, facilitating proactive maintenance and preventing catastrophic equipment failure in critical power generation and petrochemical facilities.

Mechanical Configuration Analysis

The alphanumeric suffix string defines the specific physical dimensions and build requirements for this 330104 model:

330104 [Model Identification]

3300 XL 8mm Proximity Probe with M10 x 1 metric thread, non-armored.

-07 [Unthreaded Length]

Indicates a 70 mm unthreaded portion on the probe case, allowing for deep-reach installation while maintaining rigid mounting within the housing.

-12 [Overall Case Length]

Specifies a 120 mm total case length. This dimension ensures the probe tip reaches the target surface through thick bearing pedestals or mounting brackets.

-10 [Total Length]

Designates a 1.0-meter (3.3 feet) total probe lead length. This length must be matched with an 8.0-meter extension cable for a standard 9-meter system calibration.

-11 [Connector Option]

Equipped with a miniature coaxial Click-Loc connector. This specific option includes a pre-installed connector protector, essential for sealing the junction against oil and moisture.

-00 [Agency Approval]

Standard configuration without specific hazardous area certifications, optimized for general-purpose industrial zones or enclosures.

Performance and Dimensional Data

Field Commissioning Protocol

Achieving accurate data begins with the correct "Gap" voltage setting. For the 3300 XL system, technicians should adjust the probe position until the Proximitor output reads approximately -10.0 VDC, which places the sensor in the center of its linear range. Confirm this value using a calibrated digital multimeter at the 3500 rack buffered output.

Ensure the probe cable maintains a minimum bend radius of 25.4 mm (1.0 inch). Avoid routing the lead in parallel with high-voltage AC lines to eliminate electromagnetic interference. The Click-Loc connector requires a firm seat; a distinct tactile click confirms a vibration-resistant connection. Always utilize the connector protector to prevent "wicking" of synthetic lubricants into the coaxial core, which can cause signal drift or grounding faults.

Asset Reliability Advantages

The 330104-07-12-10-11-00 is engineered for long-term stability under thermal stress. Its Polyphenylene Sulfide (PPS) tip resists the caustic effects of modern turbine oils and high-pressure steam. When integrated with a Honeywell Experion PKS or Siemens PCS7 through the 3500 system, it provides the sub-micron resolution required for advanced orbit plots and time-base waveforms. This capability allows reliability teams to identify shaft rubs, unbalance, or misalignment during the early stages of development, effectively increasing the Mean Time Between Failures (MTBF) for critical rotating assets.

Fulfillment and Global Dispatch

We maintain rigorous quality controls to ensure your instrumentation arrives ready for deployment:

Dispatch Speed: Units ship within 3-5 days when payment finish via DHL, FEDEX, or UPS.

Industrial Packaging: Every probe is secured in anti-static industrial packaging. We utilize vacuum-sealed barriers and custom-molded foam inserts to protect the sensitive probe tip from mechanical shock during international transit.

Verified Inventory: All stock is guaranteed Brand New, Factory Sealed, and provided in Original Pack to ensure full manufacturer warranty support.

Technical Diagnostics FAQ

Q1: What is the impact of using a mismatched extension cable?

A1: The 3300 XL system is electrically tuned to specific total lengths (5m or 9m). Using a 1.0m probe with an incorrect cable length shifts the system capacitance, leading to a Scale Factor Error that results in inaccurate vibration readings and potential false alarms.

Q2: How does the "unthreaded length" (Suffix -07) assist in installation?

A2: The 70mm unthreaded section prevents the probe from binding or seizing when passing through thick housings. It allows the probe to be inserted deeply while only requiring threads at the mounting point for final gapping.

Q3: Can this probe be used in high-pressure environments?

A3: Yes. The 3300 XL 8mm probe features a tip-to-case seal rated for 700 kPa (100 psi). If your application exceeds this, specialized high-pressure housings or different probe models may be required.
