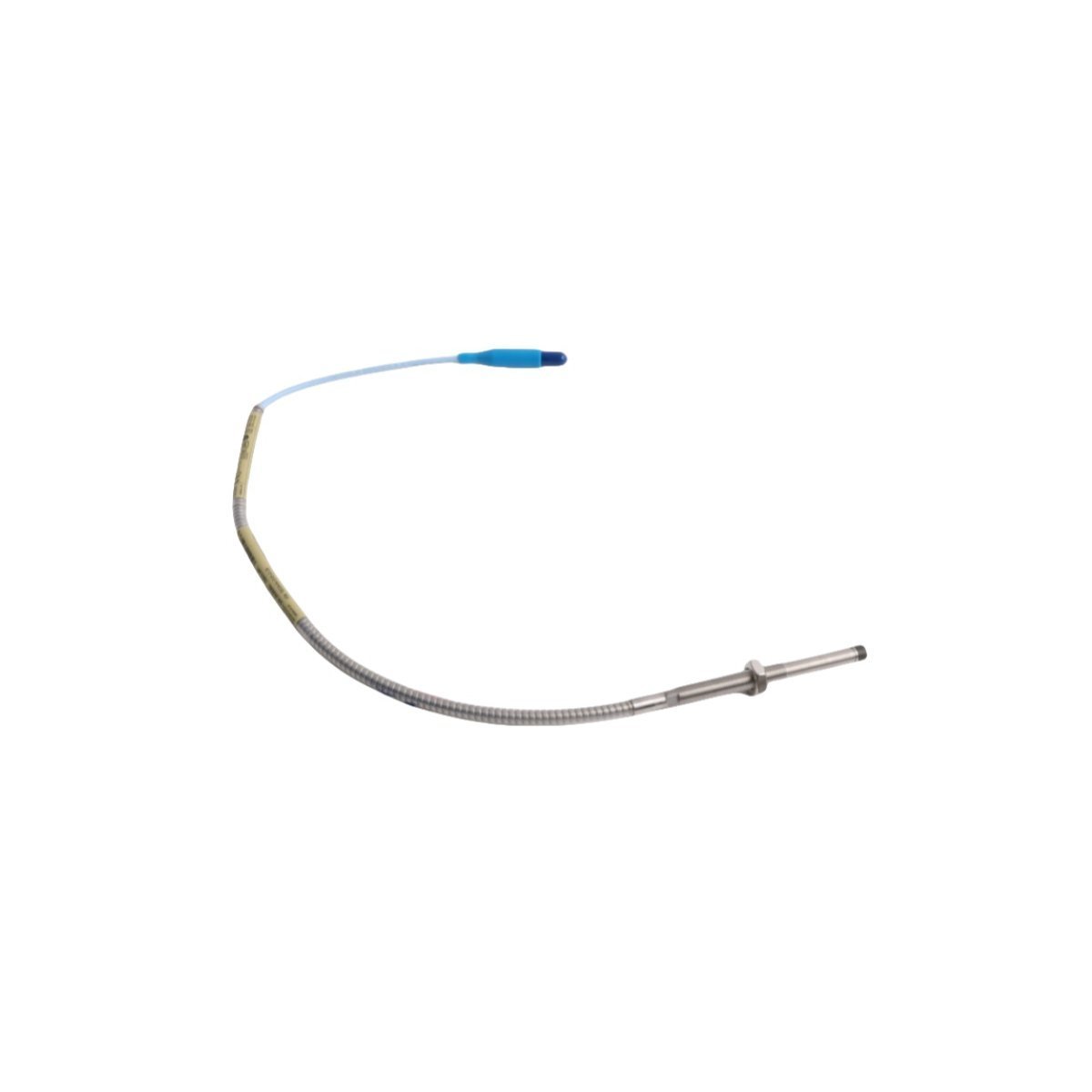

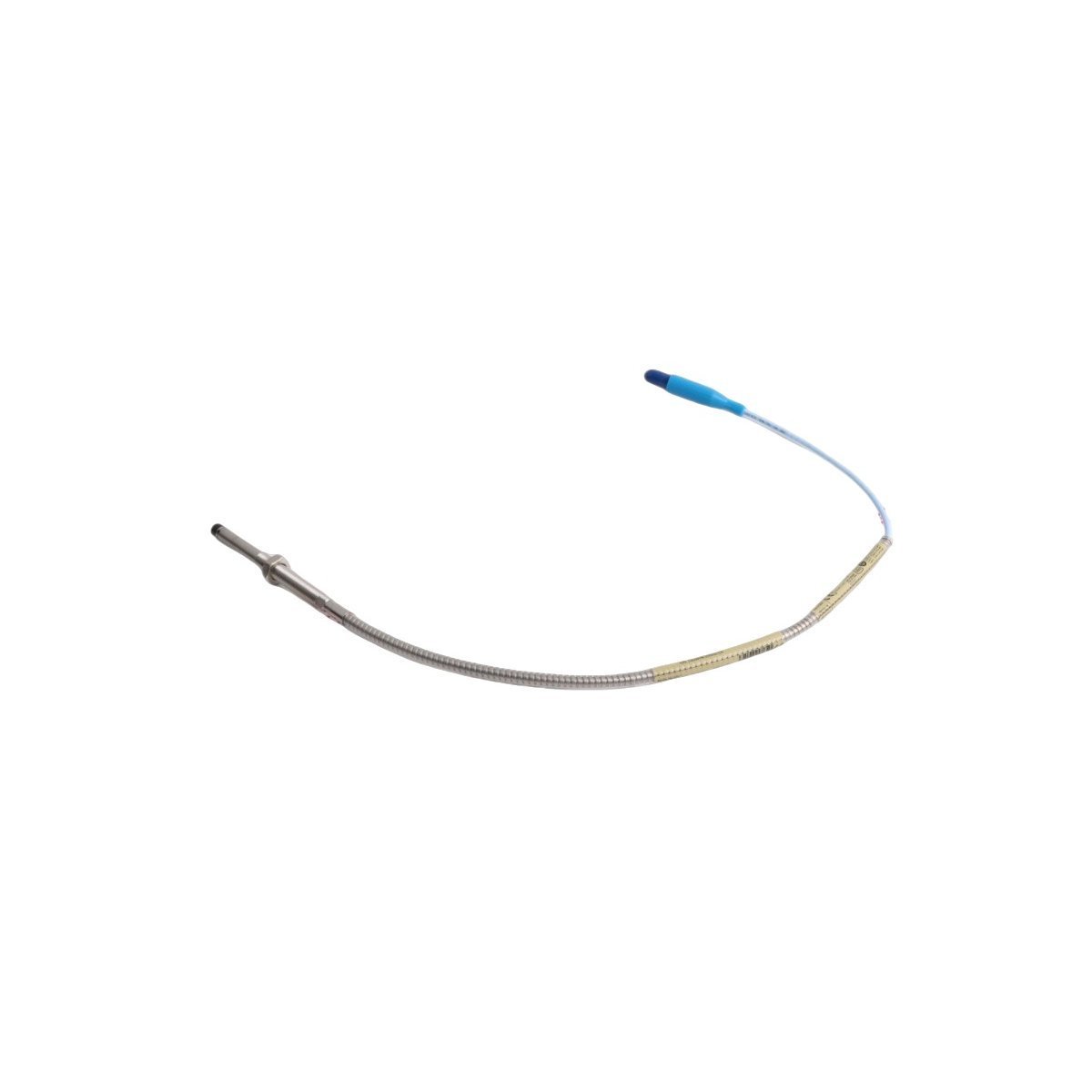

Configured for Specific Technical Task in Bently Nevada 3500 Machinery Protection Systems, the Bently Nevada 330104-04-10-05-01-00 (330104 Proximity Probes) provides direct physical/electrical execution. The instrument converts mechanical proximity variances between the sensor tip and the target shaft surface into low-level analog voltage indicators, routing this real-time displacement data back to the modular monitor racks.

Suffix Breakdown & Model Matrix

• 330104: 3300 XL 8 mm Proximity Probe, M10 x 1 threaded case configuration.

• 04: Unthreaded Length option (40 mm).

• 10: Overall Case Length option (100 mm).

• 05: Total Length option (0.5 meter, approximately 1.6 feet).

• 01: Connector and Cable type option (Miniature coaxial ClickLoc connector, miniature coaxial cable).

• 00: Agency Approval option (No hazardous area approvals selected).

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The 330104-04-10-05-01-00 projects a high-frequency radio frequency (RF) field from its 8.0 mm tip to interact directly with the rotating target material. To establish an accurate calibration curve against volatile rotor dynamics, field configuration requires strict gap voltage validation. Adjusting the physical insertion depth until the Proximitor sensor output indicates exactly -10 VDC targets the precise midpoint of the 2.0 mm linear tracking envelope.

This spatial alignment preserves the factory eddy-current probe scaling accuracy. Furthermore, proper spatial separation intervals must be calculated and enforced during multi-probe bracket layout to maintain cross-talk suppression and eliminate inductive overlapping between adjacent measurement channels.

Frequently Asked Questions

Q: Does this 3300 XL proximity probe support continuous on-line hot-swap manipulation at the ClickLoc junction?

A: Yes, the loop accommodates hardware substitution. However, separating the coaxial connector breaks the high-frequency RF carrier wave, causing the matched monitor card to register an immediate Transducer Fault (NOT OK) flag. The tracking channel must be placed in manual software bypass before uncoupling the connector interface.

Q: Can this 330104 probe be utilized with older 7200 series 8 mm Proximitor sensors?

A: No. The internal coil properties and electrical length optimization of the 3300 XL series do not match the modulation parameters of the obsolete 7200 series. Intermixing these platforms de-calibrates the eddy-current probe scaling and results in false displacement data.

Q: How does operating with a non-4140 steel target profile impact the analog output voltage?

A: Metallurgy variations modify target magnetic permeability. Non-4140 targets warp the linear tracking calibration matrix, shifting the scale factor away from the 7.87 V/mm standard. If other steels are used, the system must undergo laboratory recalibration or software offset correction.

Field Installation Guidelines

• Mechanical Torque Constraints: Do not exceed the maximum allowable installation torque limit of 13.5 N-m (120 in-lb) when locking the M10 x 1 threaded body into position. Over-torquing risks structural separation of the 8 mm tip from the steel case.

• Side-Clearance Counterbore Boundaries: To guarantee complete cross-talk suppression and eliminate parasitic side-viewing interference from adjacent structural housings, maintain a minimum counterbore clearance diameter of 31.8 mm (1.25 in) around the 8.0 mm tip.

• Connector Lock Sequence: Verify the ClickLoc coaxial mating terminals are completely dry and contamination-free before joining. Press the connector halves together firmly until a distinct tactile click confirms full engagement. Do not manipulate the assembly with pliers or metal teeth.

• Shield Continuity Routing: Run the coaxial cable extension lines inside dedicated, grounded metal conduits to block electromagnetic noise. Ensure the outer shield remains insulated from the machine casing, grounding single-point exclusively at the Proximitor terminal block ground strip.

Ordering Info

The standard procurement specification comprises the following package items:

(1) Bently Nevada 330104-04-10-05-01-00 Proximity Probe assembly.

(2) M10 x 1 stainless steel hex alignment locking nuts.

(1) Set of clear silicone connector protective boots.

(1) Factory calibration performance matrix datasheet.

Dispatch and Logistics Profile

Delivery time: 2-7 days when payment finish, routed via global high-priority couriers including DHL/FEDEX/UPS. All items are enclosed inside specialized anti-static industrial packaging sheets and surrounded by high-density protective foam to insulate the precise internal coil geometry from structural impact and environmental moisture during transport.
