Product Overview

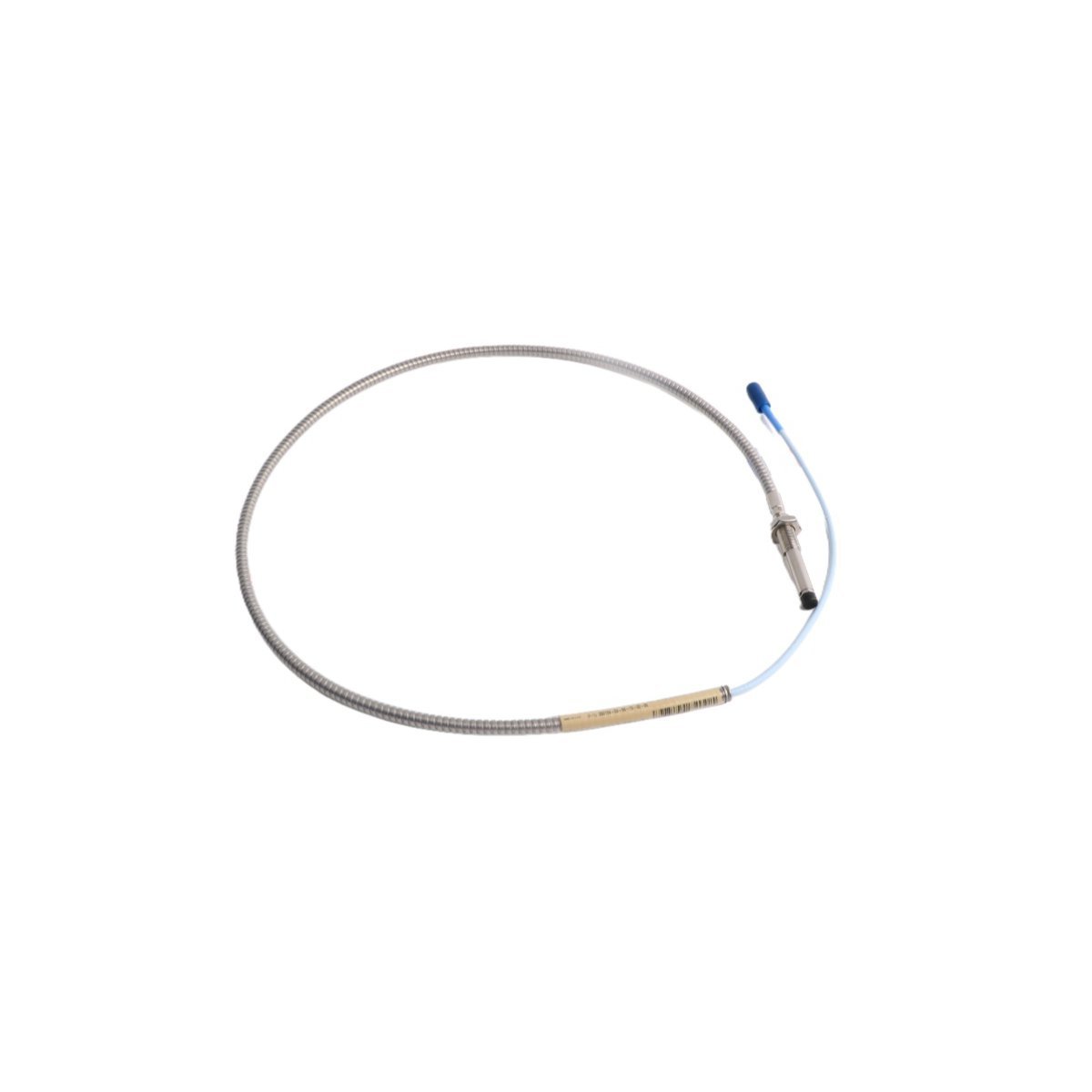

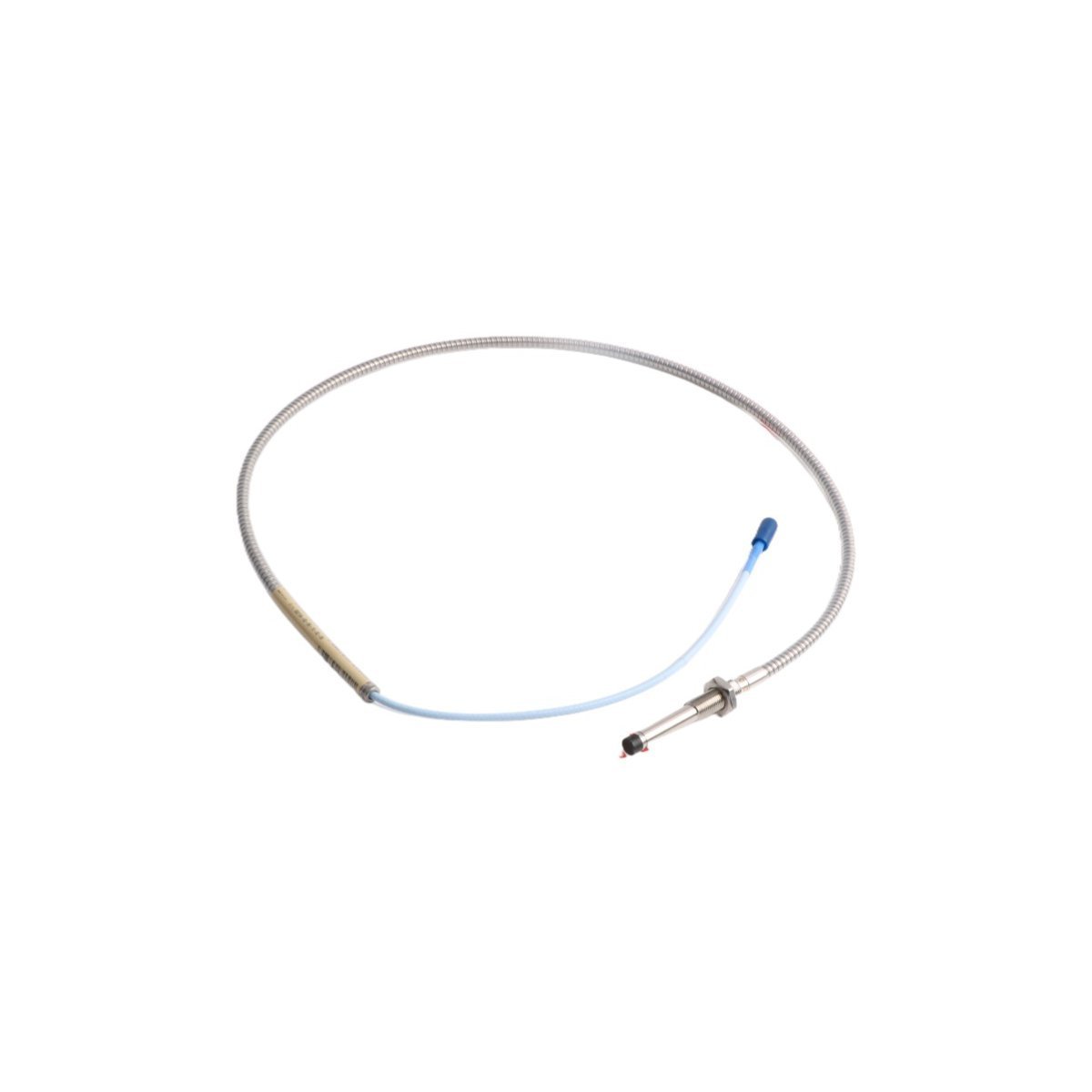

The 330104-03-09-05-02-05 is a metric-threaded, armored proximity sensor from Bently Nevada’s premier 3300 XL series. This 8 mm eddy current probe is engineered for non-contacting displacement measurements, converting the physical gap between the probe tip and a conductive target into a linear voltage signal. As a foundational component of Turbine Supervisory Instrumentation (TSI), it provides high-fidelity data for monitoring radial shaft vibration, axial thrust position, and eccentricity. This specific configuration is designed for rugged industrial applications, featuring a stainless steel armored lead and an M10 x 1 threaded housing to ensure mechanical integrity in the most taxing machinery environments.

Technical Configuration

The alphanumeric designation 330104-03-09-05-02-05 indicates the following mechanical and electrical profile:

• Model Series: 330104 (M10 x 1 Metric Thread with Stainless Steel Armor)

• Unthreaded Length: 30 mm (03 option)

• Overall Case Length: 90 mm (09 option)

• Total System Length: 0.5 Meters / 1.6 Feet (05 option)

• Connector Type: Miniature coaxial ClickLoc connector (02 option)

• Hazardous Area Approvals: Multiple certifications including ATEX, IECEx, and CSA (05 option)

• Linear Range: 2.0 mm (80 mils)

• Scale Factor: 7.87 V/mm (200 mV/mil) when paired with 3300 XL Proximitor

Engineering Excellence and Durability

This 3300 XL probe incorporates patented manufacturing technologies to maximize service life and measurement stability:

• TipLoc Molding: An advanced process creates a molecular-level bond between the Polyphenylene Sulfide (PPS) plastic tip and the stainless steel body, preventing delamination and ensuring a vacuum-tight seal against oil and moisture wicking.

• CableLoc Mechanism: A robust internal anchoring system provides 330 N (75 lbf) of cable pull strength, shielding the electrical connection from mechanical strain during installation.

• Stainless Steel Armor: The FEP-insulated coaxial lead is encased in flexible 304 stainless steel armor, providing superior protection against abrasion and accidental cutting within machinery housings.

• Corrosion Resistance: The probe body and armor are constructed from AISI 300 series stainless steel, offering excellent resilience against corrosive industrial fluids and gases.

System Integration and Applications

The 330104-03-09-05-02-05 is a versatile solution for comprehensive machinery health monitoring:

• Machine Protection: Essential for monitoring fluid-film bearing equipment such as steam turbines, centrifugal compressors, and high-speed pumps.

• Total Interchangeability: Probes, extension cables, and Proximitor sensors of the same system length (0.5m) can be swapped without manual bench calibration.

• Backward Compatibility: Electrically and physically compatible with legacy 3300 series 5 mm and 8 mm components when minimum bend radii are observed.

• EMI/RFI Immunity: Optimized circuitry meets European CE mark standards for electromagnetic compatibility, ensuring stable signals in high-interference environments.
