Product Overview

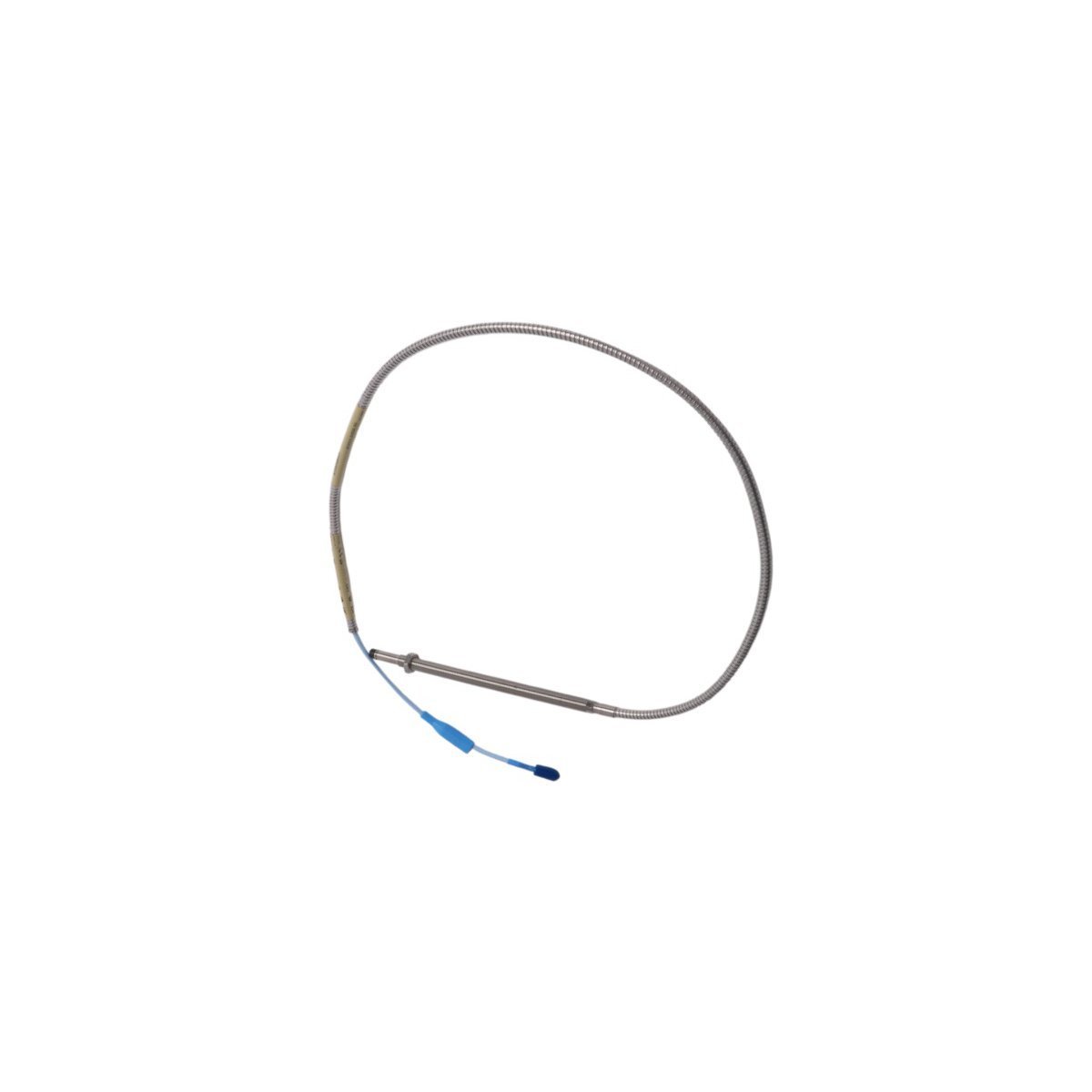

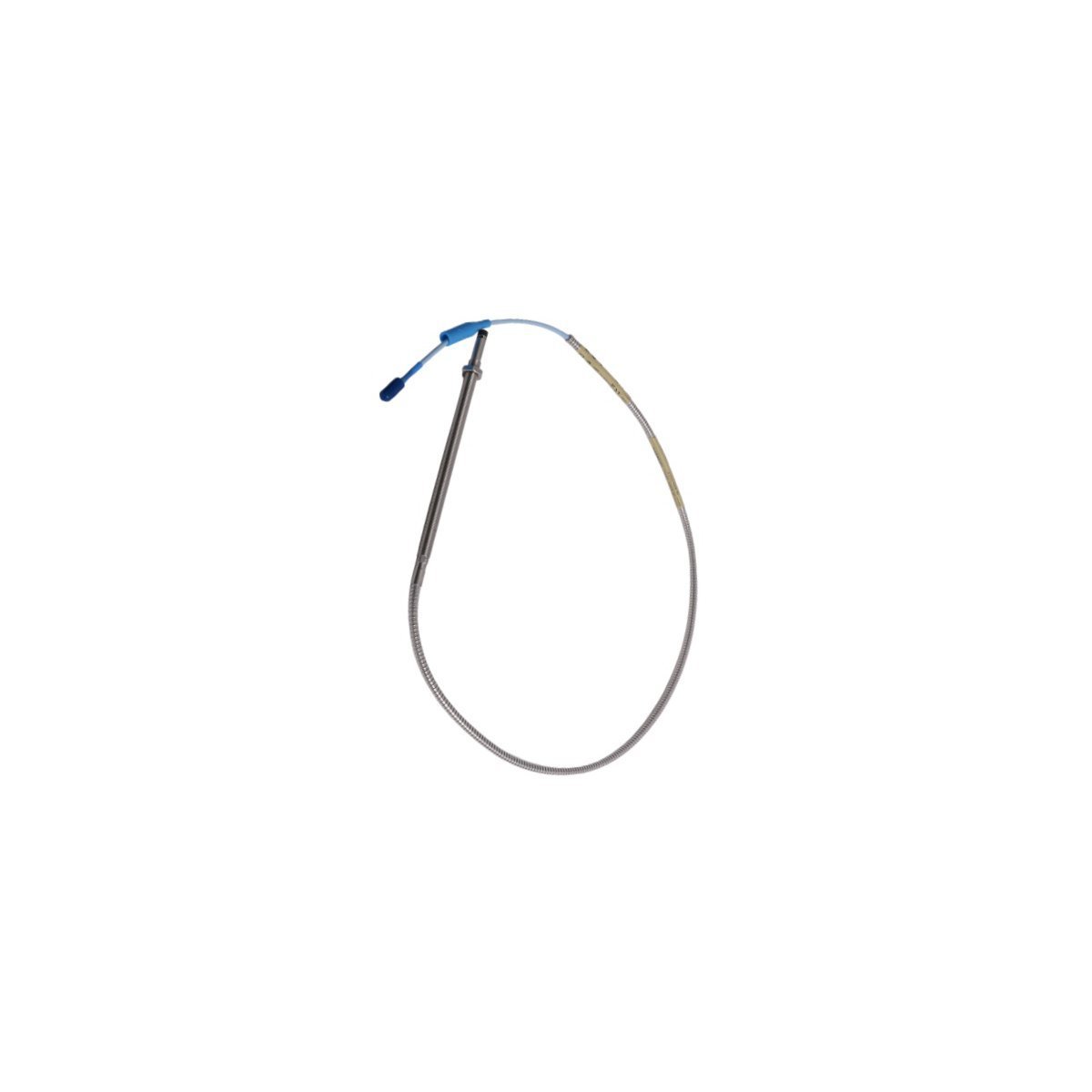

The 330104-02-15-10-01-00 is a heavy-duty, metric-threaded proximity transducer from the Bently Nevada 3300 XL series. Designed for high-precision displacement sensing, this 8 mm probe utilizes eddy current technology to monitor vibration, axial thrust, and shaft position in rotating machinery. This specific model is equipped with stainless steel armor to protect the coaxial cable from mechanical damage and harsh industrial fluids. By adhering to the 3300 XL standard, this probe provides a linear scale factor of 7.87 V/mm (200 mV/mil) when paired with a compatible Proximitor sensor, ensuring high-fidelity data for Turbine Supervisory Instrumentation (TSI) systems.

Technical Configuration Breakdown

The alphanumeric code 330104-02-15-10-01-00 specifies the following physical and electrical attributes:

• Model Number: 330104 (M10 x 1 Metric Thread with Armor)

• Unthreaded Length: 20 mm (02 option)

• Overall Case Length: 150 mm (15 option)

• Total Cable Length: 1.0 meter (10 option)

• Connector Type: Miniature coaxial ClickLoc connector (01 option)

• Agency Approval: Multiple approvals including CSA, ATEX, and IECEx (00 option)

• Thread Size: M10 x 1

• Protective Jacket: Stainless steel flexible armor (FEP coated lead)

• Weight: 0.06 kg (Probe assembly)

Superior Material Construction

The probe tip is manufactured from high-performance Polyphenylene Sulfide (PPS) plastic, which is overmolded onto the internal sensing coil. This construction provides a robust, hermetic seal that resists oil, water, and chemical penetration. The ClickLoc connector system features gold-plated brass components and a mechanical locking mechanism that prevents unintended disconnection in high-vibration environments. These features allow the probe to operate reliably within a temperature range of -51 °C to +177 °C.

System Compatibility and Installation

The 330104-02-15-10-01-00 is designed for "plug-and-play" integration within the 3300 XL ecosystem. Key integration benefits include:

• No Calibration Required: Probes, extension cables, and sensors are fully interchangeable without the need for bench calibration.

• Backward Compatibility: Electrically compatible with legacy non-XL 3300 series 5 mm and 8 mm systems, provided proper installation guidelines are met.

• EMI/RFI Immunity: Advanced electrical design provides superior resistance to electromagnetic interference, meeting CE requirements for industrial environments.

• Versatile Mounting: The metric M10 threading is ideal for international equipment standards and space-constrained machine housings.
