Product Overview

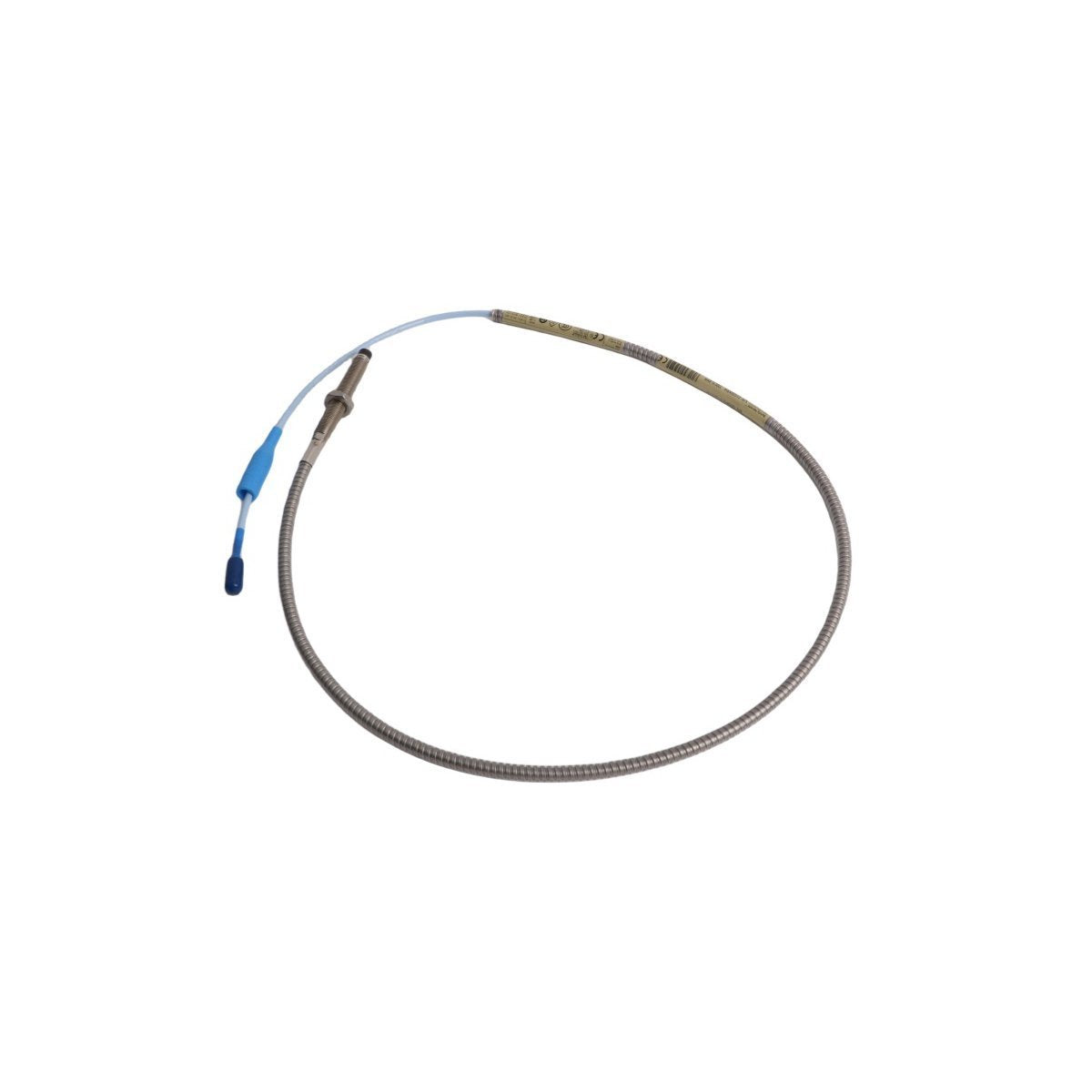

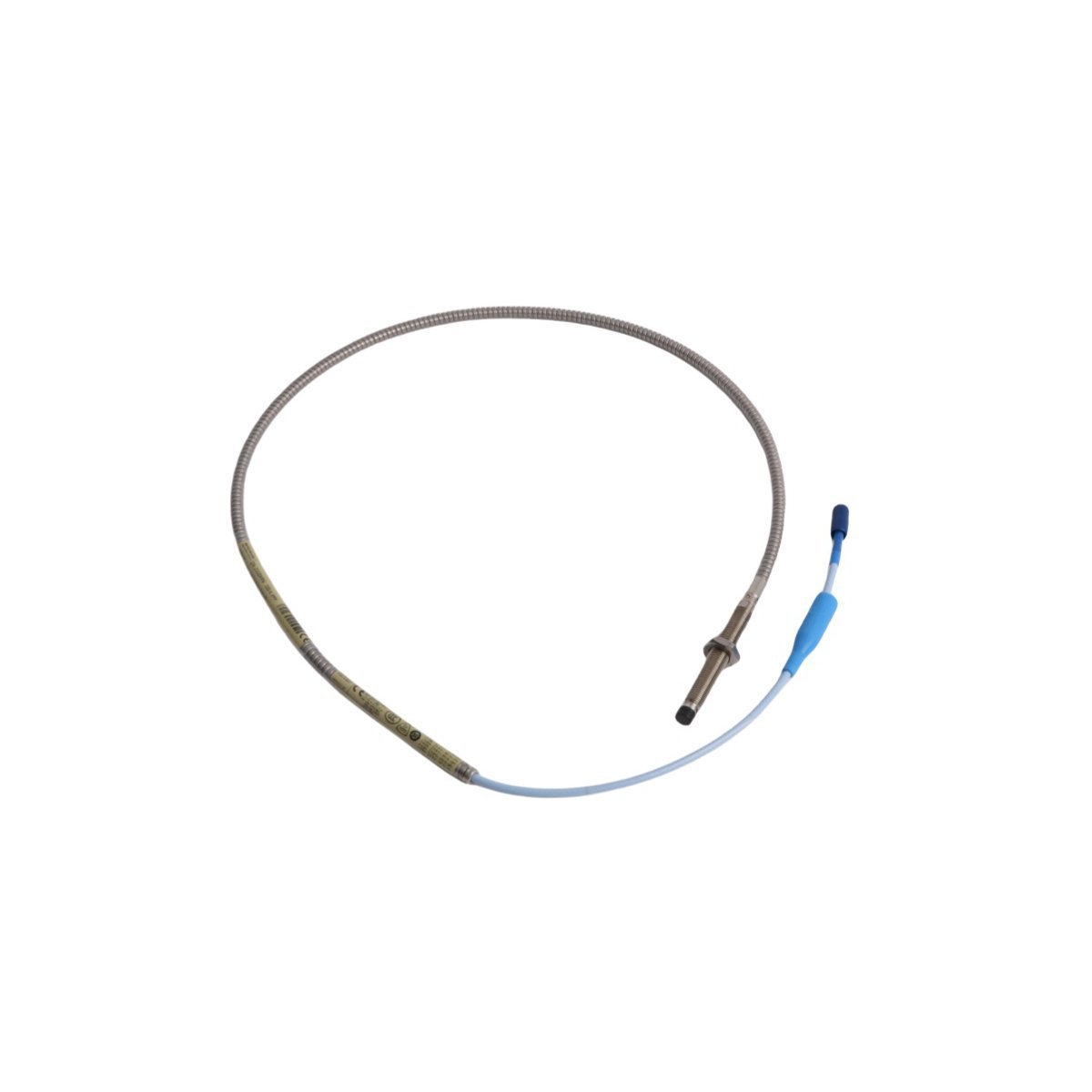

The Bently Nevada 330104-00-07-10-01-05 delivers exceptional asset protection within heavy critical machinery environments, utilizing specialized non-contacting eddy current technology to capture microscopic shaft dynamics. Engineered with a metric housing profile, this 3300 XL 8 mm proximity probe mounts natively into global plant infrastructure to monitor radial vibration, axial thrust, and phase reference on high-speed industrial assets. It tracks real-time shaft variations in high-pressure steam turbines, centrifugal compressors, and massive boilerplate feed pumps, streaming high-fidelity, drift-free analog metrics directly to Bently Nevada 3500 protection frames or integrated plant Distributed Control Systems (DCS). Operating as an advanced, rugged hardware node within automated Emergency Shutdown (ESD) control loops, this device isolates sub-micron structural anomalies early. Implementing this probe secures multi-million dollar capital assets, stabilizes production uptime, and prevents catastrophic mechanical breakdown.

Part Number Option Decoding

Bently Nevada applies a strict alphanumeric option sequence to determine the specific case sizing, thread geometry, cable length, and explosive-zone certifications for this metric 3300 XL 8 mm sensor body.

330104 Base Transducer Designation

This prefix identifies the asset as a 3300 XL 8 mm proximity probe featuring standard M10 x 1 metric structural casing threads.

Unthreaded Casing Length (-00)

The 00 suffix indicates a 0 mm unthreaded length, extending the metric mounting threads across the entire case sleeve to maximize mechanical depth adjustment configurations.

Overall Case Depth Specification (-07)

The 07 option dictates a 70 mm overall case length, providing a compact and highly rigid structural envelope optimized for standard machinery bearing caps or tight internal brackets.

Total System Length (-10)

The 10 suffix specifies a 1.0-meter (3.3 feet) integrated probe cable length, terminating in a low-loss miniature gold-plated coaxial connector.

Cable Hardware Armor (-01)

The 01 designator adds a flexible, fluid-resistant stainless steel armor conduit running the full length of the cable jacket, protecting the internal coaxial signal core from hot oil degradation, friction, and physical cuts.

Agency Safety Validation (-05)

The 05 designation provides comprehensive global explosion-proof approvals, unlocking ATEX, IECEx, and CSA intrinsic safety and non-incendive ratings for zone-classified hazardous environments.

Mechanical and Performance Matrix

Field Commissioning and Mechanical Gapping

Mechanical depth adjustment directly dictates the final accuracy of your dynamic vibration loop. Field technicians must monitor the raw DC gap voltage across the Proximitor Sensor terminals using a high-impedance digital multimeter during physical assembly. Advance the threaded metric probe body into the mounting bracket until the multimeter registers exactly -10.0 VDC, confirming the target shaft face rests in the center of the probe tip's linear calibration range.

Observe rigid routing guidelines to protect the armored cable from internal coaxial kinks. The flexible stainless steel armor conduit requires a minimum physical bend radius of 25.4 mm (1.0 inch). Technicians must contain all miniature coaxial connector joints inside dedicated, sealed terminal junction boxes to prevent fluid contamination and eliminate electromagnetic noise. Ensure the probe case remains electrically isolated from the local machine casing, grounding the shield drain wire exclusively at the 3500 monitoring rack chassis ground terminal strip.

Severe Process Integration Capabilities

This 3300 XL proximity sensor withstands the punishing conditions of heavy industrial processing, including extreme thermal cycling, heavy casing vibration, and continuous oil submersion inside turbine housings. It integrates natively into comprehensive Turbine Supervisory Instrumentation (TSI) upgrades. The low-impedance analog output signal travels across long distances without degradation, interfacing cleanly with modern process control engines like Honeywell Experion PKS or Siemens S7 PLC architectures to feed plant asset management software with clean dynamic data for real-time diagnostic plotting.

Procurement Inventory and Package Elements

Every ordered procurement kit includes the essential hardware components required for rapid field deployment. The original factory carton contains:

(1) New Bently Nevada 330104-00-07-10-01-05 metric proximity probe with an integrated 1.0-meter armored cable.

(2) Factory-milled metric locknuts to secure the final mechanical depth position against intense machinery vibration.

(3) Transparent connector insulation sleeves to isolate the miniature coaxial mating point from moisture.

(4) Complete material traceability records along with the original manufacturer linear calibration datasheet.

Supply Chain Logistics and Secure Transit

Our global distribution framework prioritizes fast, secure transit to your industrial facility.

Logistics Dispatch Window

Your consignment ships out within 2-7 days when payment finish, relying on elite global courier providers such as DHL, FEDEX, or UPS to secure automated tracking and rapid international customs processing.

Protective Warehousing Protocols

We pack all industrial infrastructure elements within specialized anti-static industrial packaging and high-density foam stabilization blocks, neutralizing physical impact forces and electrostatic hazards encountered during over-the-road or air freight transit.

Field Engineering Diagnostics FAQ

Q1: What differentiates the 330104 metric model series from the 330101 series?

A1: The 330104 series uses metric threads (M10 x 1), whereas the 330101 series features standard English threads (3/8-24 UNF). Always match the thread type to your machinery casing or mounting bracket to prevent cross-threading damage during field setup.

Q2: What is the required extension cable pairing for this 1.0-meter probe?

A2: This 1.0-meter probe cable requires a matching 4.0-meter extension cable to complete a standard 5.0-meter loop system, or an 8.0-meter extension cable to form a 9.0-meter loop system. Match these lengths exactly to preserve the calibrated 200 mV/mil scale factor.

Q3: What does the -01 suffix indicate for this proximity probe?

A3: The -01 suffix specifies that the cable is wrapped in a flexible stainless steel armor conduit. This provides robust mechanical protection against sharp metal shavings, external abrasions, and aggressive chemical cutting oils inside bearing housings.

Q4: How do I arrange commercial payment to ensure immediate order processing?

A4: We accept verified commercial telegraphic wire transfers (T/T), standard proforma corporate invoicing, and major verified credit accounts to accelerate the financial clearance phase and initiate priority packaging routing.
