Product Overview

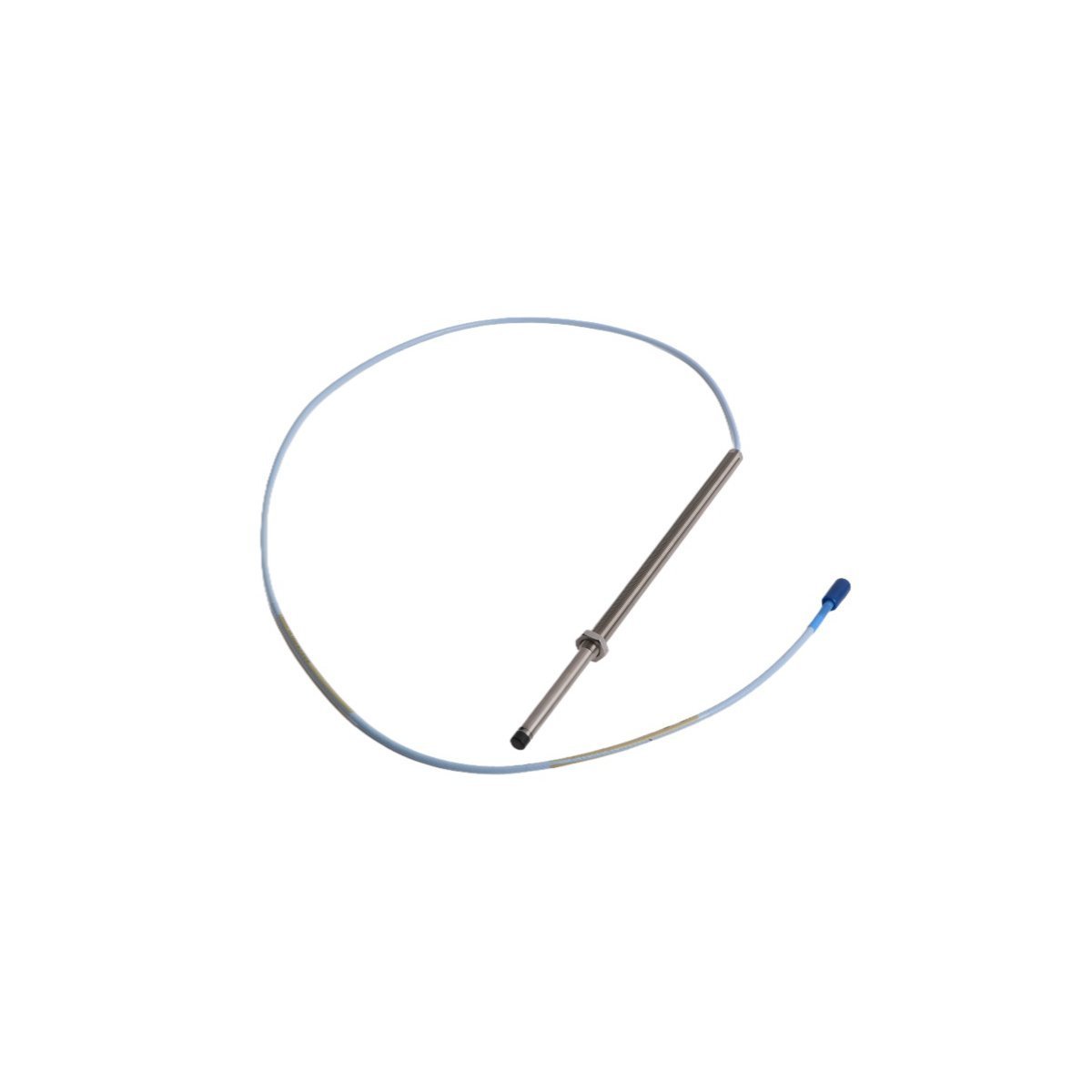

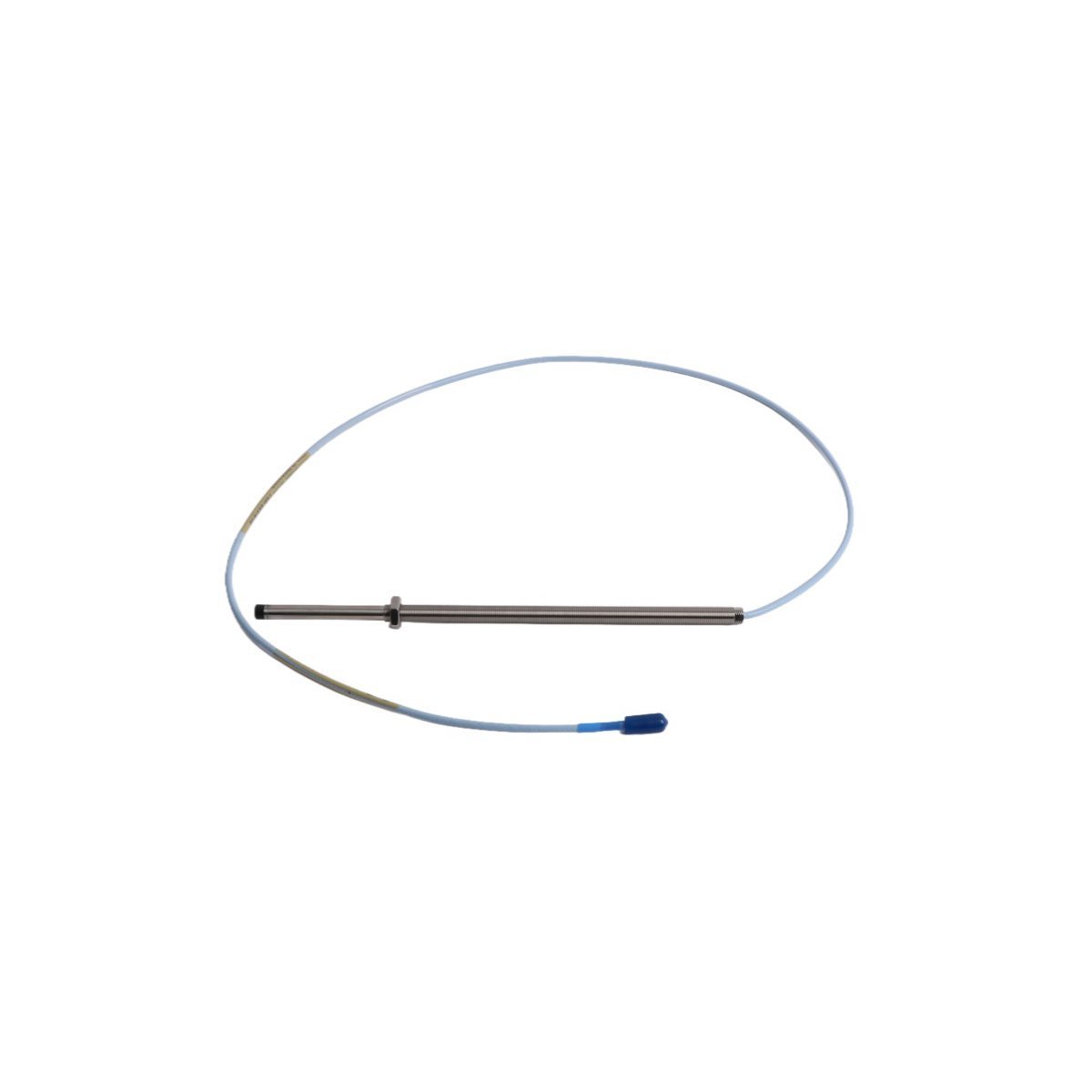

The Bently Nevada 330103-06-15-05-02-05 serves as a cornerstone for high-fidelity machinery protection, specifically engineered for critical rotating assets. This 8mm proximity probe delivers exceptional linear range performance and thermal stability, making it indispensable for measuring radial vibration, axial thrust, and phase reference (Keyphasor) signals. Designed to interface seamlessly with the 3500/42M monitoring system, it provides real-time data that empowers emergency shutdown (ESD) protocols and predictive maintenance strategies. Whether deployed in power generation turbines or heavy-duty centrifugal compressors, this probe withstands the rigors of industrial environments while maintaining the strict tolerances required by API 670 standards. Its advanced eddy current technology ensures non-contact measurement accuracy that remains unaffected by the presence of non-conductive lubricants.

Model Suffix Analysis

Mechanical and Electrical Geometry

Each segment of the 330103-06-15-05-02-05 part number specifies a vital physical attribute required for correct system matching:

Unthreaded Length (06): 0.6-inch unthreaded length, allowing for precise adjustment within a threaded mounting bracket or housing.

Overall Case Length (15): 1.5-inch total case length, providing the structural depth needed for standard bearing housings.

Total Length (05): 0.5-meter (1.6 feet) cable length, requiring a 4.5m or 8.5m extension cable to achieve the standard 5m or 9m system calibration.

Connector Option (02): Miniature coaxial ClickLoc connector with standard cable insulation.

Agency Approval (05): Multiple Approvals (ATEX, IECEx, CSA) for deployment in Class I, Div 1 and Zone 0 hazardous environments.

Engineering Performance Data

Field Installation Protocol

Engineers must verify the static gap voltage during installation to ensure the probe operates within its linear region. A typical target is -10.0 VDC, corresponding to the center of the 80-mil range. Use a digital voltmeter connected to the Proximitor’s "OUT" and "COM" terminals to fine-tune the mechanical position. Adhere to a minimum cable bend radius of 25.4 mm (1.0 inch) to prevent internal coaxial damage. In hazardous areas, ensure all cable entries utilize the appropriate explosion-proof glands or conduit seals as per the (05) agency approval mandates.

Systems Synergy and Durability

The 3300 XL series sets the benchmark for resistance to "oil soak," a common failure mode in older transducer designs. The 330103-06-15-05-02-05 integrates natively with Honeywell Experion PKS and other flagship DCS platforms through buffered outputs, allowing operators to visualize orbit and time-base plots via System 1 software. Its rugged Polyphenylene Sulfide (PPS) tip resists chemical corrosion and high-pressure steam, ensuring that critical vibration data remains clean and jitter-free even under peak load conditions.

Ordering info

• One (1) Bently Nevada 330103-06-15-05-02-05 8mm Probe

• Integrated 0.5m Coaxial Cable with ClickLoc Connector

• Stainless Steel Locknut and Adjustment Washers

• Individual Factory Test and Calibration Report

• Instruction Leaflet and Installation Guide

Rapid Global Fulfillment

Delivery time: 2-7 days when payment finish. All orders ship globally via DHL, FEDEX, or UPS to ensure time-critical arrival for plant turnarounds. We utilize high-grade anti-static industrial packaging and heavy-duty moisture barriers to protect the sensing tip's magnetic properties. Our logistics team provides real-time tracking and comprehensive commercial documentation for seamless customs clearance.

Technical Asset FAQs

Q1: Can I connect this 0.5m probe directly to a 3500 monitor?

A1: No. This probe is part of a system. You must connect it to a 3300 XL Proximitor Sensor using a matching 4.5m or 8.5m extension cable to reach the required electrical system length.

Q2: What is the benefit of the ClickLoc connector (02 option)?

A2: The ClickLoc design prevents the connector from vibrating loose, a common issue with standard SMA connectors. It provides a secure, moisture-resistant link that maintains signal integrity over the long term.

Q3: How do I handle a "Not OK" status on my 3500 rack for this probe?

A3: First, check the gap voltage. If the voltage is near 0 or -24 VDC, the probe is either touching the shaft or the cable is open/shorted. Verify all ClickLoc connections are clean and fully seated.
