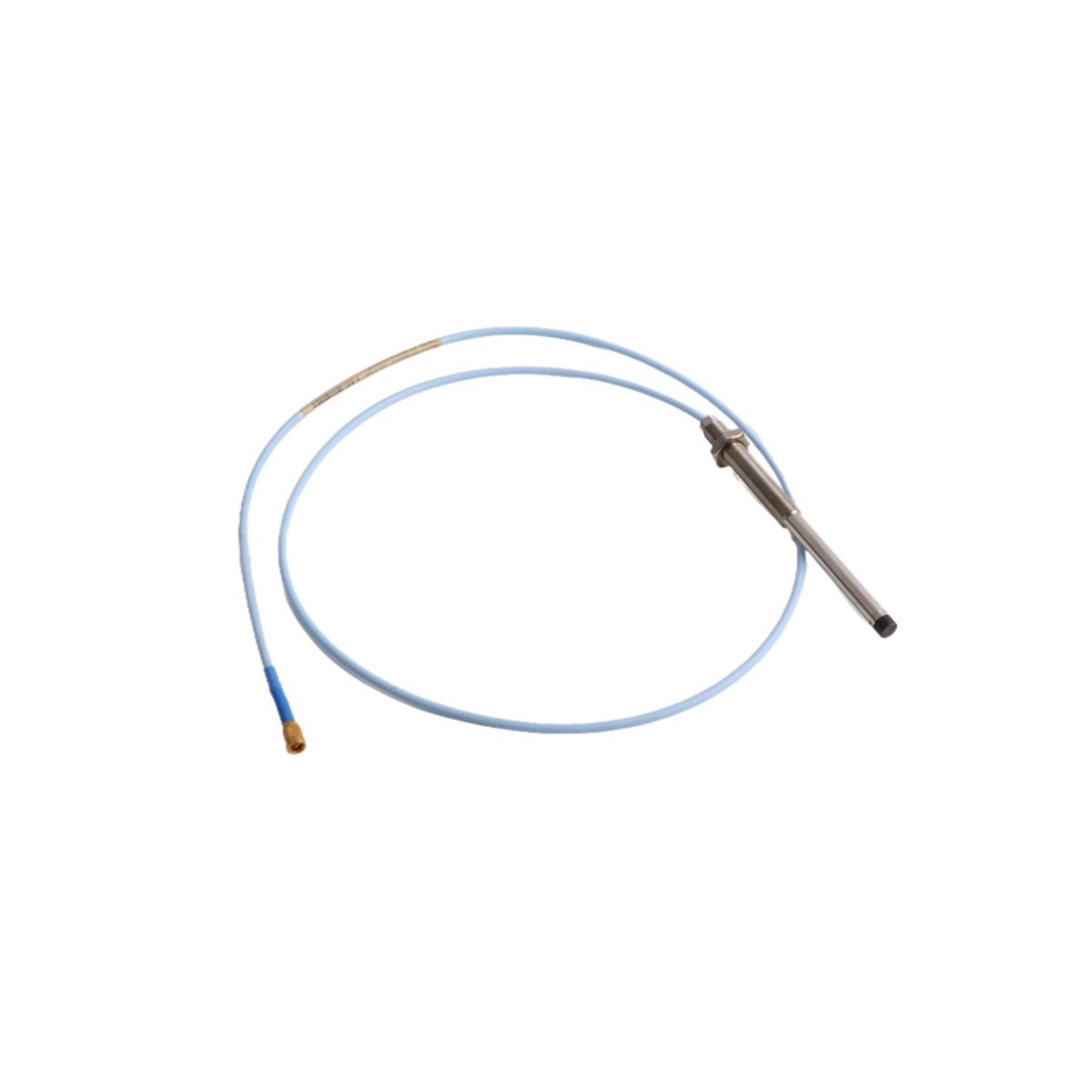

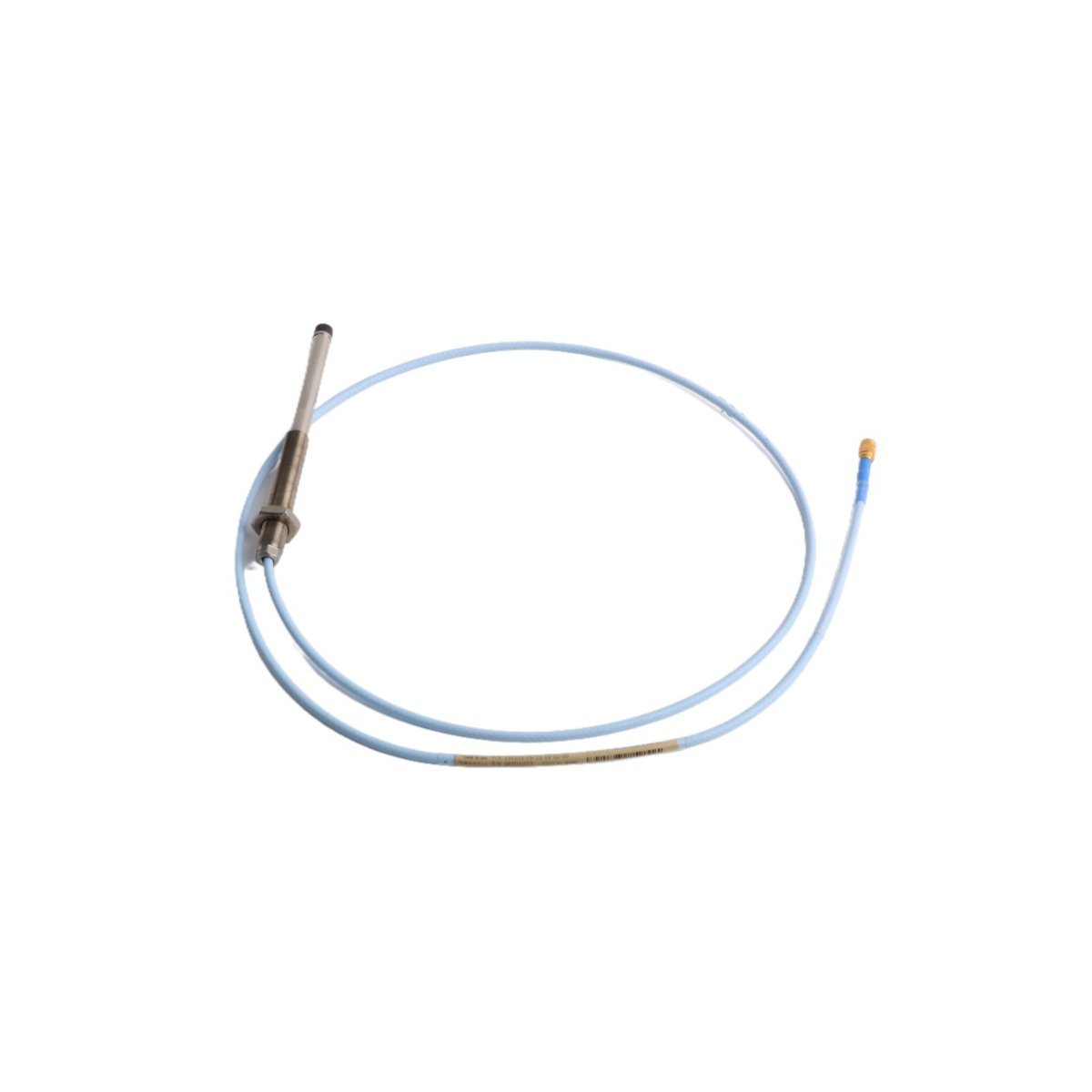

The Bently Nevada 330103-06-10-10-02-05 serves as the frontline sensory component for the world-renowned 3300 XL Proximity Transducer System. This 8mm probe provides high-fidelity, non-contacting displacement and vibration measurements, specifically designed for fluid-film bearing machines such as turbines, compressors, and large motors. In critical industrial environments where sub-micron precision dictates the difference between operational success and catastrophic failure, this probe delivers unmatched stability and linear performance. By supplying a clean signal to the 3500 Monitoring System, it enables real-time machinery protection and diagnostic capabilities, ensuring that your most valuable rotating assets operate within safe vibration limits and providing the data necessary for predictive maintenance strategies.

Precision Model Nomenclature

Decoding the Part Configuration

The specific suffix string for the 330103 series (3/8-24 UNF thread) defines its exact mechanical and electrical profile.

• -06 (Unthreaded Length): Indicates a 0.6-inch unthreaded body length, optimized for specific mounting bracket clearances.

• -10 (Overall Case Length): Specifies a 1.0-inch total threaded case length for compact installation in bearing housings.

• -10 (Total Length): Represents a 1.0-meter (3.3 feet) total cable length, requiring an extension cable for full system integration.

• -02 (Connector Option): Features a miniature coaxial connector with a specialized brass cable protector for enhanced mechanical durability.

• -05 (Agency Approval): Provides multiple approvals (ATEX, IECEx, CSA) for intrinsically safe installations in hazardous areas.

Core Technical Parameters

Field Deployment Protocols

Gap Voltage and Mechanical Alignment

Proper calibration begins with setting the physical gap between the probe tip and the target shaft. Engineers must use a digital voltmeter to monitor the DC Gap Voltage, typically targeting -10.00 VDC at the center of the linear range. Ensure the probe tip is perpendicular to the shaft surface to prevent eddy current signal distortion.

Cable Integrity and Routing

Maintain a minimum cable bend radius of 25.4 mm (1.0 inch) during installation to prevent internal coaxial damage. Always use the provided connector protectors to shield the delicate miniature coaxial interface from oil, moisture, and mechanical abrasion common in turbine decks and industrial skids.

Reliability in Extreme Operations

Thermal and Chemical Resistance

The 330103-06-10-10-02-05 features a polyphenylene sulfide (PPS) probe tip that resists chemical degradation from synthetic lubricants and high-temperature exposure. This construction ensures that thermal expansion does not compromise the accuracy of the vibration data fed into your Honeywell Experion or GE Mark VIe control systems.

Seamless TSI Integration

As a core element of Turbine Supervisory Instrumentation (TSI), this probe integrates natively with the 3300 XL Proximitor sensor. It delivers a wide frequency response from DC to 10 kHz, allowing it to capture both static position (Thrust) and high-frequency dynamic vibration data with absolute fidelity.

Global Supply Chain Fulfillment

We provide rapid response logistics to support critical turnaround schedules and emergency outages.

• Lead Time: 3-5 days when payment finish via express courier.

• Shipping Methods: Reliable door-to-door delivery through DHL, FEDEX, or UPS.

• Quality Protection: All units are shipped in original, factory-sealed anti-static industrial packaging. We utilize reinforced structural padding to ensure the probe’s precision calibration remains intact during international transit.

Machinery Protection FAQ

Q1: Can I use this 1.0-meter probe directly with a 3500 monitor?

A1: No. The probe is part of a system. A 1.0-meter probe must be paired with an 4.0-meter or 8.0-meter extension cable to match the 5.0-meter or 9.0-meter calibration of the 3300 XL Proximitor sensor.

Q2: What is the primary benefit of the -02 connector option?

A2: The -02 option includes a connector protector. This is vital in oily or wet environments as it prevents fluid ingress into the coaxial connection, which is a leading cause of signal "glitch" and false alarms.

Q3: How do I identify if the probe tip is damaged?

A3: Inspect for cracks in the PPS tip or deep scores on the face. Electrically, a significant shift in the DC gap voltage that cannot be mechanical adjusted usually indicates an internal coil failure or moisture contamination.

Q4: Is this probe compatible with older 3300 series Proximitors?

A4: While the 3300 XL series is designed to be backwards compatible with non-XL 3300 components, we recommend using a complete XL system to achieve the best temperature stability and linear performance.
