Product Overview

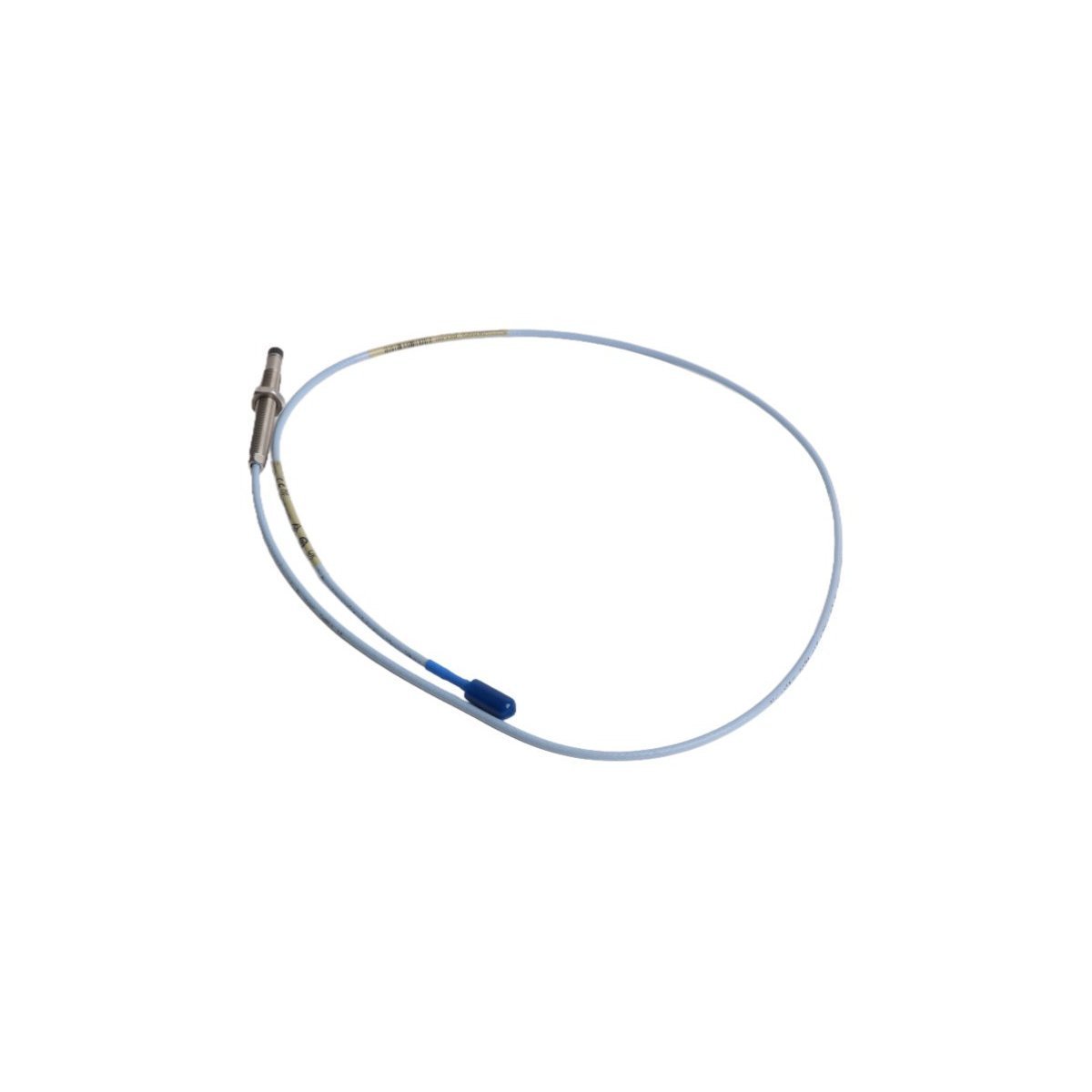

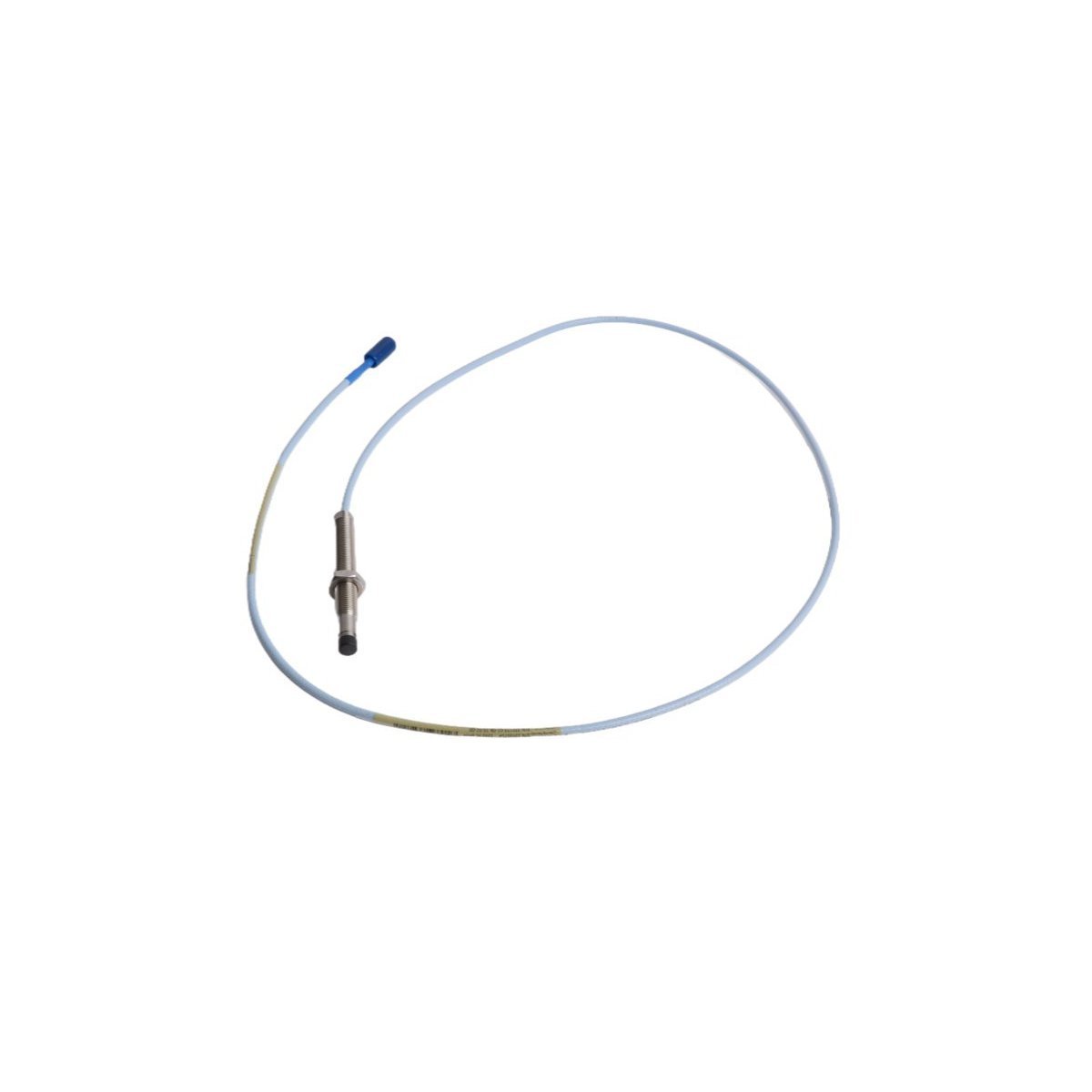

The Bently Nevada 330103-01-08-10-02-00 is a cornerstone of the 3300 XL series, providing the most advanced performance in non-contacting displacement and vibration measurement. Designed for mission-critical assets like steam turbines, centrifugal compressors, and power generators, this 8mm probe converts mechanical movement into precise electrical signals for the Proximitor sensor. It effectively mitigates the risk of catastrophic machinery failure by providing sub-micron accuracy in axial position and radial vibration monitoring. The 3300 XL system offers a significant improvement over previous designs, featuring better thermal stability and a more linear scale factor across its entire range, ensuring your DCS receives high-fidelity data even in the presence of extreme thermal gradients.

Suffix Configuration Analysis

The alphanumeric sequence of the 330103 series specifies the exact mechanical and electrical build of the probe to ensure compatibility with specific housing and cabling requirements.

01 - Unthreaded Length Option

This probe features a 1.0-inch unthreaded section. This design facilitates easier installation in thick-walled machine casings where only a portion of the probe barrel needs to be threaded into the mounting bracket.

08 - Overall Case Length Option

The total barrel length is 0.8 inches. This compact configuration is ideal for tight internal clearances within bearing housings or specialized brackets where space is a premium.

10 - Total Length Option

Designates a 1.0-meter (3.3 feet) total cable length. This integral cable is physically attached to the probe head and is designed to connect to an extension cable to reach the total system length requirement (typically 5 or 9 meters).

02 - Connector and Agency Approval Option

Comes equipped with a miniature coaxial connector and carries standard global agency approvals for industrial environments, ensuring seamless integration into existing safety-instrumented systems (SIS).

00 - Agency Approval Option

Indicates no additional specialized hazardous area approvals beyond the standard industrial certifications, streamlining the procurement process for non-explosive atmospheres.

Core Technical Matrix

On-Site Deployment Intelligence

Achieving optimal probe performance requires strict adherence to gap voltage settings. During installation, engineers should aim for a quiescent "Gap Voltage" of approximately -10.0 VDC to position the probe at the center of its linear range. Ensure the coaxial connector is dry and clean; moisture ingress is the leading cause of signal "drift" in industrial environments. We recommend using a connector protector or heat-shrink tubing to seal the connection point between the probe and the extension cable. Avoid running probe cables parallel to high-voltage power lines to eliminate electromagnetic interference.

Asset Integration Performance

The 330103-01-08-10-02-00 is fully compatible with the Bently Nevada 3500/42M and 3500/40M monitoring modules. Its robust construction allows it to withstand the corrosive environments common in petrochemical processing and power generation. By utilizing gold-plated Click-Loc connectors, this probe maintains a low-resistance path, ensuring that the 3300 XL Proximitor can accurately interpret shaft position without signal degradation, even over long-term deployments in high-vibration zones.

Logistics & Global Fulfillment

We prioritize speed and safety for all mission-critical industrial shipments.

Fulfillment Window: 3-5 days when payment finish.

Carrier Network: Rapid international delivery via DHL Express, FEDEX Priority, or UPS Worldwide.

Safe-Arrival Protocol: Each unit is encased in anti-static industrial packaging and double-boxed with high-density foam inserts to protect the sensitive 8mm tip and integral cable during transit.

Technical Knowledge Base

Q1: Can I use this probe with an older 3300 (non-XL) Proximitor?

A1: Yes, the 3300 XL 8mm probes are backward compatible with standard 3300 Proximitors. However, you will not achieve the enhanced temperature stability benefits inherent to a full 3300 XL system.

Q2: Is the 1.0-meter cable length flexible?

A2: No. The cable length is a fixed electrical parameter. You must use the correct extension cable to ensure the total electrical length matches the Proximitor’s calibration (e.g., 5m or 9m total length).

Q3: How do I verify if the probe tip is damaged?

A3: Perform a visual inspection for cracks in the PPS tip. Electrically, you can verify the resistance; a standard probe should show continuity through the center conductor and isolation from the outer case.

Q4: What is the significance of the "XL" designation?

A4: The "XL" or Extended Linearity series provides a more consistent scale factor over a wider temperature range and more robust physical connectors compared to the legacy 3300 series.
