Product Overview

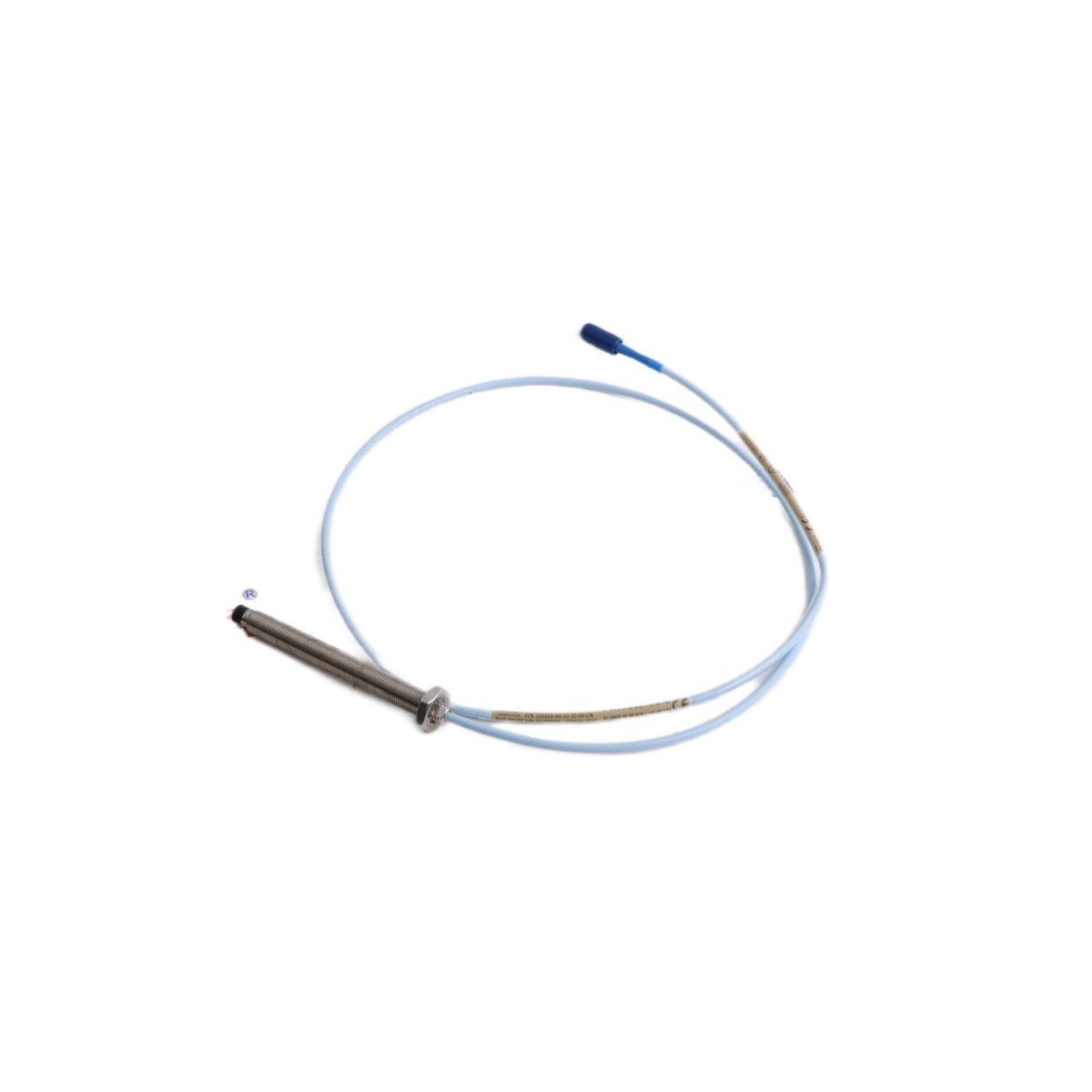

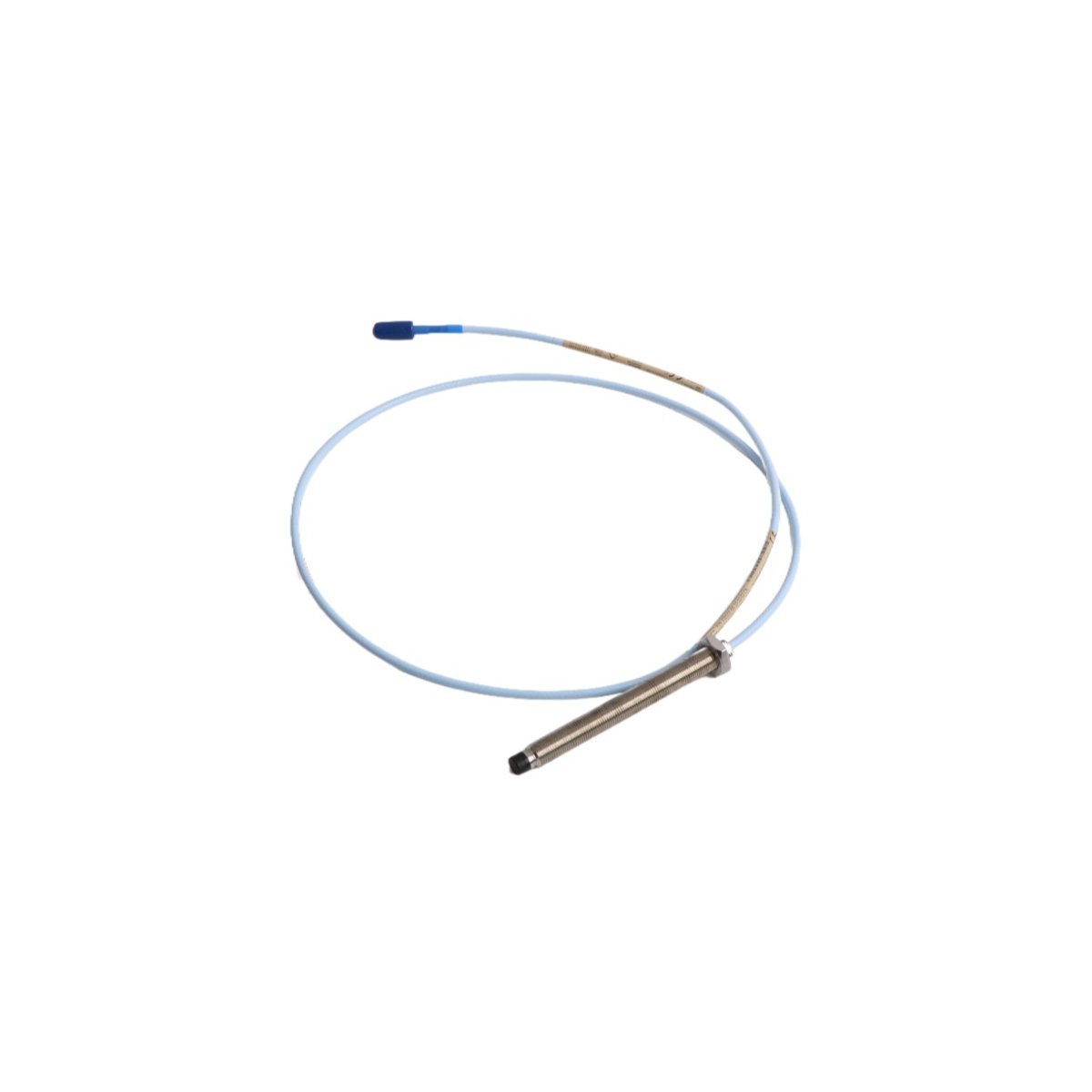

The Bently Nevada 330103-00-10-15-02-05 serves as the definitive high-performance solution for non-contacting shaft displacement measurements in critical rotating machinery. Designed specifically for the 3300 XL 8mm system, this probe provides the essential data required for monitoring radial vibration, axial thrust, and shaft speed on high-speed assets like steam turbines and centrifugal compressors. By delivering sub-micron resolution and a linear scale factor of 200 mV/mil, it empowers the Bently Nevada 3500 rack to perform real-time diagnostics and execute automated emergency shutdown (ESD) protocols. Its unmatched thermal stability and resistance to electromagnetic interference ensure that your Turbine Supervisory Instrumentation (TSI) suite remains reliable under the most grueling industrial conditions.

Decoding the Suffix Variable Matrix

The 330103-00-10-15-02-05 configuration indicates a precise set of mechanical and electrical characteristics tailored for rugged field environments. The -00 suffix specifies an unthreaded length of 0.0 inches, while the -10 designates a total case length of 1.0 inch. The -15 suffix confirms a 1.5-meter (approx. 4.9 feet) total cable length, providing critical routing flexibility for junction box connections. The -02 option specifies a miniature coaxial connector with Click-Loc and FluidLoc features, effectively blocking oil wicking through the cable core. Finally, the -05 suffix denotes Multiple Agency Approvals, certifying this probe for global use in hazardous areas including ATEX, IECEx, and CSA Class I, Div 1 environments.

Essential Technical Parameters

Field Commissioning and Gapping Protocol

Optimal signal integrity for the 330103-00-10-15-02-05 requires precise physical gapping during installation. Engineers must set the Gap Voltage to approximately -10.0 VDC to center the probe in its linear range against a 4140 steel target. Maintain a minimum side-view clearance of 15 mm from any adjacent metallic surfaces to prevent parasitic eddy current interference that could skew vibration readings. For cable routing, ensure a minimum bend radius of 25.4 mm (1.0 inch) to protect the internal coaxial shielding. Always verify that the combined length of the probe and extension cable matches the Proximitor’s calibrated length—typically 5.0m or 9.0m—to ensure the accuracy of the scale factor across the entire measurement loop.

Mechanical Resilience and Integration Synergy

The 3300 XL 8mm series offers superior durability in environments saturated with synthetic lubricants and high thermal gradients. This probe integrates seamlessly with Honeywell Experion PKS or Siemens SIMATIC S7 via the 3500/42M monitor, facilitating high-resolution orbit plots and shaft centerline diagnostics. Its Polyphenylene Sulfide (PPS) probe tip provides exceptional chemical resistance, while the FEP jacketed cable prevents moisture ingress. By providing deterministic displacement data, the 330103 series supports API 670 compliant machinery protection, ensuring maximum uptime and preventing catastrophic failures in offshore platforms and remote refineries.

Global Logistics and Order Fulfillment

Processing Timeline: Orders are prepared for dispatch within 2-7 days when payment finish.

Carrier Network: We ship worldwide via DHL, FEDEX, and UPS, ensuring your mission-critical spares arrive with full door-to-door tracking and priority handling.

Specialized Packaging: Every unit is shipped in anti-static industrial packaging with moisture-resistant barrier bags to preserve the integrity of the sensing tip and gold-plated connectors.

Guaranteed Condition: We supply exclusively New, Sealed, and Original Pack Bently Nevada hardware. Our technical team performs a rigorous visual and continuity check prior to shipping, ensuring that your machinery protection system is ready for immediate on-site commissioning.

Transducer Systems Diagnostic FAQs

Q1: Can I use this 1.5m probe with a standard 4.0m extension cable?

A1: No. This would create a 5.5m system. Standard Proximitors are calibrated for exactly 5.0m or 9.0m. A mismatch will cause scale factor errors, leading to incorrect vibration measurements in your monitor.

Q2: What is the benefit of the FluidLoc connector (-02)?

A2: The FluidLoc feature uses internal seals to prevent oil or process gas from wicking through the inside of the cable, which is critical for preventing leaks into terminal boxes or instrumentation cabinets.

Q3: How do I identify if the probe is damaged after an event?

A3: Measure the DC Gap Voltage at the monitor. If the voltage is -24 VDC (saturated) or 0 VDC (shorted) regardless of the shaft's proximity, the cable or probe tip has likely suffered mechanical or electrical failure.

Q4: Is this probe compatible with the older 3300 series (non-XL)?

A4: Yes, the 3300 XL probes are downward compatible with 3300 series Proximitors, but we recommend upgrading the entire loop to XL components to benefit from the improved temperature stability and linear range.
