Product Overview

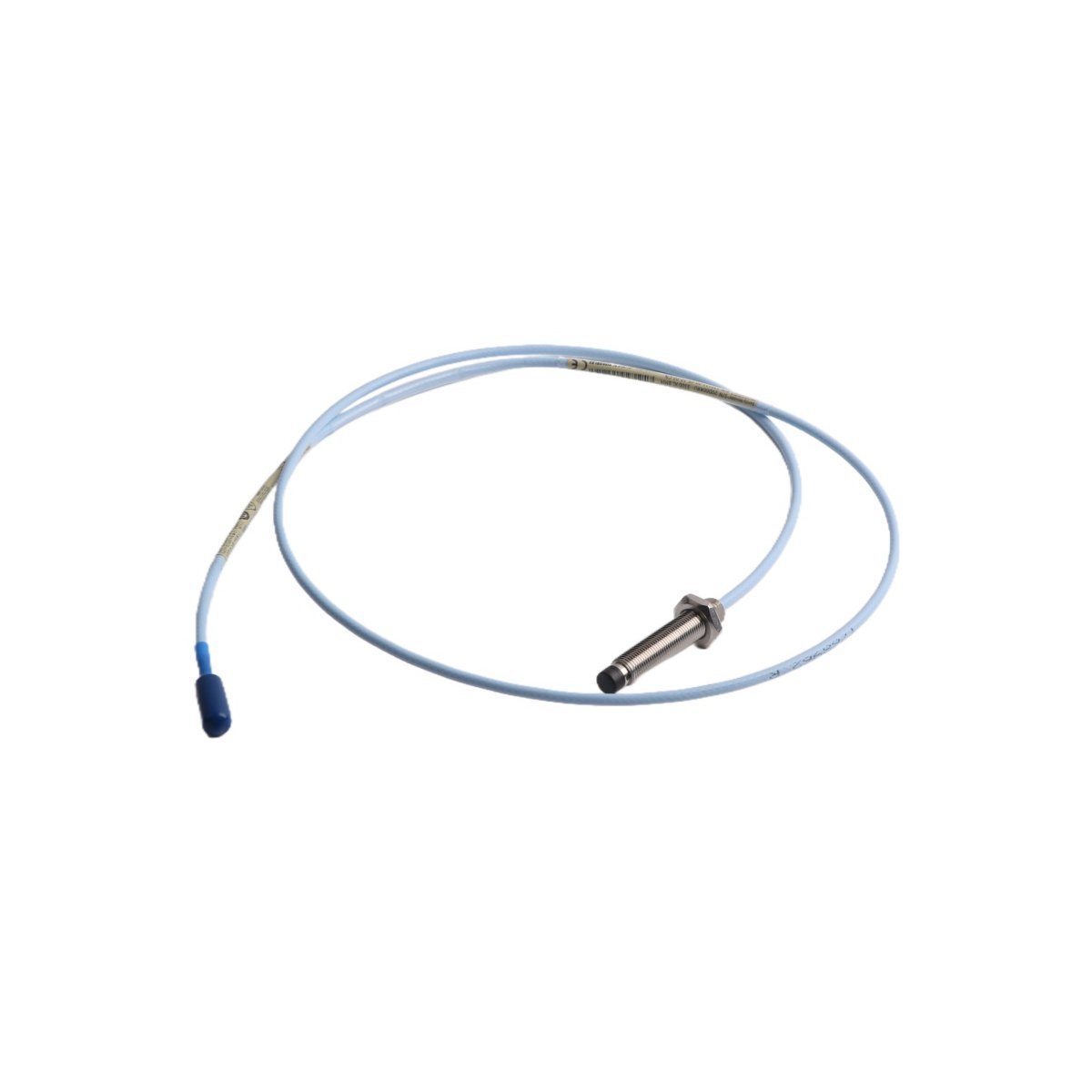

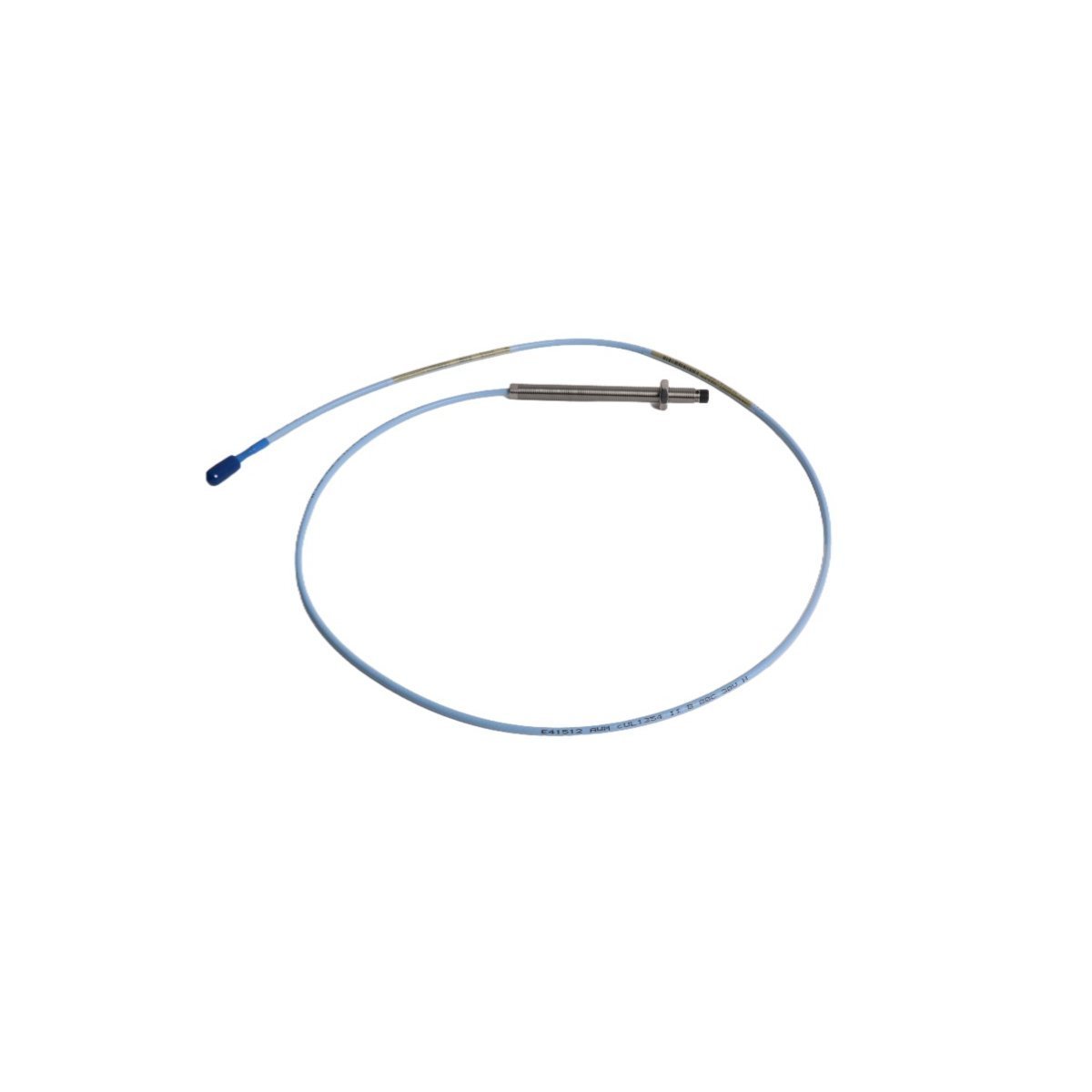

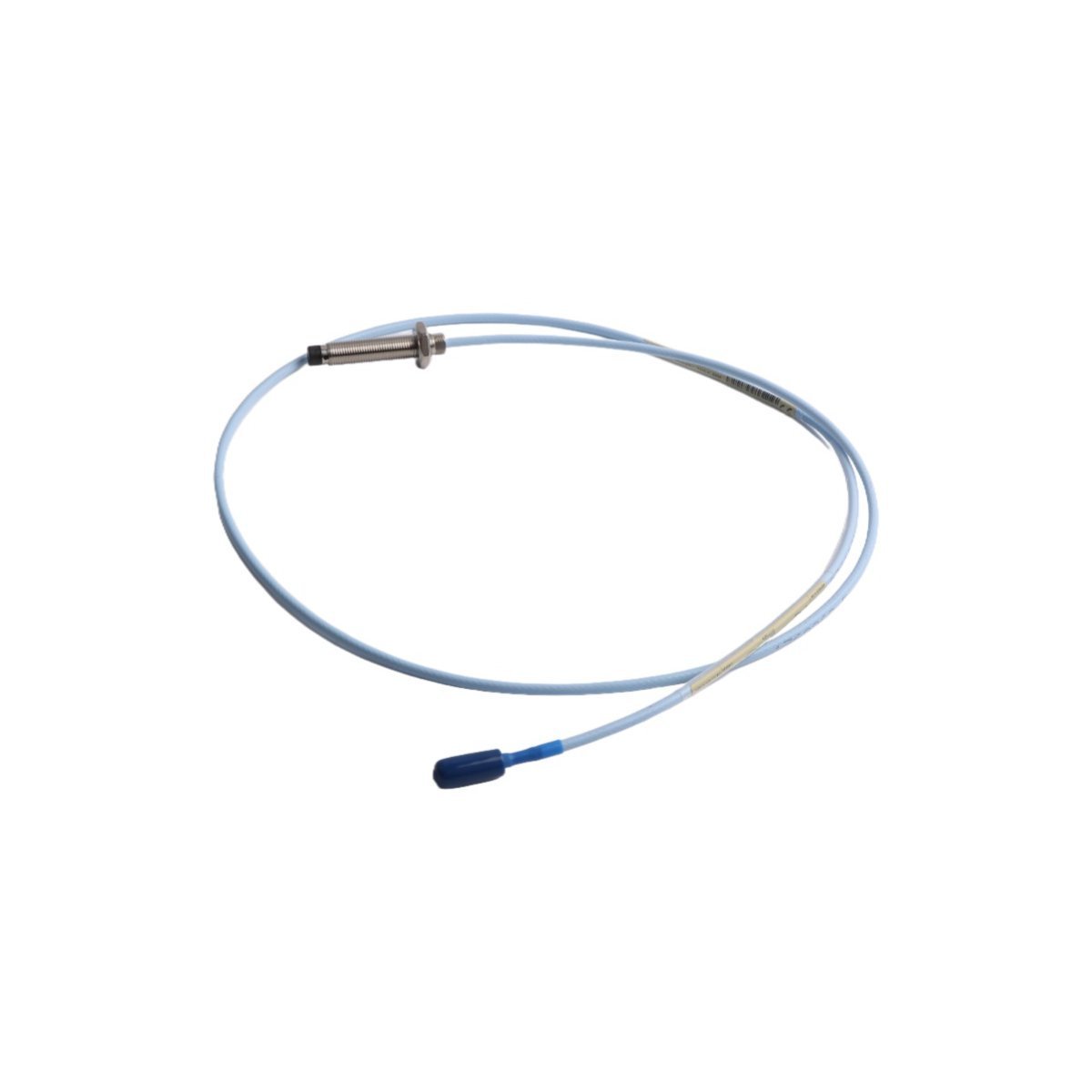

The Bently Nevada 330103-00-10-10-11-05 is a high-performance 8mm proximity probe designed for critical machinery protection and condition monitoring. As a cornerstone component of the 3300 XL transducer system, this sensor is engineered to provide precise, non-contact measurement of static and dynamic displacement. In the world of turbomachinery, maintaining uptime is paramount; this probe ensures that vibration, axial position, and speed are monitored with industrial-grade accuracy.

When you buy the 330103-00-10-10-11-05 from Maxwell PLC, you are investing in a genuine Bently Nevada part that meets the rigorous demands of harsh industrial environments, offering long-term stability and unmatched reliability for your rotating equipment.

Key Features

• Enhanced Performance: Designed for superior linearity and range within the 3300 XL system.

• Corrosion Resistance: Durable probe tip and housing designed for demanding process conditions.

• Compatibility: Fully integrated with Bently Nevada 3300 series monitoring systems.

• Certified Reliability: Backed by decades of Bently Nevada engineering expertise for mission-critical applications.

• Easy Integration: Designed for seamless replacement and installation in existing monitoring racks.

Technical Specifications

Model Configuration Explanation

The part number 330103-00-10-10-11-05 is a specific configuration of the 3300 XL 8mm Probe series:

• 330103: 8mm Proximity Probe, standard mount.

• 00: Unthreaded length (0 mm).

• 10: Overall case length (100 mm).

• 10: Total case length (100 mm).

• 11: Connector option (Miniature Coaxial ClickLoc connector).

• 05: Agency Approval (Multiple approvals, consult factory).

This configuration ensures optimal fitment for standard bearing housing installations where space and accessibility are constrained.

Typical Applications

• Steam Turbines: Monitoring shaft vibration and axial position.

• Gas Turbines: Protecting critical components from thermal expansion and vibration.

• Centrifugal Compressors: Ensuring radial vibration stays within safe operating parameters.

• Gearboxes: Detecting early-stage wear through displacement monitoring.

• Hydroelectric Generators: Long-term shaft centerline position tracking.

System Compatibility

This probe is fully compatible with the Bently Nevada 3300 XL Extension Cables and 3300 XL Proximitor Sensors. It functions as an essential input device for the 3500 Monitoring System, which provides the critical alarm and shutdown logic required for industrial turbomachinery.

Installation Guidelines

Proper installation is vital for signal integrity. Ensure the probe is mounted in an appropriately sized bracket, minimizing vibration of the mounting system itself. Use the provided lock nuts to secure the probe, ensuring it is gapped correctly to the target shaft (typically 1.27 mm or 50 mil). Always use an extension cable matched to the system length to maintain the calibrated system sensitivity.

Product Advantages

Choosing genuine Bently Nevada parts minimizes the risk of false trips or missed alarms. The 330103-00-10-10-11-05 offers:

• Lower Maintenance Costs: High durability reduces the need for frequent replacements.

• Global Support: Easy to source and integrate within international facility standards.

• Precision: High-frequency response captures transient vibrations that cheaper alternatives miss.

Ordering Information

When looking for a Bently Nevada 330103-00-10-10-11-05 supplier, ensure you are dealing with authorized distributors. We have these units in stock and ready for immediate deployment. For large-scale projects or bulk procurement, please contact our sales team to discuss pricing and lead times.

Logistics and Shipping

At Maxwell PLC, we prioritize the protection of your high-value automation spare parts. Every 330103-00-10-10-11-05 unit is shipped in anti-static industrial packaging. This specialized packaging prevents ESD (Electrostatic Discharge) damage and provides impact resistance to ensure the probe arrives in factory-perfect condition, regardless of the shipping destination.

Why Choose Maxwell PLC

Maxwell PLC is a leading provider of industrial automation spare parts. We specialize in sourcing hard-to-find components for legacy and modern monitoring systems.

• Reliability: We only supply genuine parts.

• Expertise: Our team understands the technical nuances of Bently Nevada systems.

• Speed: With large inventory holdings, we minimize your downtime.

Frequently Asked Questions

• Is the 330103-00-10-10-11-05 in stock?

  Yes, we maintain a robust inventory of Bently Nevada proximity probes, including this specific configuration, ready for immediate dispatch.

• What is the current 330103-00-10-10-11-05 price?

  Pricing fluctuates based on volume and market availability. Please contact us directly for an up-to-date quote tailored to your quantity requirements.

• Are these parts genuine Bently Nevada components?

  Absolutely. We guarantee that all our industrial automation spare parts are 100% genuine and sourced through verified channels.

• Do you provide technical support for installation?

  While we provide comprehensive documentation, our technical sales team can offer guidance on system integration and configuration.

• How do you package these probes for shipping?

  We use professional anti-static industrial packaging to protect against static electricity and mechanical shock during transit.

• Does this probe require a specific extension cable?

  Yes, it is designed for use with the Bently Nevada 3300 XL extension cable system to maintain system-wide calibration accuracy.

• Can this be used in explosive environments?

  This model carries specific agency approvals. Please check the datasheet to ensure it meets the hazardous area requirements of your facility.

• What is the difference between this and the 330101 series?

  The 330103 series is specifically designed for standard mounting applications with specific length configurations. Refer to the Bently Nevada manual for specific compatibility.

• How long is the lead time if not in stock?

  If a specific item is temporarily out of stock, we leverage our global network to source it as quickly as possible, usually within 3-7 business days.

• Do you ship internationally?

  Yes, we supply industrial automation spare parts to clients worldwide with fast, reliable courier options.
