Product Overview

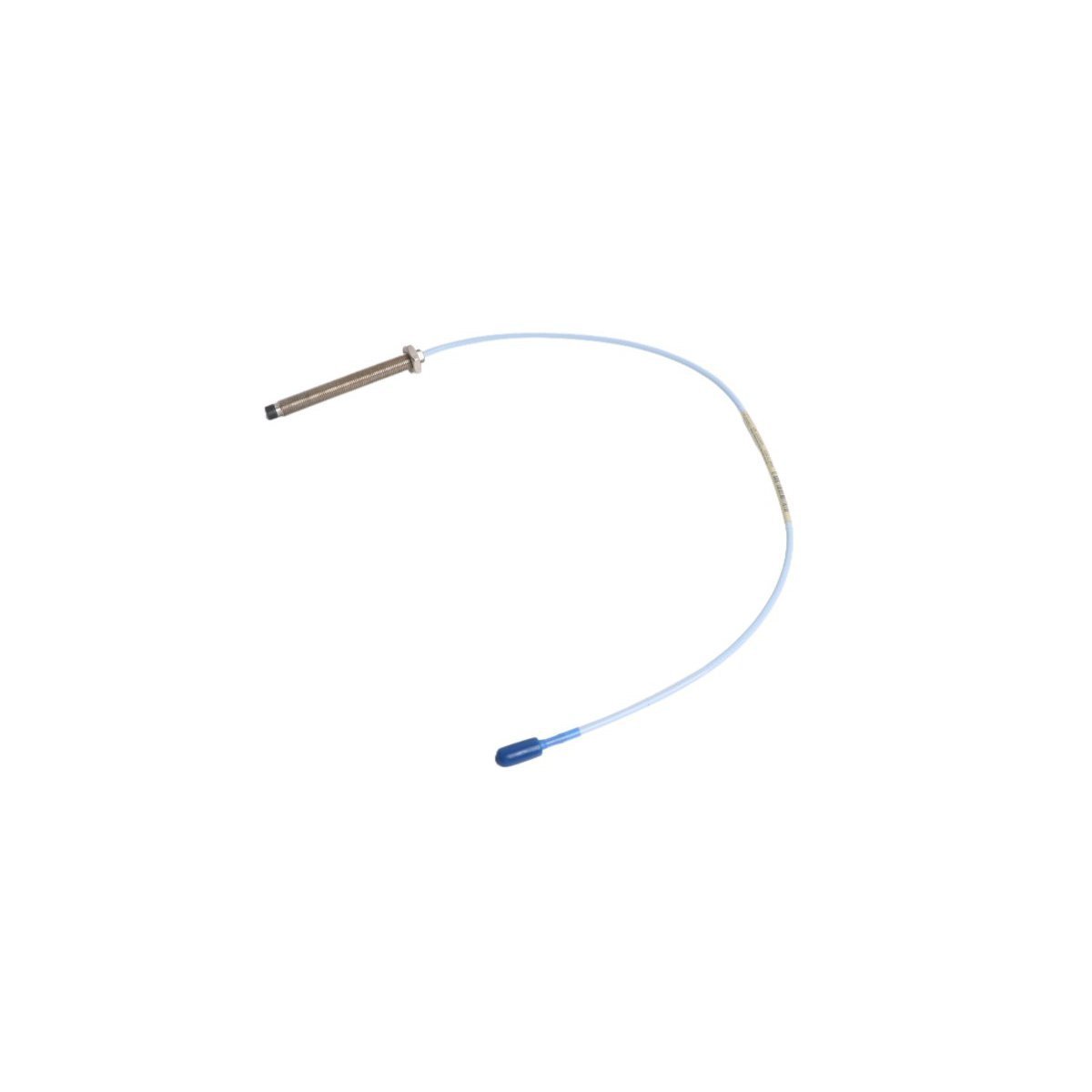

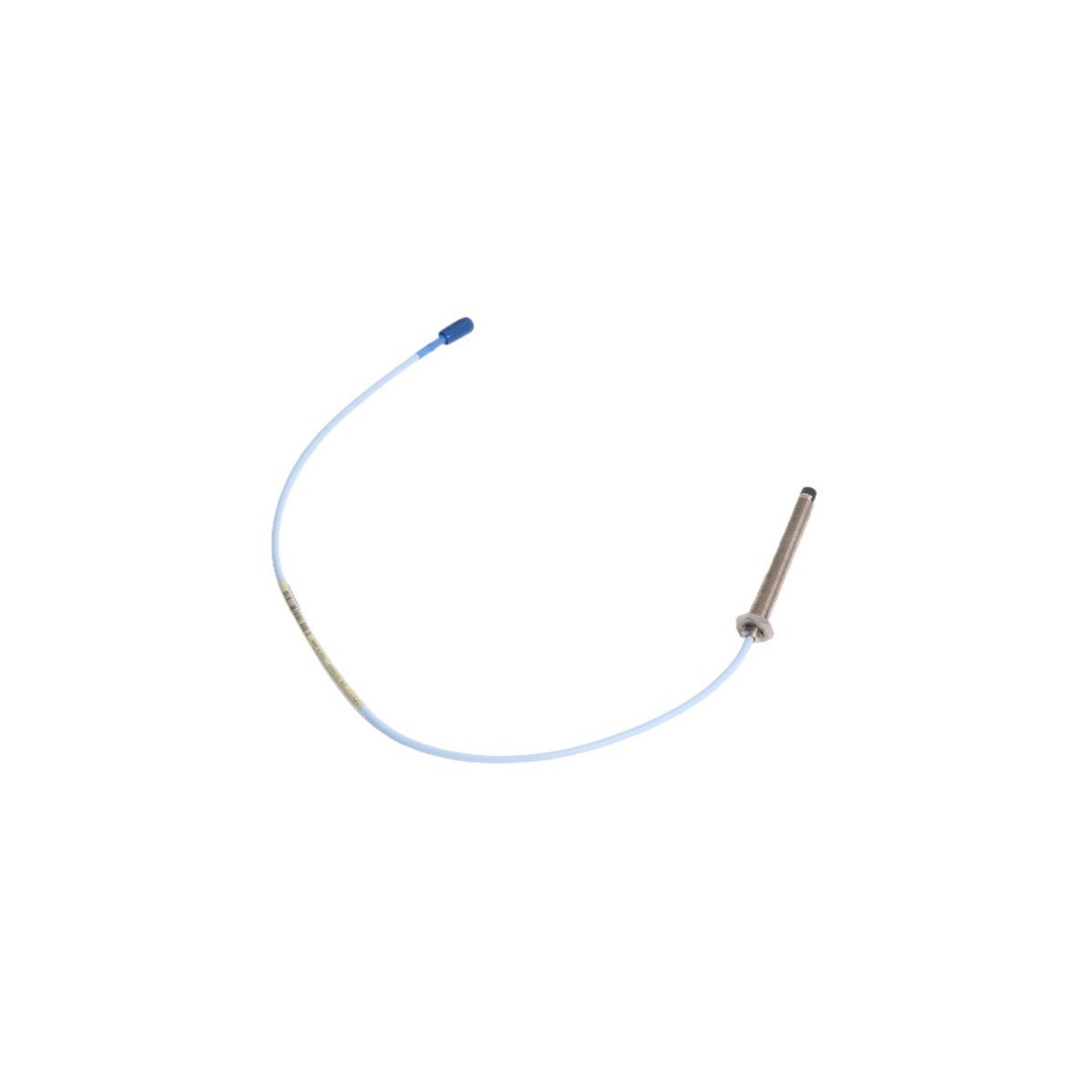

The Bently Nevada 330103-00-09-10-02-05 is a high-performance 8 mm proximity probe engineered for international industrial applications requiring metric M10 x 1 mounting threads. As a core component of the 3300 XL Transducer System, this probe excels in non-contact displacement and vibration measurements on critical rotating machinery. It provides the essential data link for Turbine Supervisory Instrumentation (TSI), enabling early detection of shaft instability, bearing wear, and rotor imbalances. Designed to withstand the rigors of steam turbines and high-speed compressors, this probe offers superior scale factor consistency and interchangeability, ensuring that your machinery protection system operates with the highest level of reliability and zero unplanned downtime.

Metric Configuration & Suffix Decoding

The 330103 series utilizes a specific nomenclature to define its mechanical dimensions and electrical interface for global engineering standards.

Unthreaded Length (-00)

Indicates a 0.0 mm unthreaded length. The entire barrel is threaded, allowing for precise depth adjustment within the mounting bracket or housing.

Overall Case Length (-09)

Specifies a 90 mm total case length. This metric-specific length provides the necessary reach for standard bearing pedestals while maintaining high mechanical resonance frequency.

Total Length (-10)

Defines a 1.0 meter (3.3 feet) total cable length. This length is factory-calibrated to ensure the electrical system impedance matches the Proximitor’s requirements for a 7.87 V/mm output.

Connector Option (-02)

Features the miniature coaxial ClickLoc™ connector with gold-plated contacts, engineered to resist vibration-induced signal noise and environmental oxidation.

Agency Approval (-05)

This suffix designates multiple certifications, including CSA, ATEX, and IECEx approvals, making it suitable for use in North American and European hazardous locations.

Hardware Matrix

Field Integration Strategy

Engineers must verify the M10 x 1 thread pitch compatibility before installation to prevent galling of the mounting port. During gapping, utilize a high-impedance voltmeter to set the probe at approximately -10.00 Vdc (the midpoint of the -2V to -18V linear range). In applications involving fluid-film bearings, ensure the target area on the shaft is free of scratches or "runout" exceeding 6.4 μm (0.25 mils). The coaxial cable must be routed through dedicated conduit and isolated from high-voltage motor leads to eliminate EMI interference that could corrupt vibration signals.

Industrial Reliability Advantages

The 330103-00-09-10-02-05 thrives in chemically aggressive environments, utilizing a patented Tip-to-Cable seal that prevents oil or moisture from wicking into the probe internals. Its full compatibility with the Bently Nevada 3500/42M Proximitor/Seismic Monitor ensures a seamless upgrade path for legacy systems. By providing high-resolution data to DCS platforms like Honeywell Experion PKS, it enables advanced predictive maintenance strategies, shifting from reactive repairs to proactive asset management.

Shipment & Packaging Standards

Delivery time: 3-5 days when payment finish, BY DHL/FEDEX/UPS.

Every probe is encased in anti-static industrial packaging and includes a protective tip cap to preserve the integrity of the eddy-current coil. We guarantee factory-sealed units with full traceability to the manufacturer.

Technical Consultation FAQ

Q1: Is the 330103 interchangeable with the 330101?

A1: Electrically, yes; both are 3300 XL 8mm probes. However, mechanically they are different: the 330103 uses Metric M10x1 threads, while the 330101 uses English 3/8-24 threads. They cannot be swapped without changing the mounting hardware.

Q2: What is the purpose of the -05 approval suffix?

A2: The -05 suffix indicates the probe is certified for "Multi-Approvals," allowing for global deployment in hazardous areas under ATEX, IECEx, and CSA jurisdictions without needing separate part numbers.

Q3: Can I use this probe with an older 3300 (non-XL) Proximitor?

A3: While it will function, you will not achieve the enhanced temperature stability or the extended linear range of the XL system. For optimal performance, always pair 3300 XL probes with 3300 XL Proximitors.
