Product Overview

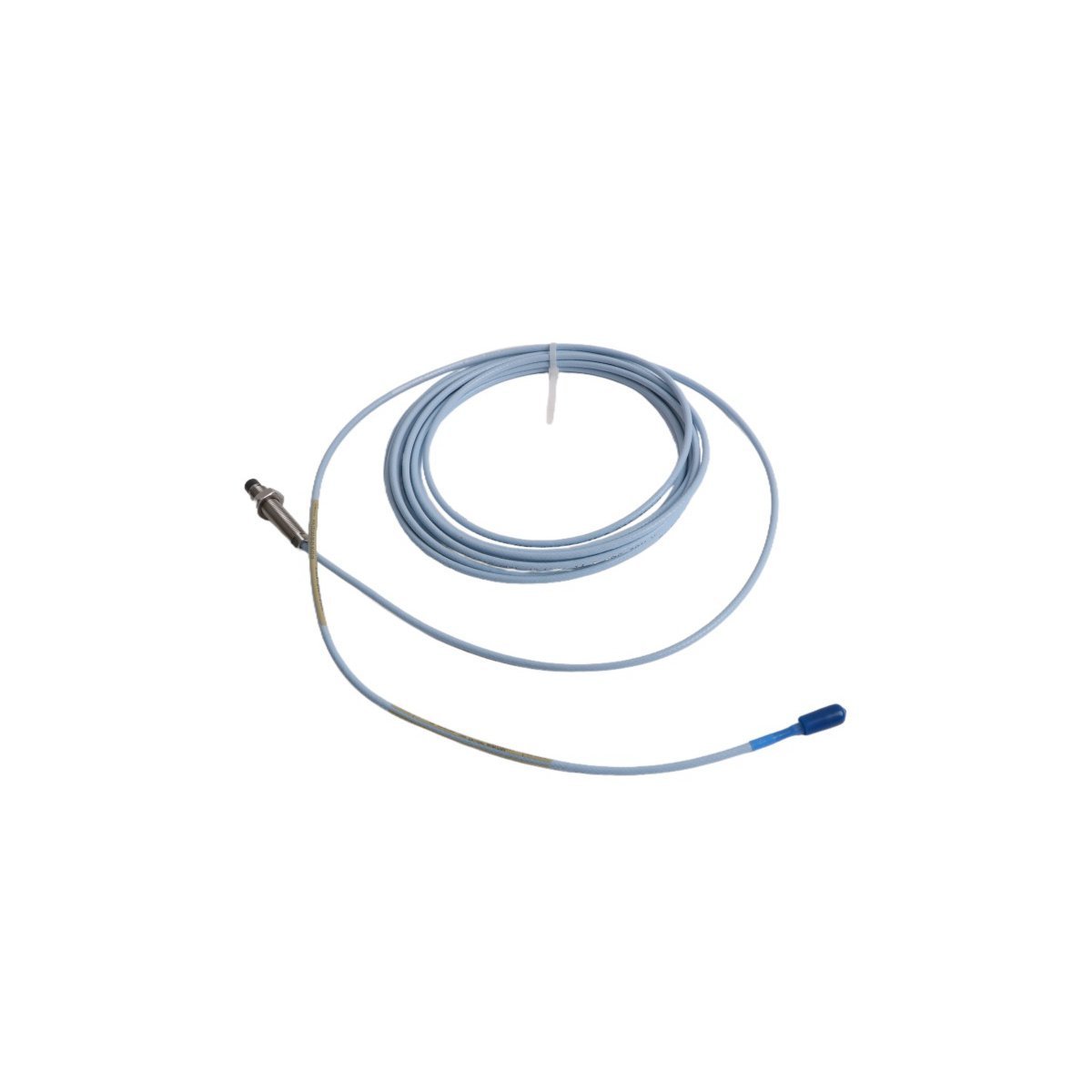

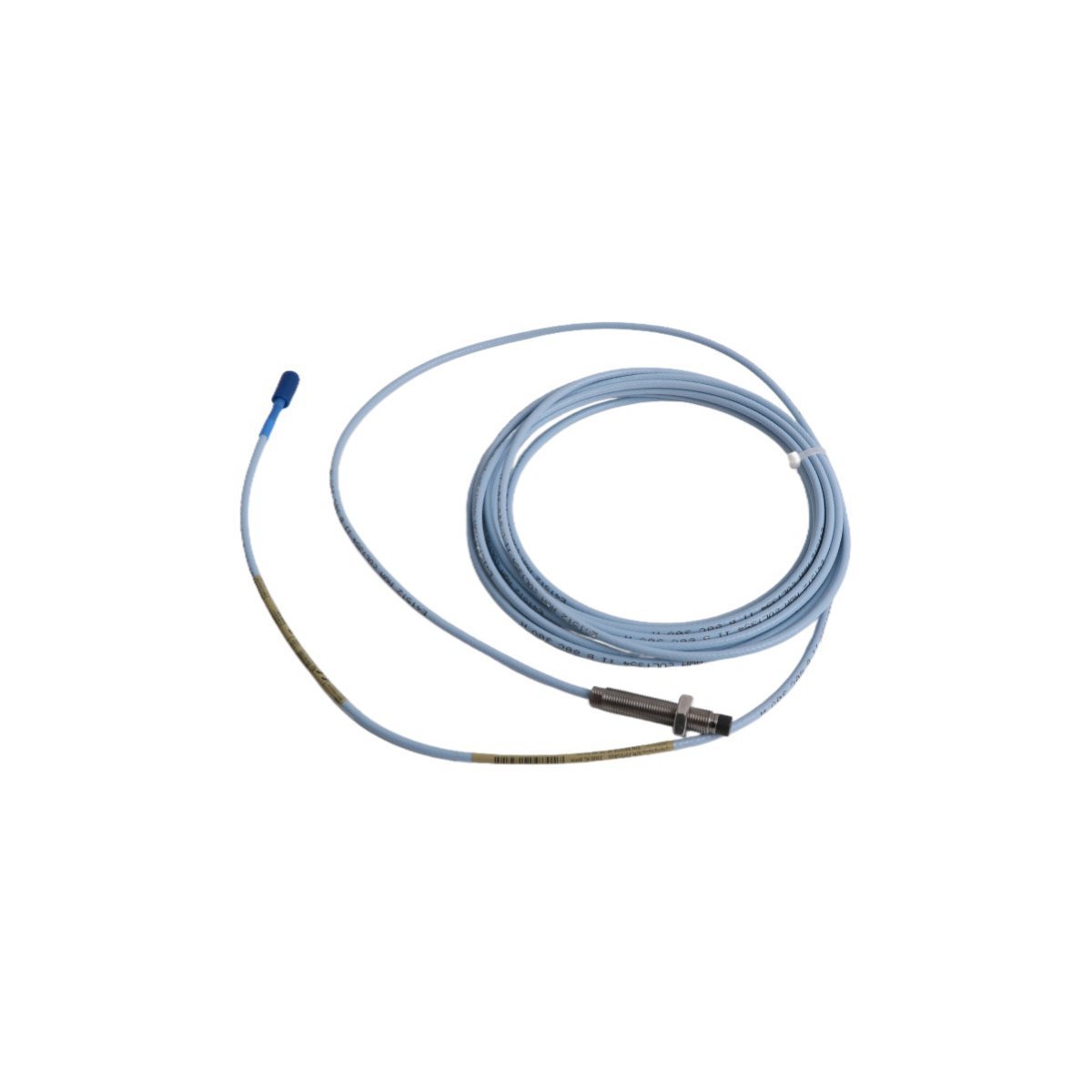

The Bently Nevada 330103-00-05-05-12-05 acts as a high-performance sensing core for critical rotating machinery. As part of the globally recognized 3300 XL 8mm series, this proximity probe provides industrial-grade displacement measurements essential for monitoring radial vibration, axial thrust, and phase reference (Keyphasor) signals. Engineering teams deploy this specific model in high-stakes environments such as gas turbines, steam turbines, and centrifugal compressors where unplanned downtime results in massive operational loss. By delivering a stable, linear voltage output proportional to the gap between the probe tip and the target shaft, it enables the 3500 Monitoring System to execute real-time protection and emergency shutdown (ESD) protocols. Its design focuses on extreme thermal stability and resistance to "oil soak," ensuring signal integrity remains uncompromised across the entire API 670 specified range.

Mechanical and Electrical Coding

Configuration Suffix Analysis

The alphanumeric suffix 330103-00-05-05-12-05 defines the physical envelope and electrical termination required for specific machine housings:

Unthreaded Length (00): 0 mm unthreaded length. This indicates a fully threaded probe body, allowing for maximum flexibility when depth-matching against the internal bearing housing.

Overall Case Length (05): 0.5-inch total case length. This compact body is ideal for shallow mounting brackets or thin-walled machine casings.

Total Length (05): 0.5 meter (1.6 feet) total cable length. This requires a 4.5m or 8.5m extension cable to complete a standard 5.0m or 9.0m system calibration.

Connector Option (12): Miniature coaxial ClickLoc connector with a protective silicone boot. This provides superior resistance to moisture and oil ingress at the connection point.

Agency Approval (05): Multiple Approvals. Includes CSA, ATEX, and IECEx certifications for safe deployment in Class I, Division 1 and Zone 0 hazardous environments.

Technical Performance Data

Field Commissioning Protocol

Successful deployment hinges on precise gap calibration. Technicians must utilize a high-impedance digital voltmeter (DVM) to set the static "Gap Voltage" to -10.0 VDC, representing the center of the probe's linear range. Ensure the probe tip maintains a minimum radial clearance of 16 mm (twice the tip diameter) from any adjacent metal surfaces to prevent side-wall interference from distorting the magnetic field. When routing the 0.5m cable, maintain a minimum bend radius of 25.4 mm (1.0 inch). The (12) silicone boot must be fully seated over the ClickLoc connector to prevent fluid-induced signal attenuation in the junction box.

Strategic Reliability Benefits

The 330103-00-05-05-12-05 probe offers seamless integration with Honeywell Experion PKS and existing Bently Nevada 3500 racks. Its high-performance PPS tip resists chemical degradation from aggressive synthetic lubricants, ensuring the sensor remains "OK" for years of continuous service. This hardware provides the high-fidelity raw signal required for System 1 diagnostic software to generate orbit plots and time-base waveforms. By adhering to strict API 670 standards, this probe reduces "Scale Factor Error" caused by fluctuating temperatures within the turbine housing, empowering reliability engineers to differentiate between minor shaft motion and critical bearing wear.

Ordering info

• One (1) Genuine Bently Nevada 330103-00-05-05-12-05 8mm Probe.

• Integrated 0.5-meter Coaxial Cable with ClickLoc Connector.

• Protective Silicone Connector Boot (Pre-installed).

• Standard Installation Kit (includes two stainless steel locknuts and one lock washer).

• Sealed Original Manufacturer Packaging with Anti-Static Protection.

Shipment and Fulfillment

Delivery time: 3-5 days when payment finish. All high-precision sensors ship via DHL, FEDEX, or UPS to ensure time-critical arrival. We utilize premium anti-static industrial packaging and vacuum-sealed moisture-barrier bags to preserve the sensing tip's magnetic properties. Our logistics team provides real-time tracking and comprehensive documentation to facilitate rapid customs clearance for international orders.

Asset Protection FAQs

Q1: Can I connect this 0.5m probe directly to a 3500 monitor?

A1: No. This probe is part of a system. You must connect it to a 3300 XL Proximitor Sensor using a matching 4.5m or 8.5m extension cable to reach the total system electrical length the Proximitor is calibrated for.

Q2: What is the specific advantage of the (12) connector option?

A2: The (12) option includes a silicone boot that slides over the ClickLoc connection. This is vital for applications where the junction box might collect oil or moisture, as it prevents these fluids from shorting the coaxial signal.

Q3: How do I handle a "Not OK" status on my monitor for this probe?

A3: First, check the gap voltage. If the voltage is near 0V or -24V, the probe is likely touching the shaft or the cable is open/shorted. Inspect the ClickLoc connector for moisture or debris if the signal is intermittent.

Q4: Is this probe compatible with a non-4140 steel shaft?

A4: Standard Bently Nevada probes are calibrated for AISI 4140 steel. If your target material is different, the scale factor will shift. In these cases, you must perform a custom target calibration in the Proximitor or 3500 monitor software.
