Product Overview

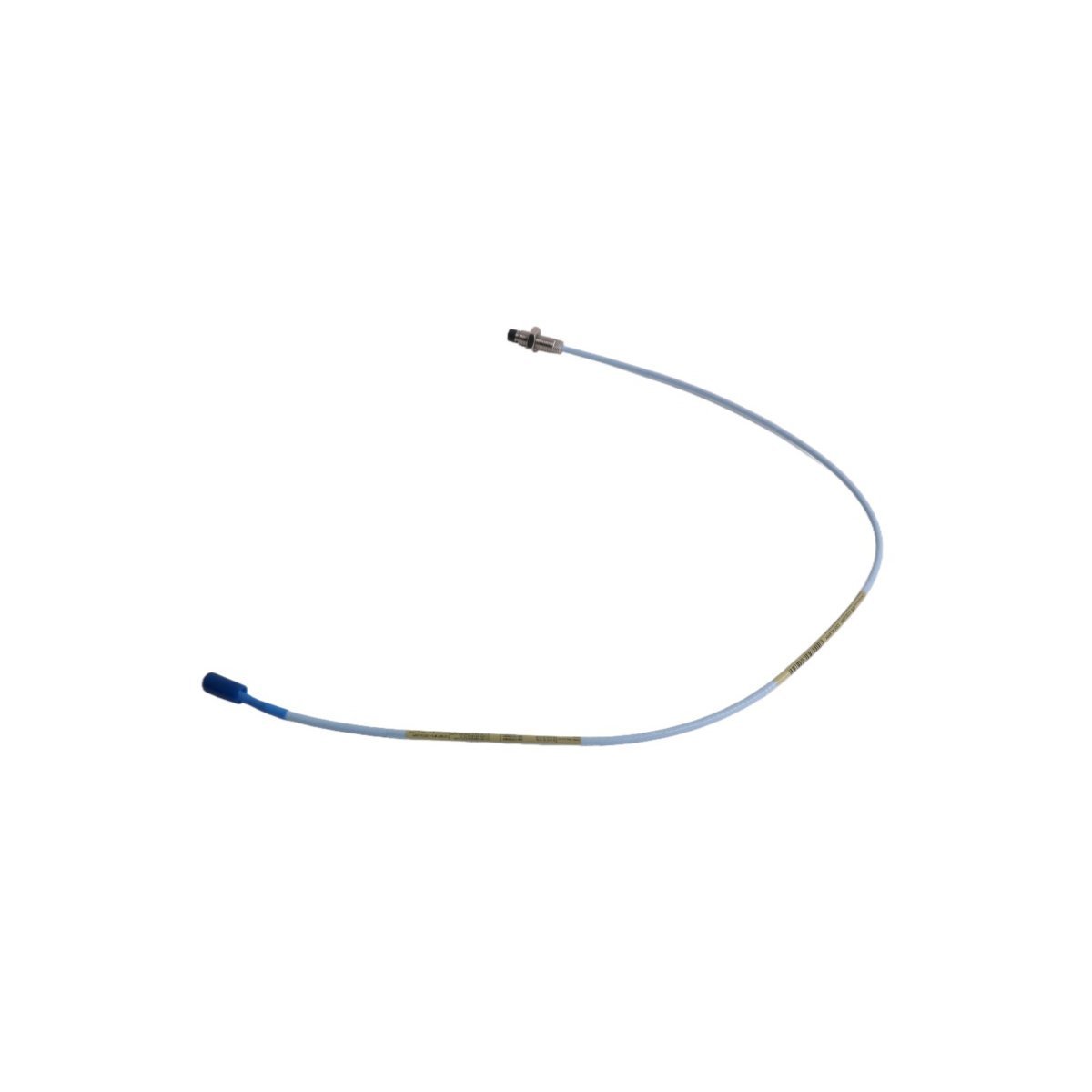

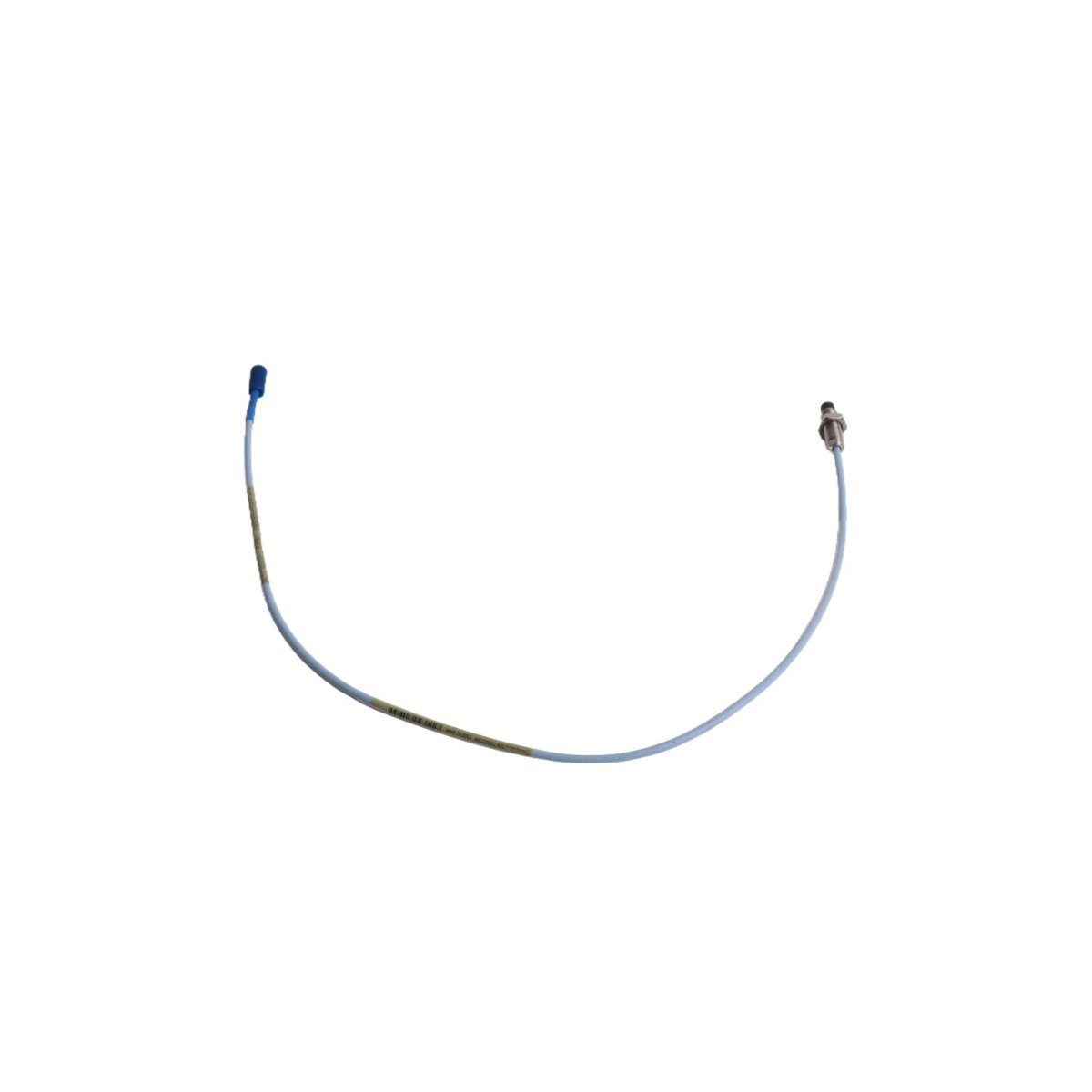

The Bently Nevada 330103-00-03-05-01-05 proximity probe serves as an essential instrumentation baseline for monitoring critical rotating industrial assets. This high-performance 3300 XL 8mm metric sensor actively tracks micro-displacement variables, including radial shaft vibration, axial thrust position, and reference phase speed indicators. The transducer transmits raw eddy current impedance alterations back to Bently Nevada 3500 rack monitors or industrial Distributed Control Systems (DCS). Operating with extreme physical stability and linearity, it supplies the reliable data required to trip high-speed emergency shutdown (ESD) systems during sudden mechanical degradation. Plant operators rely on this rugged component to maximize uptime and safeguard heavy-capital assets, including industrial cooling fans, centrifugal compressors, and steam turbines.

Part Number Sequence & Configuration Details

The individual options within the model configuration code establish the exact physical housing profiles and wiring infrastructure of this transducer.

00 - Full Thread Casing Profile

The double-zero designation establishes a 0 mm unthreaded length. The metric M10 x 1 threads run completely along the stainless steel probe body, providing maximum flexibility for minute depth adjustments within mounting blocks and external bracket sleeves.

03 - Total Case Length

This suffix indicates a 30 mm total case length. The ultra-compact barrel design yields high structural rigidity and withstands heavy mechanical resonance, making it an ideal choice for confined bearing shells with restricted mounting depths.

05 - Integrated Lead Length

This option specifies a 0.5-meter (1.6 feet) integrated flexible cable length. The short-run cable layout minimizes signal path resistance inside the machine casing, providing an ideal exit route to local bulkhead connection ports.

01 - Connector and Mechanical Protective Profile

This option implements a miniature coaxial ClickLoc connector shipped with an integrated heavy-duty connector protector sleeve over a standard flexible non-armored cable. The design ensures a low bending radius for simple routing through narrow internal spaces.

05 - Global Hazardous Area Certifications

The final '05' option provides comprehensive intrinsic safety and explosion-proof ratings. This configuration holds official CSA, ATEX, and IECEx approvals, validating the system for safe, long-term operation within volatile petrochemical and processing environments.

Physical and Electrical Performance Benchmarks

Field Installation and Gapping Calibration

Achieving precise physical gapping allows the probe to capture dynamic movement within the center of its linear 2.0 mm operational window. Field engineers must verify the static DC gap voltage using a digital multimeter attached to the Proximitor Sensor test ports while slowly turning the M10 x 1 housing into the mounting bracket until the multimeter reads exactly -10.0 VDC.

Maintain a strict minimum cable bend radius of 25.4 mm (1.0 inch) to preserve the internal coaxial shielding geometry and protect the high-frequency telemetry from signal distortion. Because this model utilizes an unarmored cable design, technicians should route the 0.5-meter lead through liquid-tight conduit infrastructure immediately outside the machine body to prevent physical pinching. Ensure the factory ClickLoc connector protector is locked firmly into position to seal the junction against oil mist, condensation, and conductive airborne particles.

Environmental Resilience and TSI Optimization

This metric proximity sensor delivers stable, drift-free performance under volatile processing conditions where caustic chemical additives, steam, and hot lubricants threaten long-term tracking accuracy. The polyphenylene sulfide (PPS) tip face retains absolute structural shape across wide thermal shifts, preventing calibration deviation during prolonged high-load machine cycles.

The probe feeds unbuffered analog tracking signals directly into Turbine Supervisory Instrumentation (TSI) layouts. This clear signal path routes raw eddy current data straight into Bently Nevada 3500/42M monitoring modules or modern control infrastructures like Honeywell Experion PKS and Siemens S7 platforms. This direct hardware compatibility enables the control layer to perform instant calculation of shaft orbits and structural vibration vectors, allowing automated safety trips to execute the instant cross-axis tolerances or thrust limits breach safe operating thresholds.

Packaged Inventory Manifest

(1) One authentic Bently Nevada 330103-00-03-05-01-05 3300 XL 8mm proximity probe.

(2) Integrated 0.5-meter standard coaxial cable lead with a ClickLoc terminal.

(3) One pre-installed heavy-duty connector protector sleeve kit.

(4) Technical documentation verifying compliance with original factory ATEX, CSA, and IECEx safety parameters.

Logistics Architecture and Transit Safeguards

Our specialized fulfillment department prepares and dispatches orders within 2-7 days from final payment finish confirmation. We route all international shipments through premier global express carriers, including DHL, FEDEX, and UPS, to guarantee fully tracked, expedited arrival. Every proximity probe undergoes rigid inspection protocols before being sealed within multi-layered, anti-static industrial packaging. This ESD-shielded, shock-absorbent containment isolates the internal transducer coil from electrostatic discharge and cushions the physical casing from mechanical impact during transport, ensuring your hardware arrives in factory-perfect condition.

Engineering Support FAQs

Q1: What are the main physical design differences between this 330103 probe and the 330104 series?

A1: The 330103 series specifies a standard non-armored coaxial cable configuration, which provides maximum flexibility and a smaller bending radius for tight spaces. The 330104 series includes an integrated flexible stainless steel armor sleeve over the coaxial cable to protect it from mechanical cuts, abrasions, and flying debris inside the machine casing.

Q2: Can I use this short 30 mm case probe to replace an 80 mm case probe if the threads match?

A2: Yes, the electrical performance and sensing coil properties are identical. However, because the case is only 30 mm long, you must verify that your mounting bracket or probe sleeve can reach close enough to the target shaft to establish the correct mechanical gap without the connector hitting the bracket wall.

Q3: How can I verify the electrical integrity of the probe coil during routine maintenance?

A3: Disconnect the probe from the extension cable and measure the resistance between the ClickLoc center pin and the outer body terminal using a digital multimeter. A functional 3300 XL 8mm probe with a 0.5-meter integrated cable typically registers a stable resistance between 4.0 and 6.0 ohms; an infinite resistance reading indicates an open circuit, while a zero-ohm reading indicates a short.

Q4: Why does this probe carry the '05' agency approval option code?

A4: The '05' option code certifies that the probe complies with multiple international safety regulations, including ATEX, CSA, and IECEx for intrinsically safe installations. This approval allows you to install the probe safely in Class I, Zone 0, 1, or 2 hazardous areas where explosive gases or vapors may be present.
