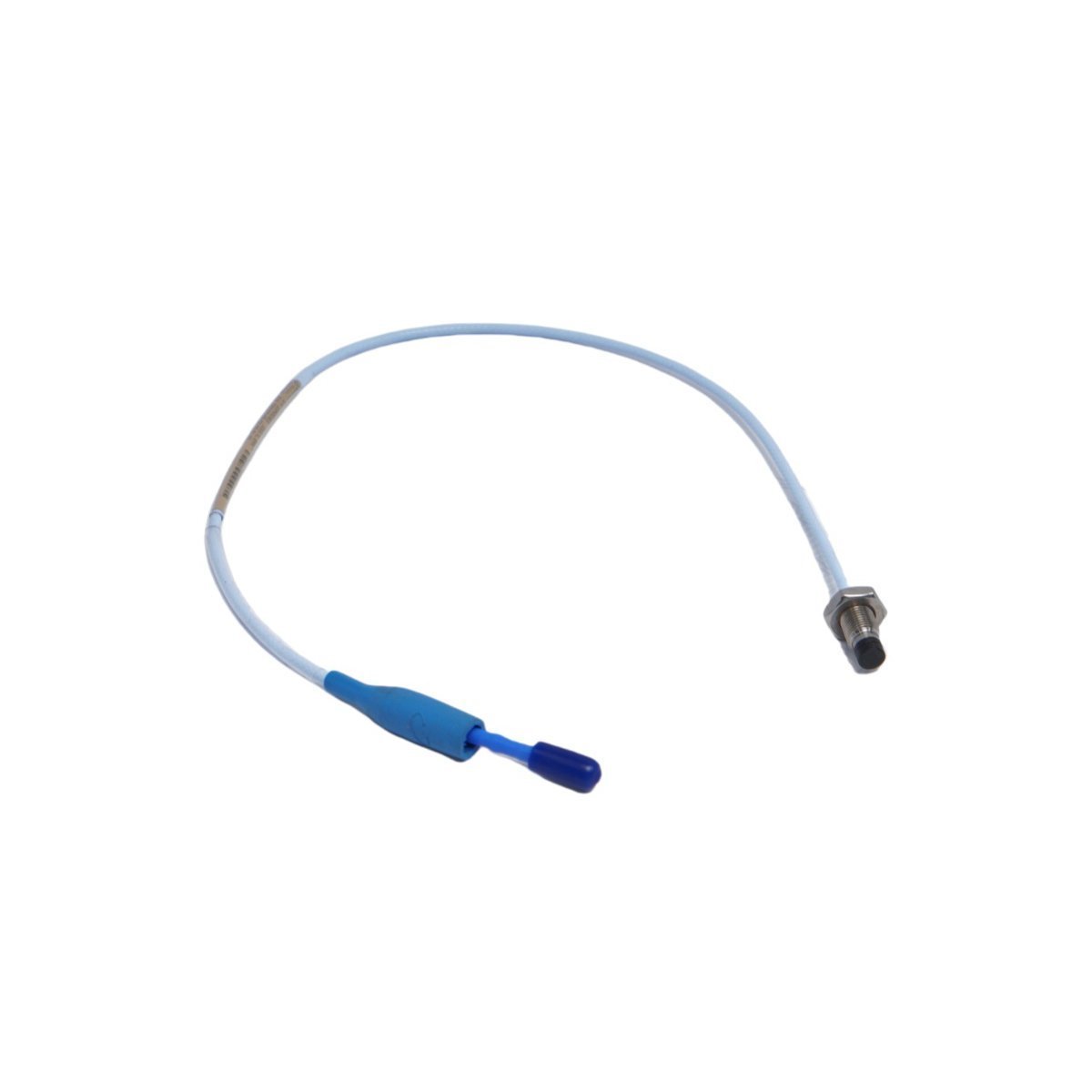

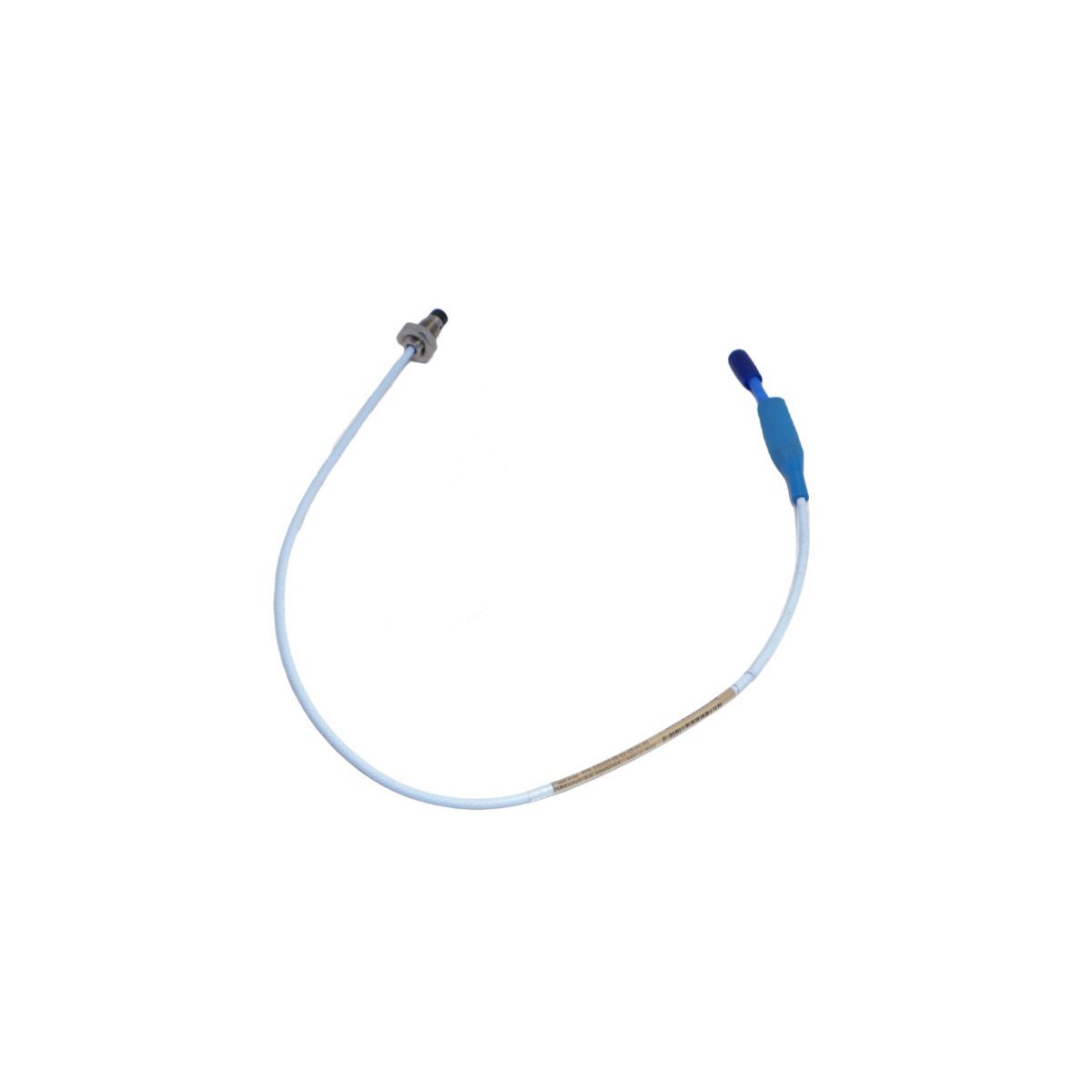

The Bently Nevada 330103-00-02-05-02-05, also cataloged as the 330103 Proximity Probes, operates as a dedicated hardware component for non-contacting shaft displacement and vibration measurements within Bently Nevada 3500 Machinery Protection Systems. The instrument detects static and dynamic distances between the sensor tip and the target shaft surface, transmitting proportional analog voltage variations through a closed high-frequency loop to the system monitoring rack.

Suffix Breakdown & Model Matrix

• 330103: 3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread, reverse mount configuration.

• 00: Unthreaded Length option (0.0 in).

• 02: Case Length option (0.2 in).

• 05: Total Length option (0.5 meter, approximately 1.6 feet).

• 02: Connector and Cable option (Miniature coaxial ClickLoc connector, standard cable).

• 05: Agency Approval option (Multiple multi-national hazardous area certifications including ATEX/IECEx intrinsic safety approvals).

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The 330103-00-02-05-02-05 projects a high-frequency radio frequency (RF) field from its 8.0 mm tip to interact directly with the rotating target material. To establish an accurate calibration curve against volatile rotor dynamics, field configuration requires strict gap voltage validation. Adjusting the physical insertion depth until the Proximitor sensor output indicates exactly -10 VDC targets the precise midpoint of the 2.0 mm linear tracking envelope.

This spatial alignment preserves the factory eddy-current probe scaling accuracy. Furthermore, proper spatial separation intervals must be calculated and enforced during multi-probe bracket layout to maintain cross-talk suppression and eliminate inductive overlapping between adjacent measurement channels.

Frequently Asked Questions

Q: Does this 3300 XL proximity probe support continuous on-line hot-swap manipulation at the ClickLoc junction?

A: Yes, the loop accommodates hardware substitution. However, separating the coaxial connector breaks the high-frequency RF carrier wave, causing the matched monitor card to register an immediate Transducer Fault (NOT OK) flag. The tracking channel must be placed in manual software bypass before uncoupling the connector interface.

Q: Can this 330103 probe be utilized with older 7200 series 8 mm Proximitor sensors?

A: No. The internal coil properties and electrical length optimization of the 3300 XL series do not match the modulation parameters of the obsolete 7200 series. Intermixing these platforms de-calibrates the eddy-current probe scaling and results in false displacement data.

Q: How does operating with a non-4140 steel target profile impact the analog output voltage?

A: Metallurgy variations modify target magnetic permeability. Non-4140 targets warp the linear tracking calibration matrix, shifting the scale factor away from the 7.87 V/mm standard. If other steels are used, the system must undergo laboratory recalibration or software offset correction.

Field Installation Guidelines

• Mechanical Torque Constraints: Do not exceed the maximum allowable installation torque limit of 13.5 N-m (120 in-lb) when locking the 3/8-24 UNF threaded body into position. Over-torquing risks structural separation of the 8 mm tip from the steel case.

• Side-Clearance Counterbore Boundaries: To guarantee complete cross-talk suppression and eliminate parasitic side-viewing interference from adjacent structural housings, maintain a minimum counterbore clearance diameter of 31.8 mm (1.25 in) around the 8.0 mm tip.

• Connector Lock Sequence: Verify the ClickLoc coaxial mating terminals are completely dry and contamination-free before joining. Press the connector halves together firmly until a distinct tactile click confirms full engagement. Do not manipulate the assembly with pliers or metal teeth.

• Shield Continuity Routing: Run the coaxial cable extension lines inside dedicated, grounded metal conduits to block electromagnetic noise. Ensure the outer shield remains insulated from the machine casing, grounding single-point exclusively at the Proximitor terminal block ground strip.

Supply Manifest

The standard package contains the following components:

1. (1) Bently Nevada 330103-00-02-05-02-05 Proximity Probe assembly.

2. (2) Mechanical hex locknuts for 3/8-24 UNF thread mounting alignment.

3. (1) Set of clear connector insulation boots.

4. (1) Certificate of factory calibration validation parameters.

Material Dispatched Profiling

• Transit Timeline: Forwarded within 2-7 days when payment finish through standard commercial clearing channels.

• Logistics Distribution: Dispatched globally via high-priority air express utilizing DHL, FEDEX, or UPS.

• Protective Containment: Encapsulated within specialized anti-static industrial packaging lined with sealed moisture-barrier enclosures to preserve the internal electromagnetic coil properties during global transport.
