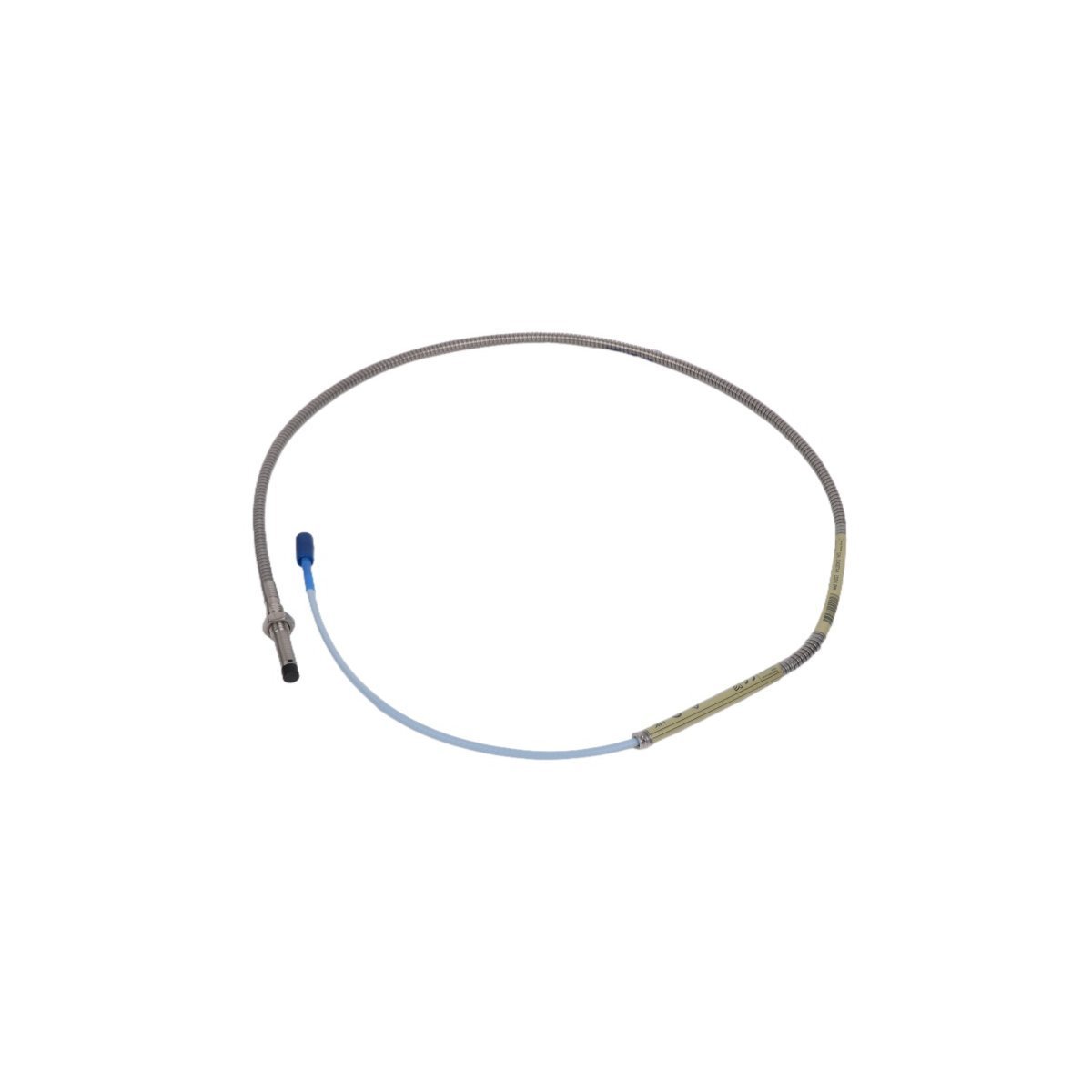

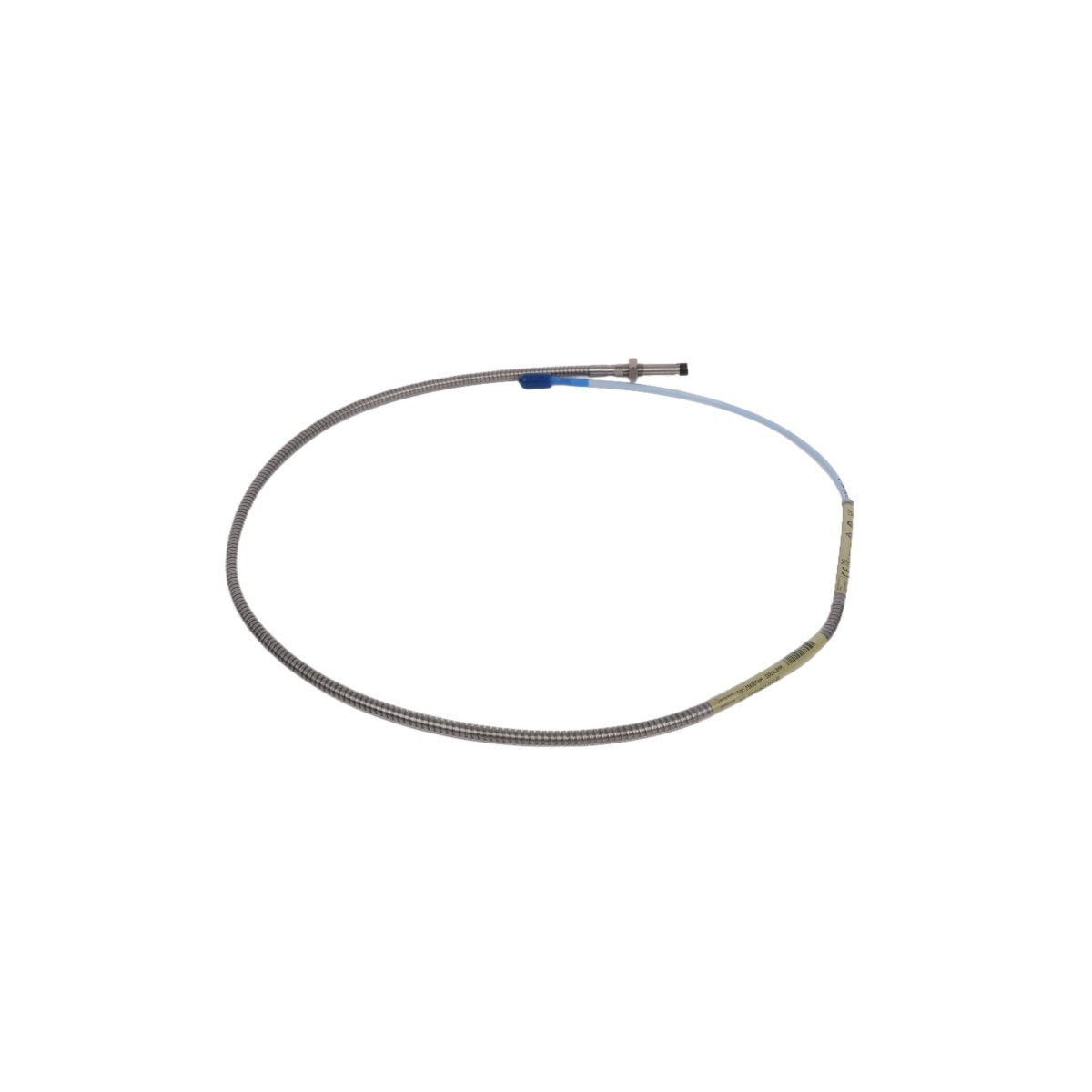

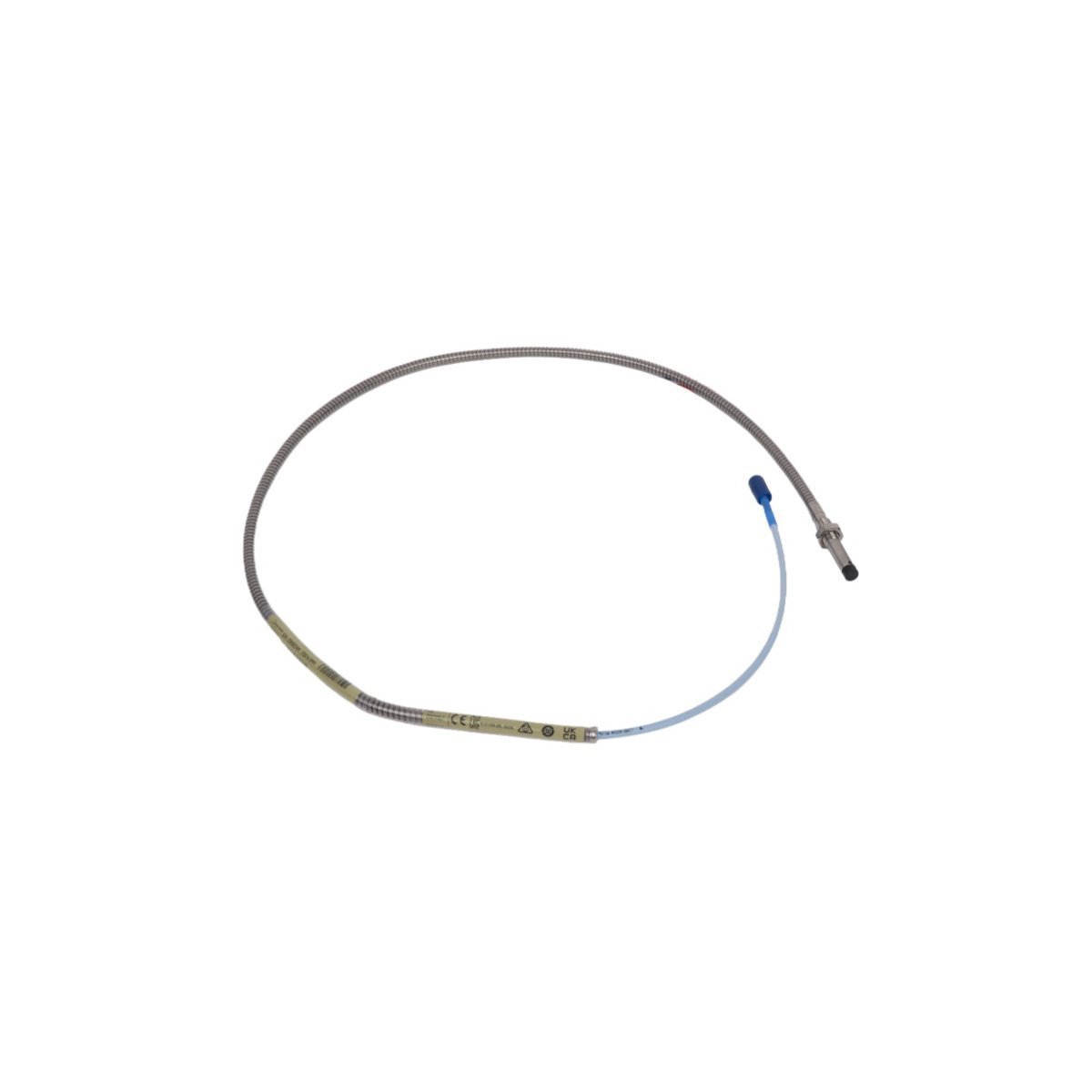

Configured for precision shaft vibration and position monitoring in industrial rotating machinery, the Bently Nevada 330102-08-96-10-02-00 (330102 Proximity Probe) provides direct physical execution of displacement sensing. This hardware component functions by emitting a high-frequency electromagnetic field, converting radial or axial shaft motion into a proportional voltage signal for analysis within machine protection systems.

Model Suffix Configuration

• 330102: 3300 XL 11 mm Proximity Probe.

• 08: Unthreaded length (80 mm).

• 96: Overall case length (960 mm).

• 10: Total case length (100 mm).

• 02: Connector option (Standard).

• 00: Agency approval option.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The 330102 probe is engineered to maintain accurate eddy-current probe scaling across the operating temperature range. During installation, gap voltage validation is performed to ensure the sensor operates at the -10 VDC target, centering the signal within the linear range for rotor dynamics analysis. To ensure the integrity of the TSI data, cross-talk suppression is implemented by maintaining strictly defined physical separation between adjacent probe tips and utilizing distinct carrier frequencies, preventing electromagnetic interference or signal beat patterns from polluting the vibration data.

Ordering Info

• Package contents: One (1) 330102-08-96-10-02-00 proximity probe.

• Documentation: Includes factory calibration conformance certificate and installation manual.

• Compatibility: Designed exclusively for use with 3300 XL Proximitor sensors.

Field Installation Protocols

• Mounting: Install the probe using a non-resonant mounting bracket; apply specific torque values to jam nuts to ensure mechanical stability without housing deformation.

• Grounding: Terminate the system to a single-point instrument ground to avoid potential differences and ground-loop induced noise.

• Cabling: Maintain coaxial integrity by avoiding sharp bends and ensuring all connectors are free of oxidation and tightened to full engagement.

• Environment: Shield the probe tip from conductive particles and abrasive materials to avoid false signal excursions.

Logistics and Shipping

• Delivery time: 2-7 days when payment finish.

• Shipment: Transported via DHL/FEDEX/UPS.

• Packaging: Anti-static industrial packaging used to prevent ESD damage and protect against mechanical impact during transit.

Frequently Asked Questions

Q: Why is the -10 VDC gap voltage target significant?

A: The -10 VDC gap voltage establishes the midpoint of the transducer's linear operating range, allowing for undistorted detection of both peak-to-peak vibration and shaft mean position changes.

Q: Can this 11 mm probe be used to replace an 8 mm probe?

A: No, the 11 mm probe has a different sensitivity and linear range compared to the 8 mm variant; replacing one with the other requires recalibration of the monitoring system and modification of signal conditioning parameters.

Q: How is cross-talk identified and mitigated?

A: Cross-talk appears as erratic or unstable vibration signals when adjacent probes are energized; mitigation requires increasing the distance between probe tips or ensuring the monitoring system is configured for different carrier frequencies.
