Product Overview

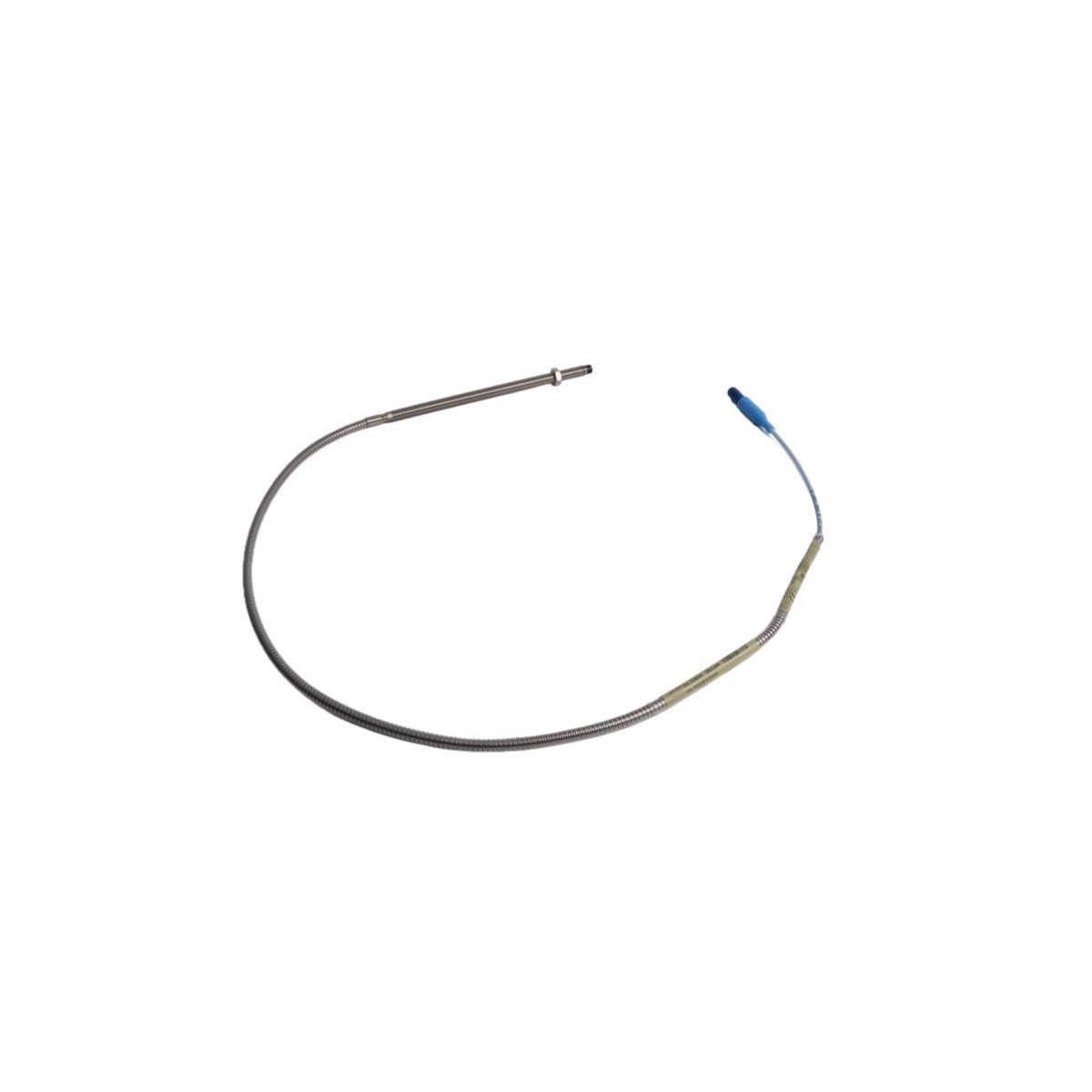

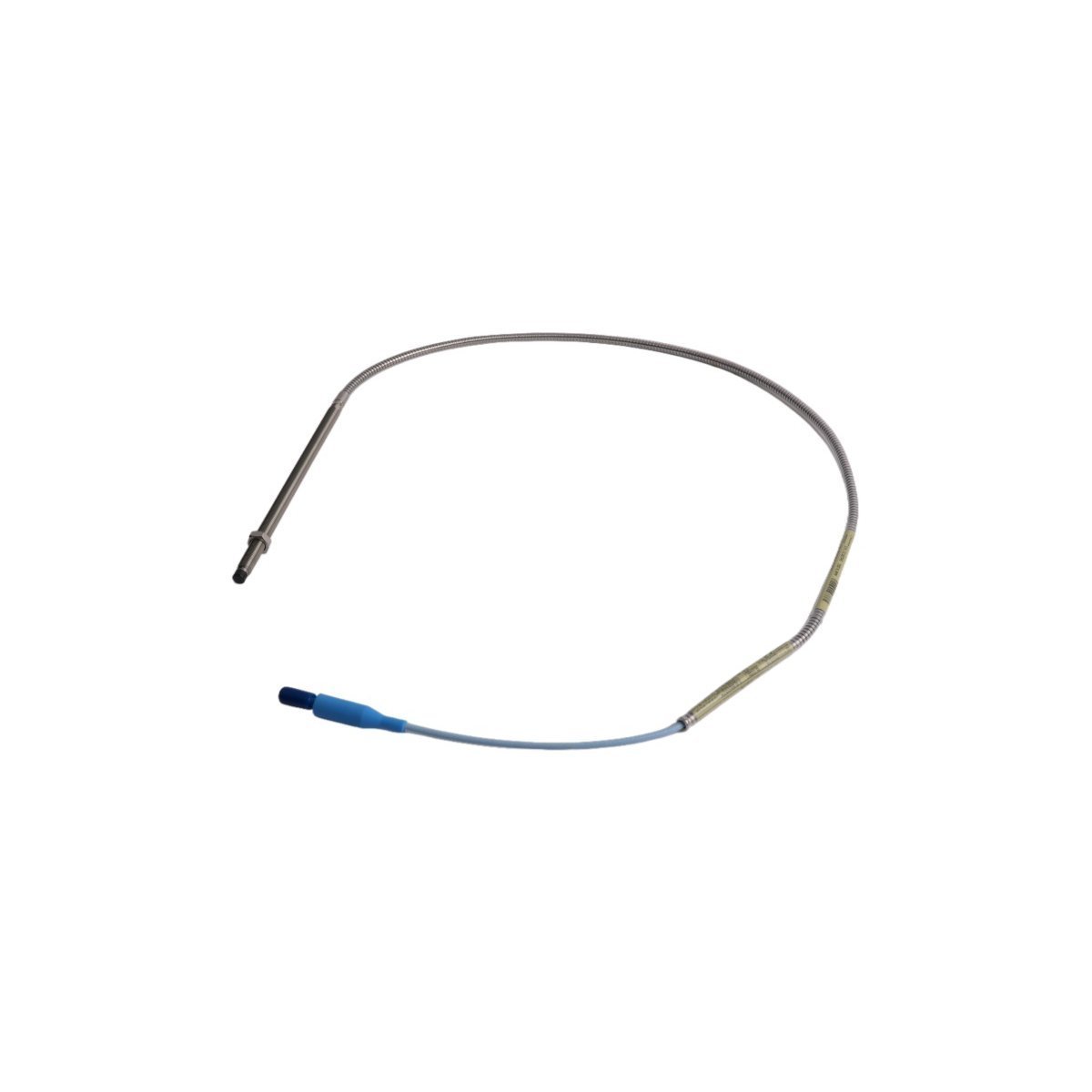

The Bently Nevada 330102-00-72-10-01-05 3300 XL 8mm Proximity Probe provides the critical high-fidelity data required for advanced machinery protection and condition monitoring. As a non-contacting displacement sensor, it excels in measuring radial vibration, shaft position, and speed on high-speed rotating assets. This metric-threaded probe is engineered for global industrial standards, ensuring seamless integration with the Bently Nevada 3500 Monitoring System and various DCS platforms.

Designed to operate in the most punishing environments, this probe maintains absolute signal integrity even in oil-saturated bearing housings. It serves as a frontline defense against mechanical failure in steam turbines, centrifugal compressors, and large-scale motors. By delivering a consistent 200 mV/mil scale factor, the 3300 XL series allows operators to identify subtle rotor instabilities or bearing degradation before they escalate into costly unplanned outages.

Metric Hardware Configuration Logic

330102-00-72-10-01-05 Suffix Decoding

This model number defines a specific long-case metric architecture designed for deep-seated mounting requirements and international hazardous area compliance.

Unthreaded Length (-00)

The 00 suffix indicates that the probe case is fully threaded. This design offers maximum flexibility for technicians to adjust the probe depth precisely within the mounting bracket or housing.

Overall Case Length (-72)

The 72 suffix specifies an overall case length of 7.2 inches. This extended body is essential for reaching through thick machine casings or specialized mounting sleeves to ensure the probe tip is correctly gapped against the shaft.

Total Length (-10)

This designates a 1.0-meter (3.3 feet) integral cable lead. To maintain the electrical resonance of the 5.0m or 9.0m system, this cable must be matched with the corresponding 3300 XL extension cable.

Connector Option (-01)

Equipped with a miniature coaxial connector. The 01 option is optimized for installations where the cable junction is housed within a dry conduit or a terminal box that does not require an additional factory protector.

Agency Approvals (-05)

The 05 code represents Multiple Approvals (ATEX, IECEx, CSA). This certification enables the probe to be safely deployed in Zone 0 and Class I, Div 1 hazardous locations globally.

Technical Performance Data

Field Commissioning Guide

Gap Voltage Adjustment

Proper mechanical gapping is paramount. Set the probe tip-to-target distance to achieve a quiescent gap voltage of -10.00 VDC. This places the sensor in the exact center of its linear range. Use a calibrated voltmeter at the Proximitor output and verify the target shaft material is AISI 4140 steel to ensure scale factor accuracy.

Connector Integrity and Signal Noise

Maintain a minimum bend radius of 25.4 mm (1.0 inch) for the lead cable. Crimping the cable or exceeding the bend radius can alter the coaxial impedance, resulting in false vibration readings or "glitch" in the signal. Ensure connectors are clean and finger-tightened to prevent signal attenuation.

Grounding Requirements

Ensure the probe system is grounded at a single point, typically at the Proximitor sensor housing. Improper grounding can introduce ground loops and 50/60 Hz noise, which obscures actual machinery vibration data in the 3500/42M monitor.

Engineering Advantages

Thermal and Chemical Resilience

The 3300 XL probe tip utilizes high-performance Polyphenylene Sulfide (PPS) material. This allows the probe to resist degradation from synthetic lubricants, caustic process chemicals, and extreme thermal cycling, ensuring the DC gap remains stable from machine startup to full-load operation.

Total System Synergy

This probe functions as the "eyes" of your Turbine Supervisory Instrumentation (TSI). It integrates flawlessly with Honeywell Experion PKS or Emerson DeltaV systems via the 3500 rack, providing the precise analog inputs required for advanced diagnostic software like System 1.

Structural Reliability

The stainless steel case and patented tip-to-case bonding process prevent the internal sensing coil from shifting under high-frequency vibration. This ruggedized construction guarantees a long service life and high MTBF (Mean Time Between Failures) in critical service applications.

Shipping and Logistics Profile

Rapid Global Fulfillment

We prioritize critical machinery outages with a delivery time of 3-5 days when payment finish. All international orders ship via DHL, FEDEX, or UPS, ensuring your facility receives essential components with door-to-door tracking and minimal delay.

Anti-Static Industrial Packaging

We ship every probe in its original manufacturer box, further secured with anti-static industrial packaging. Our logistics team adds reinforced cushioning and moisture-resistant wrapping to protect the precision M10 threads and sensitive coaxial leads during transcontinental transit.

Technical Field FAQs

Q1: How do I distinguish the 330102 from a 330101 probe?

A1: The 330102 is a metric probe with M10 x 1 threads. The 330101 uses standard 3/8-24 UNF threads. Attempting to force the wrong thread type will permanently damage the bearing housing or the probe.

Q2: Can I use this 1.0m probe with a non-XL Proximitor?

A2: No. The 3300 XL 8mm components are specifically tuned to work together. While some older 3300 components may physically connect, the scale factor and temperature stability will be severely compromised.

Q3: What is the benefit of the -72 case length?

A3: The 7.2-inch case is designed for deep-reach applications. It allows the probe to be mounted through thick insulation or outer casings while reaching the internal shaft surface without requiring an additional mounting sleeve.

Q4: Is the -05 approval valid for North American sites?

A4: Yes. The -05 Multiple Approval includes CSA/NRTL certifications for North America, alongside ATEX and IECEx for Europe and international zones, making it a "universal" spare part for global fleets.
