Product Overview

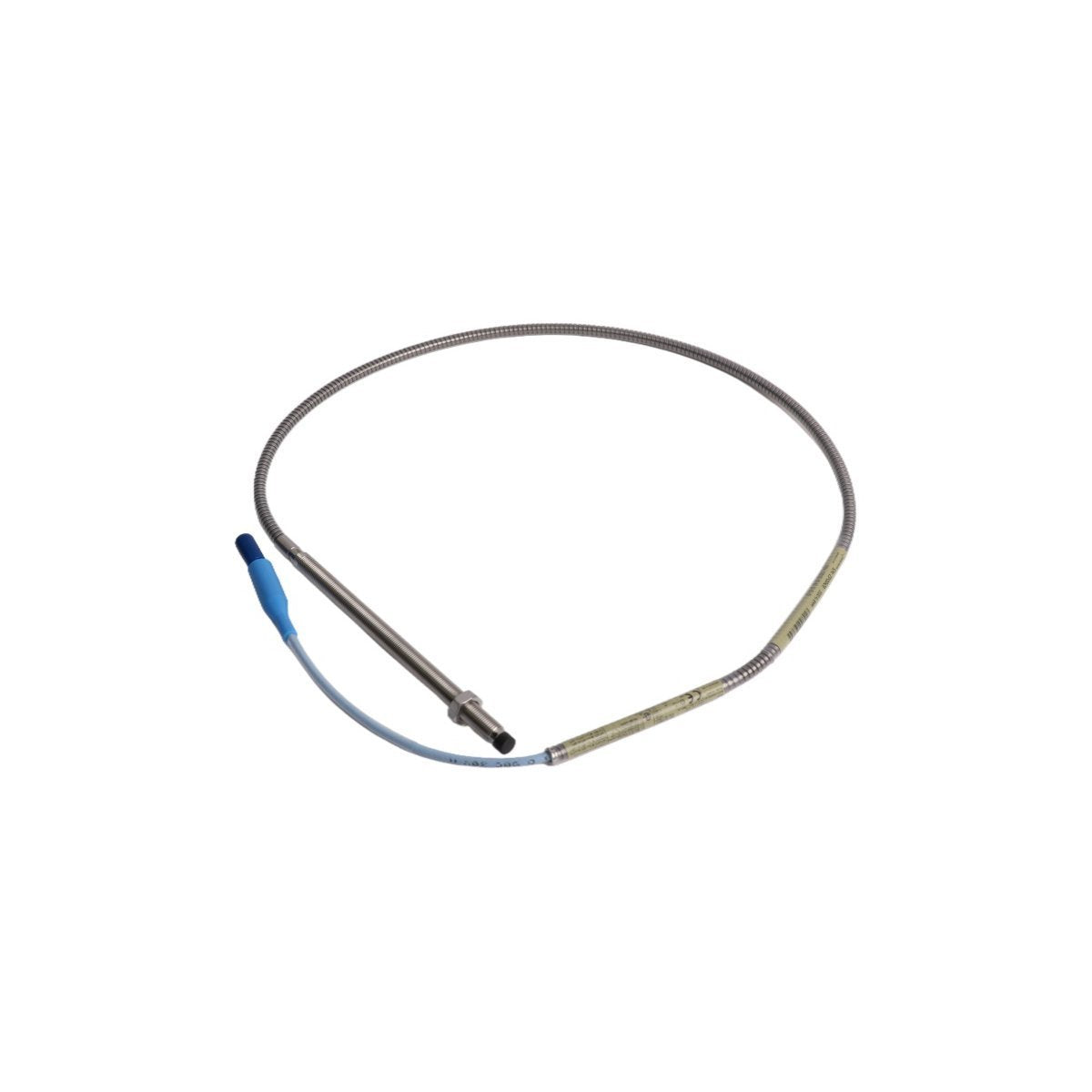

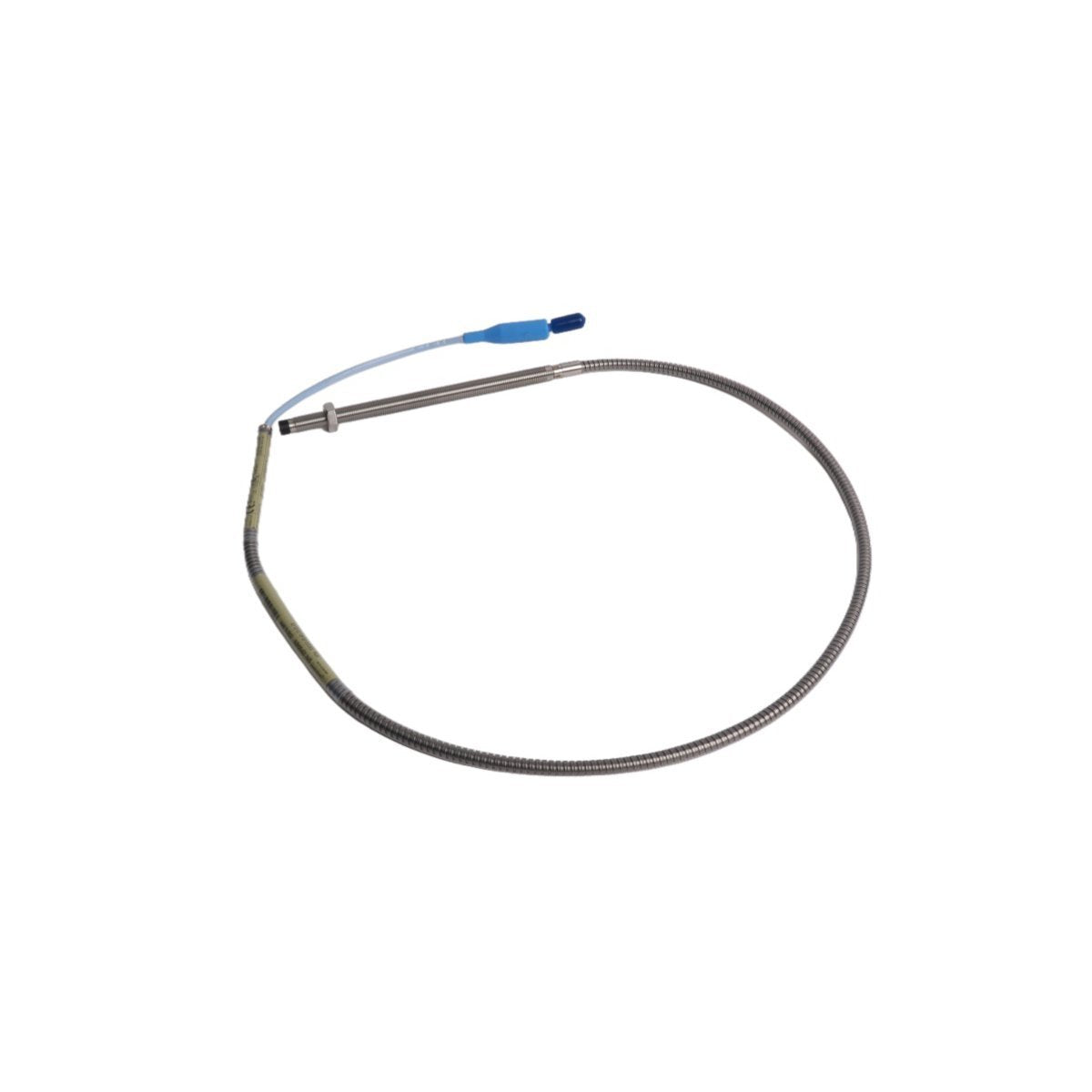

The Bently Nevada 330102-00-60-05-02-05 eddy current probe delivers high-fidelity shaft displacement and vibration telemetry for critical rotating machinery. By converting mechanical rotor movement into dynamic electrical signals, this 3300 XL 8mm sensor enables real-time monitoring of fluid-film bearings, radial vibration, and axial thrust position. It integrates seamlessly into the Bently Nevada 3500 protection rack and plant-wide DCS architectures, providing the precise data necessary for automated emergency shutdown (ESD) systems. Its rugged armored design ensures structural resilience in harsh industrial settings, preventing mechanical damage to the cable lead while maintaining stable measurement accuracy. Engineers rely on this probe to drive predictive maintenance strategies, effectively minimizing downtime and protecting high-capital assets from catastrophic rotor instability in power generation and petrochemical operations.

Part Number Suffix Breakdown

The specific configuration of this probe defines its unique physical and regulatory characteristics for industrial deployment.

00 - Unthreaded Length Option

A zero-inch unthreaded length indicates that the 3/8-24 UNF threads extend across the entire length of the probe case. This configuration provides maximum mounting flexibility, allowing for deep insertion and precise gap adjustment within varying bearing housing thicknesses.

60 - Overall Case Length

This suffix specifies a 6.0-inch total case length. The elongated housing provides the structural reach required for deep-seated machine monitoring, ensuring the probe tip maintains a stable, vibration-resistant position near the rotor shaft.

05 - Total Length Option

The unit features a 0.5-meter (1.6 feet) integrated cable lead. This short-lead design optimizes signal integrity and minimizes electrical interference, establishing a clean, high-frequency data path before handing off to the system extension cable.

02 - Connector and Cable Design

This probe features a miniature coaxial ClickLoc connector paired with an armored outer jacket. The internal armor shielding protects the coaxial core from abrasive dust, sharp metal debris, and incidental physical impact, significantly enhancing cable longevity in congested machinery areas.

05 - Agency Approval Option

This unit carries full hazardous area certification. The probe is rigorously tested and approved to meet global CSA, ATEX, and IECEx standards, enabling safe operation in explosive atmospheres and volatile industrial zones.

Technical Specifications

Field Engineering and Installation Protocol

Precise installation ensures the sensor operates within its linear 200 mV/mil output range. Connect a digital voltmeter to the corresponding proximity transducer output and adjust the M3/8-24 thread depth until the static gap voltage measures exactly -10.0 VDC, centering the shaft position.

Maintain a minimum cable bend radius of 25.4 mm (1.0 inch) to protect the internal coaxial shielding from permanent deformation. Use oil-tight conduit fittings when routing through machine housing walls to prevent process fluid migration into the cable lead. Ensure the ClickLoc connector is dry, free of contaminants, and fully engaged until it clicks into place; apply self-fusing silicone tape to the junction if the installation environment includes conductive dust or high moisture.

Engineering Advantages and TSI Integration

This sensor thrives where standard cables fail, utilizing a ruggedized armor jacket that withstands the abrasive environments of heavy industrial compressors and turbines. The polyphenylene sulfide tip remains chemically inert, resisting degradation from synthetic lubricants and process gases, which ensures consistent measurement stability over extended service intervals.

The 330102 probe acts as a primary telemetry source for Turbine Supervisory Instrumentation (TSI). It streams raw, unbuffered eddy current impedance data directly into Bently Nevada 3500 racks, where advanced algorithms calculate shaft orbits and thrust positions. This high-speed integration into plant automation systems—including Honeywell Experion PKS or Siemens S7 platforms—facilitates automated machinery protection, allowing control logic to execute rapid shutdown sequences when rotor instability or excessive vibration is detected.

Order Fulfillment Manifest

(1) One authentic Bently Nevada 330102-00-60-05-02-05 3300 XL 8mm proximity probe.

(2) Pre-attached armored cable lead with miniature ClickLoc coaxial terminal.

(3) Removable protective cap covering the 3/8-24 UNF threads and sensing tip.

(4) Factory-issued compliance certificate verifying CSA, ATEX, and IECEx certifications.

Logistics and Dispatch Strategy

Orders ship within 2-7 days upon payment finish verification. We facilitate rapid global logistics via DHL, FEDEX, and UPS, ensuring minimal impact on your plant maintenance schedules. Every probe undergoes a comprehensive quality check before placement into specialized anti-static industrial packaging. This ESD-shielded, impact-resistant containment prevents static discharge and physical shock to the internal coil and coaxial elements during transit, ensuring the unit arrives in factory-perfect condition for your immediate installation.

Technical Support FAQs

Q1: Why is the armored cable design required for this specific probe model?

A1: The armored jacket provides a metal-sheathed protective barrier against sharp debris, abrasive machine fluids, and heavy vibrations, which prevents cable insulation cuts or shielding damage that could cause signal noise or total loop failure.

Q2: Can this armored probe be used in the same monitor rack as non-armored 3300 XL probes?

A2: Yes, the armored and non-armored probes share identical electrical performance characteristics and are fully interchangeable, provided the system length calibration (probe + extension cable) remains consistent with the Proximitor Sensor requirements.

Q3: How do I measure probe health during field troubleshooting?

A3: Disconnect the probe from the extension cable and measure the resistance between the ClickLoc connector center pin and the outer shield. A functional 3300 XL probe should yield a stable resistance reading between 6.0 and 8.0 ohms; readings outside this range, or an open/short circuit, signify a failed coil.

Q4: Is the thread type on this probe compatible with standard NPT or metric ports?

A4: No, the 3/8-24 UNF thread is a specific imperial fine-thread standard. Ensure your machinery mounting bracket or sleeve is properly threaded to match this specification to avoid damaging the probe casing threads during installation.
