Product Overview

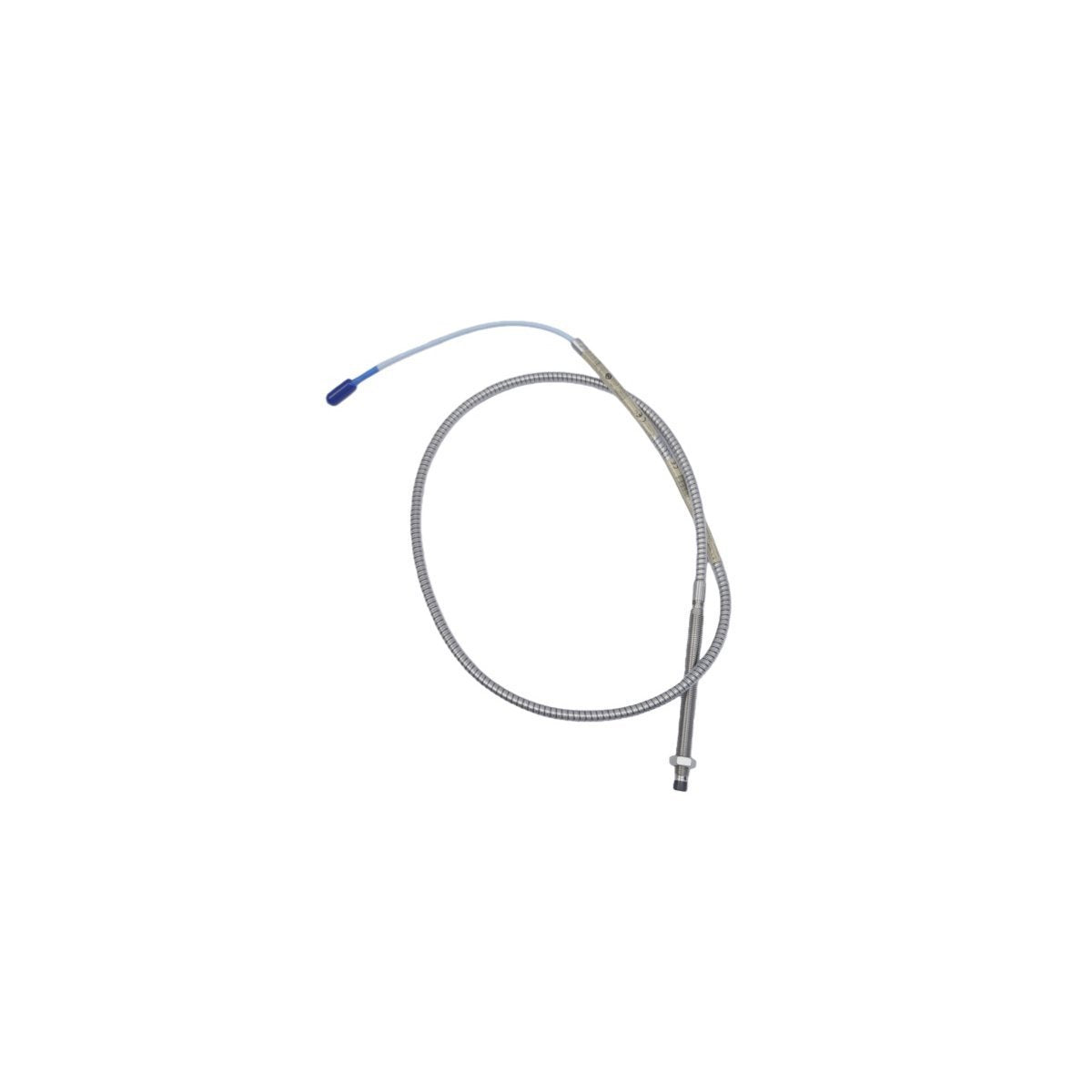

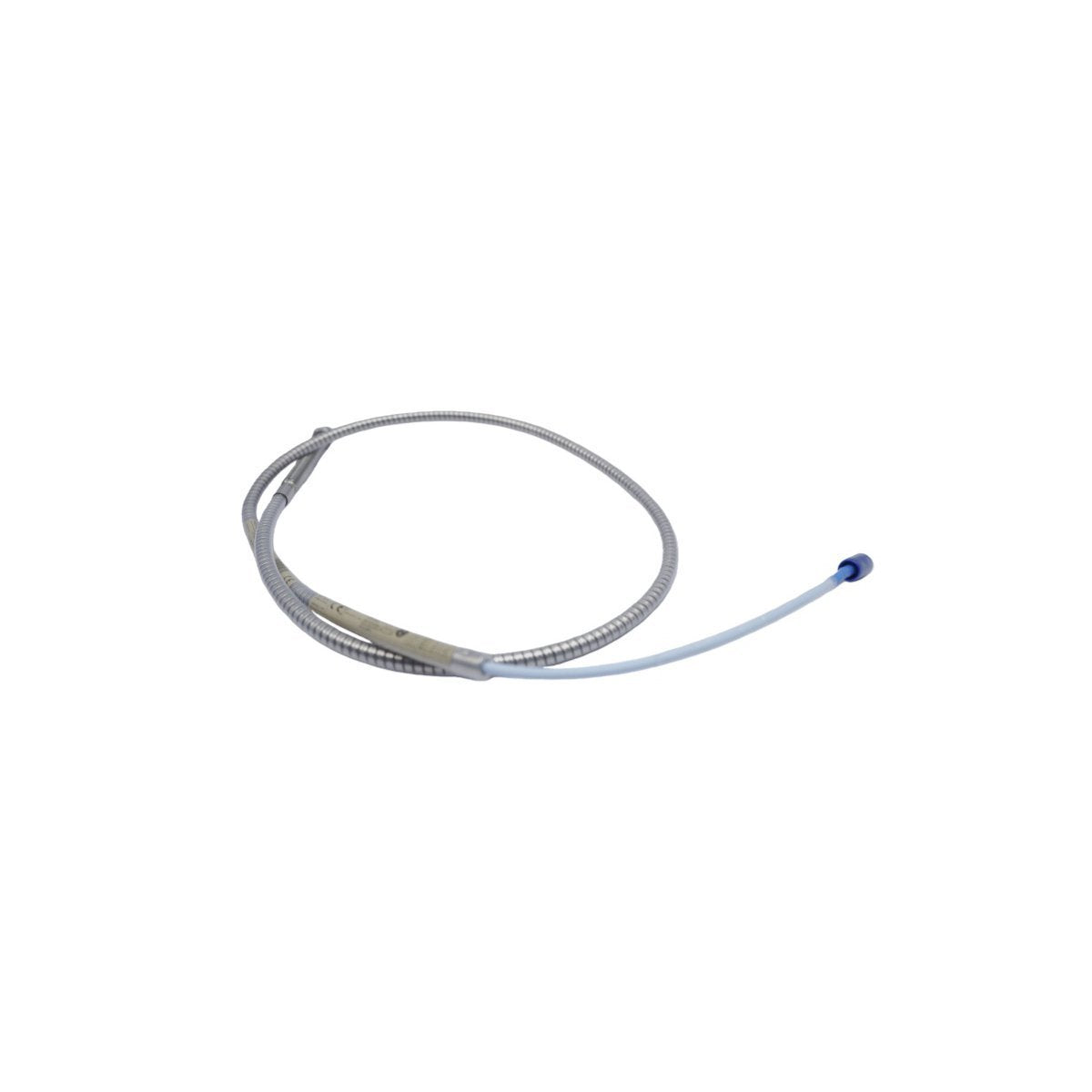

The Bently Nevada 330102-00-40-50-02-00 is a cornerstone of industrial machinery protection, delivering high-precision, non-contacting vibration and displacement measurements. Engineered for the most demanding 3300 XL series applications, this 8mm proximity probe provides critical data for fluid-film bearing machines such as steam turbines, centrifugal compressors, and large motors. Its specialized design ensures exceptional linear performance and temperature stability, allowing it to detect sub-micron shaft movements that indicate early stages of imbalance or misalignment. By feeding precise analog signals into the Bently Nevada 3500 Monitoring System, this probe enables proactive asset management and supports high-integrity emergency shutdown (ESD) sequences, ensuring operational safety across power generation and petrochemical facilities.

Transducer Configuration Breakdown

Decoding the Part Number Logic

The specific alphanumeric code 330102-00-40-50-02-00 identifies a metric-threaded probe body with a extended reach and electrical profile suited for heavy industrial housings.

• -00 (Unthreaded Length): Represents a 0 mm unthreaded length, meaning the probe body is fully threaded for maximum mounting flexibility.

• -40 (Overall Case Length): Specifies a 40 mm total threaded case length, designed for standard bearing housing thickness.

• -50 (Total Length): Indicates a 5.0-meter (approx. 16.4 feet) total cable length, allowing for direct connection to a Proximitor sensor without an intermediary extension cable in some configurations.

• -02 (Connector Option): Includes a miniature coaxial connector with an integrated brass cable protector for superior mechanical durability in oily environments.

• -00 (Agency Approval): Designates the standard non-certified version for use in non-hazardous or general industrial locations.

Essential Hardware Parameters

Field Commissioning Protocol

Mechanical Gapping and Voltage Setup

Optimal signal resolution relies on precise mechanical alignment. Engineers must set the physical distance between the probe tip and the target shaft while monitoring the DC bias voltage. For the 3300 XL system, a Gap Voltage of -10.00 VDC typically indicates the center of the linear operating range. Use a digital voltmeter at the Proximitor output terminal to verify this value during installation.

Cable Integrity and Shielding

The 5.0-meter integrated cable must be routed with a minimum bend radius of 25.4 mm (1.0 inch) to prevent damage to the coaxial core. Always utilize the integrated brass connector protector to shield the interface from turbine oil and moisture. Ensure the shield is only grounded at the 3500 rack end to prevent ground loops from corrupting the high-frequency vibration signal.

Advanced Reliability Features

Thermal Resilience and Signal Fidelity

The 330102-00-40-50-02-00 employs advanced polyphenylene sulfide (PPS) tip materials and high-temperature coaxial cabling. This construction allows the probe to maintain its 200 mV/mil sensitivity even during extreme thermal cycling of the machine casing, ensuring your Honeywell Experion or Emerson DeltaV system receives consistent data regardless of ambient conditions.

Native TSI Integration

As a core element of Turbine Supervisory Instrumentation (TSI), this probe integrates seamlessly with the 3300 XL Proximitor. It captures the wide-frequency analog data required for advanced diagnostics, including orbit plots and shaft centerline trending, providing the technical authority needed for critical decision-making in the control room.

Shipping and Global Fulfillment

We prioritize rapid response to support your predictive maintenance schedules and unplanned outages.

• Dispatch Time: 3-5 days when payment finish for in-stock items.

• Logistics Partners: Expedited door-to-door delivery via DHL, FEDEX, or UPS.

• Industrial Packaging: Every unit is vacuum-sealed in anti-static industrial packaging. We utilize custom structural padding to ensure the precision-calibrated tip arrives in perfect condition for immediate field deployment.

Technical Knowledge Base

Q1: Can I cut the 5.0-meter cable to a shorter length?

A1: No. The cable length is a critical part of the system's electrical inductance and capacitance. Cutting the cable will void the calibration and result in inaccurate vibration readings.

Q2: What happens if the gap voltage is set to -5.0 VDC instead of -10.0 VDC?

A2: A -5.0 VDC gap puts the probe near the bottom of its linear range. While it may still function, you risk "clipping" the signal during high-vibration events, leading to inaccurate data or false alarms.

Q3: How do I distinguish between an M10 thread and a 3/8-24 thread?

A3: The 330102 model signifies an M10 x 1 metric thread. Using an imperial 330101 (3/8-24) probe in an M10 hole will damage the housing threads and compromise the mounting stability.

Q4: Is the -02 connector protector necessary?

A4: While the probe functions without it, the protector is vital in bearing housings. It prevents oil ingress into the coaxial connection, which is the leading cause of "glitch" and intermittent signal loss.
