Product Overview

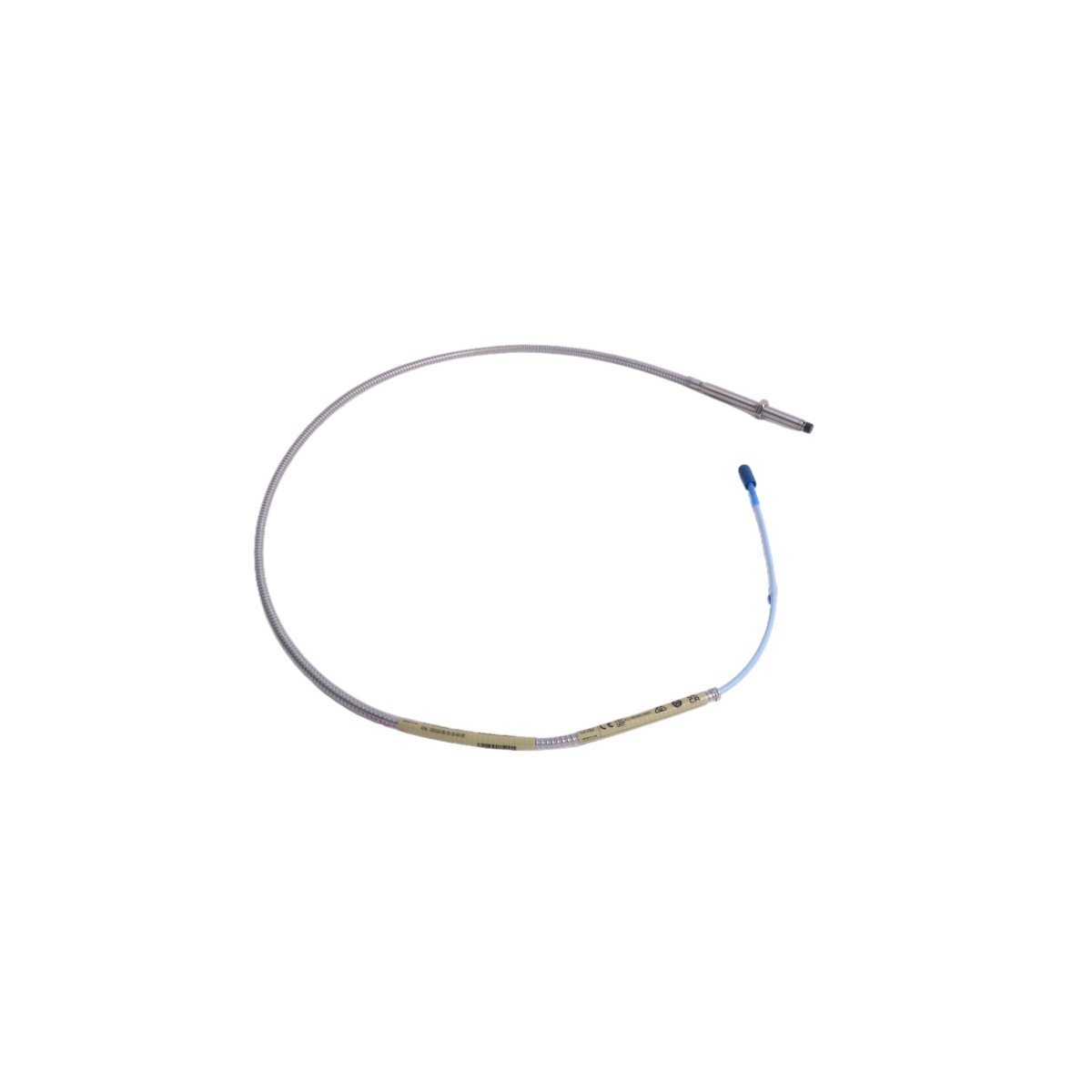

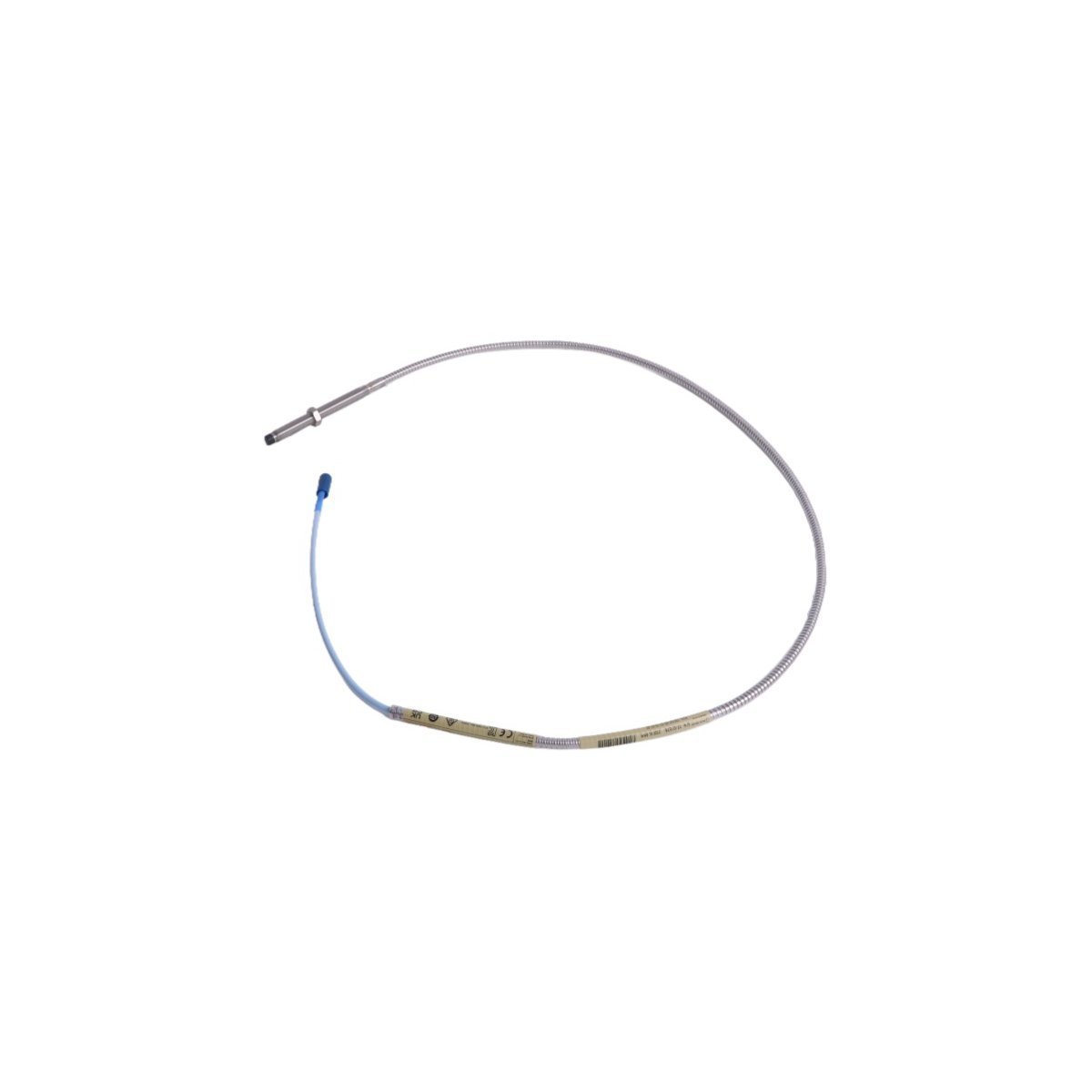

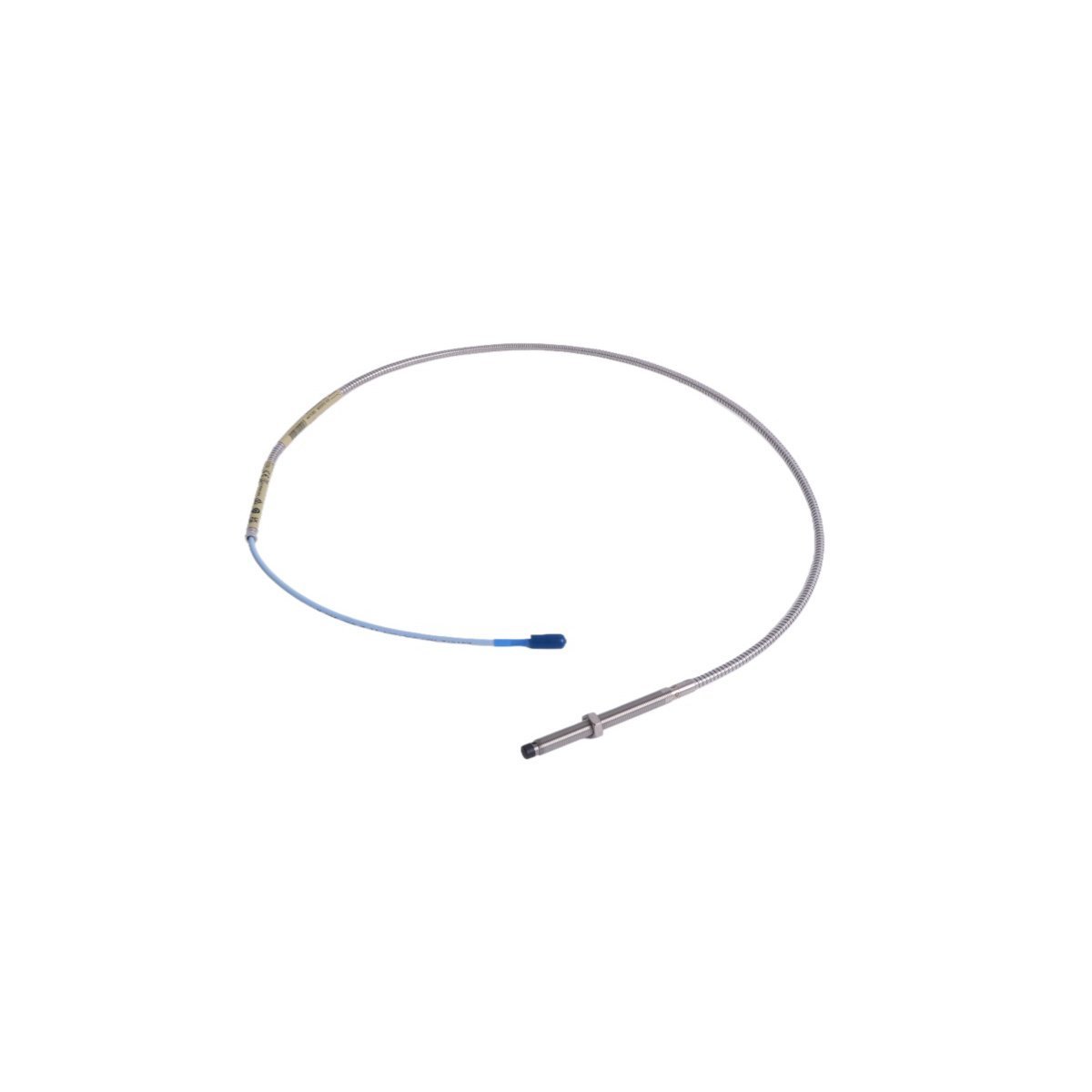

The Bently Nevada 330102-00-35-10-02-00 is a cornerstone of industrial machinery protection, designed to deliver laboratory-grade displacement measurements in the most punishing industrial environments. As a primary sensor for the 3300 XL series, this 8mm proximity probe provides critical data for radial vibration, axial thrust, and phase reference (Keyphasor) applications. This specific model utilizes eddy current technology to monitor shaft behavior in real-time, feeding high-fidelity signals to Bently Nevada 3500 monitoring systems or integrated DCS platforms. It plays a decisive role in Turbine Supervisory Instrumentation (TSI), preventing catastrophic failure in high-speed centrifugal compressors, steam turbines, and power generation assets. With its advanced tip design and exceptional thermal stability, the 330102 probe ensures that machinery protection loops remain reliable and free from false trips caused by temperature-induced drift.

Probe Configuration Suffix Logic

Mechanical and Electrical Parameters

The alphanumeric suffix code for the 330102 series defines the specific physical envelope required for precise installation:

Unthreaded Length (00): 0.0 inches. This indicates a fully threaded probe body, allowing for maximum flexibility when depth-matching against the internal bearing housing or mounting bracket.

Overall Case Length (35): 3.5 inches. This extended case length accommodates deeper mounting requirements, ensuring the probe tip can safely reach the target shaft through thicker machine casings.

Total Length (10): 1.0 Meter (3.3 feet). This cable length requires a corresponding 4.0m or 8.0m extension cable to complete a calibrated 5.0m or 9.0m transducer system.

Connector Option (02): Miniature coaxial ClickLoc connector. This gold-plated interface provides a secure, vibration-resistant connection while simplifying field installation.

Agency Approval (00): No specific approvals. Designed for general-purpose industrial environments where hazardous area certifications are not mandatory.

Hardware Specifications

Precision Installation Guidelines

Reliable vibration monitoring depends on the accurate setting of the probe gap. Engineering personnel should utilize a high-impedance digital voltmeter to set the static "Gap Voltage" to -10.0 VDC, which positions the probe at the midpoint of its 80-mil linear range. Maintain a minimum cable bend radius of 25.4 mm (1.0 inch) to prevent internal coaxial dielectric failure. To avoid magnetic field interference, ensure the probe tip is clear of any side-wall metal by at least 16 mm (twice the probe diameter). Verify that the ClickLoc connector is clean and free of oil before mating to ensure signal continuity and prevent "Not OK" status indications on the monitoring rack.

Strategic Engineering Advantages

The 330102 series excels in mitigating the effects of "oil soak," a common failure mode where lubricants penetrate the probe tip and degrade signal accuracy. Its Polyphenylene Sulfide (PPS) tip is chemically inert and thermally stable, ensuring consistent Scale Factor accuracy across the entire operating temperature range. This probe integrates seamlessly with Honeywell Experion PKS and existing Bently Nevada 3500/42M monitors, providing the low-noise raw signal required for System 1 diagnostic software to generate precise orbit plots and waterfalls. By choosing the 3300 XL platform, plant operators guarantee compliance with API 670 standards for machinery protection.

Ordering info

• Bently Nevada 330102-00-35-10-02-00 Proximity Probe.

• Integrated 1.0-meter Coaxial Cable.

• One (1) Miniature ClickLoc Coaxial Connector.

• Standard Probe Locknuts and Washers.

• Individual Factory Calibration Certificate.

Global Logistics & Fulfillment

Delivery time: 2-7 days when payment finish. All precision sensors are shipped via DHL, FEDEX, or UPS to ensure time-critical arrival for maintenance turnarounds. We utilize specialized anti-static industrial packaging and moisture-barrier vacuum seals to protect the sensitive eddy-current tip. Every shipment undergoes a secondary quality inspection to verify that the factory seals are intact and that the probe body remains free of surface contaminants.

Professional Support FAQs

Q1: Can I use this 1.0m probe with an existing 9.0m Proximitor?

A1: Yes, provided you use an 8.0m extension cable. The 3300 XL system is length-calibrated; the total electrical length of the probe plus the extension cable must match the Proximitor’s calibration (either 5.0m or 9.0m).

Q2: What causes a "Not OK" signal on the monitor after installing this probe?

A2: A "Not OK" signal usually indicates a short circuit (0V) or an open circuit (-24V). Check the ClickLoc connector for moisture or debris, and ensure the probe tip is not in direct contact with the shaft.

Q3: Does the fully threaded body (00 unthreaded length) affect durability?

A3: Not at all. The fully threaded design is a mechanical feature that provides maximum flexibility for installing the probe in various bracket types without sacrificing structural integrity.

Q4: Is this probe compatible with older 3300 Proximitors?

A4: While 3300 XL probes are designed for 3300 XL Proximitors, they are backwards compatible with certain older 3300 systems. However, for maximum linearity and temperature stability, we always recommend a matched 3300 XL system.
