Product Overview

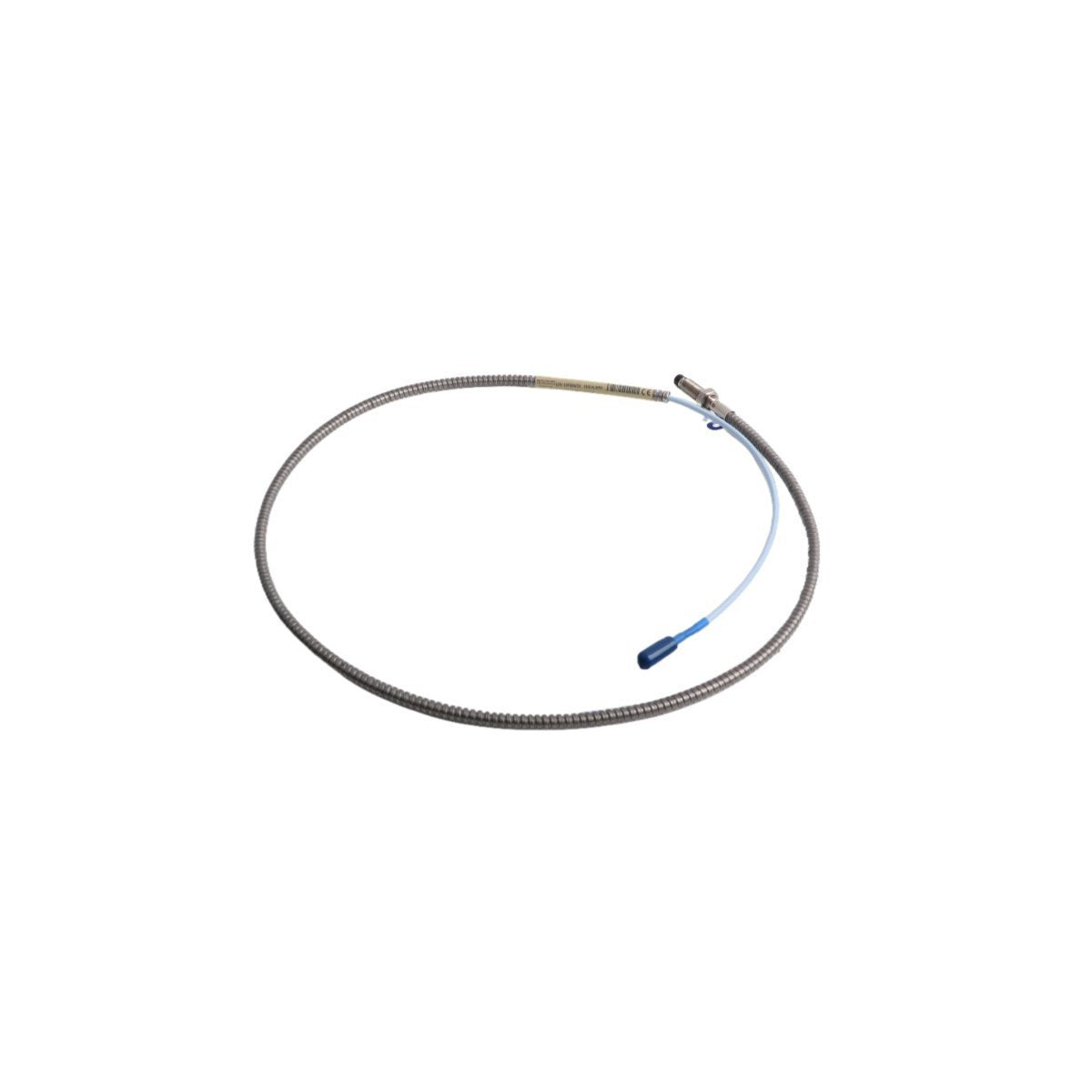

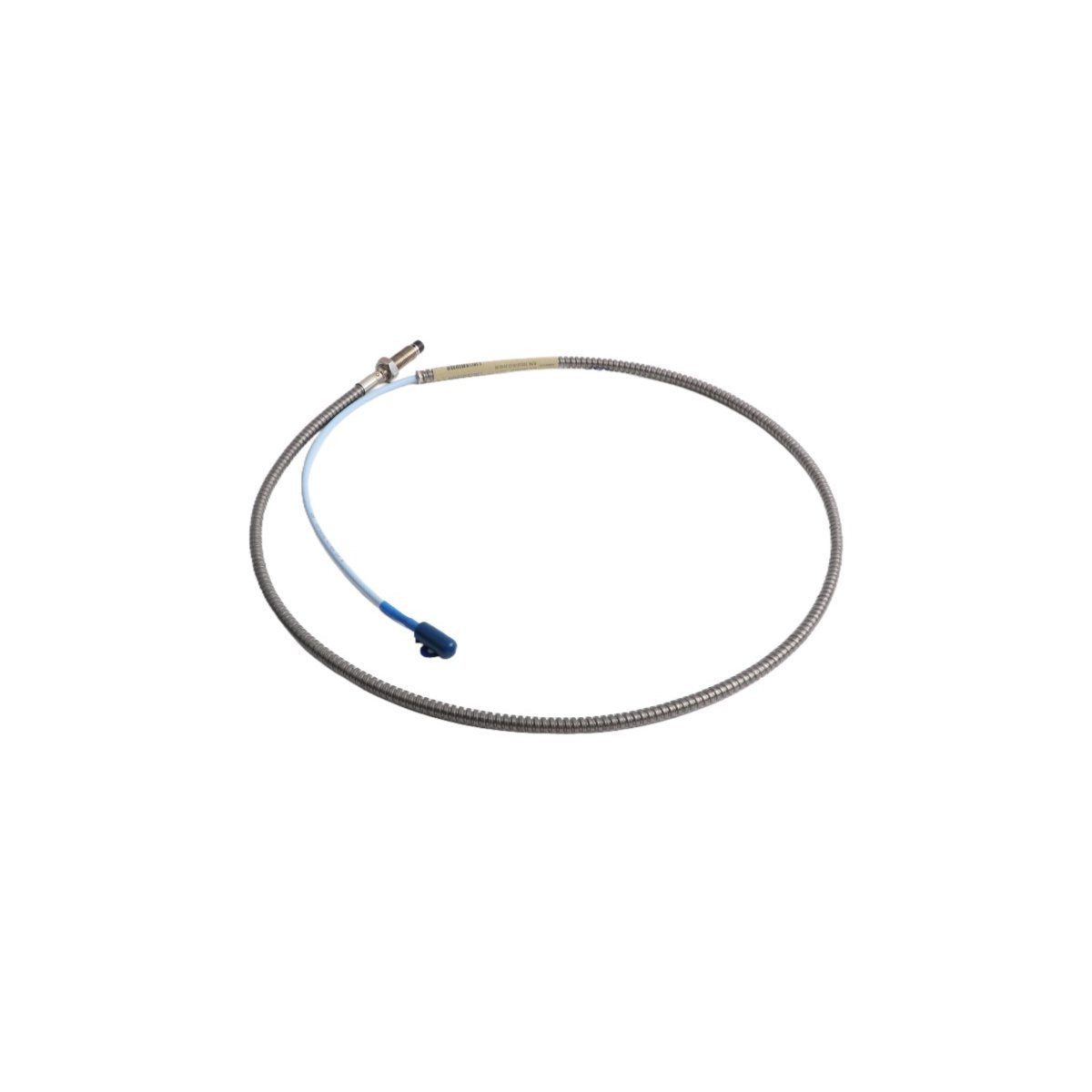

The 330102-00-13-15-02-05 is a high-performance 8mm proximity sensor from the Bently Nevada 3300 XL series, engineered for non-contacting displacement and vibration measurements. This transducer operates on the eddy current principle to monitor the position of rotating shafts in critical industrial machinery. Designed for seamless integration with Turbine Supervisory Instrumentation (TSI), it provides high-fidelity data essential for predictive maintenance programs. The unit features an armored cable design to ensure signal integrity in environments where mechanical abrasion or fluid exposure is a constant risk. With its standardized output and global safety certifications, this probe is a fundamental component for safeguarding high-value rotating assets.

Hardware Configuration and Measurement Parameters

• Superior thermal stability for high-temperature bearing housing applications.

• Resistance to corrosive industrial lubricants and turbine oils.

• Vibration-resistant connector design to prevent accidental signal loss.

• Interchangeable components requiring no bench calibration.

Strategic Industrial Applications

Power Generation and Steam Turbines

The 330102-00-13-15-02-05 is widely deployed to monitor radial vibration and axial thrust in utility-scale turbines. Its armored lead protects the sensitive internal wiring from the high-heat and high-vibration conditions of the turbine deck.

Petrochemical Centrifugal Compressors

Critical for tracking rotor stability and oil film thickness in high-speed compressors. The ATEX and IECEx certifications ensure safe operation in zones where explosive gas mixtures may be present.

Industrial Water and Slurry Pumps

In heavy-duty pumping applications, the stainless steel armor prevents cable damage from physical debris, ensuring the proximity probe continues to provide accurate shaft position data for protection systems.

Marine Propulsion Systems

Utilized in shipboard machinery to monitor propeller shaft alignment and bearing health, where the robust ClickLoc connector maintains a secure electrical path despite the constant motion of maritime environments.

FAQ

Q: Does the 330102-00-13-15-02-05 require specific calibration to its Proximitor sensor?

A: No. One of the core benefits of the 3300 XL 8mm system is that all probes, extension cables, and sensors are fully interchangeable. As long as the total electrical length is maintained, no bench calibration is necessary.

Q: What is the benefit of the 3/8-24 UNF threading on this specific model?

A: This is a standard imperial thread size used in many North American and international machinery housings. It allows for a direct, secure fit into existing tapped holes without the need for specialized adapters.

Q: Is the armored cable flexible enough for tight routing inside a machine?

A: Yes, while the stainless steel armor provides significant crush and abrasion resistance, it is designed to remain flexible enough for standard industrial conduit and internal bearing housing routing.

Q: How does the ClickLoc connector improve reliability compared to older threaded connectors?

A: The ClickLoc system features a positive-locking mechanism that "clicks" when fully seated. This prevents the connector from vibrating loose over time, which is a common cause of "noise" or false trips in vibration monitoring systems.

Q: Can this probe be used in submerged oil applications?

A: The probe tip and cable are designed to be oil-resistant. However, for long-term submersion in pressurized turbine oil, it is recommended to ensure the connectors are protected by the integrated connector protectors or suitable sealing tape.
