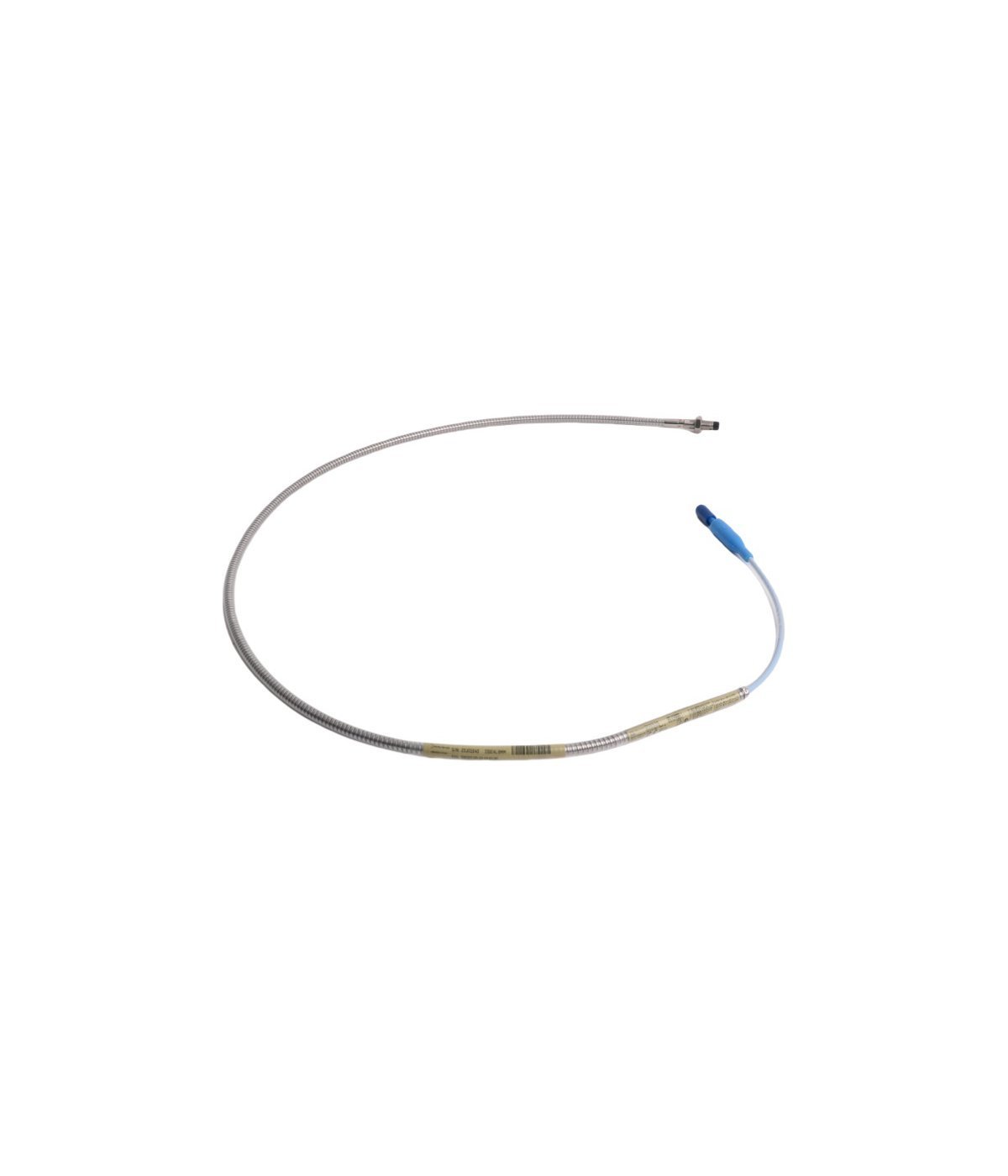

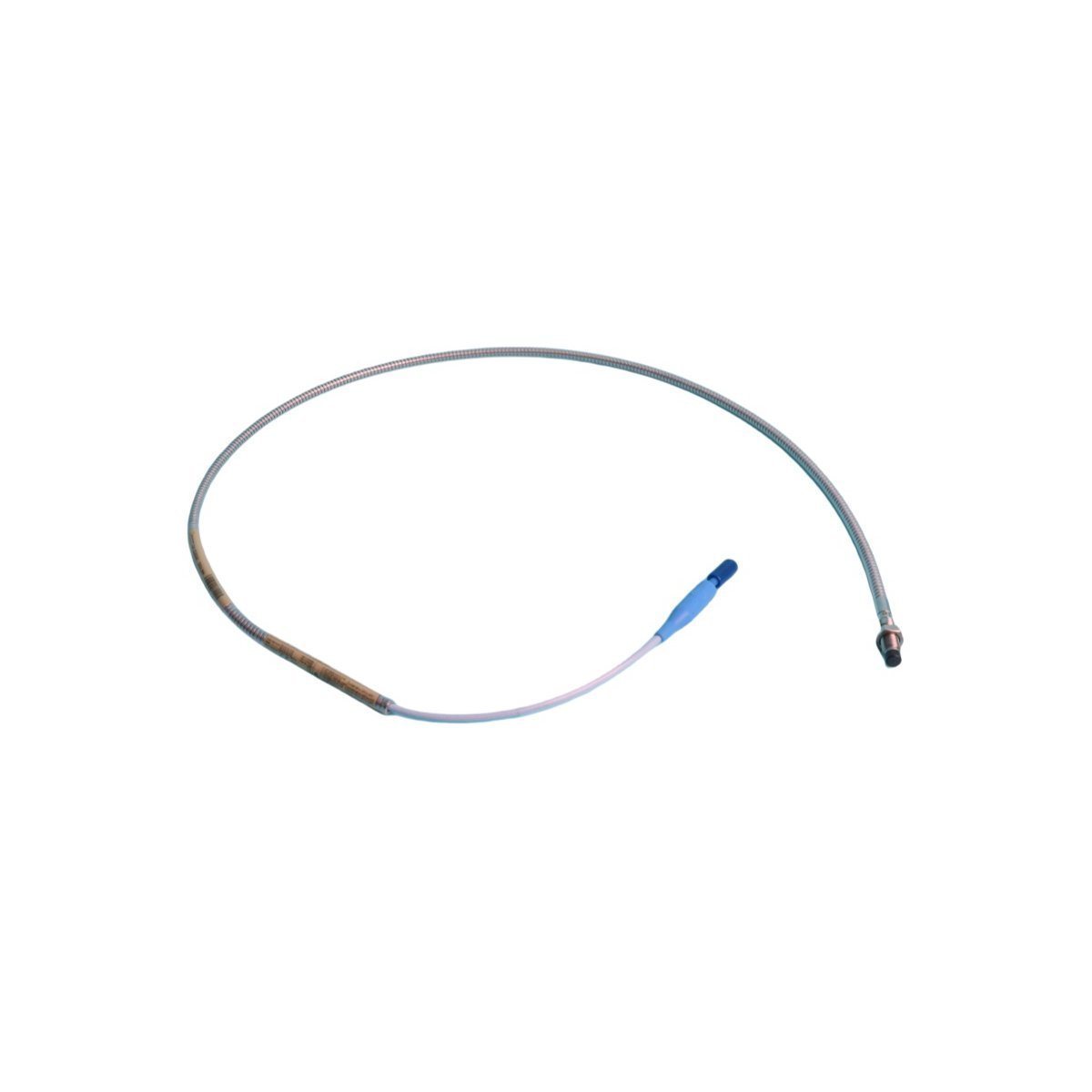

Configured for non-contacting vibration and displacement measurement in machinery protection environments, the Bently Nevada 330102-00-10-10-01-05 (330102 Proximity Probe) provides direct physical/electrical execution. The instrument detects static and dynamic distances between the target rotor surface and the probe tip, generating a high-frequency eddy-current field to translate mechanical shaft motion into calibrated electrical signals for a paired Proximitor Sensor.

Suffix Breakdown & Model Matrix

• 330102: 3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread, without armor.

• -00: Unthreaded length option (0.0 inches).

• -10: Overall case length option (1.0 inch).

• -10: Total length option (1.0 meter).

• -01: Connector option (Miniature coaxial ClickLoc connector).

• -05: Agency approval option (Multiple Approvals for hazardous areas).

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

Proper operation of the eddy-current probe relies on accurate gap voltage validation against standard target materials, typically AISI 4140 steel. During calibration and zeroing procedures, physical positioning must match a nominal -10 VDC targets voltage output at the Proximitor terminal, corresponding to the midpoint of the linear range. System scaling matches the standard 7.87 V/mm slope. Deviations in target metallurgy alter the eddy-current field resistance and magnetic permeability, requiring custom scaling coefficients to prevent linearity translation errors in high-speed rotor dynamics monitoring loops.

Frequently Asked Questions

Q: Does this component support hot-swap capabilities during machine operation?

A: Yes. The proximity probe can be physically unmounted or disconnected from its extension cable while the associated monitoring system is active. This action does not introduce electrical transients to adjacent monitoring loops or damage the Proximitor electronics.

Q: How do material variations on the monitored shaft affect the calibrated output?

A: The standard scale factor of 7.87 V/mm is calibrated for AISI 4140 steel. Non-ferromagnetic metals or alternative alloy compositions will alter the eddy-current generation, necessitating a re-calibration of the Proximitor sensor or manual adjustments to the monitoring scale factor.

Q: Can the probe cable be spliced or modified if the layout length is incorrect?

A: No. The total physical length of the probe cable contributes directly to the electrical capacitance and inductance calibrated into the tuning circuit. Modifying, cutting, or splicing the coaxial line destroys the impedance matching, invalidating the sensor calibration.

Field Installation Guidelines

• Mechanical Clearance: Ensure a minimum side clearance of 30 mm between the probe tip and any surrounding housing material to prevent parasitic eddy-current paths from distorting the active measurement zone.

• Gap Alignment: Utilize a calibrated digital voltmeter connected to the Proximitor output terminals during physical installation. Adjust the probe depth until a stable reading of -10 VDC targets is established at the baseline mechanical position.

• Torque Limits: Tighten the 3/8-24 UNF locking nuts to a maximum torque specification of 11.2 N-m (100 in-lb). Exceeding this limit risks crushing or cracking the threaded case shell.

• Coaxial Connector Care: Hand-tighten the miniature coaxial ClickLoc connector to the extension cable until the internal detent mechanism engages. Do not use pliers or standard hand tools, which can strip the thin-walled coaxial shielding contacts.

Supply Kit Inventory

The shipment contains the following components under a single order fulfillment:

(1) Bently Nevada 330102-00-10-10-01-05 3300 XL 8 mm Proximity Probe

(2) Pack of 2 lockwashers and hex jam nuts (3/8-24 UNF)

(3) Removable plastic thread protection cap

(4) Factory compliance certificate and point-by-point calibration linearity record
