Product Overview

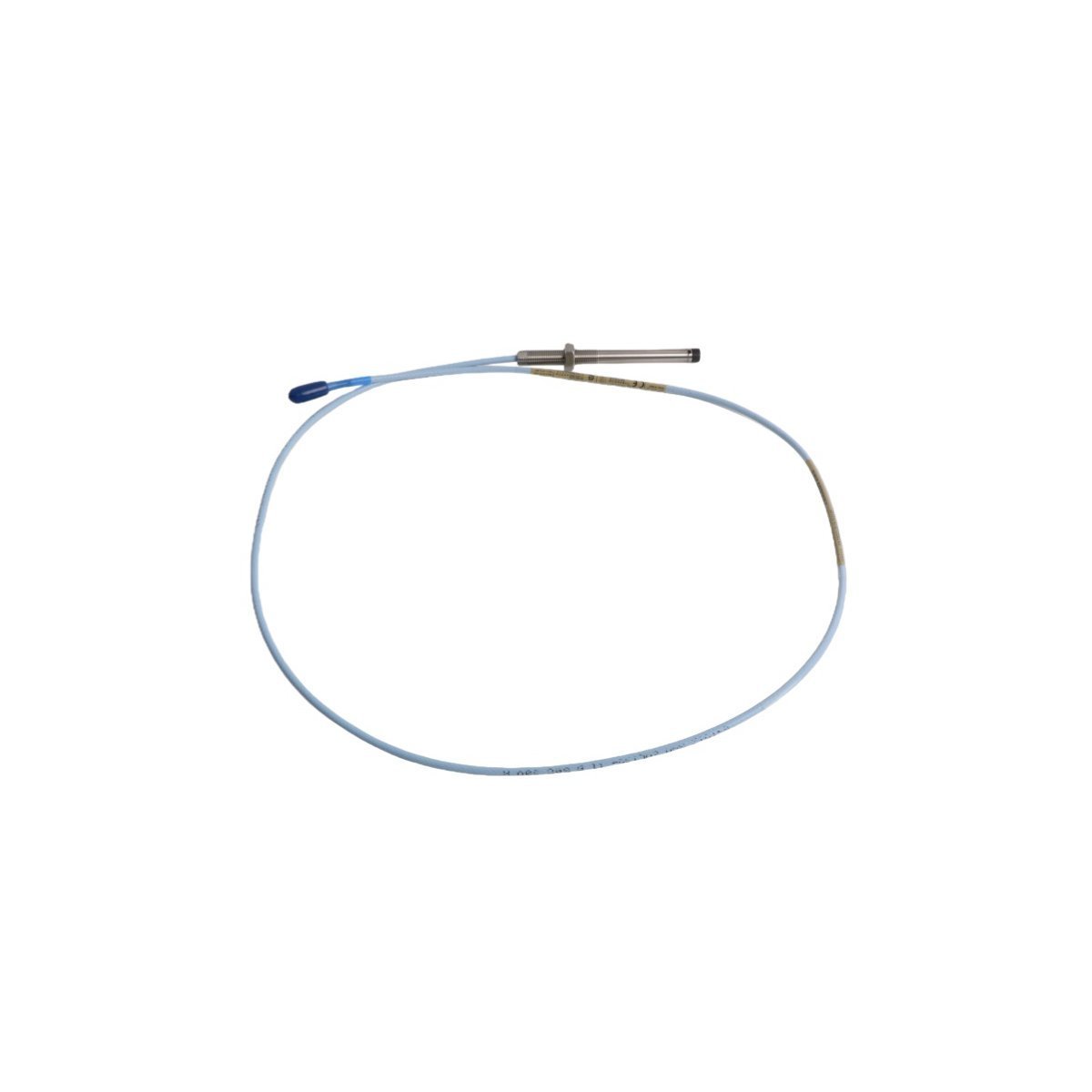

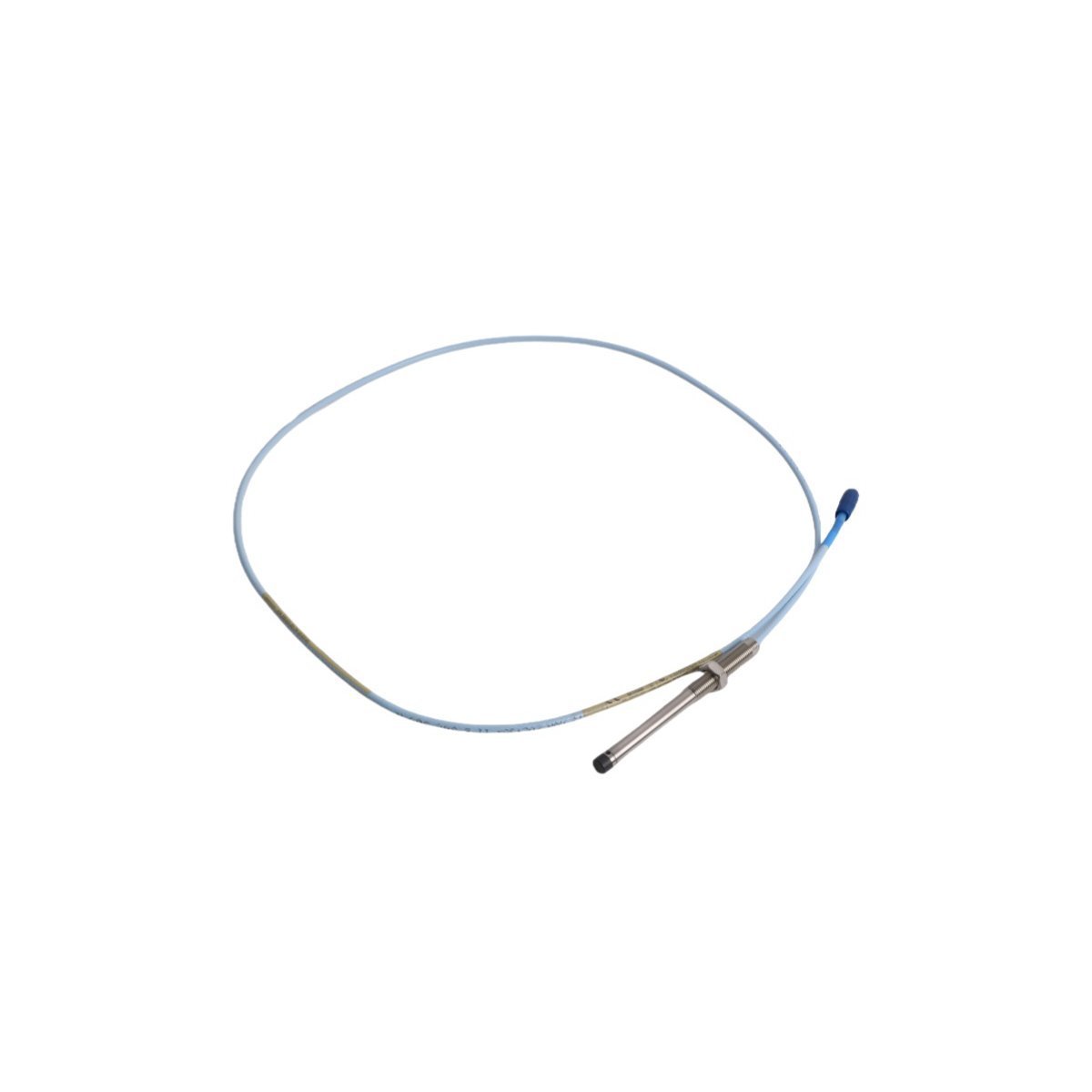

The Bently Nevada 330101-20-40-10-02-05 serves as the gold standard for non-contacting vibration and displacement measurements in high-speed rotating machinery. As a core component of the 3300 XL 8mm Transducer System, this probe delivers unmatched linear accuracy and thermal stability in the most demanding industrial environments. It provides critical data to Bently Nevada 3500 Monitoring Systems, enabling real-time detection of shaft vibration, axial position, and phase reference (Keyphasor) for turbines, compressors, and large scale pumps.

By utilizing Eddy Current technology, this probe captures microscopic shaft movements without physical contact, ensuring zero mechanical wear while maintaining high-fidelity signal transmission. In emergency shutdown (ESD) scenarios, the reliability of the 330101 series is paramount, preventing catastrophic machine failure through precise, high-speed monitoring that integrates seamlessly into DCS architectures like Honeywell Experion PKS.

Transducer Configuration Logic

Suffix Breakdown for 330101-20-40-10-02-05

The specific ordering options for this probe define its mechanical fit and electrical compatibility with the extension cable and proximitor.

-20 (Unthreaded Length): Specifies a 2.0-inch unthreaded length on the probe case, typically used for specific bracket mounting or clearance requirements.

-40 (Overall Case Length): Indicates a 4.0-inch total threaded case length, providing the necessary reach for standard bearing housing depths.

-10 (Total Length): Defines the total electrical length of 1.0 meter. This probe must be paired with a 4.0-meter or 8.0-meter extension cable to match the 5-meter or 9-meter system calibration.

-02 (Connector and Cable Type): Equipped with a miniature coaxial ClickLoc connector and standard cable. The ClickLoc design prevents accidental disconnection while maintaining constant electrical impedance.

-05 (Agency Approval): Multiple approvals including ATEX, IECEx, and CSA for use in North American and International hazardous areas (Intrinsic Safety).

Primary Technical Parameters

Field Deployment Strategy

Achieving peak performance requires precise Gap Voltage calibration. During installation, use a digital multimeter to measure the output at the Proximitor; a standard mid-point gap is typically -10.0 VDC, corresponding to a 1.27 mm (50 mil) distance from the target. Ensure the target material is AISI 4140 Steel, as the probe is factory-calibrated to this metallurgy.

Pay strict attention to the Minimum Bend Radius of 25.4 mm (1.0 inch) for the coaxial cable to prevent internal conductor fatigue. All ClickLoc connectors must be finger-tight; do not use pliers, as over-torquing can damage the gold-plated contact surfaces and introduce signal noise into the vibration monitoring loop.

Industrial Systems Integration

The 330101-20-40-10-02-05 excels in Turbine Supervisory Instrumentation (TSI) applications where temperature fluctuations and high-pressure oil environments are common. Its PPS (polyphenylene sulfide) probe tip is chemically resistant to synthetic lubricants and moisture, preventing "drift" in the vibration baseline. When integrated with 3500/42M or 3500/40M monitors, the probe provides the high-frequency response needed for sophisticated fluid-film bearing diagnostics, ensuring that phase information is captured with microsecond precision.

Shipping and Quality Control

Fulfillment Schedule: 3-5 days when payment finish via premium logistics partners.

International Transit: Rapid dispatch through DHL, FEDEX, or UPS global networks.

Condition Guarantee: Every unit is shipped in New and Original Pack condition, protected by anti-static industrial packaging and moisture-resistant vapor barriers. Our logistics chain ensures that factory-sealed integrity is maintained, preventing contamination of the high-precision probe tip before it reaches your site.

Maintenance and Technical Inquiries

Q1: Can I use this 1.0-meter probe with a 5.0-meter extension cable?

A1: No. The total system length must match the Proximitor calibration (usually 5.0m or 9.0m). If the probe is 1.0m, you must use a 4.0m extension cable for a 5.0m system. Mixing lengths will cause significant Scale Factor Error (SFE).

Q2: What happens if the shaft material is not 4140 steel?

A2: The probe will still function, but the output voltage will not be 200 mV/mil. You must perform a field calibration or use a custom-calibrated Proximitor to account for the different magnetic permeability of the target.

Q3: Is the ClickLoc connector waterproof?

A3: While the connector is robust, we recommend using Connector Protectors or silicone self-fusing tape if the connection point is located inside a bearing housing where it will be splashed with oil or exposed to high humidity.

Q4: How do I verify if the probe has failed?

A4: Check the DC Gap voltage. If the voltage is near 0V or at the supply limit (typically -20V to -24V), there is likely a short or an open circuit in the probe or cable. Verify the resistance between the center pin and the outer shield; for a 1m probe, it should be very low (approximately 0.5 to 1.5 ohms).
