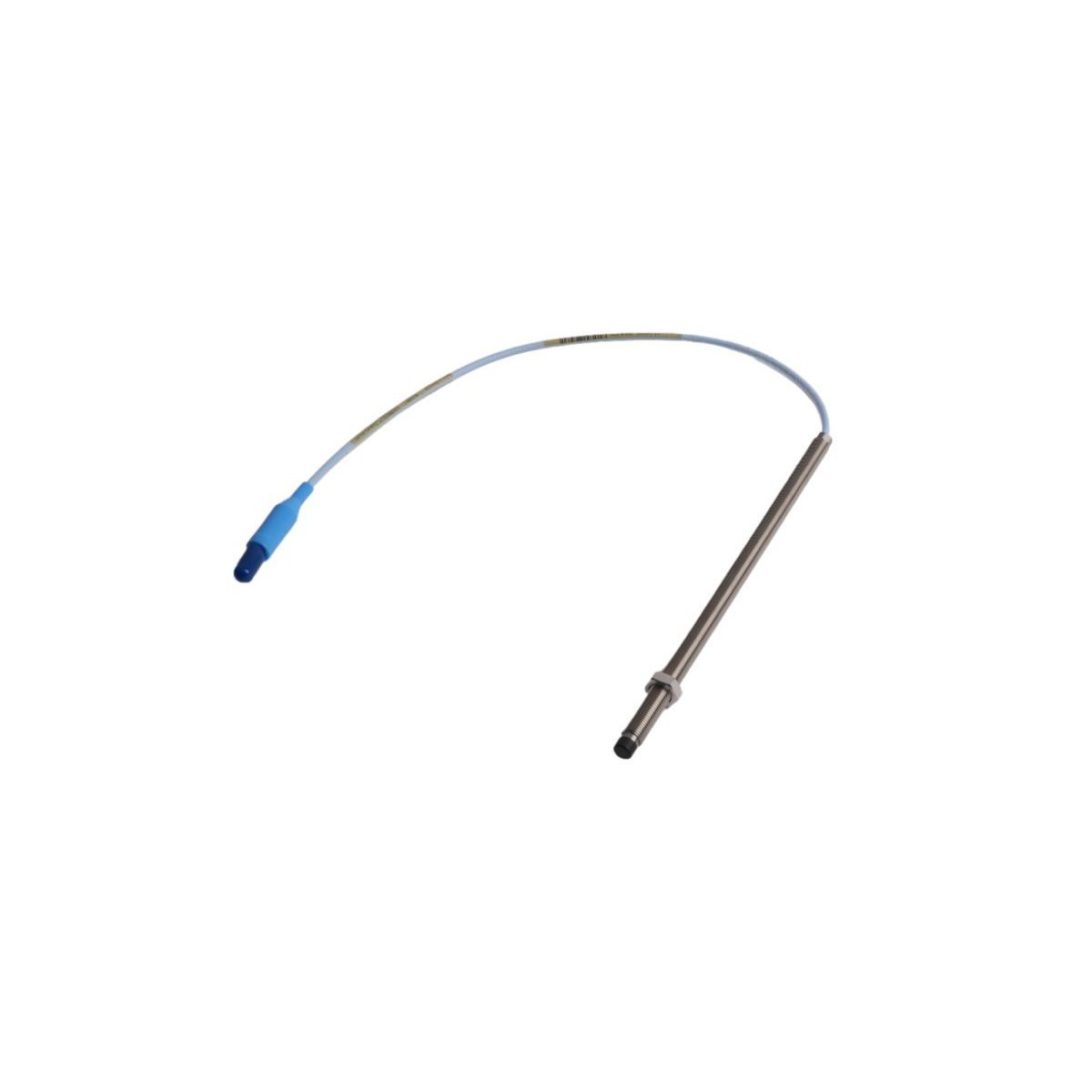

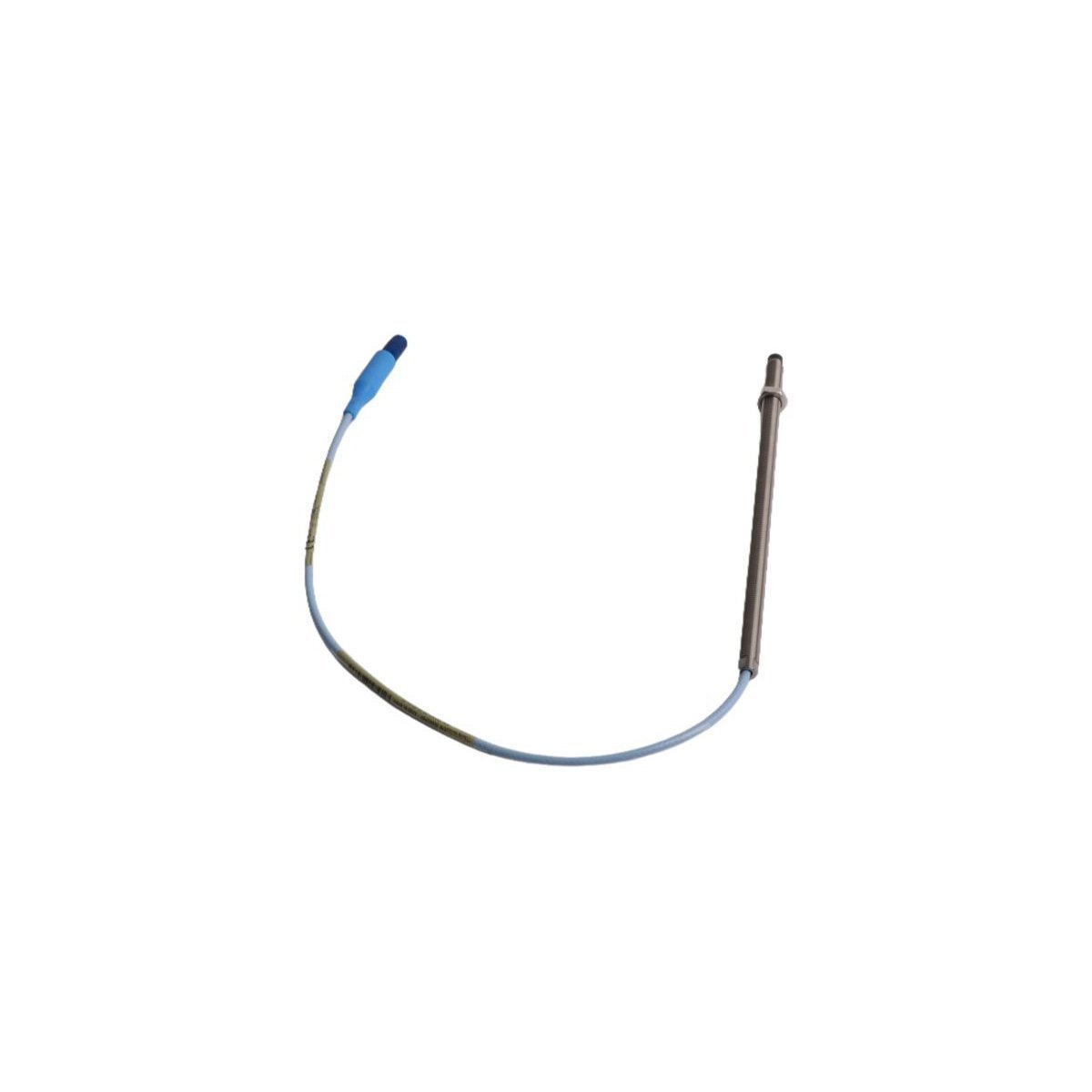

The Bently Nevada 330101-00-88-10-02-05 3300 XL 8mm Proximity Probe serves as the gold standard for non-contacting vibration and displacement measurements in high-speed rotating machinery. Engineered for absolute reliability, this eddy current sensor provides critical data on radial vibration, axial thrust, and phase reference (Keyphasor) for turbines, compressors, and pumps. Its advanced design minimizes temperature-related drift and ensures a linear response across its entire 2.0 mm range. By integrating this probe into a 3500 Machinery Protection System, plant operators gain the high-fidelity insights required to detect incipient rotor instability, prevent catastrophic mechanical failure, and extend the mean time between overhauls (MTBO) for high-value industrial assets.

Dimensional & Suffix Logic Analysis

330101 - 3300 XL 8mm Proximity Probe

Standard 3/8-24 UNF threaded probe body, utilizing the 3300 XL technology for superior interchangeability and performance consistency.

00 - Unthreaded Length (Dimension A)

Specifies a 0.0-inch (0 mm) unthreaded length. The entire length of the probe case is threaded, providing maximum flexibility for deep-well mounting or precision lock-nut positioning.

88 - Overall Case Length (Dimension B)

Defines an 8.8-inch (224 mm) total case length. This extended body allows the probe to reach internal shaft targets through thick bearing housings or complex standoff brackets.

10 - Total Length

Indicates a 1.0-meter (3.3 feet) integrated cable length. This lead connects the probe to the extension cable as part of a total 5.0m or 9.0m calibrated system.

02 - Connector and Cable Option

Features a miniature coaxial connector with a specialized cable protector. This option enhances the mechanical durability of the connection point in high-vibration environments.

05 - Agency Approval Option

Designates multiple global certifications including ATEX, IECEx, and CSA. This ensures compliance for installation in Zone 0, 1, or 2 hazardous locations when used with appropriate safety barriers.

Mechanical & Technical Specifications

Field Implementation Strategy

Successful commissioning requires precise gapping. Engineers should utilize a digital multimeter to set the "Gap Voltage" at the Proximitor output—typically -10.0 VDC for vibration monitoring—to ensure the probe operates in the center of its linear range. Avoid excessive torque on the 3/8-24 threads; a standard jam nut should be tightened to 13.5 N·m (120 in·lb) to prevent drift. When routing the 1.0m lead, maintain a minimum bend radius of 25.4 mm (1.0 in). For hazardous area compliance under the -05 approval, verify that all conduit seals and cable entries are rated for the specific gas group and zone of the installation.

Integrity in Harsh Industrial Scenarios

The 330101-00-88-10-02-05 is built to withstand the punishing conditions of oil and gas or power generation facilities. Its PPS-filled tip is hermetically sealed against moisture and lubricating oil ingress, while the stainless steel body resists corrosive chemical vapors. This probe integrates seamlessly with the Bently Nevada 3500/42M monitors and offers direct compatibility with Honeywell Experion PKS through high-speed I/O modules. By providing a stable -24V signal even under extreme thermal cycling, it eliminates the false alarms often associated with lower-tier proximity sensors.

Fulfillment & Packaging Standards

Delivery time: 3-5 days when payment finish, BY DHL/FEDEX/UPS.

We ship every probe in anti-static industrial packaging with a protective tip cap to ensure the ceramic-filled face remains pristine during global transit.

Field Support Technical FAQs

Q1: Can I use this 8.8-inch probe to replace a shorter 21000 series housing probe?

A1: Only if the Dimension B (Overall Case Length) matches the specific reach required by the machine casing. Always verify the total reach including the standoff to ensure the tip doesn't contact the shaft.

Q2: What is the benefit of the -05 Multiple Approval option?

A2: This option provides a "universal" certification, allowing the same part number to be used in North American (CSA), European (ATEX), and Global (IECEx) hazardous areas, simplifying your spare parts inventory.

Q3: How do I identify a "No OK" fault on this probe?

A3: If the bias voltage at the monitor drops below -2.0V or exceeds -22.0V, the 3500 system will trigger a "NOT OK" status. This typically indicates a short circuit, an open coaxial cable, or a probe tip that is physically touching the shaft.
