Product Overview

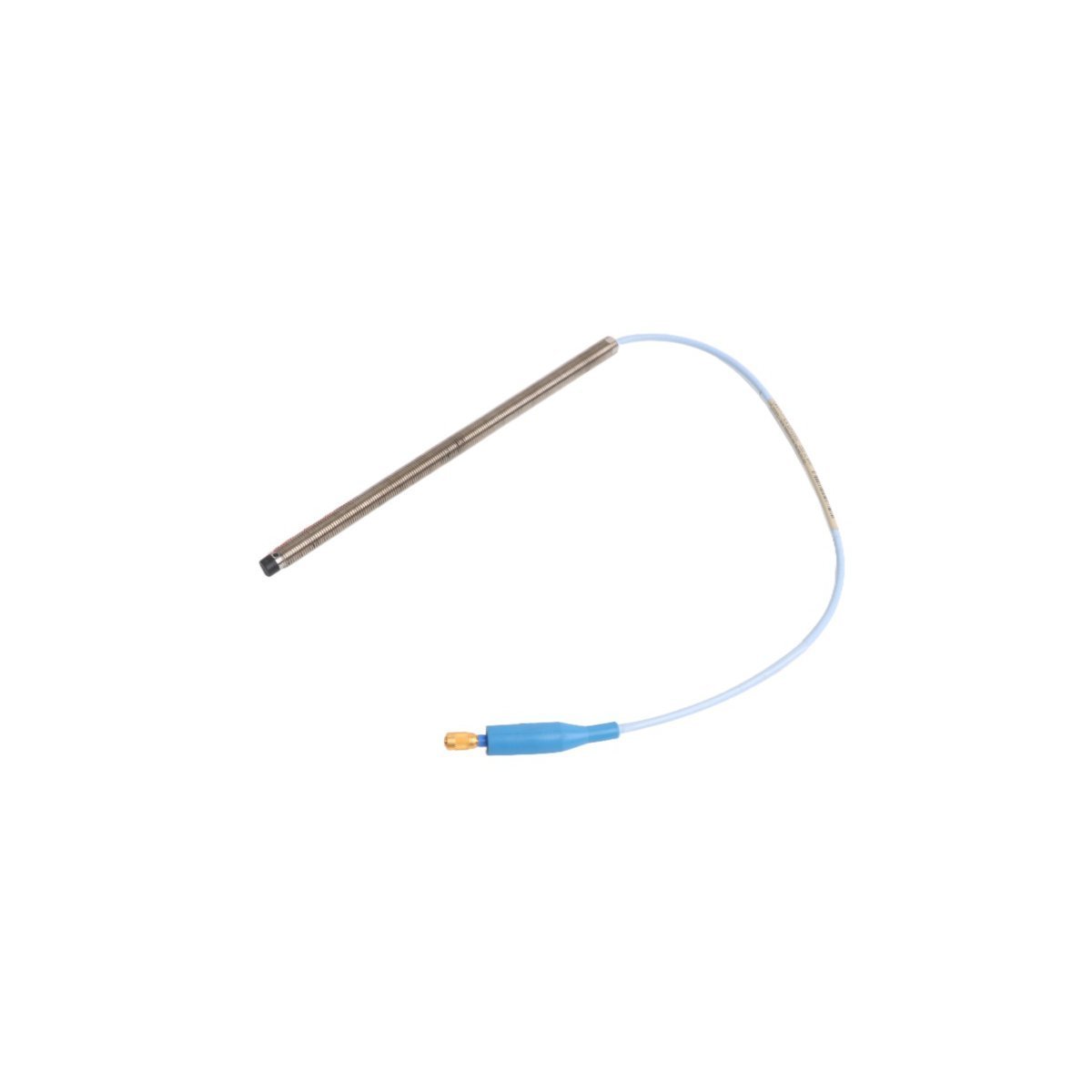

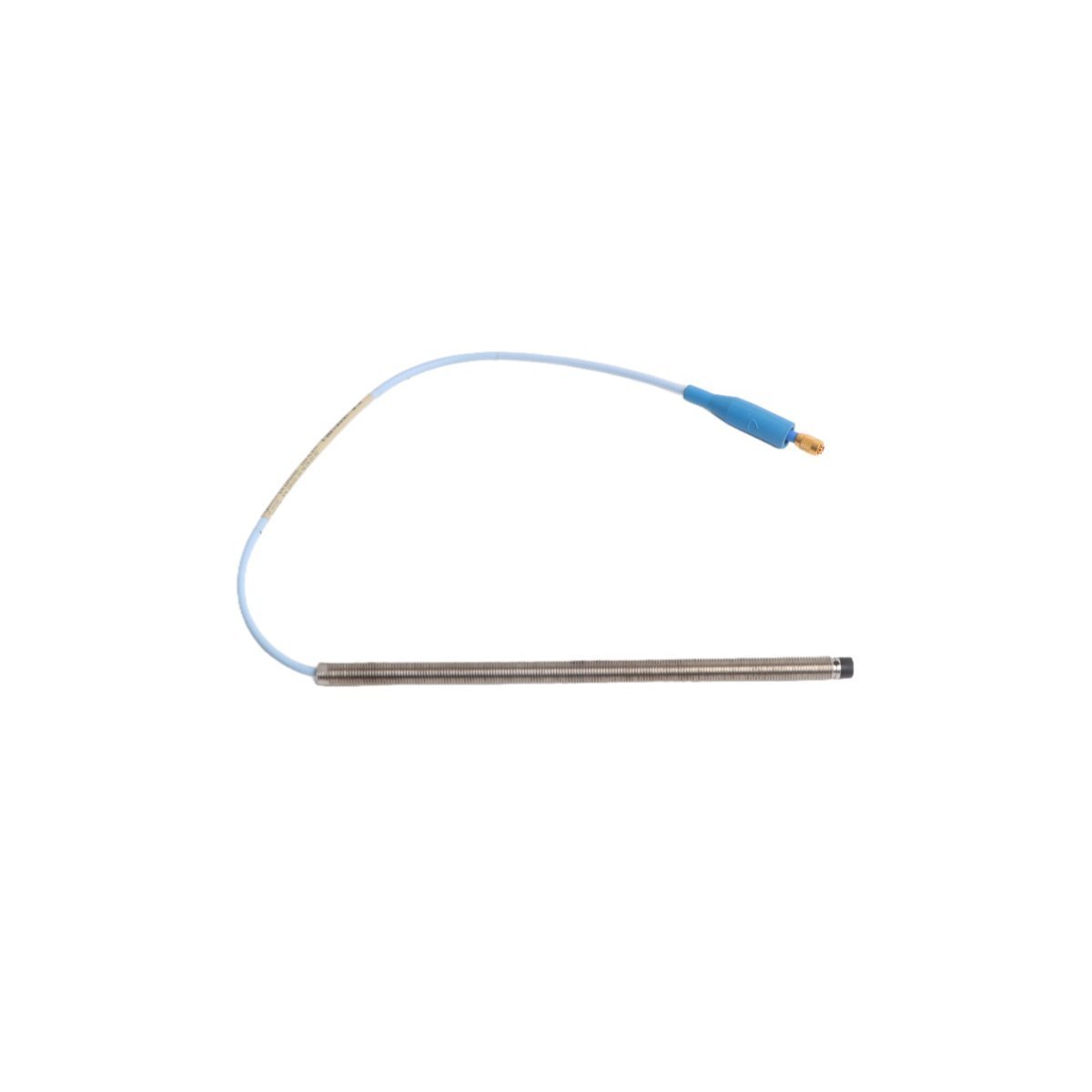

The Bently Nevada 330101-00-77-20-02-05 represents the gold standard in non-contacting displacement sensing, specifically optimized for the 3300 XL 8mm Transducer System. Designed to operate in the volatile environments of high-speed rotating machinery, this probe delivers sub-micron resolution for radial vibration and axial thrust measurements. It serves as a critical sensory input for TSI (Turbine Supervisory Instrumentation), providing real-time shaft dynamics to the Bently Nevada 3500 rack. By capturing precise gap variations between the probe tip and the target shaft, it enables plant operators to identify bearing wear, misalignment, and potential shaft cracks before they result in catastrophic failure. Its unmatched thermal stability ensures that signal drift remains negligible even during rapid machine ramp-ups or process temperature fluctuations.

Suffix Configuration and Mechanical Logic

The 330101-00-77-20-02-05 model string specifies the exact hardware geometry required for seamless field integration. The -00 suffix indicates a 0.0-inch unthreaded length, while the -77 defines a 7.7-inch overall case length, making it ideal for deep penetration through bearing housings. The -20 designation signifies a 2.0-meter (approx. 79 inches) total cable length, which provides additional routing flexibility compared to standard 1.0-meter variants. The -02 suffix confirms the use of a miniature coaxial connector with FluidLoc seals, preventing oil migration through the cable. Finally, the -05 option represents Multiple Agency Approvals, certifying the probe for use in globally recognized hazardous areas under ATEX, IECEx, and CSA standards.

Physical and Electrical Parameters

Field Commissioning and Calibration Guidelines

Successful deployment of the 330101-00-77-20-02-05 requires precise gap adjustment using a digital voltmeter. Field engineers must set the Gap Voltage to approximately -10.0 VDC to ensure the probe operates at the center of its linear range. When routing the 2.0-meter cable, maintain a minimum bend radius of 25.4 mm (1.0 inch) to prevent stress on the coaxial shielding. The -02 connector option ensures a secure, vibration-proof link, but we recommend using a connector protector kit if the junction is exposed to heavy oil mist. Verify that the total system length (Probe + Extension Cable) matches the Proximitor’s calibrated length (typically 5.0m or 9.0m) to maintain the 200 mV/mil scale factor accuracy.

Engineering Advantages and System Synergy

The 3300 XL series is engineered for maximum interchangeable performance, allowing this probe to integrate flawlessly with existing Bently Nevada 3500/42M monitors or Honeywell Experion PKS systems. Its Polyphenylene Sulfide (PPS) probe tip resists chemical attack from synthetic lubricants and caustic process gases, ensuring a service life measured in decades. The high-resolution signal output supports advanced "Shaft Centerline" and "Orbit" diagnostics, providing the granular data necessary for API 670 compliant machinery protection. This probe excels in extreme conditions where lesser sensors fail, maintaining signal integrity in high-pressure enclosures and areas with high electromagnetic interference.

Fulfillment and Premium Logistics

Delivery Window: Units are dispatched within 3-5 days when payment finish.

Global Logistics: We partner with DHL, FEDEX, and UPS to ensure expedited door-to-door delivery with real-time tracking and full insurance.

Industrial Protection: Every probe is shipped in anti-static industrial packaging with moisture-sealed barrier bags to protect the gold-plated connectors and thin-film circuitry.

Product Condition: We supply exclusively New, Sealed, and Original Pack units. Our technical team performs a rigorous serial number verification and physical inspection before shipping, guaranteeing immediate out-of-the-box reliability for your critical assets.

Transducer System Technical FAQs

Q1: Can I use this 2.0m probe with a standard 4.0m extension cable?

A1: No. Connecting a 2.0m probe to a 4.0m cable creates a 6.0m total system. This will result in a "Not OK" status or significant calibration errors if used with a standard 5.0m or 9.0m Proximitor. The total length must match the Proximitor's calibration exactly.

Q2: What is the primary benefit of the -77 (7.7 inch) case length?

A2: This length is specifically designed for thick bearing housings. It allows the probe tip to reach the shaft target while keeping the cable junction outside of the hottest or most oil-congested areas of the machine.

Q3: How does the FluidLoc seal in the -02 connector function?

A3: The FluidLoc seal prevents pressurized oil or process gases from "wicking" through the center of the coaxial cable, which is a common cause of leaks into terminal boxes or instrumentation cabinets in older probe designs.

Q4: Is this probe compatible with non-steel targets?

A4: The standard calibration is for AISI 4140 steel. If your target is stainless steel or another alloy, the scale factor will change. You must either use a custom-calibrated Proximitor or adjust the monitor's scale factor settings.
