Product Overview

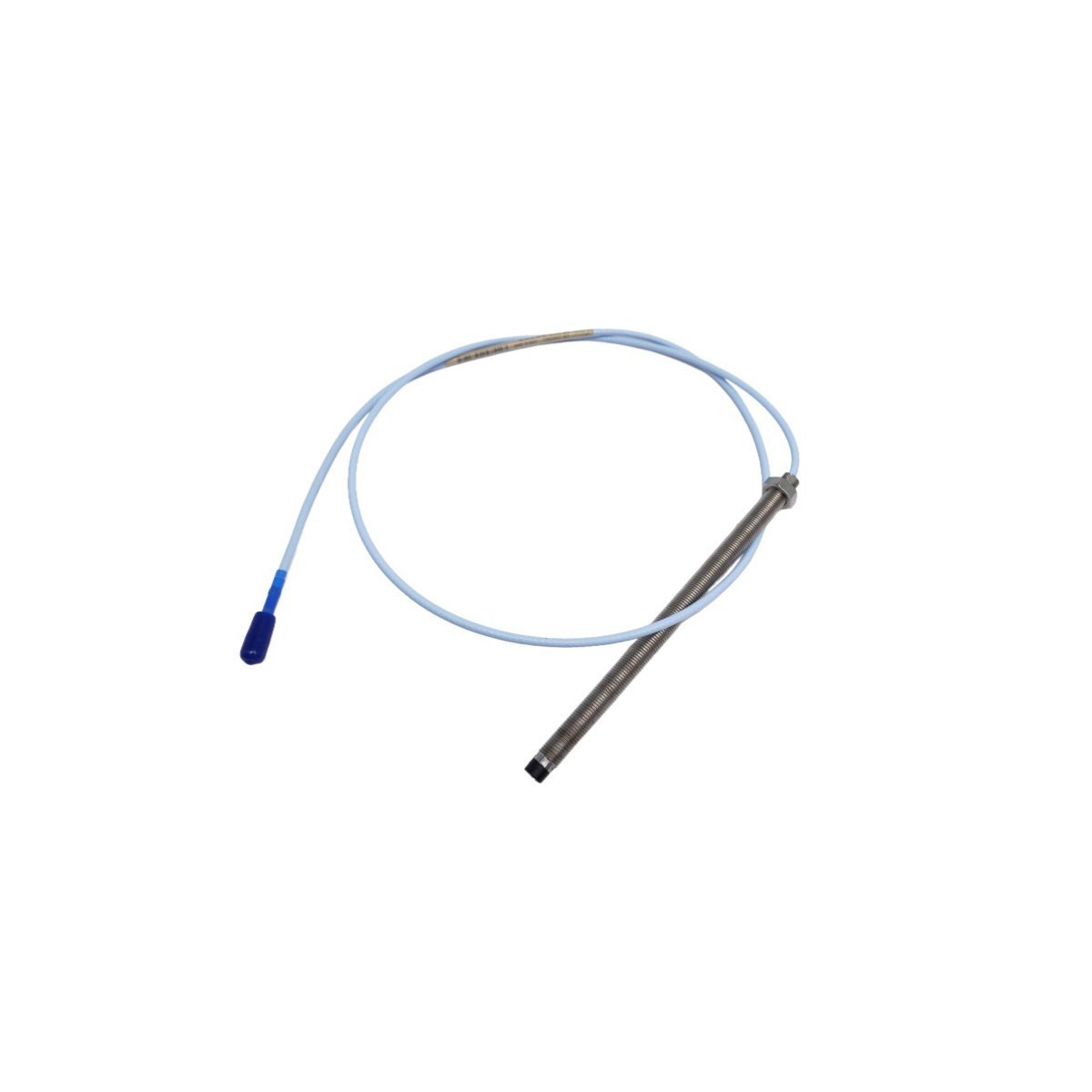

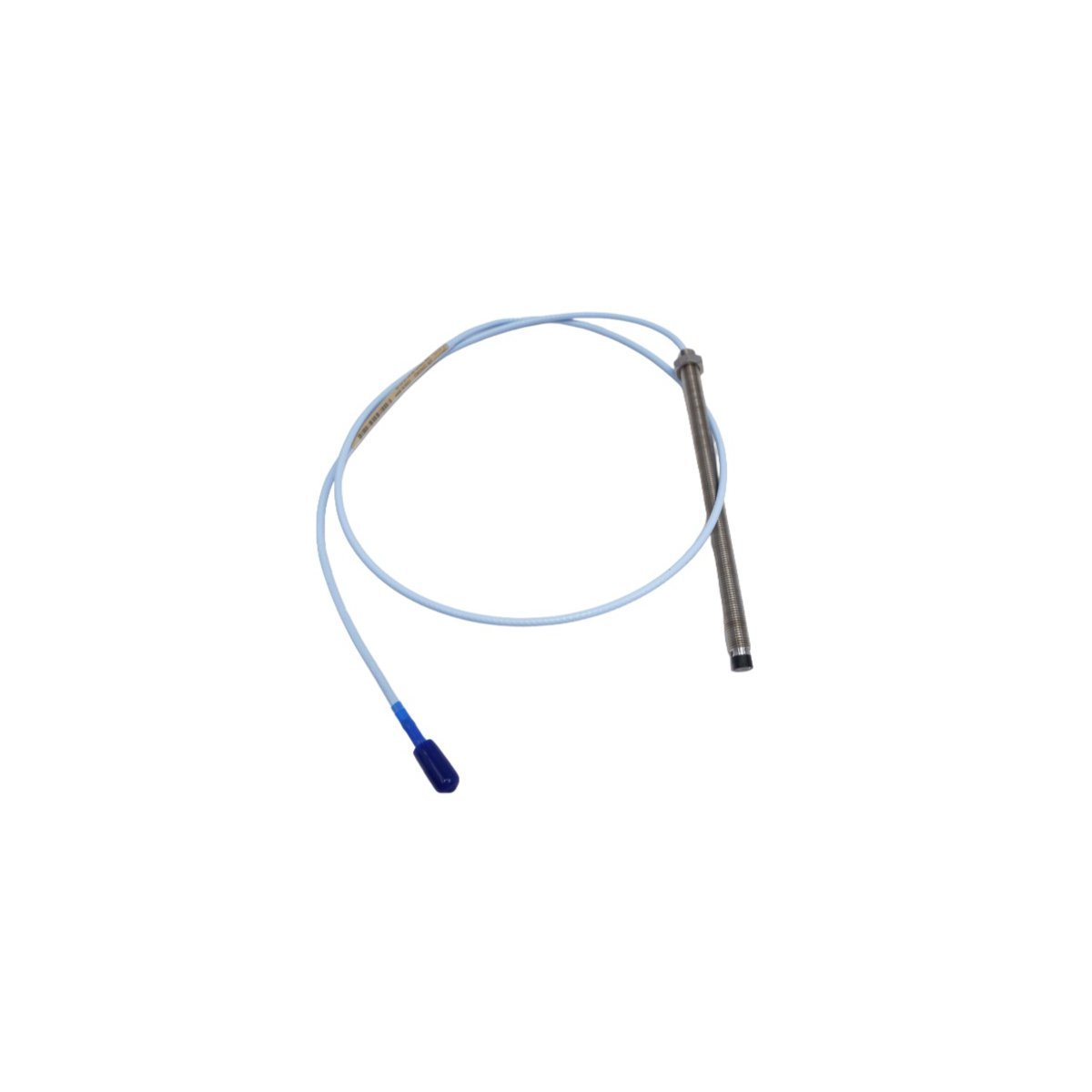

The Bently Nevada 330101-00-66-20-02-00 represents the gold standard in non-contacting displacement measurement for critical industrial machinery. Engineered for the 3300 XL 8mm system, this probe delivers sub-micron resolution essential for monitoring radial vibration and axial shaft position on high-speed rotating assets like steam turbines, centrifugal compressors, and large induction motors. By providing high-fidelity data to the Bently Nevada 3500 system, it enables proactive machine health diagnostics and facilitates rapid emergency shutdown (ESD) logic to prevent catastrophic failure. Its robust design ensures long-term stability and repeatability, making it a cornerstone of modern Turbine Supervisory Instrumentation (TSI) architectures worldwide.

Suffix Variable Matrix

The 330101-00-66-20-02-00 model string specifies the exact mechanical and electrical fit for specialized field requirements. The -00 suffix indicates a 0.0-inch unthreaded length, while the -66 designates an overall case length of 6.6 inches, ideal for deep-mount bearing housing installations. The -20 option confirms a 2.0-meter (approx. 6.6 feet) integrated cable length, offering extended reach for routing to local junction boxes. The -02 suffix specifies a miniature coaxial connector with Click-Loc and FluidLoc features, effectively preventing oil migration through the cable core. The final -00 denotes standard agency approvals (ATEX/CSA), certifying the unit for reliable operation in hazardous industrial environments.

Technical Specifications

Field Commissioning and Calibration

Precise installation of the 330101-00-66-20-02-00 requires setting the Gap Voltage to approximately -10.0 VDC against a 4140 steel target. This positioning ensures the probe operates within the most linear portion of its 80-mil range. During bearing housing integration, maintain a minimum side-view clearance of 15 mm from any adjacent metallic surfaces to eliminate parasitic eddy current interference. For cable routing, technicians must strictly observe a minimum bend radius of 25.4 mm (1.0 inch) to preserve internal coaxial integrity. Always verify that the combined electrical length of the probe and extension cable matches the Proximitor’s calibrated system length (typically 5.0m or 9.0m) to maintain scale factor accuracy.

Industrial Resilience and System Synergy

The 3300 XL 8mm series demonstrates superior resilience in environments saturated with synthetic lubricants and extreme thermal gradients. This probe integrates seamlessly with Honeywell Experion PKS or Siemens SIMATIC S7 via the 3500/42M monitor, providing high-resolution orbit plots and shaft centerline diagnostics. Its Polyphenylene Sulfide (PPS) probe tip provides exceptional chemical resistance, while the FEP-jacketed cable prevents moisture ingress. By providing deterministic displacement data, the 330101 series supports API 670 compliant machinery protection, ensuring maximum uptime and preventing costly unplanned outages in offshore platforms and power generation facilities.

Global Logistics and Order Fulfillment

Dispatch Window: All orders are processed and ready for worldwide shipment within 2-7 days when payment finish.

Carrier Network: We partner with DHL, FEDEX, and UPS to provide expedited door-to-door delivery with real-time digital tracking.

Industrial Protection: Every unit is secured in heavy-duty anti-static industrial packaging and moisture-resistant barrier bags to preserve the delicate sensing tip and gold-plated connectors during transit.

Quality Assurance: We supply exclusively New, Sealed, and Original Pack Bently Nevada hardware. Our technical team performs a multi-point visual and electrical continuity check prior to shipment, ensuring immediate out-of-the-box reliability for your critical assets.

Transducer Systems Troubleshooting

Q1: Can I use this 2.0m probe with a standard 3.0m extension cable?

A1: Yes, provided your Proximitor is a 5.0-meter model. The sum of the probe length (2.0m) and the extension cable (3.0m) must match the Proximitor's calibrated system length to ensure signal accuracy.

Q2: What is the primary function of the FluidLoc connector (-02)?

A2: The FluidLoc feature utilizes internal seals to prevent oil or process gas from wicking through the cable interior, protecting junction boxes and control cabinets from fluid ingress.

Q3: How do I identify a probe failure at the monitor?

A3: A "Channel Not OK" status or a Gap Voltage reading of 0 VDC or -24 VDC typically indicates a short or open circuit in the coaxial line, often caused by cable damage or connector contamination.

Q4: Is the 330101-00-66-20-02-00 compatible with older 3300 series monitors?

A4: Yes. 3300 XL probes are downward compatible with 3300 series Proximitors, although we recommend upgrading the entire loop to XL components for superior temperature stability and performance.
