Product Overview

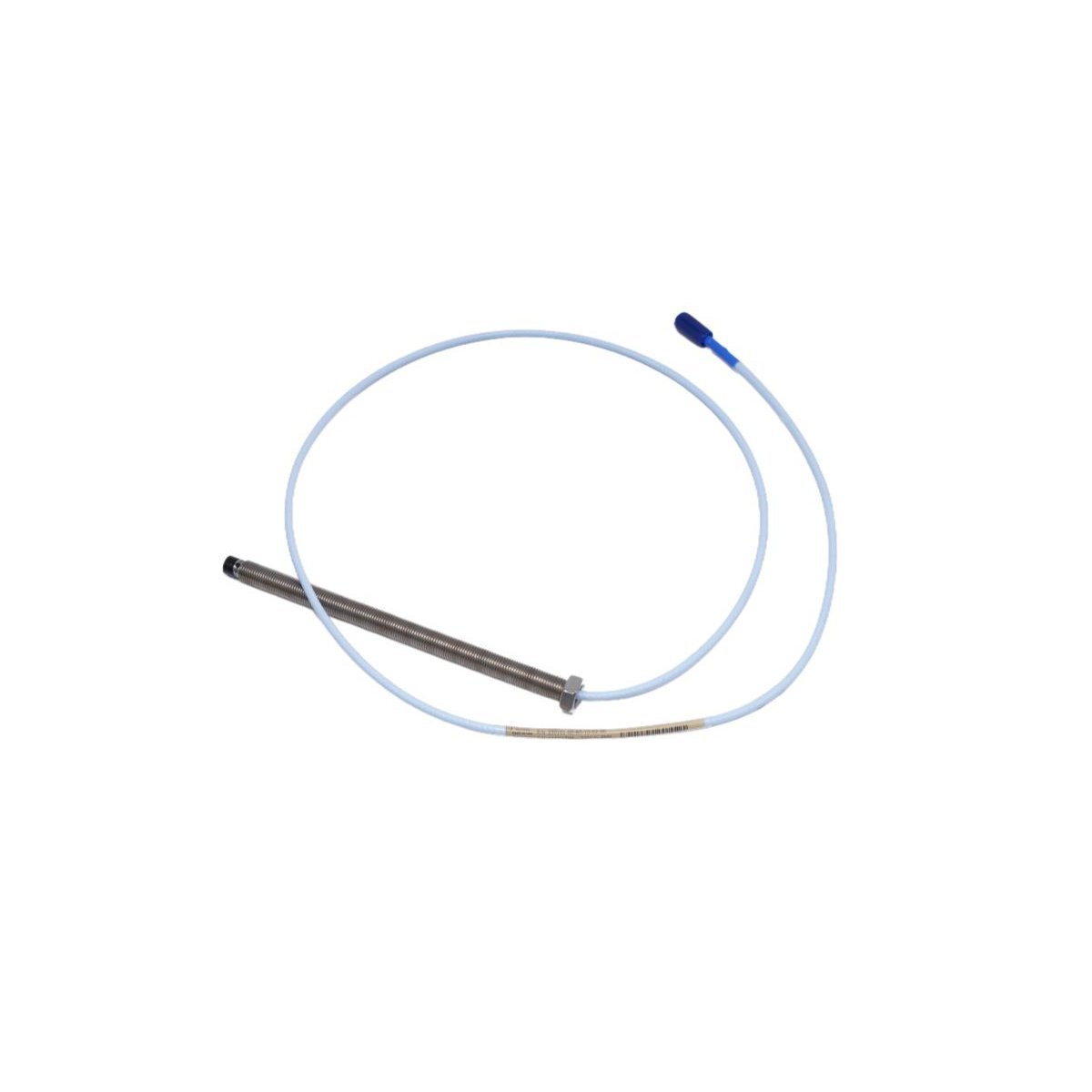

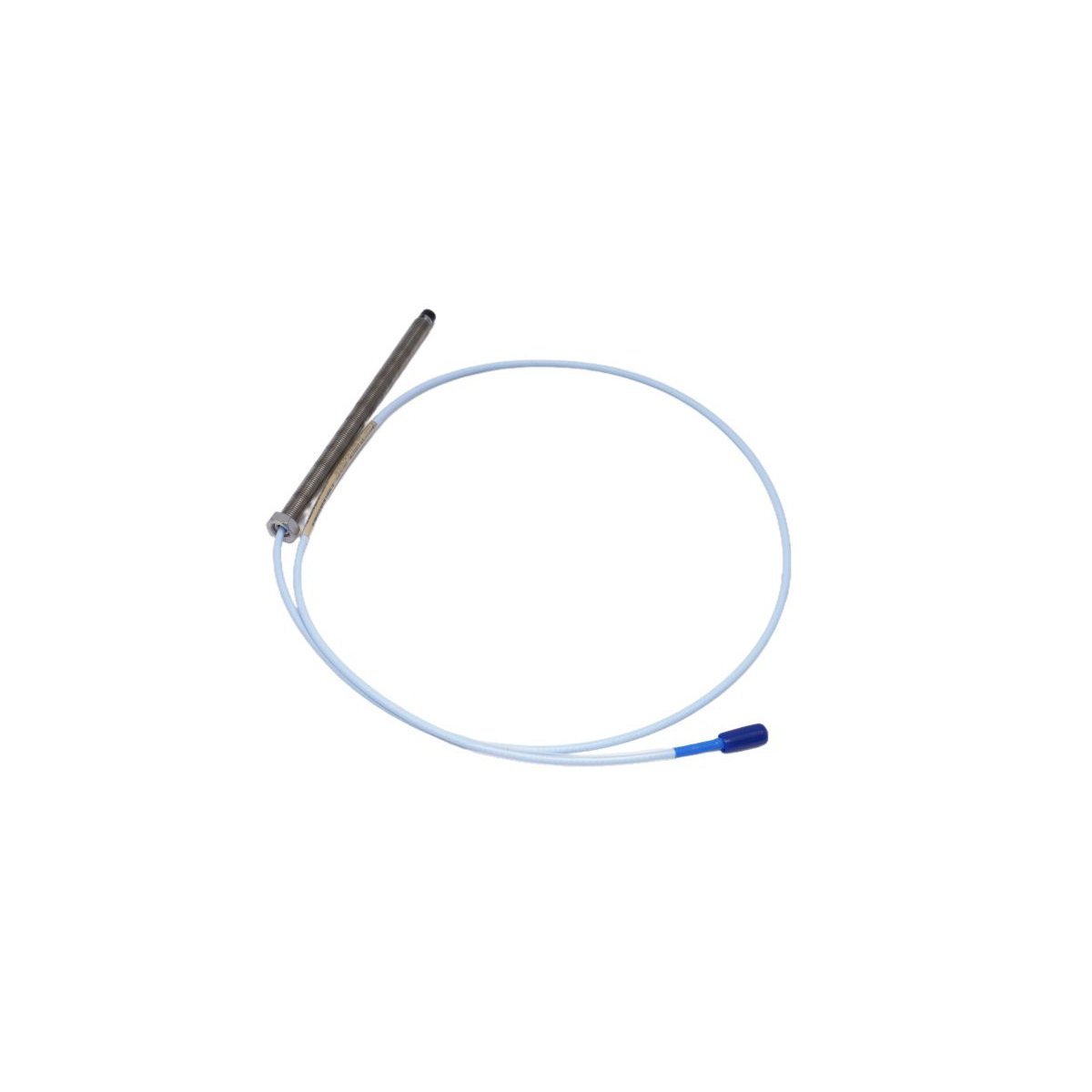

The Bently Nevada 330101-00-60-10-02-05 serves as a vital sensing component within the 3300 XL 8mm Transducer System, providing unmatched precision in non-contacting displacement measurements. Engineered for the most demanding rotating machinery applications, this probe excels in monitoring radial vibration and axial thrust position on high-speed shafts. In critical industrial sectors such as power generation and petrochemical refining, the 330101 series ensures early detection of mechanical anomalies, feeding high-fidelity data into the Bently Nevada 3500 system to trigger emergency shutdown protocols when necessary. Its advanced design offers the thermal stability and frequency response required to maintain plant safety and optimize the performance of steam turbines, compressors, and large-scale pumps.

Suffix Interpretation and Configuration Logic

The 330101-00-60-10-02-05 model string dictates the specific mechanical and electrical fit for your machine housing. The -00 suffix indicates a 0.0-inch unthreaded length, while the -60 specifies a 6.0-inch overall case length, designed for shallow-mount or bracketed installations. The -10 designation defines a 1.0-meter (approx. 3.3 feet) total cable length, intended for connection to a secondary extension cable. The -02 suffix confirms the presence of a miniature coaxial connector with a standard click-lock interface, ensuring a vibration-resistant signal path. Finally, the -05 option specifies a Multiple Agency Approval rating, certifying the probe for use in hazardous areas including ATEX and CSA Class I, Div 1 zones when installed with appropriate barriers.

Mechanical and Electrical Parameters

Field Deployment and Gap Calibration

Achieving reliable data from the 330101-00-60-10-02-05 requires meticulous installation according to API 670 standards. Engineers must utilize a digital voltmeter to set the Gap Voltage at approximately -10.0 VDC, placing the probe in the center of its linear range. Ensure the probe tip maintains a side-view clearance of at least 15mm from any adjacent metallic objects to avoid eddy current interference that distorts vibration readings. We strongly advise using specialized connector protectors to prevent oil and moisture ingress into the coaxial junction. Always verify that the total electrical length (Probe + Extension Cable) matches the Proximitor’s calibration, typically 5 or 9 meters, to prevent severe scale factor errors.

Engineering Advantages in Extreme Environments

The 3300 XL 8mm series offers superior mechanical resilience in environments saturated with synthetic lubricants and high thermal gradients. The 330101-00-60-10-02-05 integrates seamlessly with Honeywell Experion PKS systems via the 3500/42M monitor, providing a comprehensive machinery protection strategy. Its gold-plated Brass connectors and high-performance PPS (Polyphenylene Sulfide) probe tip resist chemical corrosion and high-pressure steam, ensuring signal integrity over decades of service. This probe provides the high-resolution displacement data necessary for advanced "Orbit" and "Shaft Centerline" diagnostics, which are critical for identifying bearing wear and shaft misalignment in TSI (Turbine Supervisory Instrumentation) suites.

Logistics and Rapid Fulfillment

Shipment Lead Time: Units are processed and dispatched within 3-5 days when payment finish.

Carrier Network: We utilize DHL, FEDEX, and UPS for global expedited shipping, providing door-to-door tracking for critical maintenance orders.

Industrial Protection: Every unit is shipped in anti-static industrial packaging and secured with shock-absorbent materials to preserve the delicate sensing tip.

Product Integrity: We strictly supply New, Sealed, and Original Pack hardware. Our technical team performs a rigorous visual and continuity check on all Bently Nevada probes to ensure they arrive ready for immediate site commissioning.

Maintenance and Technical FAQs

Q1: Can I use this 1-meter probe without an extension cable?

A1: No. Bently Nevada 3300 XL Proximitors are tuned for specific total lengths, typically 5.0 or 9.0 meters. Using a 1-meter probe alone will result in a "Not OK" status and incorrect vibration data.

Q2: What is the benefit of the -05 Multiple Agency Approval?

A2: This suffix ensures the probe is certified for global use in explosive atmospheres (ATEX, IECEx, CSA). It allows multinational companies to standardize on a single part number for facilities worldwide, regardless of local regional certification requirements.

Q3: How do I identify if the probe cable has been damaged during installation?

A3: Check the DC Gap Voltage. If the voltage jumps to -24V or stays at 0V regardless of the distance from the target, the coaxial cable is likely open or shorted.

Q4: Is the 330101-00-60-10-02-05 compatible with older 7200 series Proximitors?

A4: While physically similar, the 3300 XL series is not electrically compatible with legacy 7200 Proximitors. You must use a 3300 XL Proximitor to ensure the 200 mV/mil scale factor is accurate.
