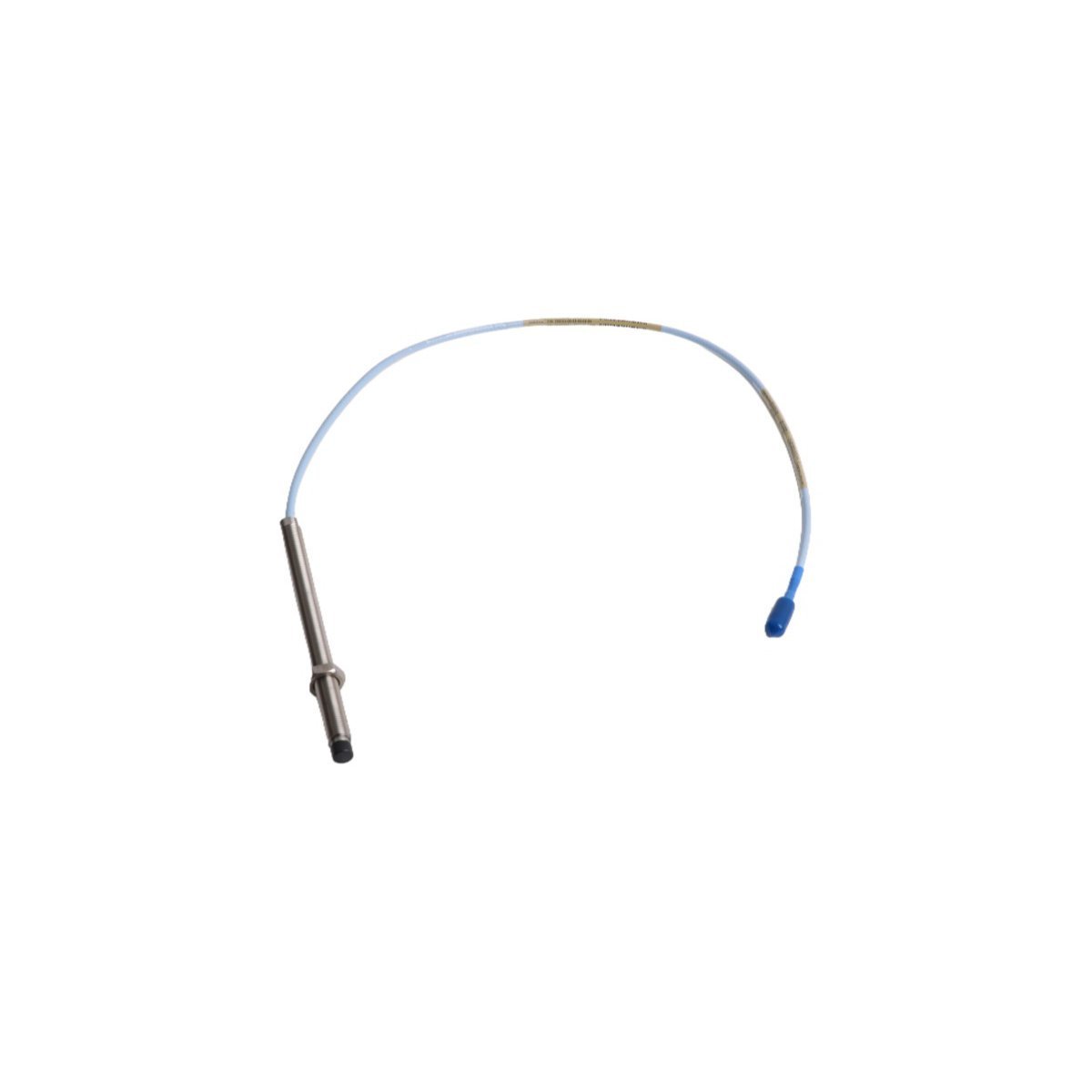

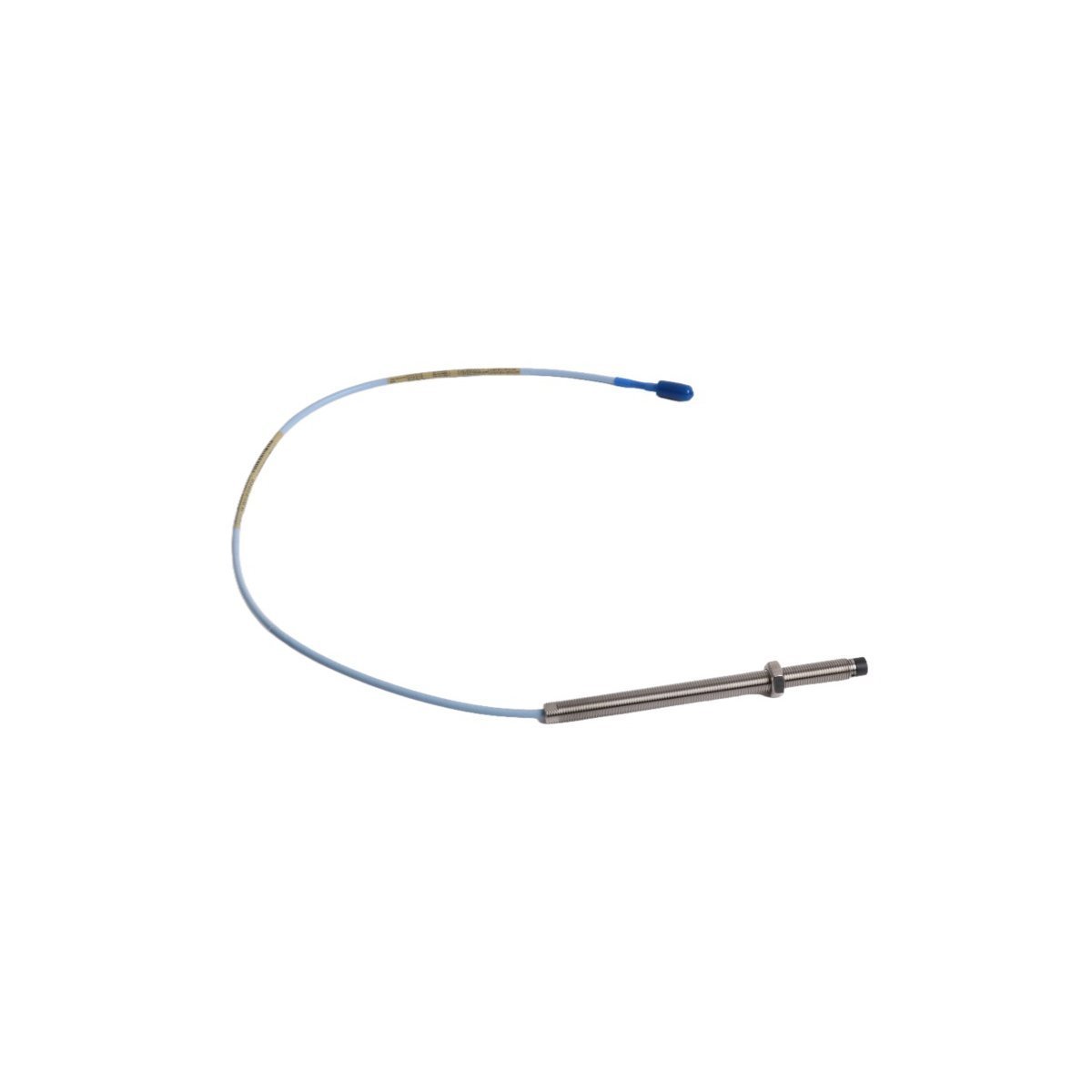

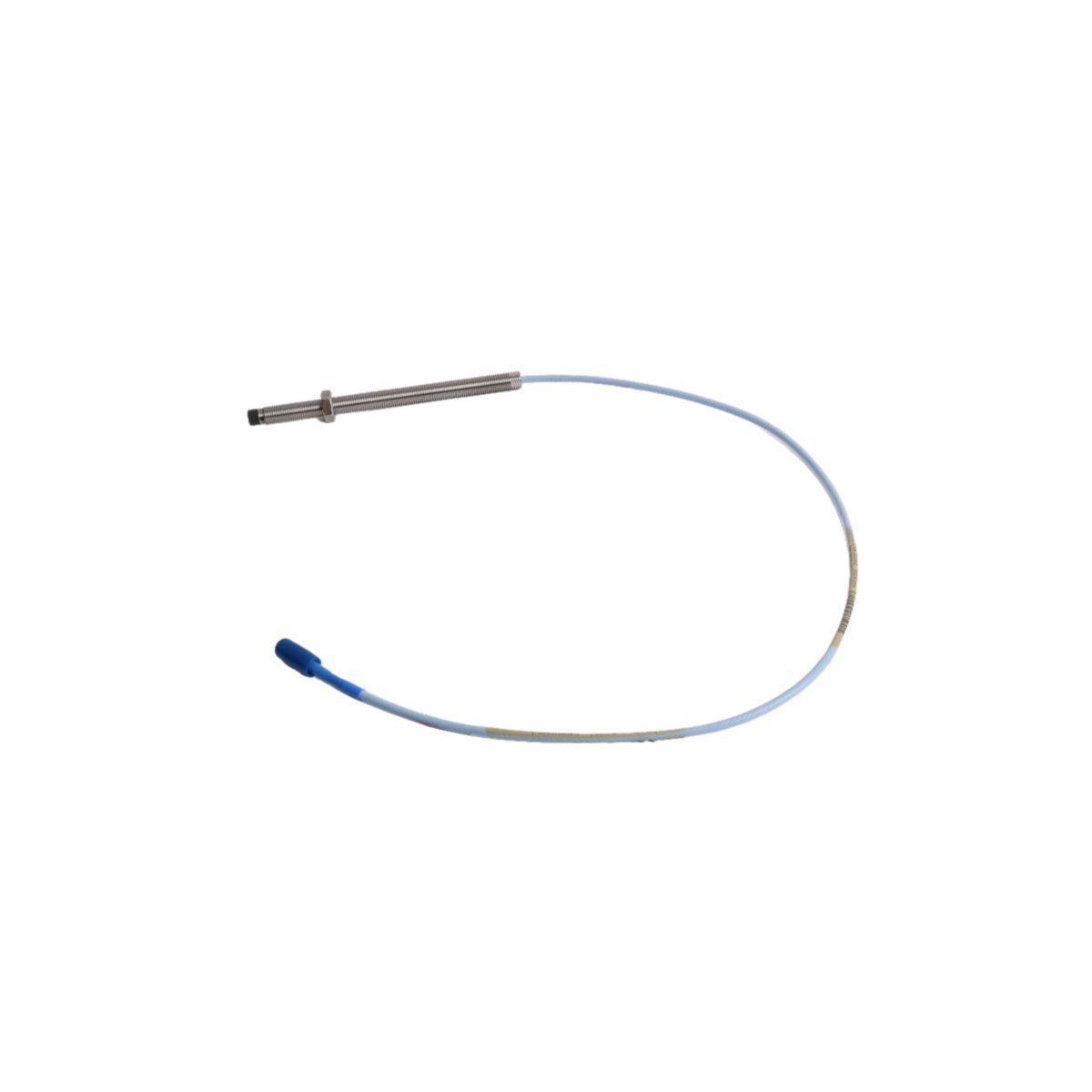

Configured for precision displacement and vibration sensing in rotating machinery monitoring platforms, the Bently Nevada 330101-00-57-10-02-05 (330101 Proximity Probe) provides direct physical execution of eddy-current based signal transduction.

Model Configuration Matrix

The 330101-00-57-10-02-05 identifies the mechanical and electrical specifications for the 3300 XL 8 mm transducer system:

• 330101: 8 mm Proximity Probe

• 00: Unthreaded Length

• 57: Overall Case Length (570 mm)

• 10: Total Length (1.0 m)

• 02: Connector Option

• 05: Agency Approval Option

Hardware Specifications

Mechanical Monitoring & Signal Integrity

The transducer system operates on the principle of eddy-current probe scaling to detect the relative motion between the probe tip and a conductive target. To ensure accurate rotor dynamics data, the gap voltage must be validated against the -10 VDC target range within the specified linear operating zone. Installation procedures must prioritize cross-talk suppression by adhering to minimum spatial separation requirements between parallel probes, preventing high-frequency interference during machine operation.

Ordering Info

• 1 x 330101 Proximity Probe

• 1 x Connector protective dust cap

• Installation documentation and compliance sheets

Field Installation Guidelines

• Mounting: Secure the probe body using the provided locknut. Ensure NPT thread engagement follows standard 5-thread engagement depth to maintain mechanical stability.

• Gap Alignment: Utilize a digital voltmeter at the Proximitor sensor output to calibrate the nominal air gap relative to the machine shaft.

• Shielding: Terminate coaxial shielding at the monitor rack common ground to mitigate electromagnetic noise.

• Cable Routing: Route extension cables through dedicated electrical conduit, separated from high-voltage AC lines.

Global Logistics

• Delivery time: 2-7 days when payment finish.

• Dispatched via DHL/FEDEX/UPS.

• All components are secured in anti-static industrial packaging to ensure protection against ESD and mechanical impact during transit.

Frequently Asked Questions

• What material targets are supported? Standard calibration is optimized for AISI 4140 steel; other conductive materials require custom calibration factors.

• What is the probe sensitivity? The nominal sensitivity is 7.87 V/mm (200 mV/mil).

• How often should calibration be verified? Verify calibration during major machinery maintenance cycles or if significant baseline drift is observed in the monitoring software.

• Can the probe operate in hazardous environments? Yes, provided the installation complies with specified explosion-proof or intrinsic safety ratings.

• What extension cables are compatible? Only 3300 XL series coaxial extension cables are approved for use with this probe system.

• What causes unstable gap voltage? Unstable readings often indicate loose connector joints, degraded coaxial insulation, or high-frequency interference on the signal path.

• How is probe health tested? Probe health is assessed by measuring the loop resistance of the cable and validating the DC gap voltage at the transducer driver.

• What is the expected service life? Service life is contingent upon operational temperature extremes and mechanical vibration levels at the probe mounting point.
