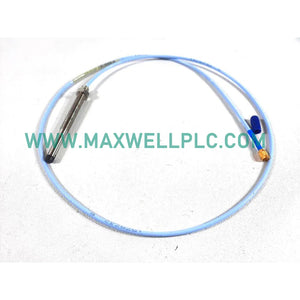

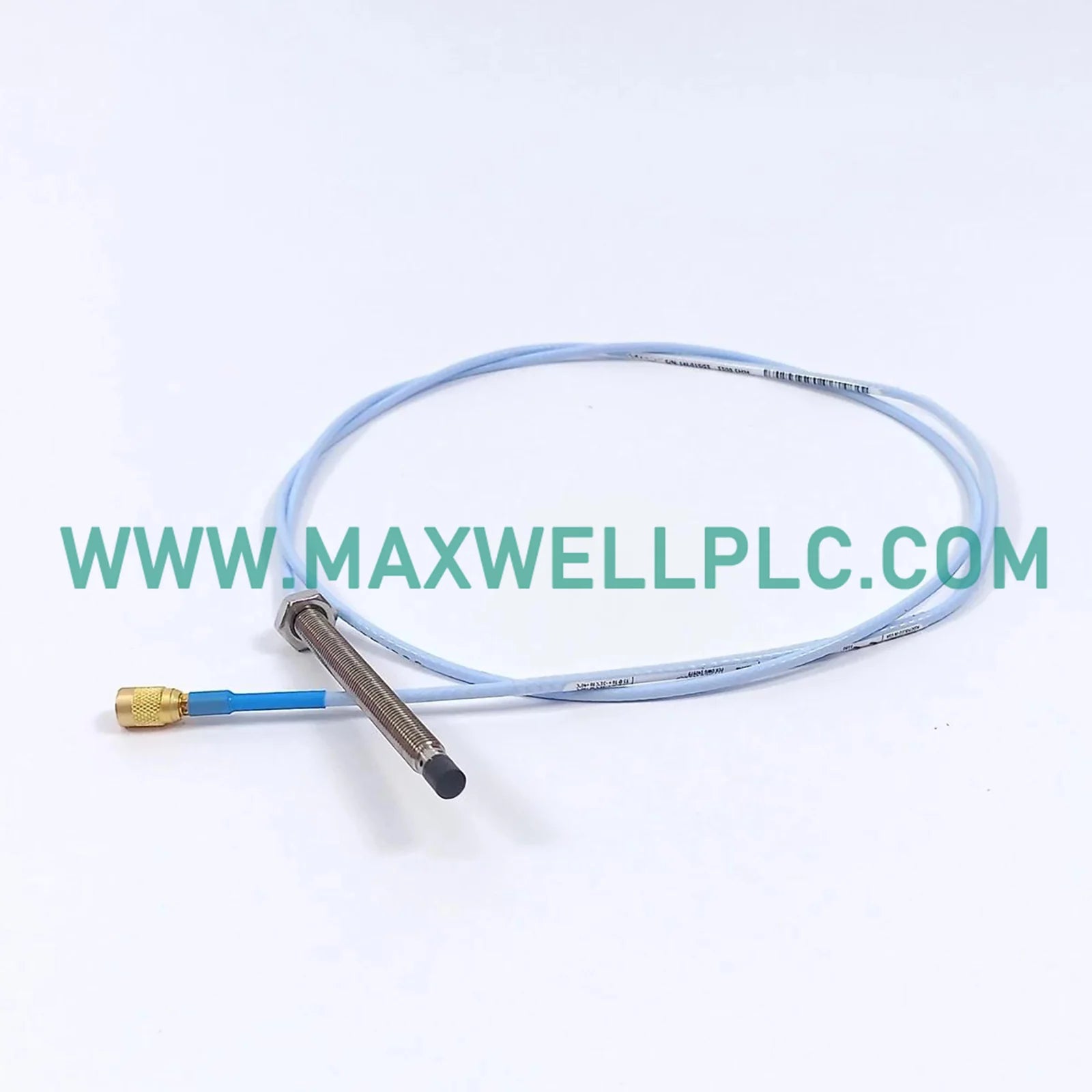

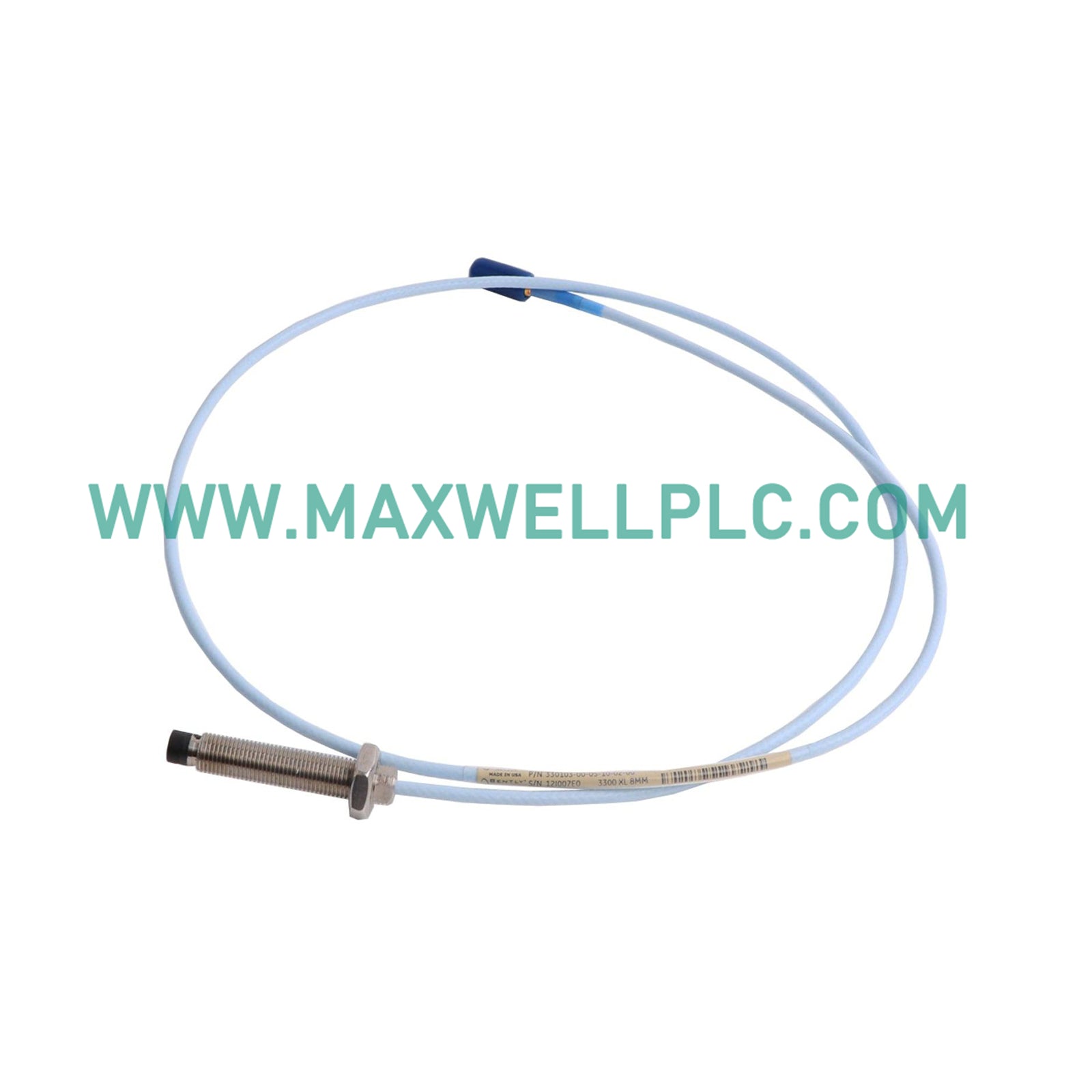

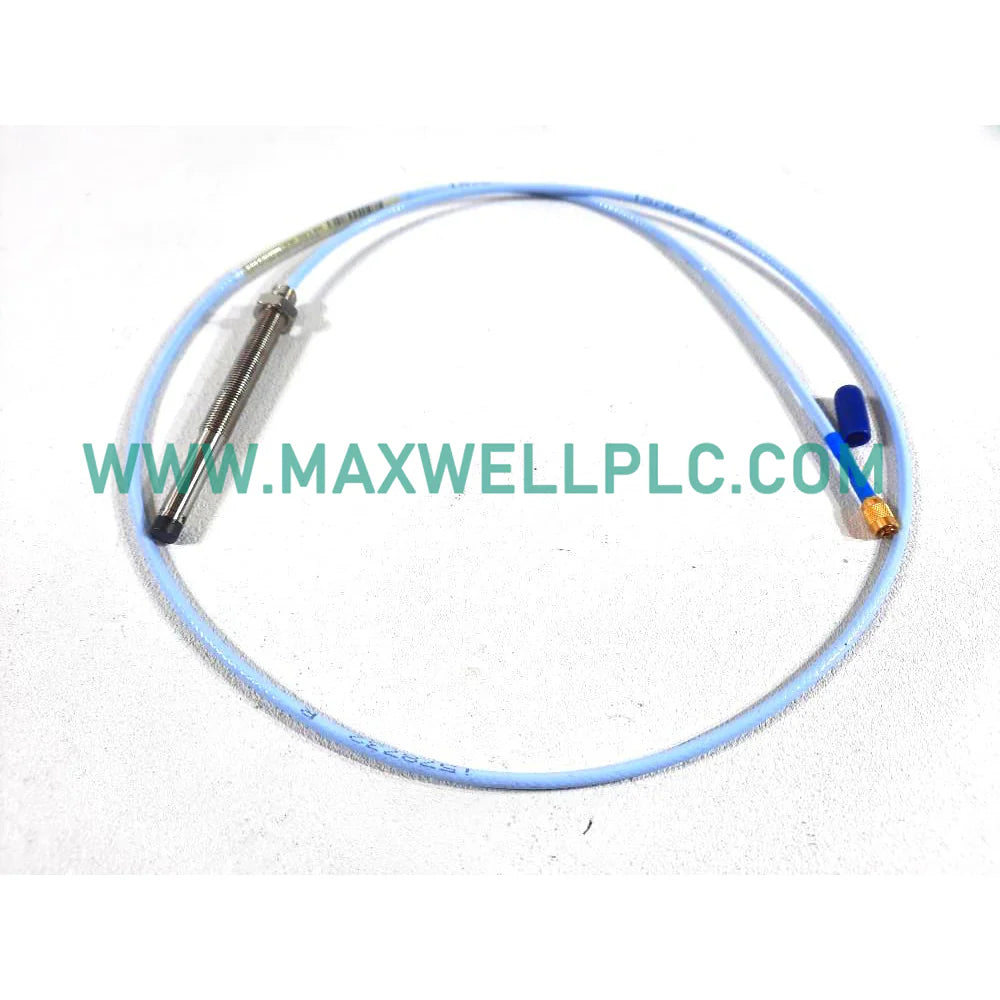

Engineered for precise industrial machinery health monitoring, the Bently Nevada 330101-00-53-10-12-05 (330101) executes non-contact vibration telemetry across critical rotating assets.

Order Configuration & Part Nomenclature

• 330101: 3300 XL 8 mm Proximity Probe, external threaded case configuration
• 00: Unthreaded case length designation (0.0 in baseline)
• 53: Total electrical length option for custom cabling matching
• 10: Miniature coaxial ClickLock connector style with molded protector
• 12: Multiapproval option supporting hazardous area installations
• 05: Country specific calibration and regional compliance code

Engineering Specifications Matrix

Transduction Physics & Centerline Alignment

The eddy-current measurement architecture relies on high-frequency radio frequency modulation to detect physical displacement between the probe tip and the rotating shaft surface. Proper loop calibration mandates verifying the static gap voltage, targeting an operational reference value of -10 VDC during normal machinery centerline rotation. To maintain signal fidelity, cross-talk suppression protocols must be observed by keeping appropriate physical distances between neighboring transducers in dual-axis arrangements.

Included Box Items

• 1 x Bently Nevada 330101-00-53-10-12-05 3300 XL Proximity Probe
• 1 x Coaxial ClickLock Connector Protective Dust Cap
• 1 x Standard Brass Mounting Nut with Lockwasher
• 1 x High-Temperature Environmental Insulation Sleeve

Mechanical Setup & Field Guidelines

• Transducer Mounting Mechanics
  • Ensure bearing housing threads are clean, dry, and free of metallic debris prior to threading the probe body.
  • Apply controlled torque levels using calibrated tooling to avoid structural thread deformation or casing damage.
• Shielding & Cable Routing
  • Keep extension coaxial lines physically separated from high-capacity motor power lines and variable frequency drive outputs.
  • Anchor the cable shield to a single earth ground point at the monitor termination rack to mitigate electrical noise.

Frequently Answered Technical Inquiries

• Q: What electrical output scale factor does this model produce?
• A: The nominal incremental scale factor is 7.87 V/mm (200 mV/mil) when integrated with its matched Proximitor sensor.
• Q: What is the maximum continuous temperature endurance for the probe tip?
• A: Both the probe tip and the integral coaxial cable tolerate continuous operating environments up to +177 deg C.
• Q: What gap voltage should technicians target during initial setup?
• A: Initial mechanical gap voltage must be adjusted to roughly -10 VDC to center the probe within its linear operating span.
• Q: Are specialized tightening tools needed for the coaxial ClickLock connectors?
• A: No, the ClickLock mechanism is intended for secure hand tightening with positive mechanical feedback under vibration.
• Q: What thread specification governs the probe case exterior?
• A: The unit utilizes standard 3/8-24 UNF threading designed for secure insertion into machinery mounting ports.
• Q: How does total cable length impact system operation?
• A: System electrical length dictates specific Proximitor matching requirements to preserve signal capacitance and linearity.
• Q: What power source energizes the measurement loop?
• A: A regulated -24 VDC power supply built into the rack monitor chassis drives the internal electronic circuit.
• Q: Why is single-point shielding termination critical?
• A: Single-point grounding prevents ground loops and suppresses high-frequency electromagnetic interference from corrupting data.
