The Bently Nevada 330101-00-45-10-12-CN operates as a dedicated hardware component for non-contacting static and dynamic shaft displacement measurements within 3300 XL Turbomachinery Instrumentation System platforms. The hardware measures high-frequency eddy-current field variations generated by the tip assembly interacting with a rotating conductive target to provide raw radial vibration, shaft position, or speed data.

Technical Parameters

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The 8 mm sensing tip relies on strict compliance with factory-calibrated eddy-current probe scaling constraints to output an electrical response slope of 7.87 V/mm. Mechanical positioning via the threaded casing defines the static air gap, matching the gap voltage validation target of -10 VDC at the linear center point of the transducer system loop. This physical-to-electrical alignment enables continuous parsing of microscopic high-frequency rotor dynamics. Internal impedance optimization across the coaxial path preserves signal integrity and ensures cross-talk suppression when dual probes are configured in orthogonal X-Y arrangements on a single machinery bearing housing.

Component Integration

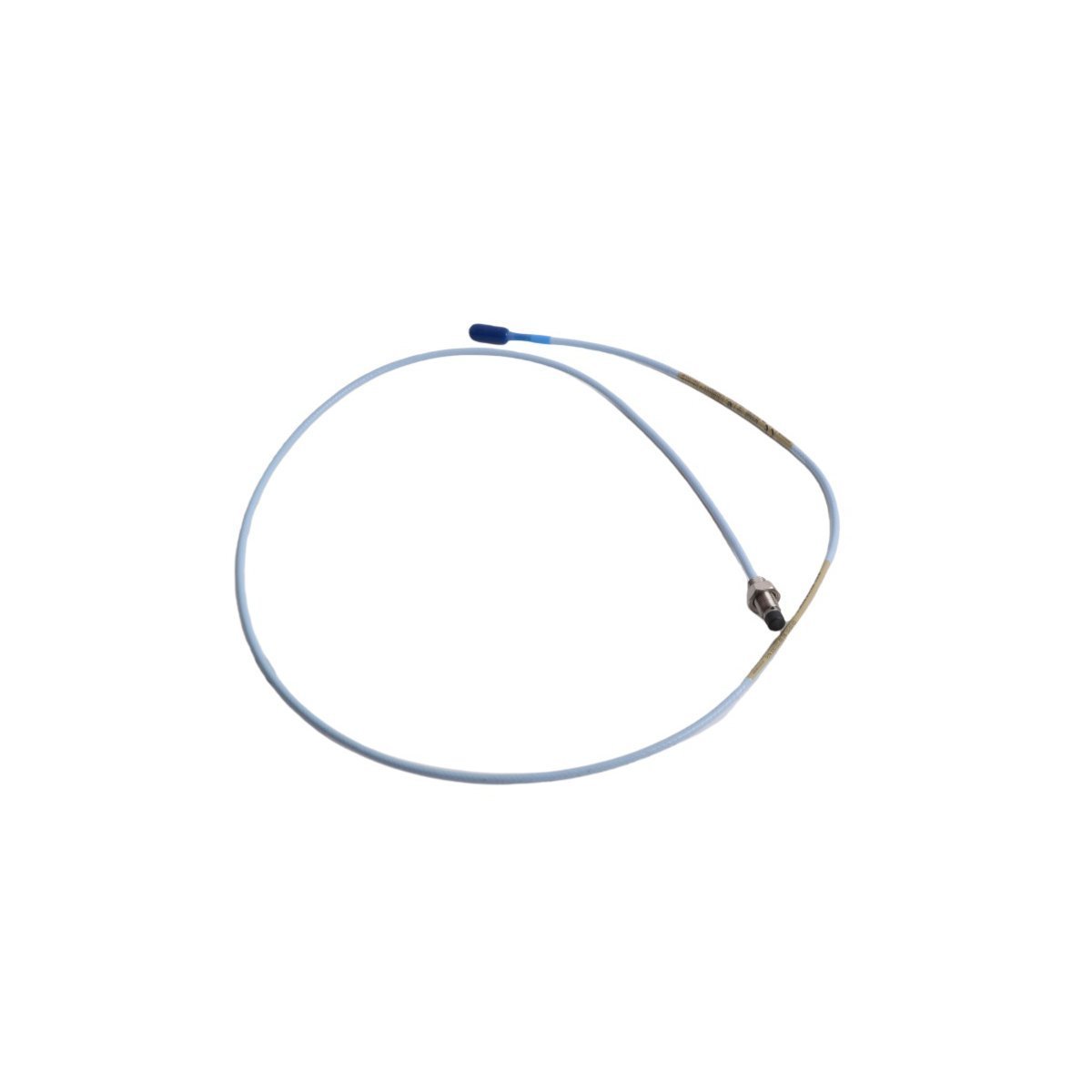

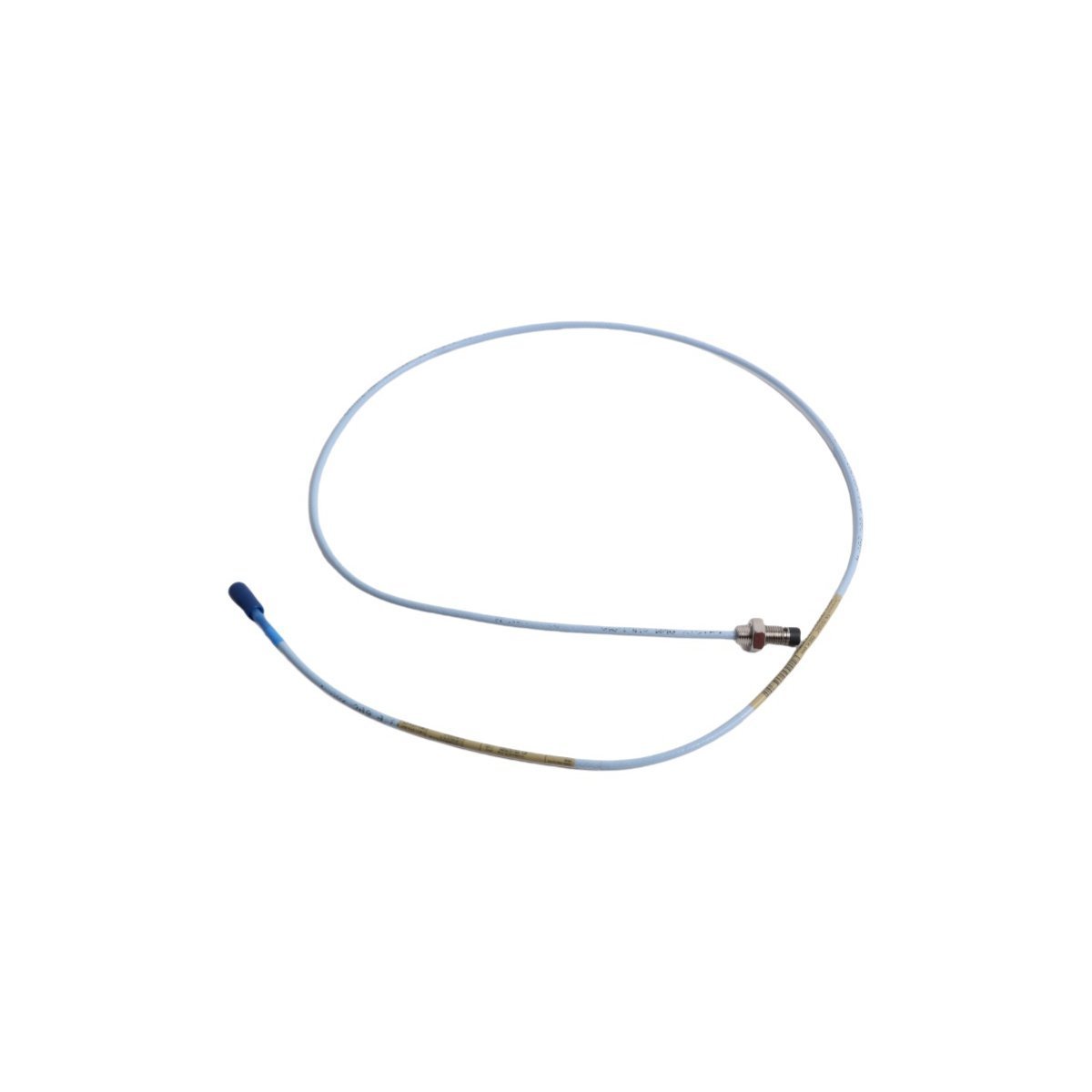

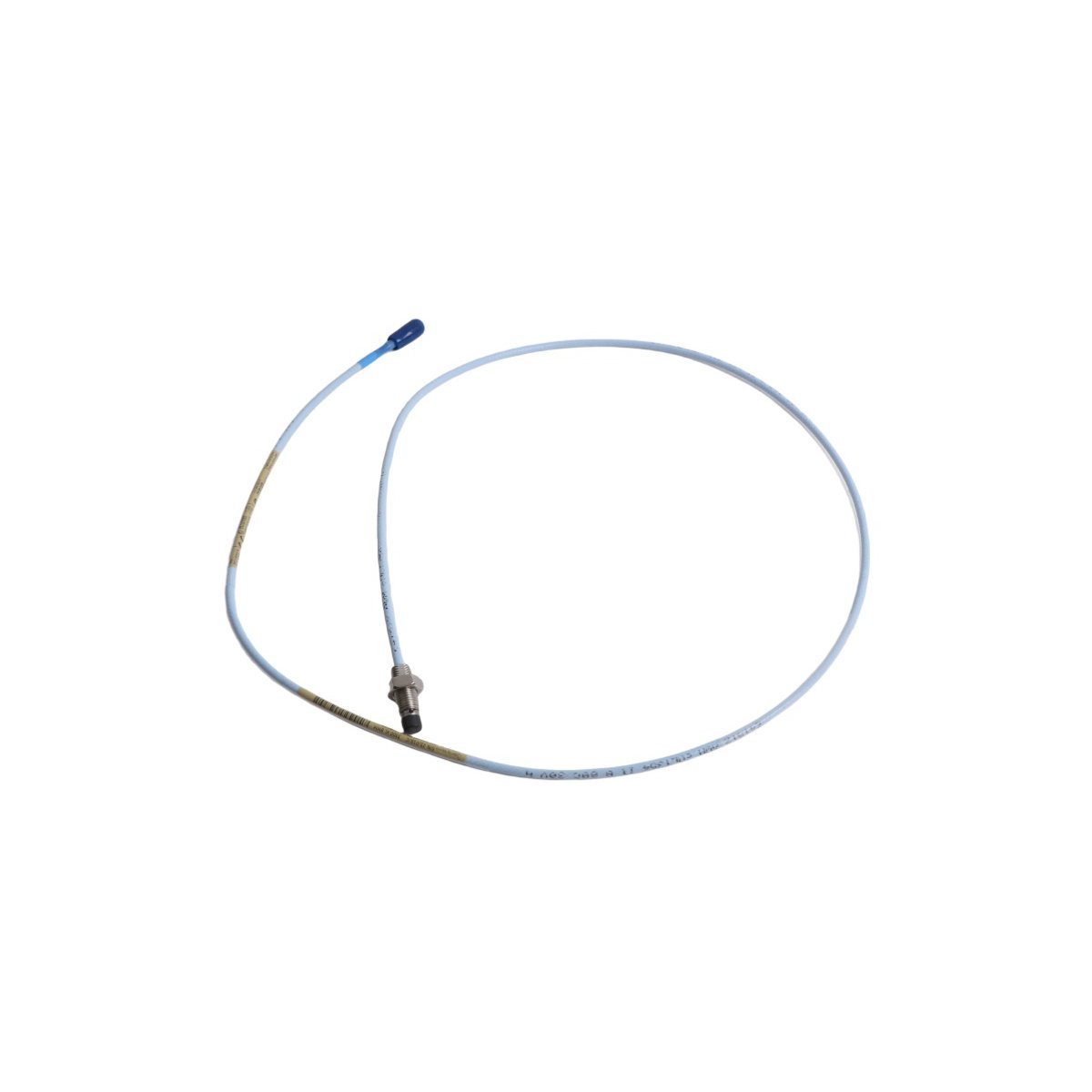

• Transducer Unit Package: Contains the 330101 8 mm probe assembly featuring an armored 1.0-meter integrated cable and click-lock coaxial terminal.

• Separated Ancillaries: Matching 3300 XL Proximitor sensors, extension cables, and mounting brackets must be ordered as distinct items to form a complete instrumentation loop.

Logistics and Dispatch Criteria

• Processing Interval: Material dispatch is scheduled within 2 to 7 days when payment finish sequences are confirmed.

• Consignment Operators: Transportation is carried out via international express handlers including DHL, FEDEX, or UPS.

• Shielding Protocol: All components are packed in static-shielding, anti-static industrial packaging to prevent latent electrical defect generation during transit.

Field Installation Guidelines

• Mounting Torque Limits: Insert the probe thread manually into the mounting port. Torque the primary locknuts to a maximum value of 11.2 N-m (100 in-lb) to prevent structural distortion of the 3/8-24 UNF threaded barrel.

• Transducer Gap Optimization: Connect a digital voltmeter to the Proximitor sensor output loop terminals. Adjust the probe insertion depth relative to the target face until the real-time gap voltage validation reads exactly -10 VDC nominal before securing the jam nut.

• Coaxial Connector Grounding: Keep the miniature click-lock connectors completely clean and dry during routing. Insulate the connector joint with fluorocarbon heat-shrink sleeves to prevent grounding against local flexible conduit walls, maintaining cross-talk suppression.

Frequently Asked Questions

Q: How does an installation deviation from the nominal gap voltage validation affect vibration data?

A: Placing the probe tip outside the calibrated linear zone alters the baseline eddy-current probe scaling factor. This cause leads to signal clipping during high-amplitude transient events, resulting in degraded accuracy when tracking high-frequency rotor dynamics.

Q: Can the 1.0-meter armored cable be cut or modified to simplify physical routing?

A: No. Altering the physical length of the integral cable changes the tuned loop capacitance and electrical length parameters. Splicing disrupts the calibrated eddy-current probe scaling matrix, invalidating the system calibration.

Q: What separation distance must be maintained to achieve effective cross-talk suppression?

A: Maintain a minimum center-to-center separation distance of 40 mm between adjacent 8 mm probe tips. Positioning tips closer than this threshold allows their electromagnetic fields to overlap, causing signal beat frequencies that override cross-talk suppression circuits.
